Model # MICROLINE 192/193 PLUS Official OKI Data printer

Here are the diagrams and repair parts for Official OKI Data MICROLINE-192-193-PLUS printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Slmp-1 Printed Circuit Board (eprom) Ml192 (std) 55028211 4YA4021-1033G300
#18

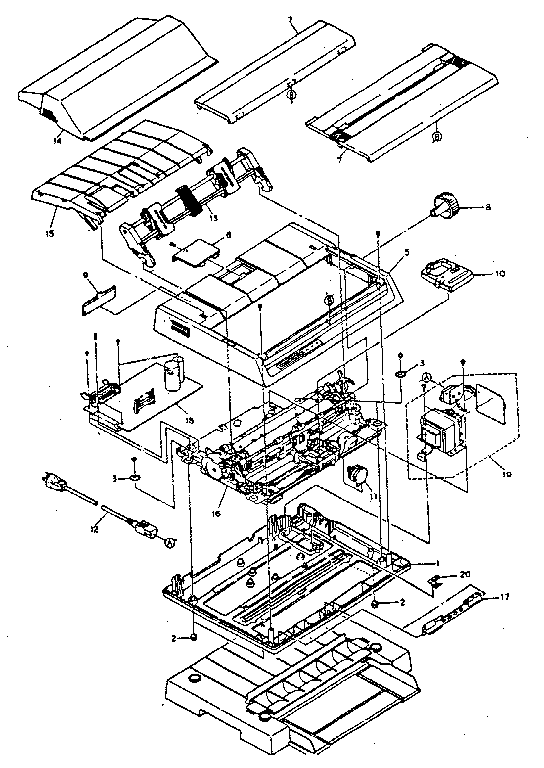

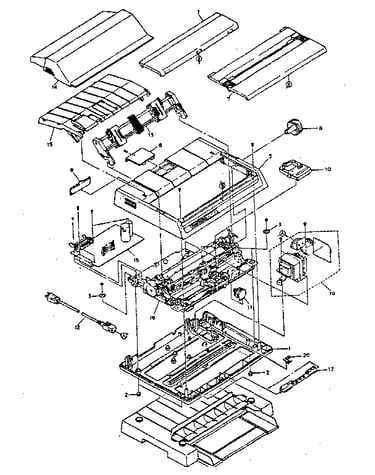

Figure 1 printer unit diagram

Slmp-1 printed circuit board (eprom) ml192 (std) 55028211

Part #4YA4021-1033G300

The manufacturer no longer makes this part, and there's no substitute part

Upper Cover Ml193 3PP4025-1227G1
#5A

Figure 1 printer unit diagram

Upper cover ml193

Part #3PP4025-1227G1

The manufacturer no longer makes this part, and there's no substitute part

Ac Transformer Assembly Ml192 (120v) 56404601 3YX4021-1012G1
#19

Figure 1 printer unit diagram

Ac transformer assembly ml192 (120v) 56404601

Part #3YX4021-1012G1

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 56208401 (common To Both Ml192 And Ml193.) 4PA4025-2617G1
#39

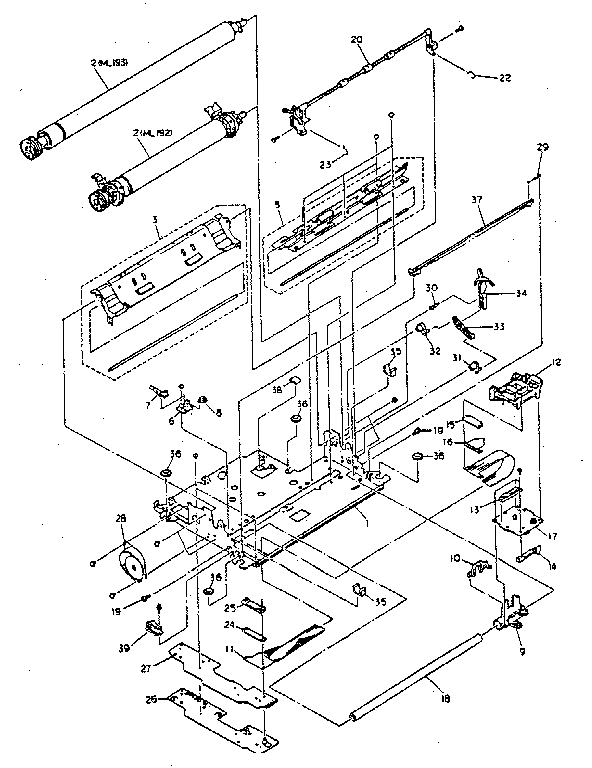

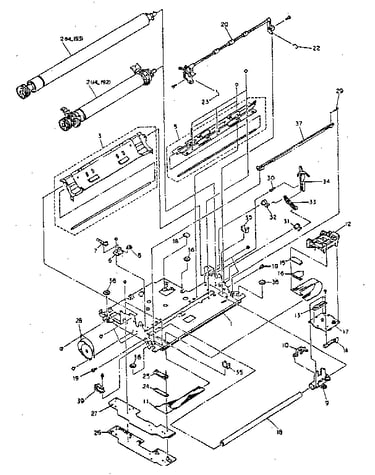

Figure 2 printer mechanism diagram

Switch assembly 56208401 (common to both ml192 and ml193.)

Part #4PA4025-2617G1

The manufacturer no longer makes this part, and there's no substitute part

Bottom Paper Guide Assembly Ml193 50212201 3PA4025-2627G1
#5A

Figure 2 printer mechanism diagram

Bottom paper guide assembly ml193 50212201

Part #3PA4025-2627G1

The manufacturer no longer makes this part, and there's no substitute part

Slsq Printed Circuit Board 4YA4021-1007G1
#17

Figure 1 printer unit diagram

Slsq printed circuit board

Part #4YA4021-1007G1

The manufacturer no longer makes this part, and there's no substitute part

Pressure Roller Spring (r) (part Is Common To Both Ml192 And Ml193) 4PB4025-1097P1
#22

Figure 2 printer mechanism diagram

Pressure roller spring (r) (part is common to both ml192 and ml193)

Part #4PB4025-1097P1

The manufacturer no longer makes this part, and there's no substitute part

Paper Chute Assembly Ml193 50212101 3PA4025-2624G1
#3A

Figure 2 printer mechanism diagram

Paper chute assembly ml193 50212101

Part #3PA4025-2624G1

The manufacturer no longer makes this part, and there's no substitute part

Pin Tractor Assembly (l) Ml192 Option 50052801 4PA4025-2642G1
#2

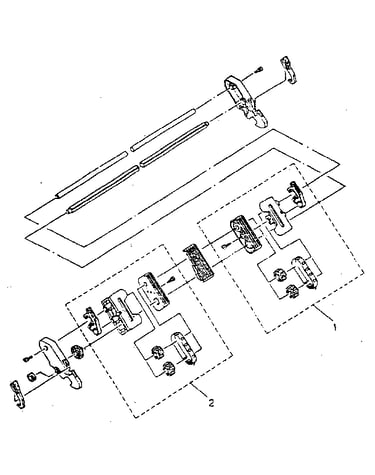

Figure 3 pin tractor assembly diagram

Pin tractor assembly (l) ml192 option 50052801

Part #4PA4025-2642G1

The manufacturer no longer makes this part, and there's no substitute part

Base Frame Ml193 1PP4025-1202P1
#1A

Figure 2 printer mechanism diagram

Base frame ml193

Part #1PP4025-1202P1

The manufacturer no longer makes this part, and there's no substitute part
