Model # 56453490650 Official LXI videocassette recorder

Here are the diagrams and repair parts for Official LXI 56453490650 videocassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Lxi Plate Opera 46-40823-3
#1

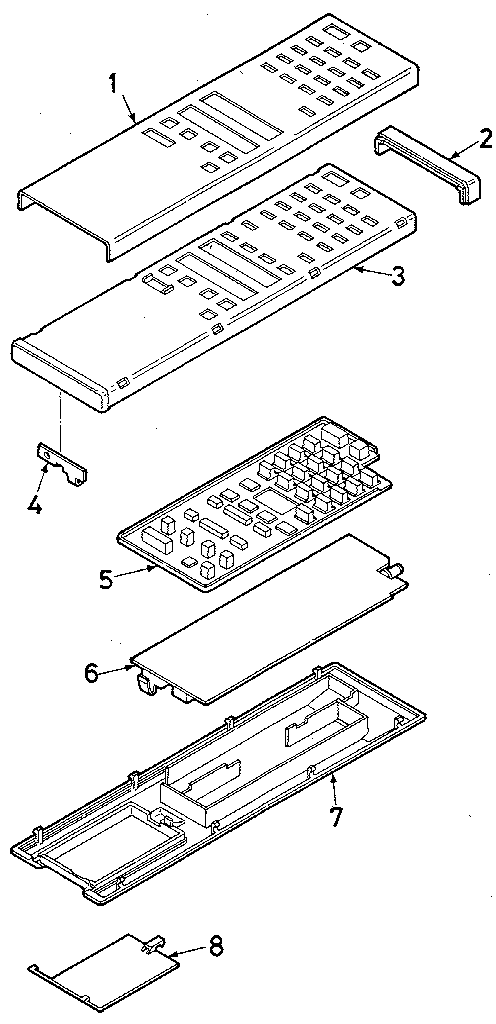

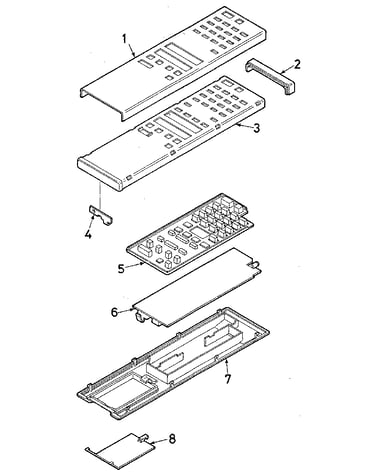

Remote control transmitter diagram

Lxi plate opera

Part #46-40823-3

The manufacturer no longer makes this part, and there's no substitute part

Case Top 46-211578-3
#3

Case diagram

Case top

Part #46-211578-3

The manufacturer no longer makes this part, and there's no substitute part

Case Bottom 46-211579-3
#7

Case diagram

Case bottom

Part #46-211579-3

The manufacturer no longer makes this part, and there's no substitute part

Window Ir 46-48235-3
#2

Case diagram

Window ir

Part #46-48235-3

The manufacturer no longer makes this part, and there's no substitute part

Pcb Asm Rm-1 46-352399-3
#6

Remote control transmitter diagram

Pcb asm rm-1

Part #46-352399-3

The manufacturer no longer makes this part, and there's no substitute part

Battery Lid 46-211580-3
#8

Remote control transmitter diagram

Battery lid

Part #46-211580-3

The manufacturer no longer makes this part, and there's no substitute part

Terminal Battery 46-451103-3
#4

Remote control transmitter diagram

Terminal battery

Part #46-451103-3

The manufacturer no longer makes this part, and there's no substitute part

Button Sheet 46-451171-3
#5

Remote control transmitter diagram

Button sheet

Part #46-451171-3

The manufacturer no longer makes this part, and there's no substitute part
