Model # KECC562GBT4 Official KitchenAid electric counter unit

Here are the diagrams and repair parts for Official KitchenAid KECC562GBT4 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Polish 3191048
#NI

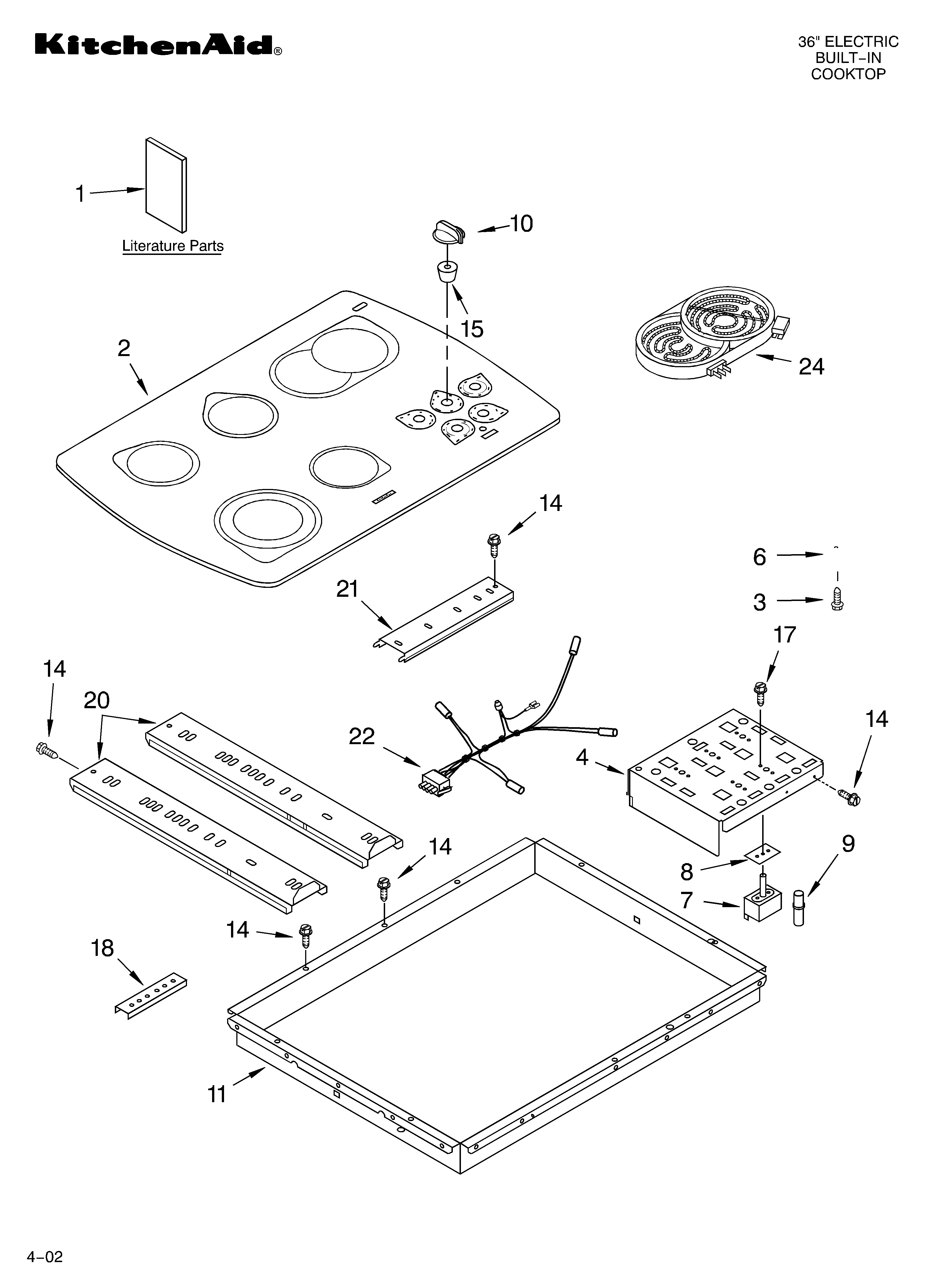

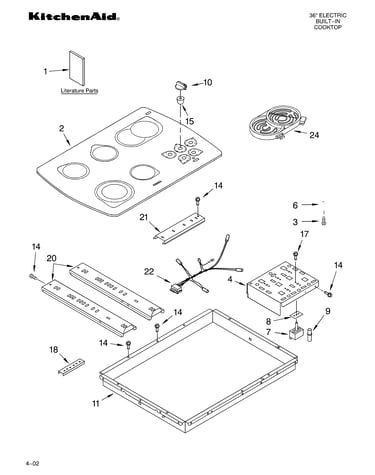

Cooktop/literature diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Radiant Surface Element, 6-in 8523698
#24A

Cooktop/literature diagram

Range radiant surface element, 6-in

Part #8523698

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 8523698. Substitute parts can look different from the original.
BEST SELLER
$148.63 |
7% OFF Phone Price : $160.63
In Stock
Cooktop Control Knob (white) 9750372FW
#10A

Cooktop/literature diagram

Cooktop control knob (white)

Part #9750372FW

Replaced by #WP9750372FW

?
Manufacturer substitution
This part replaces 9750372FW. Substitute parts can look different from the original.
This item is not returnable
$16.94
In Stock
Range Burner Control Knob 9750372FF
#10

Cooktop/literature diagram

Range burner control knob

Part #9750372FF

Replaced by #WP9750372FF

?
Manufacturer substitution
This part replaces 9750372FF. Substitute parts can look different from the original.
This item is not returnable
$19.60 |
9% OFF Phone Price : $21.60
In Stock
Bracket 4455364
#NI

Cooktop/literature diagram

Bracket

Part #4455364

$36.53
In Stock
Wire 4456028
#NI

Cooktop/literature diagram

Wire

Part #4456028

$26.18
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831
#NI

Cooktop/literature diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Cooktop Element Control Switch Seal 3183956
#4A

Cooktop/literature diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Hardware 3172515
#NI

Cooktop/literature diagram

Hardware

Part #3172515

Replaced by #8184949

?
Manufacturer substitution
This part replaces 3172515. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cooktop Element Control Switch 4456027
#7A

Cooktop/literature diagram

Cooktop element control switch

Part #4456027

Replaced by #WP4456027

?
Manufacturer substitution
This part replaces 4456027. Substitute parts can look different from the original.
$78.36 |
7% OFF Phone Price : $84.36
In Stock
