York
Heating & Cooling Combined Unit

Model # D7CG036N04058 Official York heating & cooling

Here are the diagrams and repair parts for Official York D7CG036N04058 heating & cooling, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Capacitor 024-20045-700

#8

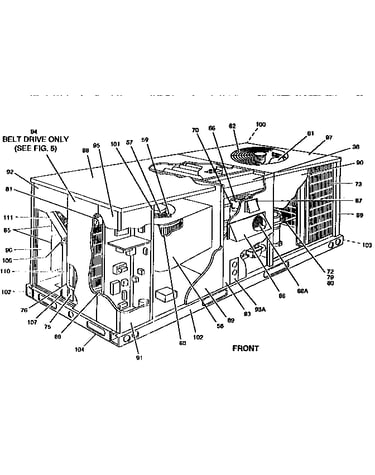

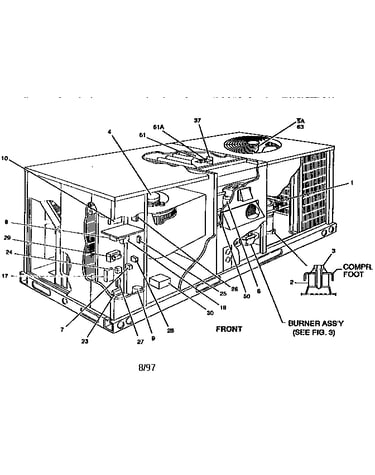

All parts diagram

Capacitor

Part #024-20045-700

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-700. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Capacitor 024-20043-000

#9

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Belt 028-09573-000
#7

Figure 5-belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Start Assist Kit 2SA06701006

#NI

All parts diagram

Accessories - electrical start assist kit

Part #2SA06701006

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Non-electrical Fixed Outdoor Air Damper 1RF0401

#NI

All parts diagram

Accessories - non-electrical fixed outdoor air damper

Part #1RF0401

The manufacturer no longer makes this part, and there's no substitute part

Filter Air (1 Req'd) 1X14X25

#110

All parts diagram

Filter air (1 req'd)

Part #1X14X25

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Heat Exch Tube (1-per Burn) 073-13498-000

#34

All parts diagram

Baffle, heat exch tube (1-per burn)

Part #073-13498-000

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Bearing Support (2-req'd) 073-12444-700
#12

Figure 5-belt drive option diagram

Bracket, bearing support (2-req'd)

Part #073-12444-700

The manufacturer no longer makes this part, and there's no substitute part

Plate, Balance (for 2 Thru 5 Burn) 073-12880-005

#47

All parts diagram

Plate, balance (for 2 thru 5 burn)

Part #073-12880-005

The manufacturer no longer makes this part, and there's no substitute part

Box Flue 063-93515-000

#36

All parts diagram

Box flue

Part #063-93515-000

The manufacturer no longer makes this part, and there's no substitute part
