Model # 48XZ036090300TP Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48XZ036090300TP central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

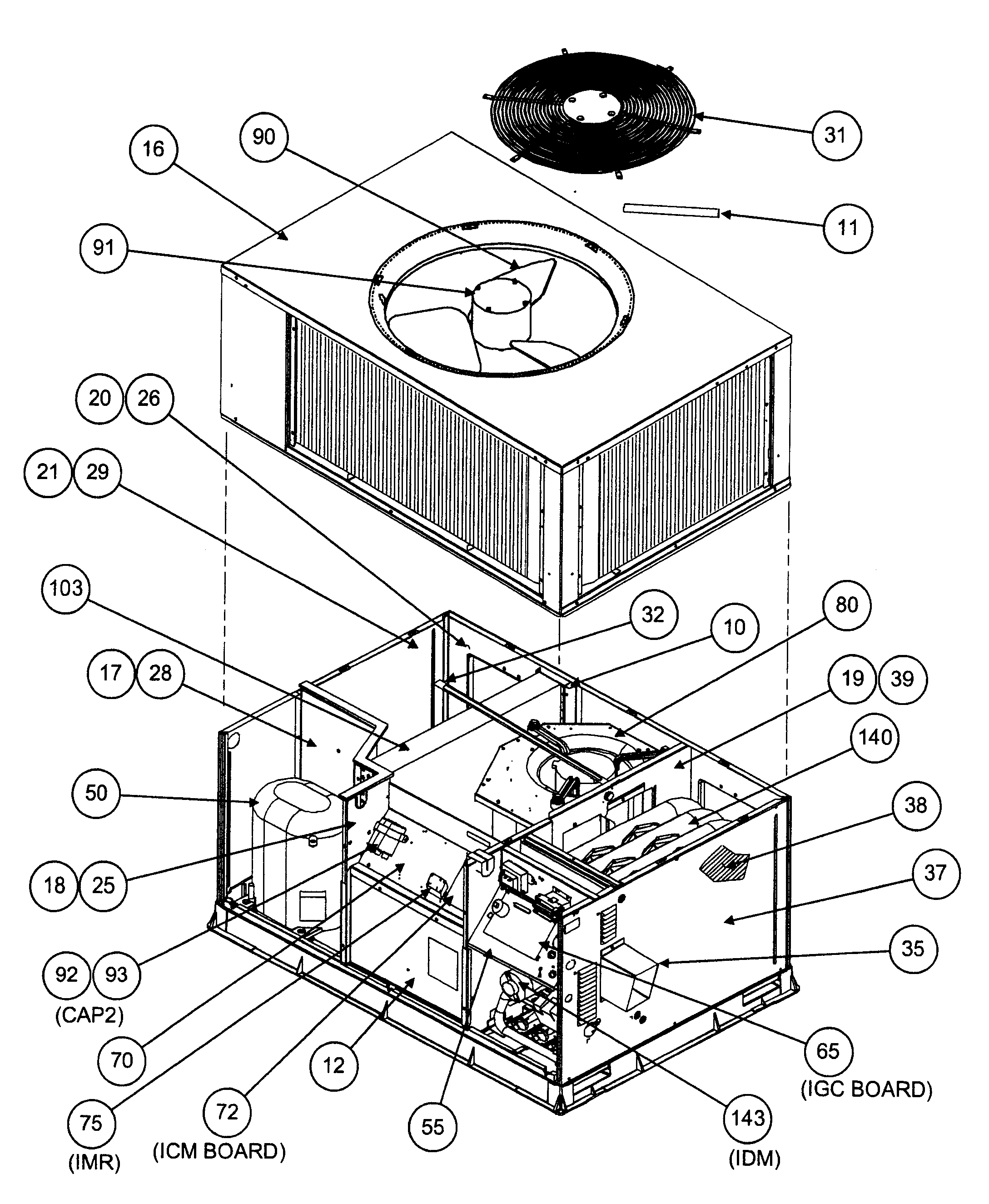

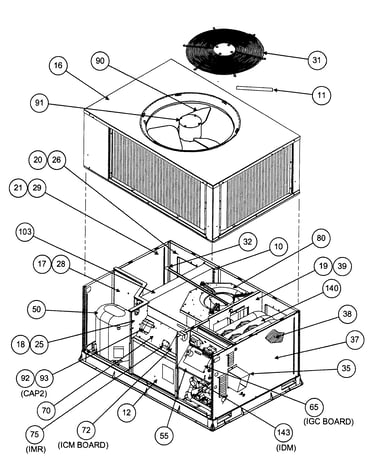

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Contactor HN51JD024
#63

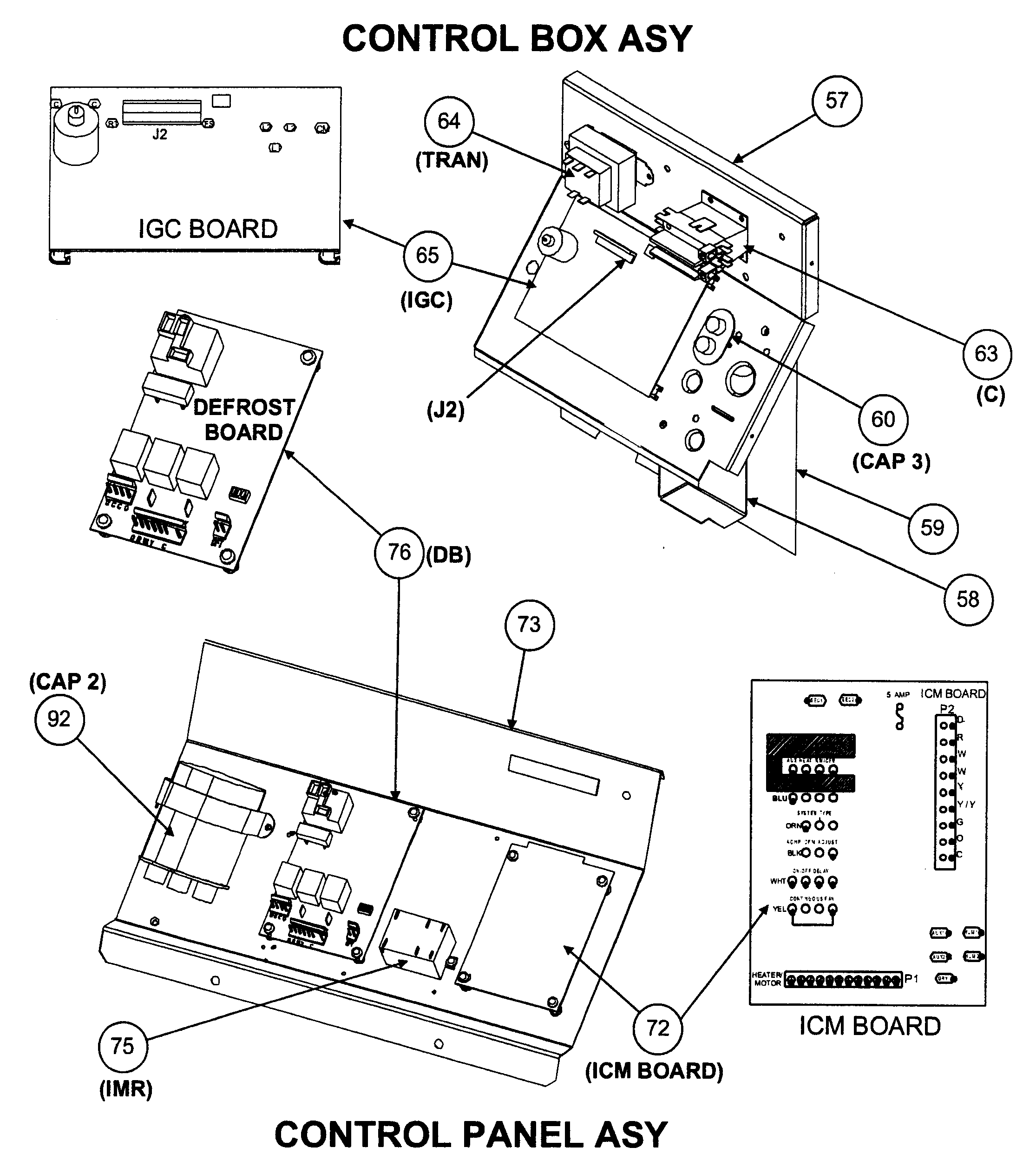

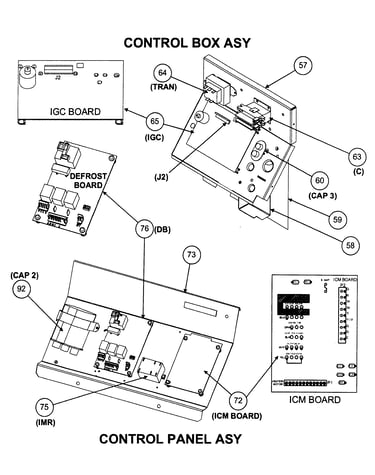

Control box assy/control panel assy diagram

Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

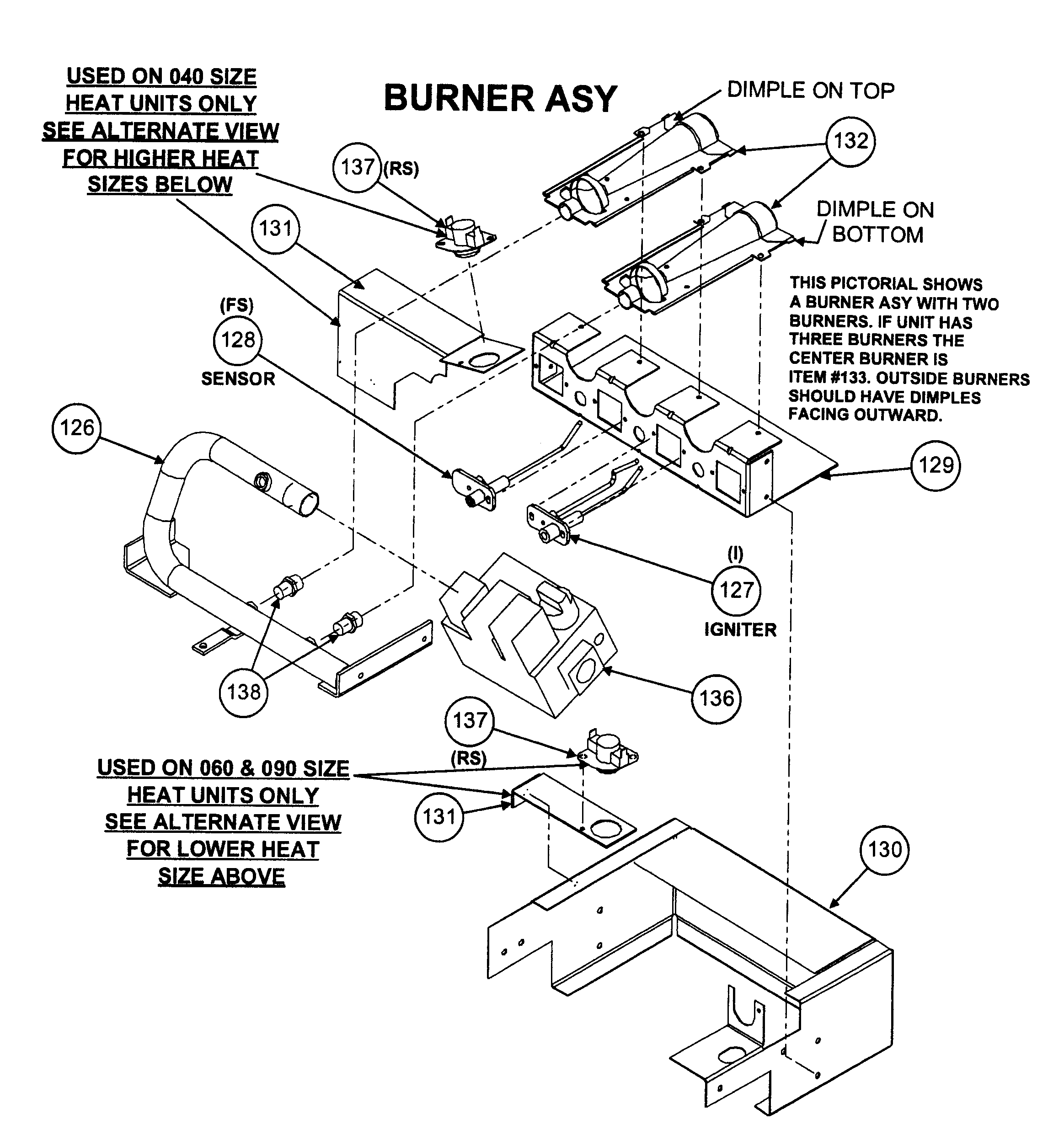

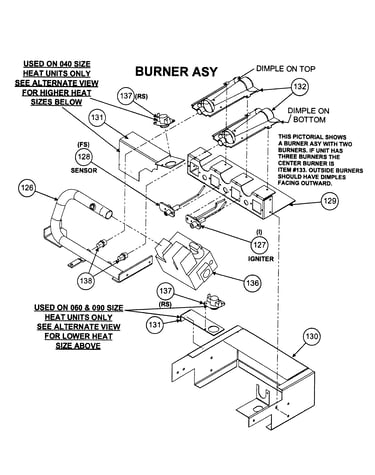

Furnace Heat Exchanger Cover 48GS400108
#120

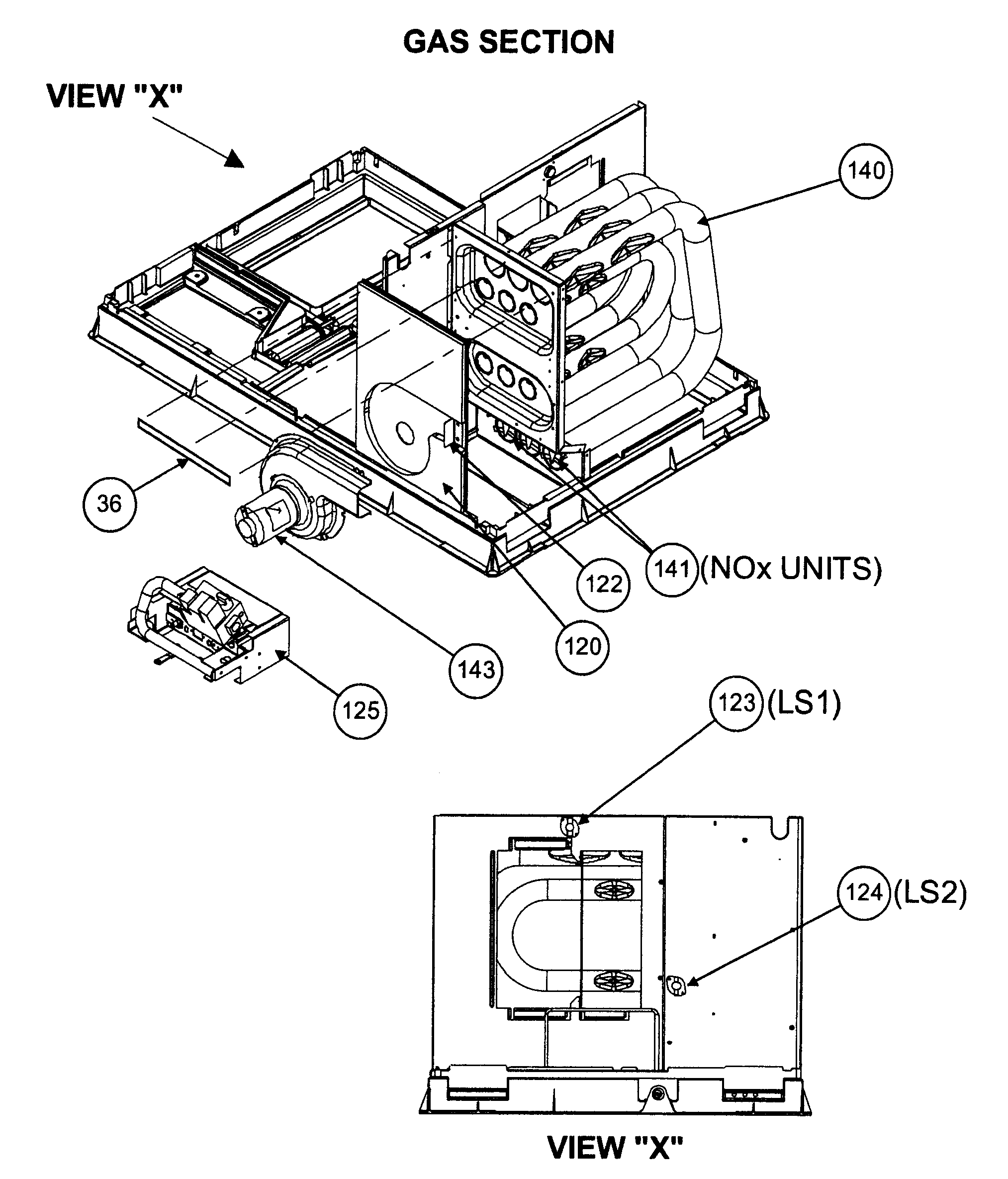

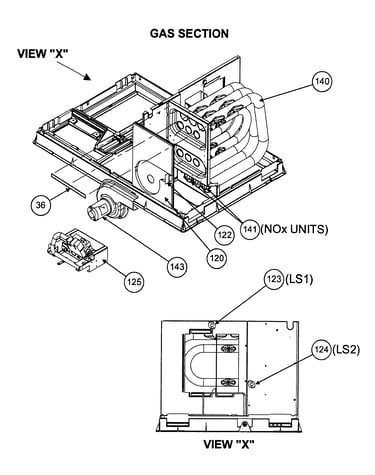

Gas section diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock
Grille 50HJ501200
Grille

Part #50HJ501200

$163.72
In Stock
Mtr Mnt Band P251-0078
#86

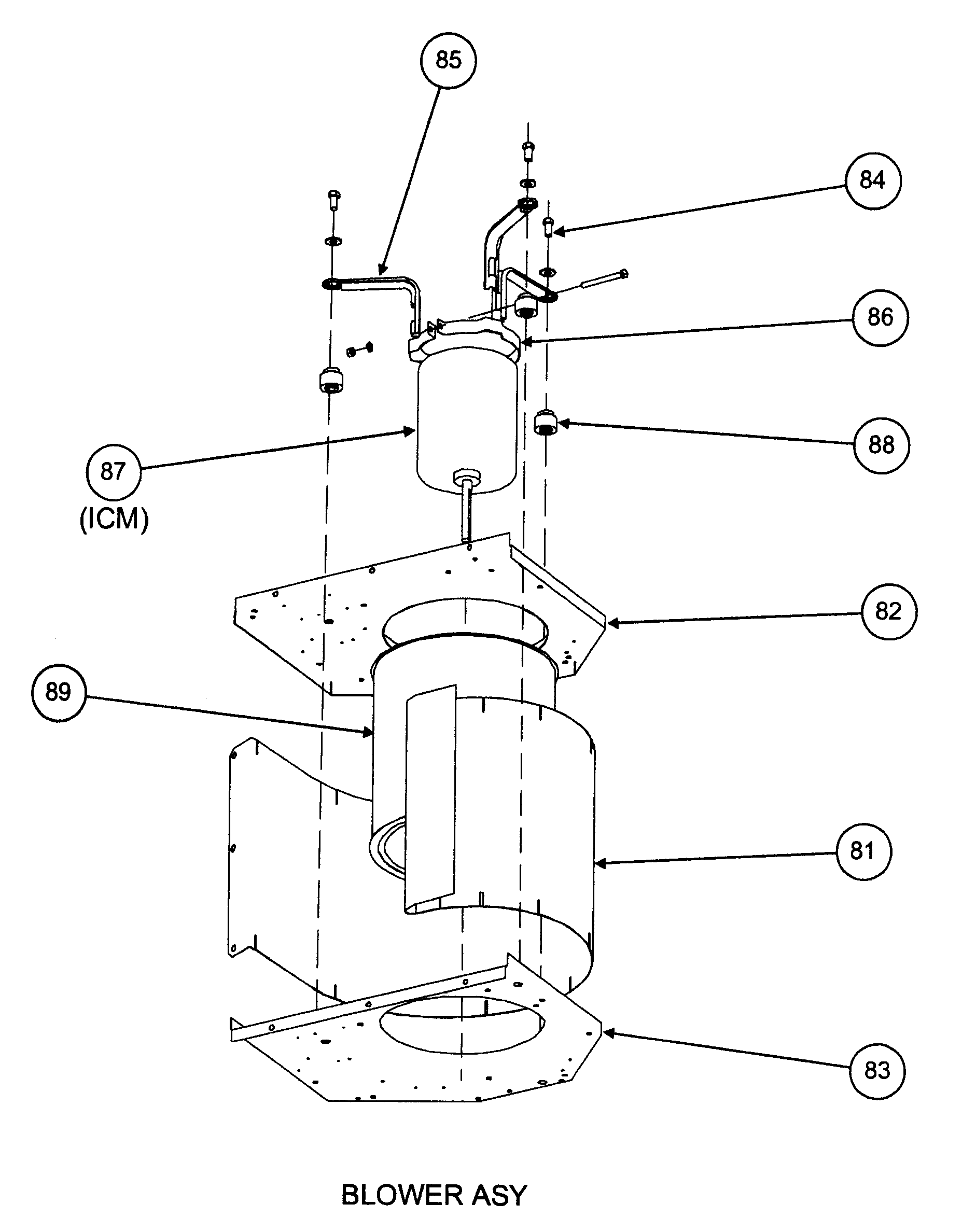

Blower assy diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
Central Air Conditioner Accumulator KH71KJ141
#114

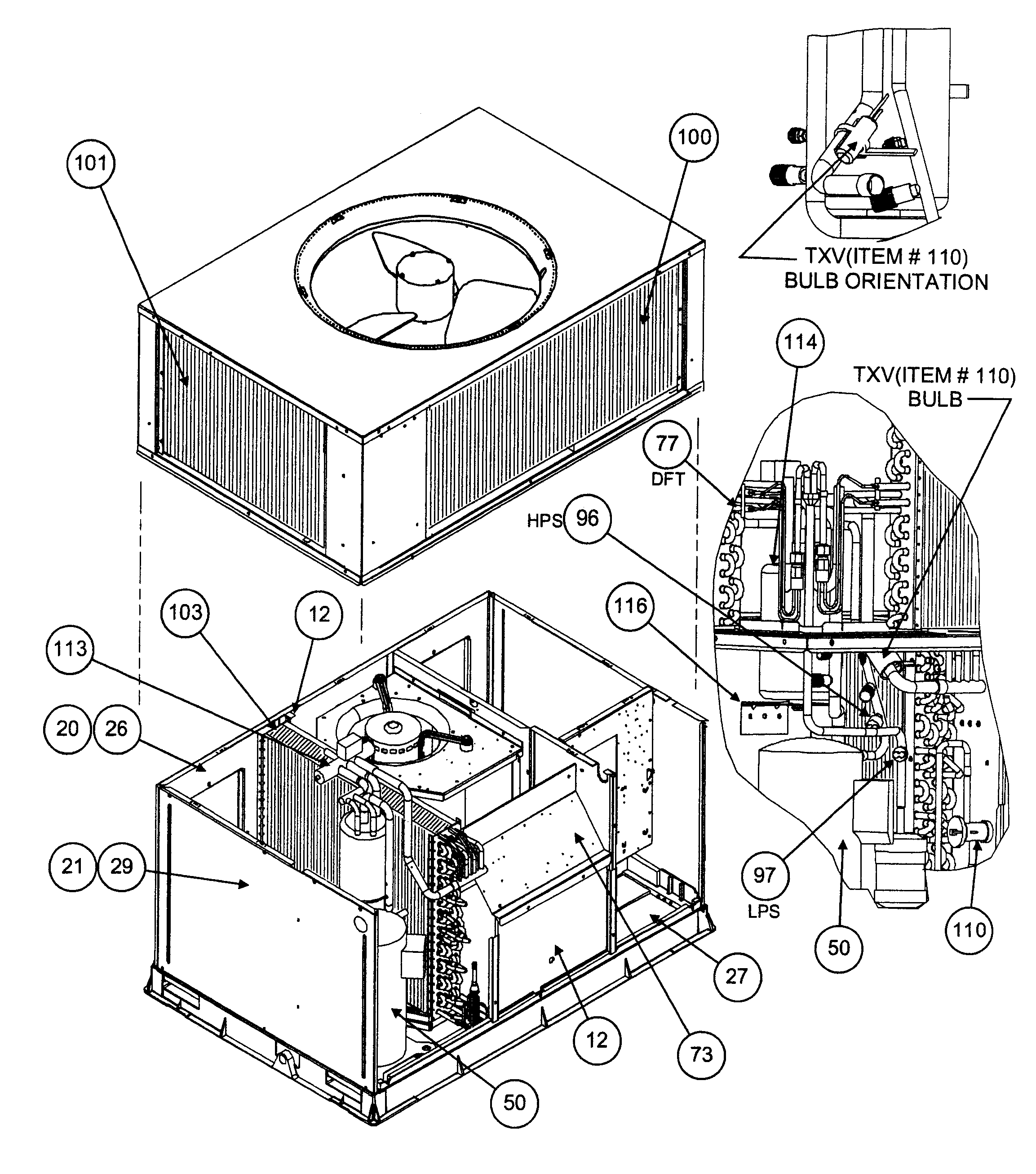

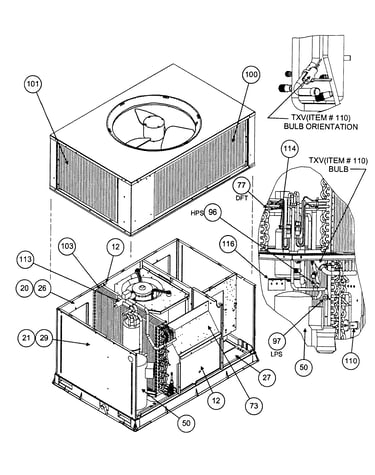

Compressor diagram

Central air conditioner accumulator

Part #KH71KJ141

$175.46
In Stock
Plate 50SS500879
#36

Gas section diagram

Plate

Part #50SS500879

$558.65
In Stock
Furnace Blower Fan Motor Mounting Bracket P251-0077
#85

Blower assy diagram

Furnace blower fan motor mounting bracket

Part #P251-0077

This item is not returnable
$5.34
In Stock
Payne Panel,frnt 48GS400500
#2

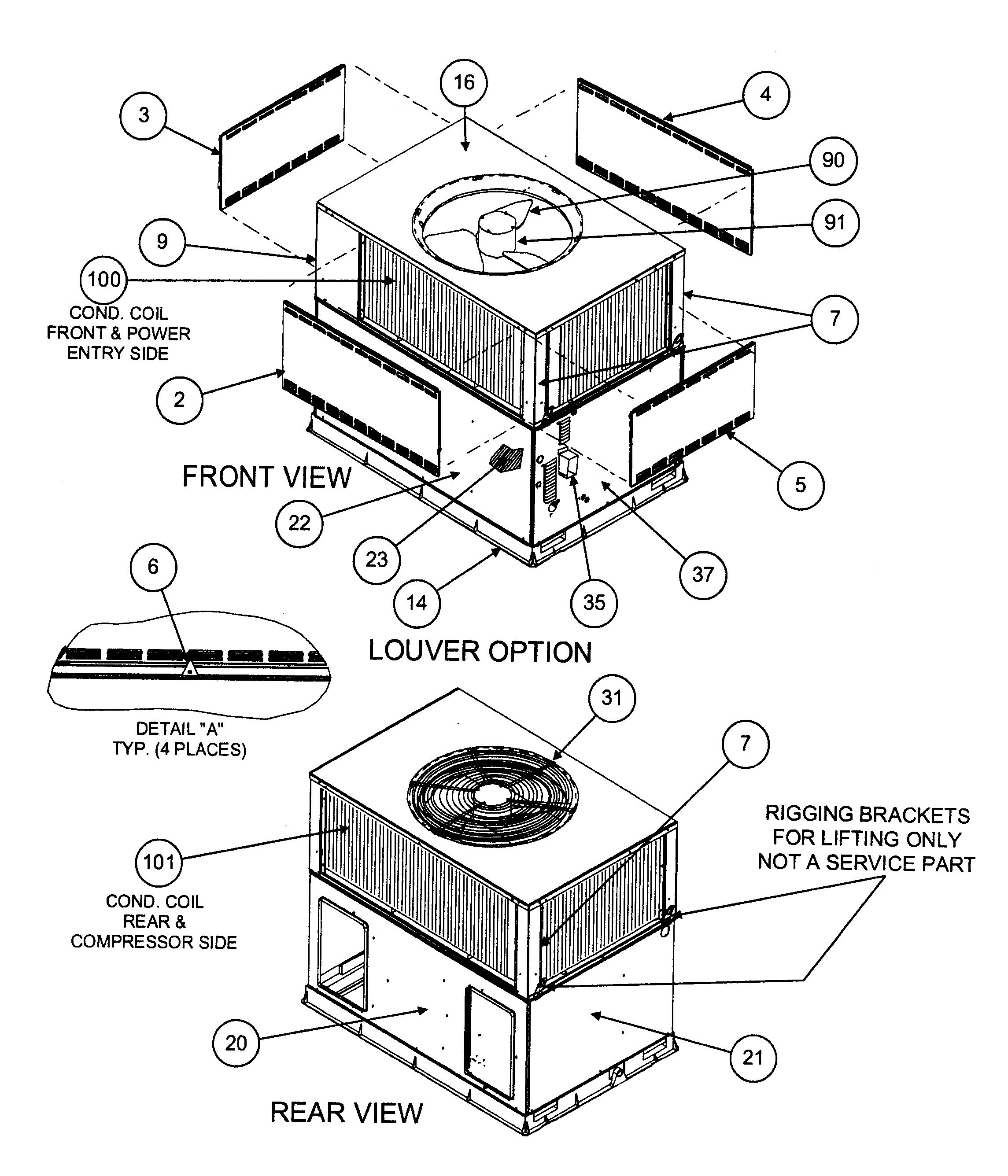

Front view/louver option/rear view diagram

Payne panel,frnt

Part #48GS400500

$307.45
In Stock
Hood Cap 48GS500121
Hood cap

Part #48GS500121

$64.40
In Stock
Bracket 48GS500461
#8

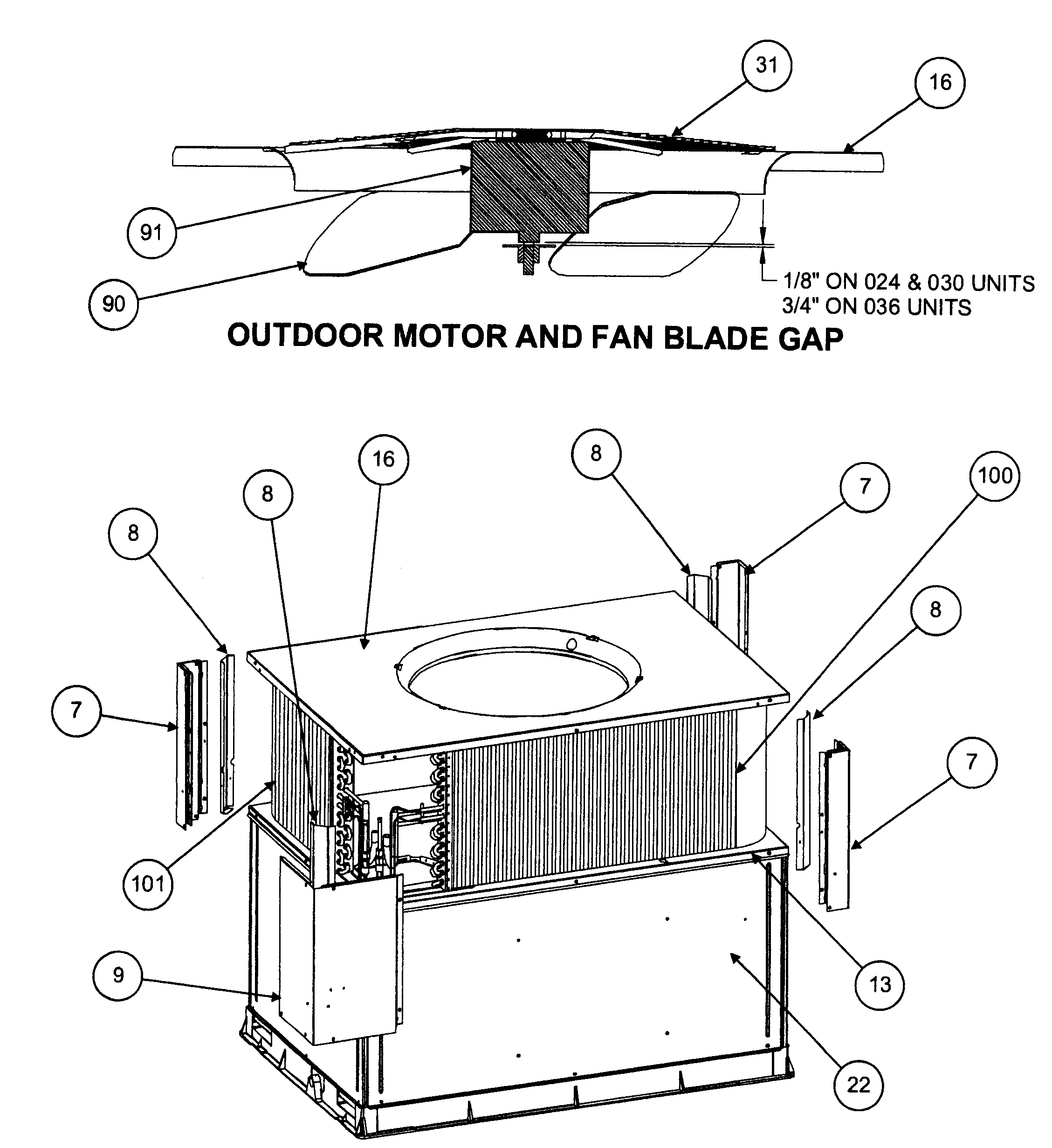

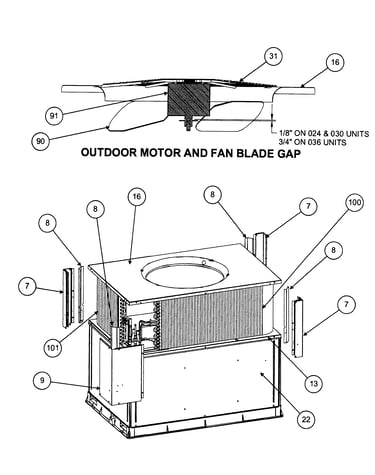

Outdoor motor/fan blade gap diagram

Bracket

Part #48GS500461

$22.69
In Stock
