Kenmore
Gas Range

Model # 103710610 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103710610 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Drawer Guide 97820
#64B

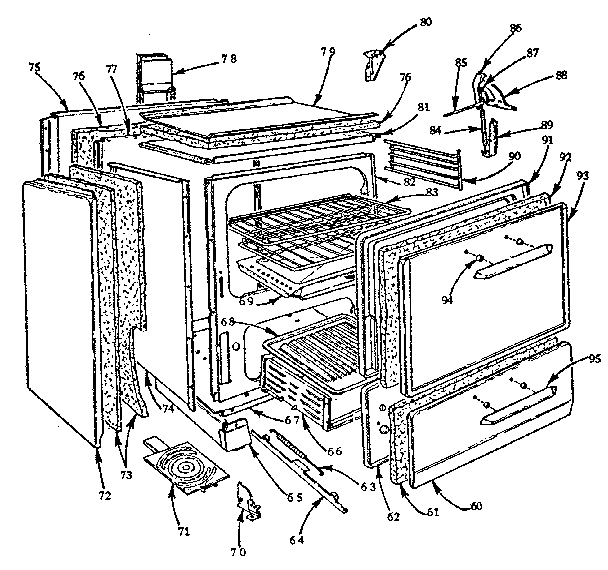

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Knob 86671
#12

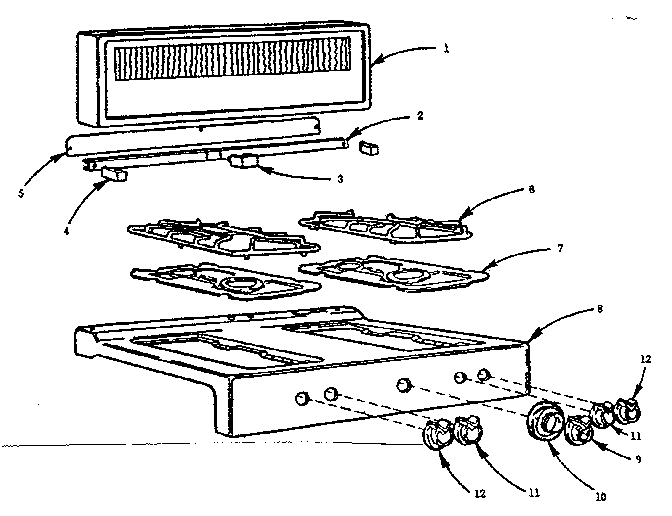

Backguard and main top diagram

Knob

Part #86671

The manufacturer no longer makes this part, and there's no substitute part

Flash Tube 71580
#23

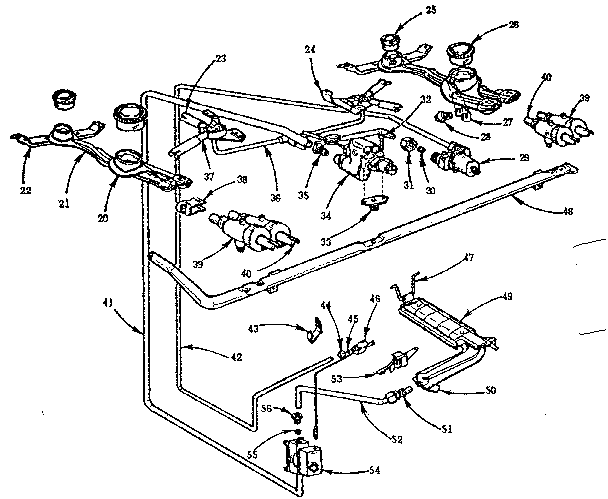

Burner section diagram

Flash tube

Part #71580

The manufacturer no longer makes this part, and there's no substitute part

Support 79786
#22

Burner section diagram

Support

Part #79786

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 65711
Sleeve

Part #65711

The manufacturer no longer makes this part, and there's no substitute part

Tubing 98325
#41

Burner section diagram

Tubing

Part #98325

The manufacturer no longer makes this part, and there's no substitute part

Oven Burner 87898
#49

Burner section diagram

Oven burner

Part #87898

The manufacturer no longer makes this part, and there's no substitute part

Mounting Screw 87382
#32

Burner section diagram

Mounting screw

Part #87382

The manufacturer no longer makes this part, and there's no substitute part

Guard Cord 89886
#3

Backguard and main top diagram

Guard cord

Part #89886

The manufacturer no longer makes this part, and there's no substitute part

Insulation 70508
#76

Body section diagram

Insulation

Part #70508

The manufacturer no longer makes this part, and there's no substitute part
