Reciprocating Saw

Model # 31527990 Official Craftsman multispeed sabre saw

Here are the diagrams and repair parts for Official Craftsman 31527990 multispeed sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Circuit Board 3-613891-02
#46

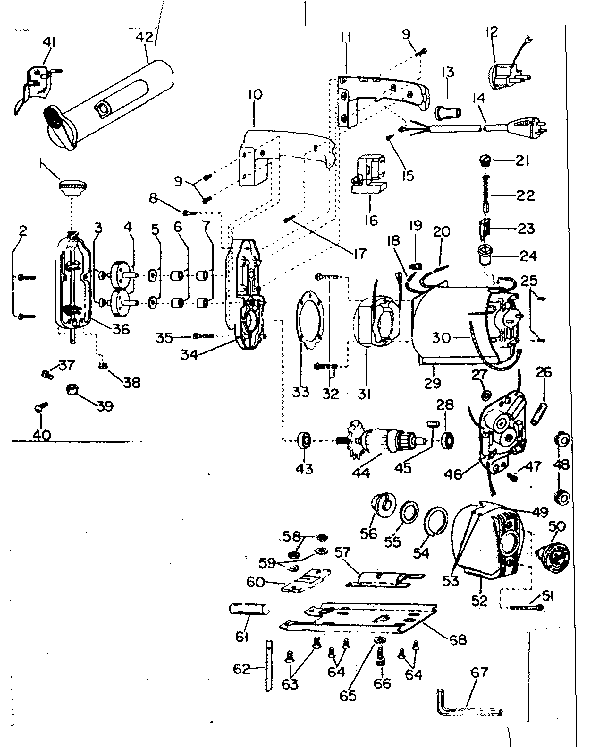

Unit parts diagram

Circuit board

Part #3-613891-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930993-01
#15

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeving 1-621457-01
#26

Unit parts diagram

Sleeving

Part #1-621457-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-703578-01
#32

Unit parts diagram

Screw

Part #1-703578-01

The manufacturer no longer makes this part, and there's no substitute part

Handle 4-613333-04
#10

Unit parts diagram

Handle

Part #4-613333-04

The manufacturer no longer makes this part, and there's no substitute part

Motor Hsg. 4-613215-04
#29

Unit parts diagram

Motor hsg.

Part #4-613215-04

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-886086-01
#7

Unit parts diagram

Bearing

Part #1-886086-01

The manufacturer no longer makes this part, and there's no substitute part

Knob Assembly 1-886102-02
#1

Unit parts diagram

Knob assembly

Part #1-886102-02

The manufacturer no longer makes this part, and there's no substitute part

Bar 1-613322-02
#61

Unit parts diagram

Bar

Part #1-613322-02

The manufacturer no longer makes this part, and there's no substitute part

Gear Washer 1-931937-00
#5

Unit parts diagram

Gear washer

Part #1-931937-00

The manufacturer no longer makes this part, and there's no substitute part
