Model # 167430389 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167430389 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Teflon Tape 089-6713

#NI

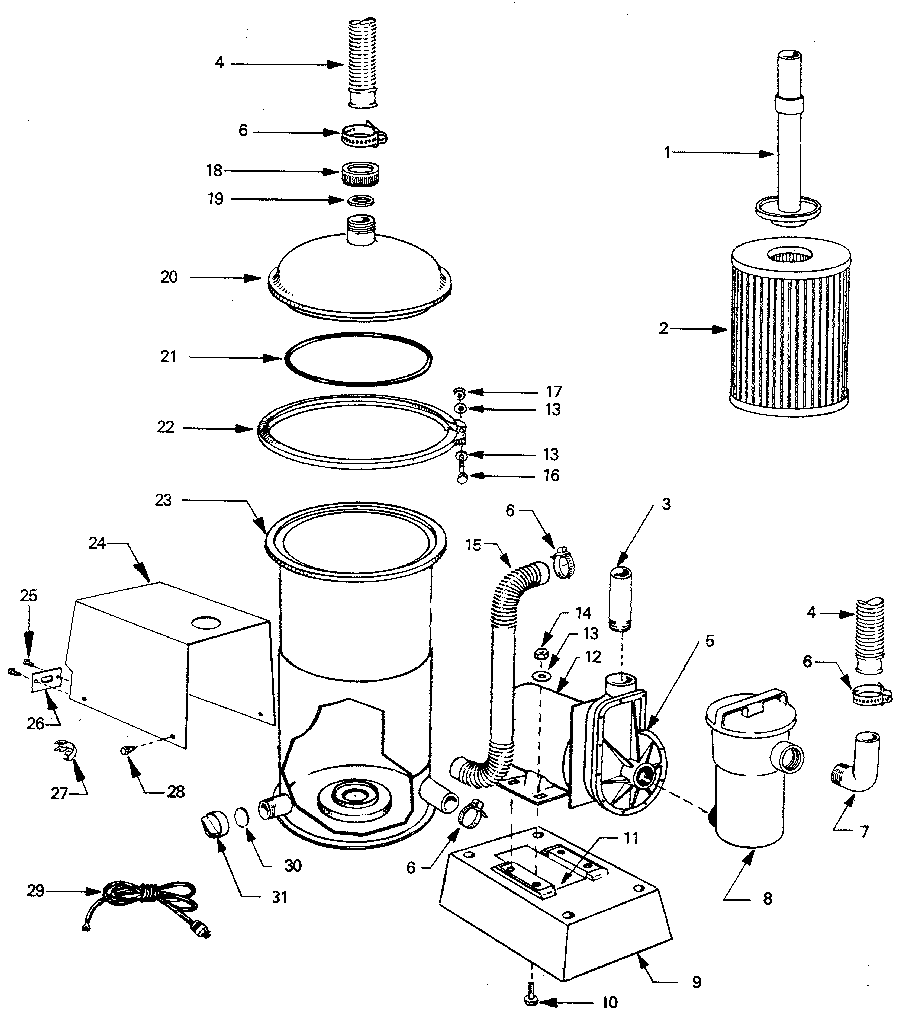

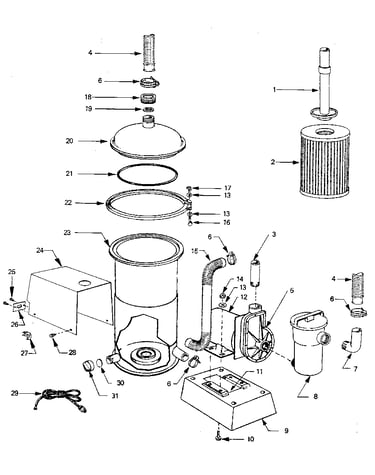

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Baffle 098-7247

#37

All parts diagram

Baffle

Part #098-7247

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3758

#28

All parts diagram

Screw

Part #054-3758

The manufacturer no longer makes this part, and there's no substitute part

Hose 102-7041

#4

All parts diagram

Hose

Part #102-7041

The manufacturer no longer makes this part, and there's no substitute part

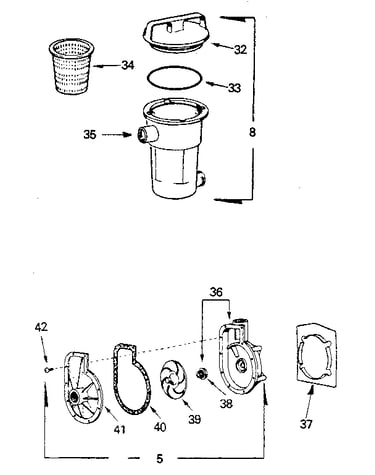

Lint Pot 098-7388

#35

All parts diagram

Lint pot

Part #098-7388

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 052-3701

#13

All parts diagram

Flat washer

Part #052-3701

The manufacturer no longer makes this part, and there's no substitute part

Grommet 031-3381

#27

All parts diagram

Grommet

Part #031-3381

The manufacturer no longer makes this part, and there's no substitute part

Pump Seal 09-2012

#38

All parts diagram

Pump seal

Part #09-2012

The manufacturer no longer makes this part, and there's no substitute part

Gasket 036-3400

#19

All parts diagram

Gasket

Part #036-3400

The manufacturer no longer makes this part, and there's no substitute part

Impeller 016-3125

#39

All parts diagram

Impeller

Part #016-3125

The manufacturer no longer makes this part, and there's no substitute part
