GE
Freestanding Ice Maker

Model # ZDIS15CSSP Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDIS15CSSP ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Freestanding Ice Maker Recirculation Pump WR57X10077
#201

Pump parts diagram

Freestanding ice maker recirculation pump

Part #WR57X10077

Replaced by #WR57X26823

?
Manufacturer substitution
This part replaces WR57X10077. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
In Stock
Ice Maker Temperature Sensor WR55X10545
#312

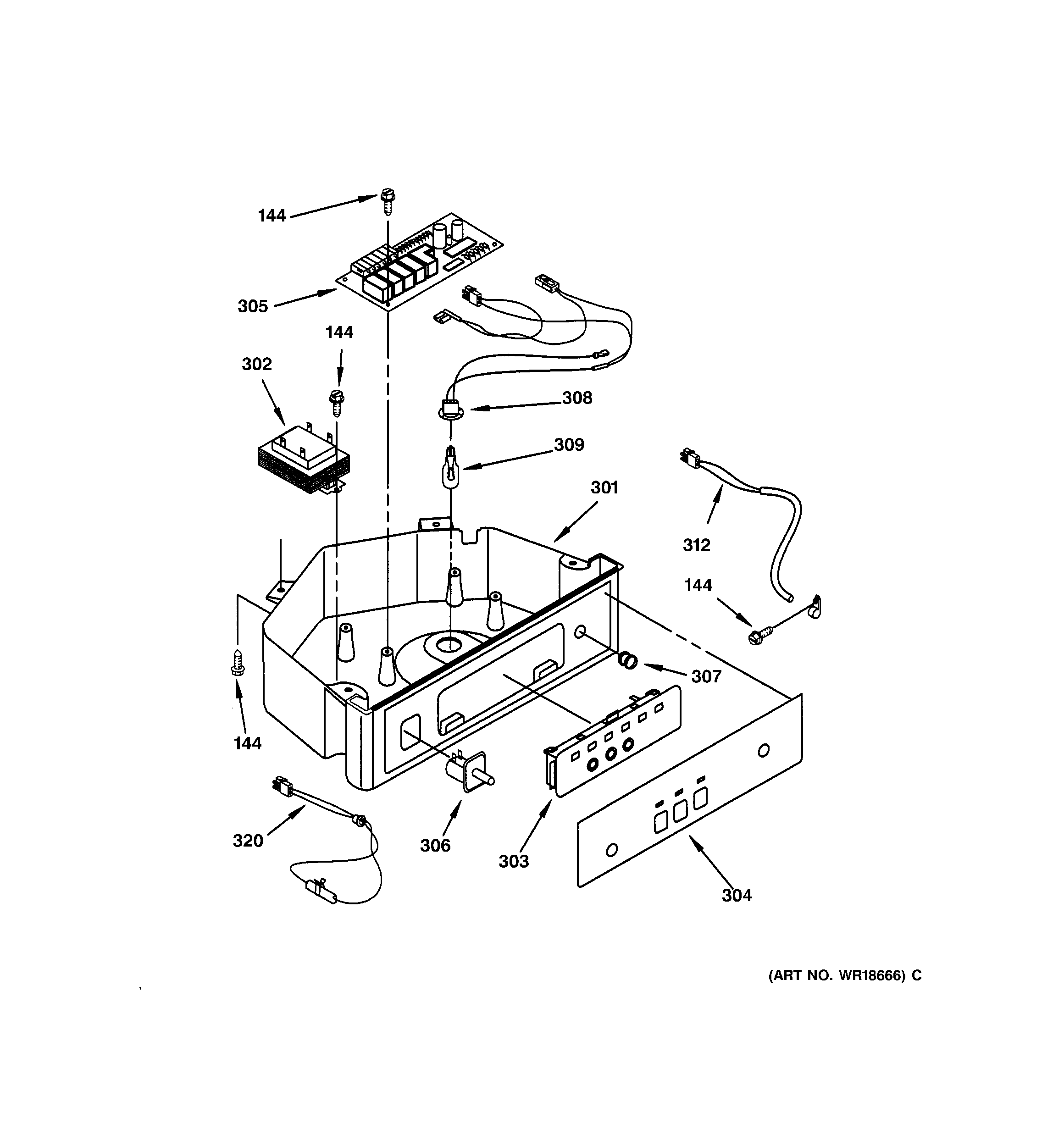

Control panel parts diagram

Ice maker temperature sensor

Part #WR55X10545

$129.20 |
8% OFF Phone Price : $141.20
In Stock
Ice Maker Water Inlet Valve (replaces Wr57x10085) WR57X10072
#101

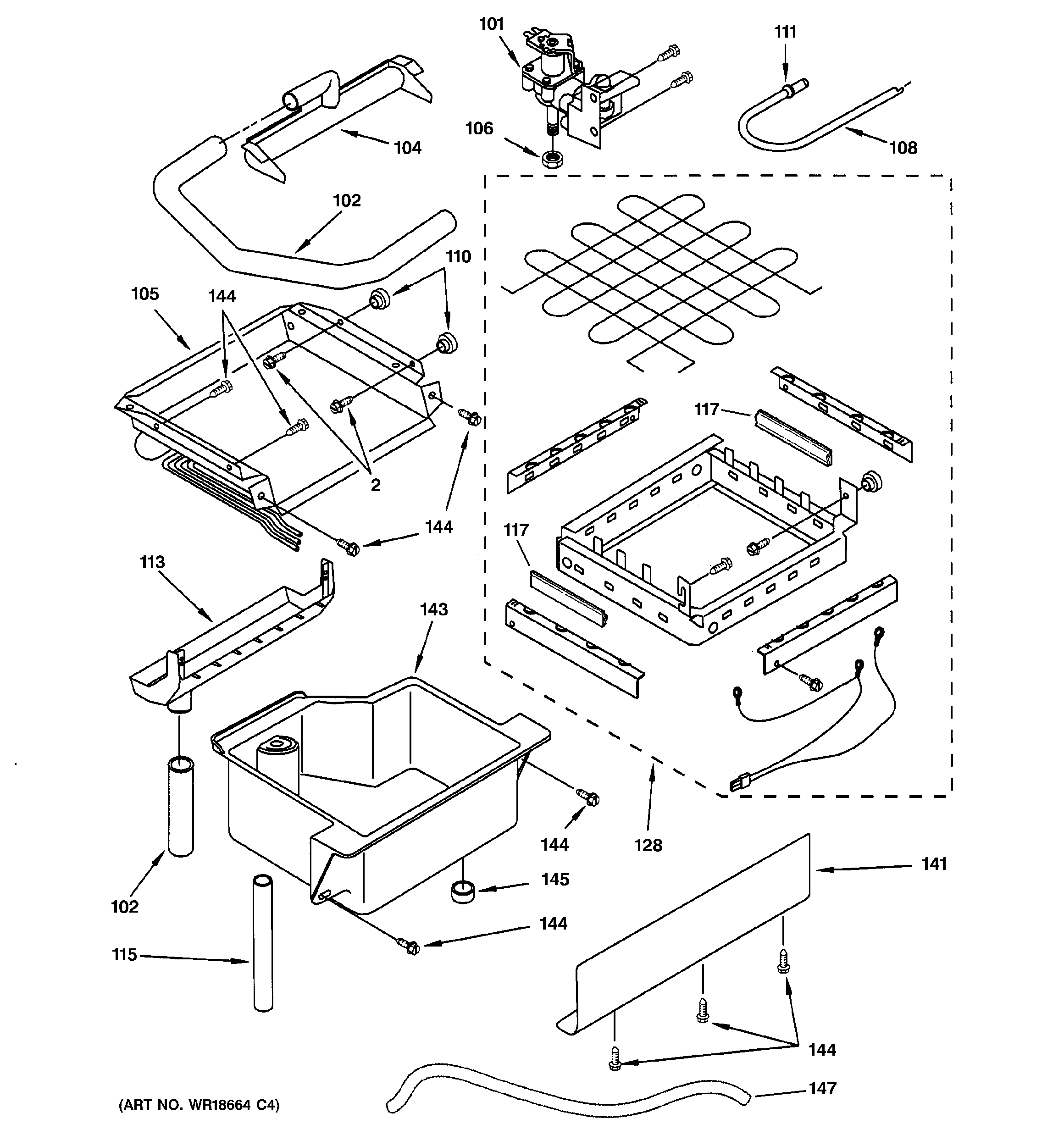

Evaporator, ice cutter grid & water diagram

Ice maker water inlet valve (replaces wr57x10085)

Part #WR57X10072

$229.96 |
5% OFF Phone Price : $241.96
In Stock
Ice Maker Temperature Sensor WR55X10544
#320

Control panel parts diagram

Ice maker temperature sensor

Part #WR55X10544

$64.49 |
9% OFF Phone Price : $70.49
In Stock
Ice Maker Cutter Grid (replaces Wr29x10070, Wr29x10100) WR29X10073
#128

Evaporator, ice cutter grid & water diagram

Ice maker cutter grid (replaces wr29x10070, wr29x10100)

Part #WR29X10073

$328.36 |
$12.00 OFF Phone Price : $340.36
In Stock
Ice Maker Electronic Control Board WR55X10713
#305

Control panel parts diagram

Ice maker electronic control board

Part #WR55X10713

$396.86 |
$12.00 OFF Phone Price : $408.86
In Stock
Nameplate WR04X10167
#17

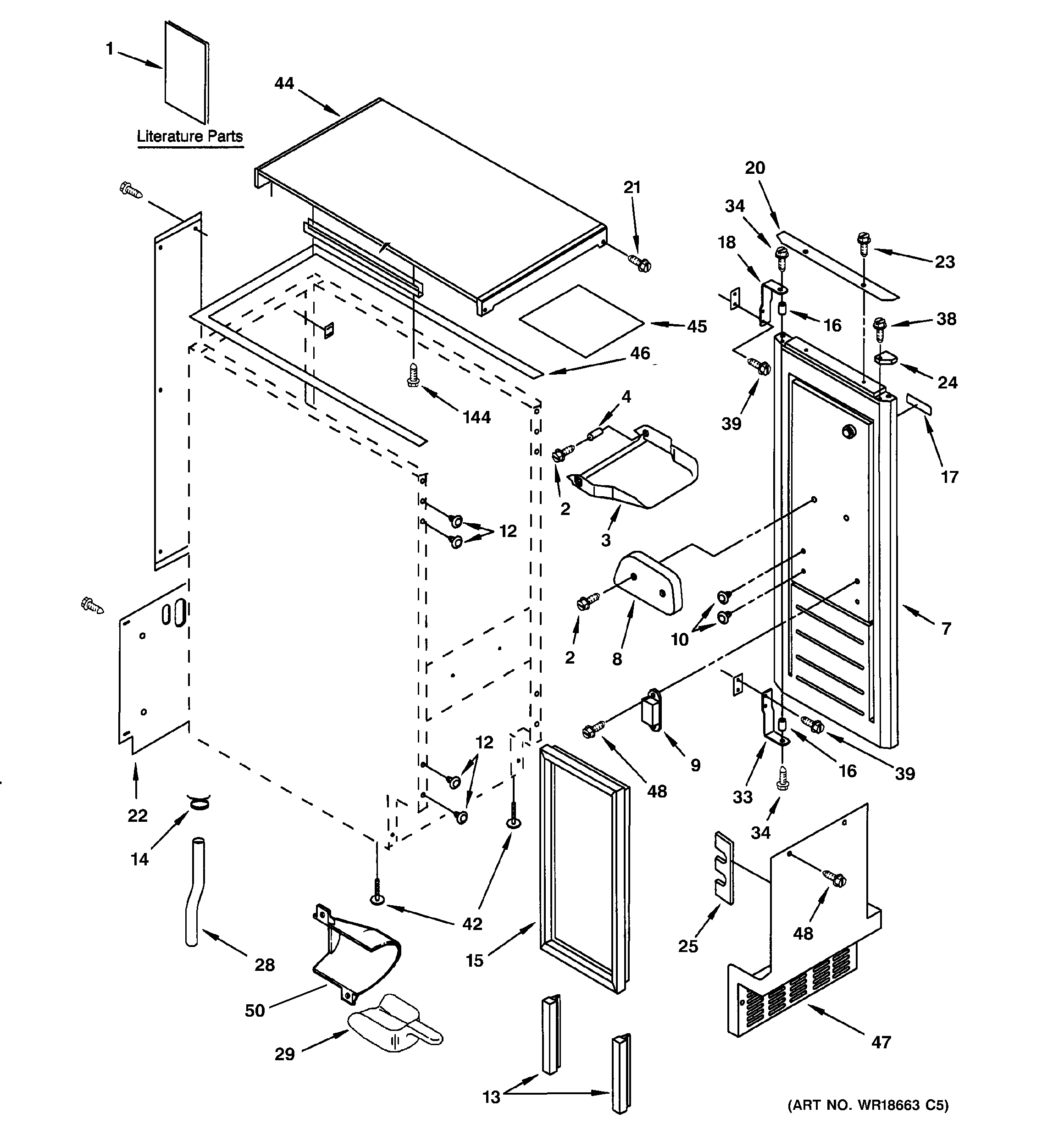

Cabinet, liner & door parts diagram

Nameplate

Part #WR04X10167

$72.47
In Stock
Spacer WR01X10139
#110

Evaporator, ice cutter grid & water diagram

Spacer

Part #WR01X10139

$12.00
In Stock
Electronic Shield WR02X10380
#45

Cabinet, liner & door parts diagram

Electronic shield

Part #WR02X10380

$47.29
In Stock
Overload WR08X10042
#418

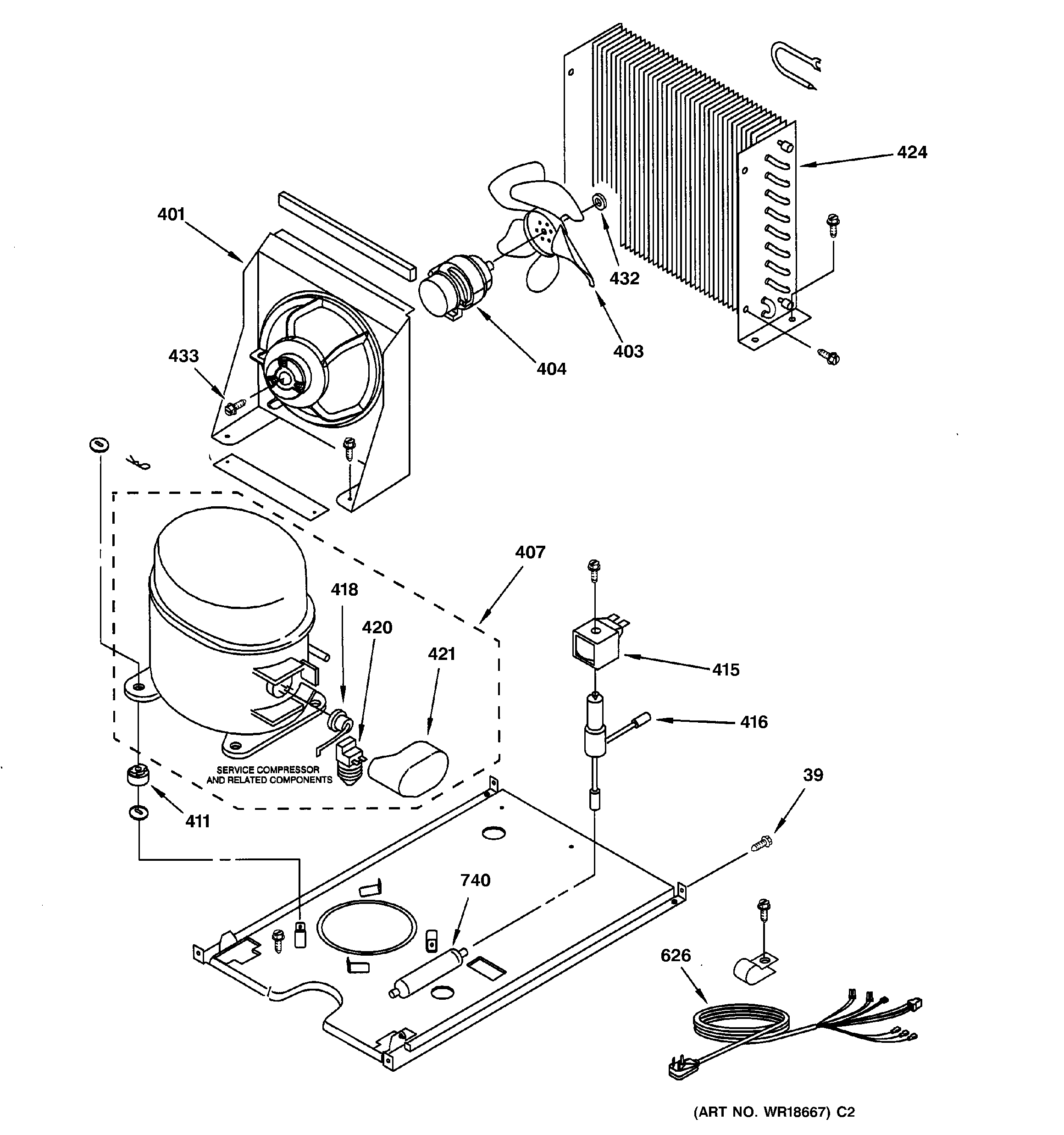

Unit parts diagram

Overload

Part #WR08X10042

$115.47 |
9% OFF Phone Price : $127.47
In Stock
