Model # FDH30J2 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FDH30J2 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

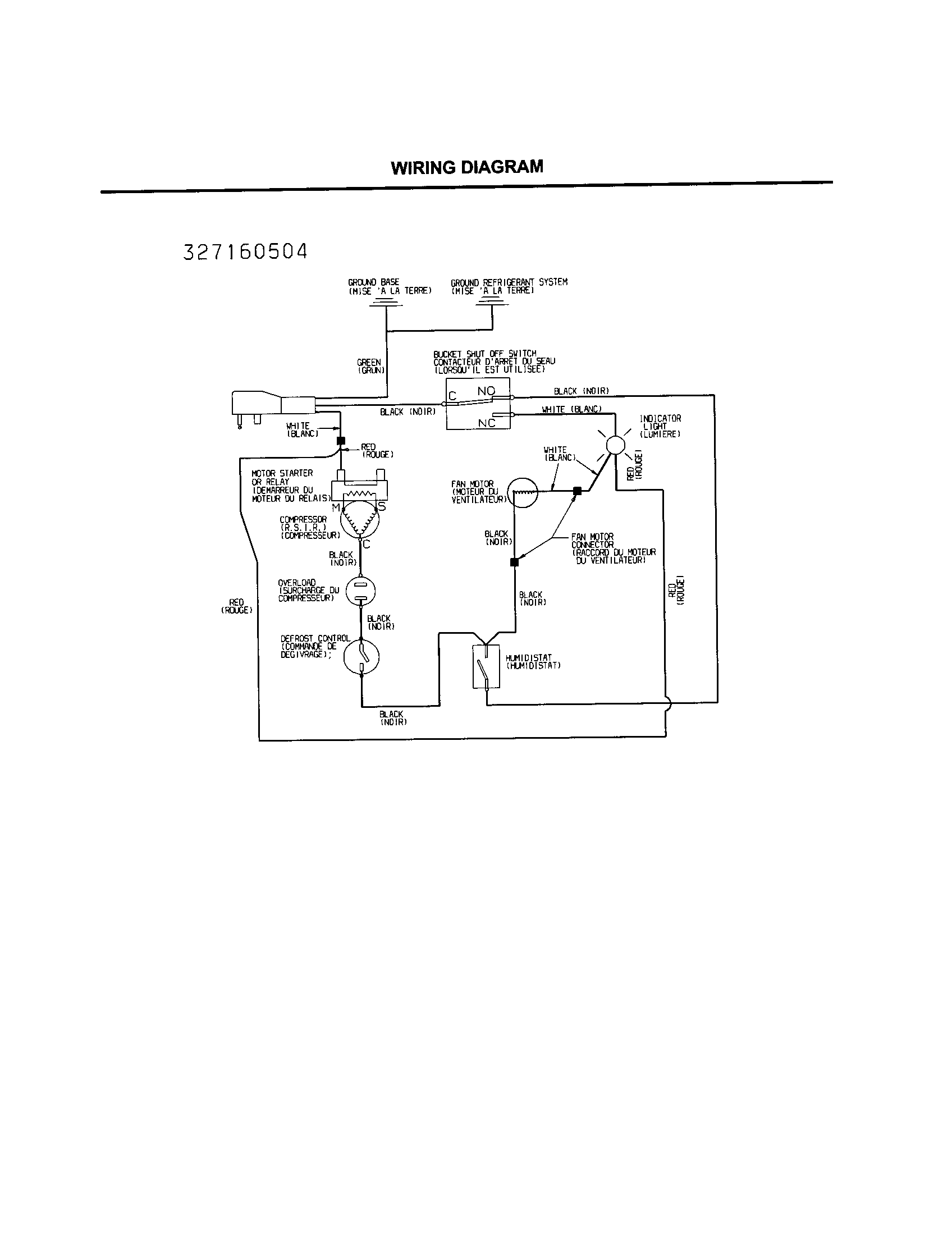

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Compressor 327603702
#34

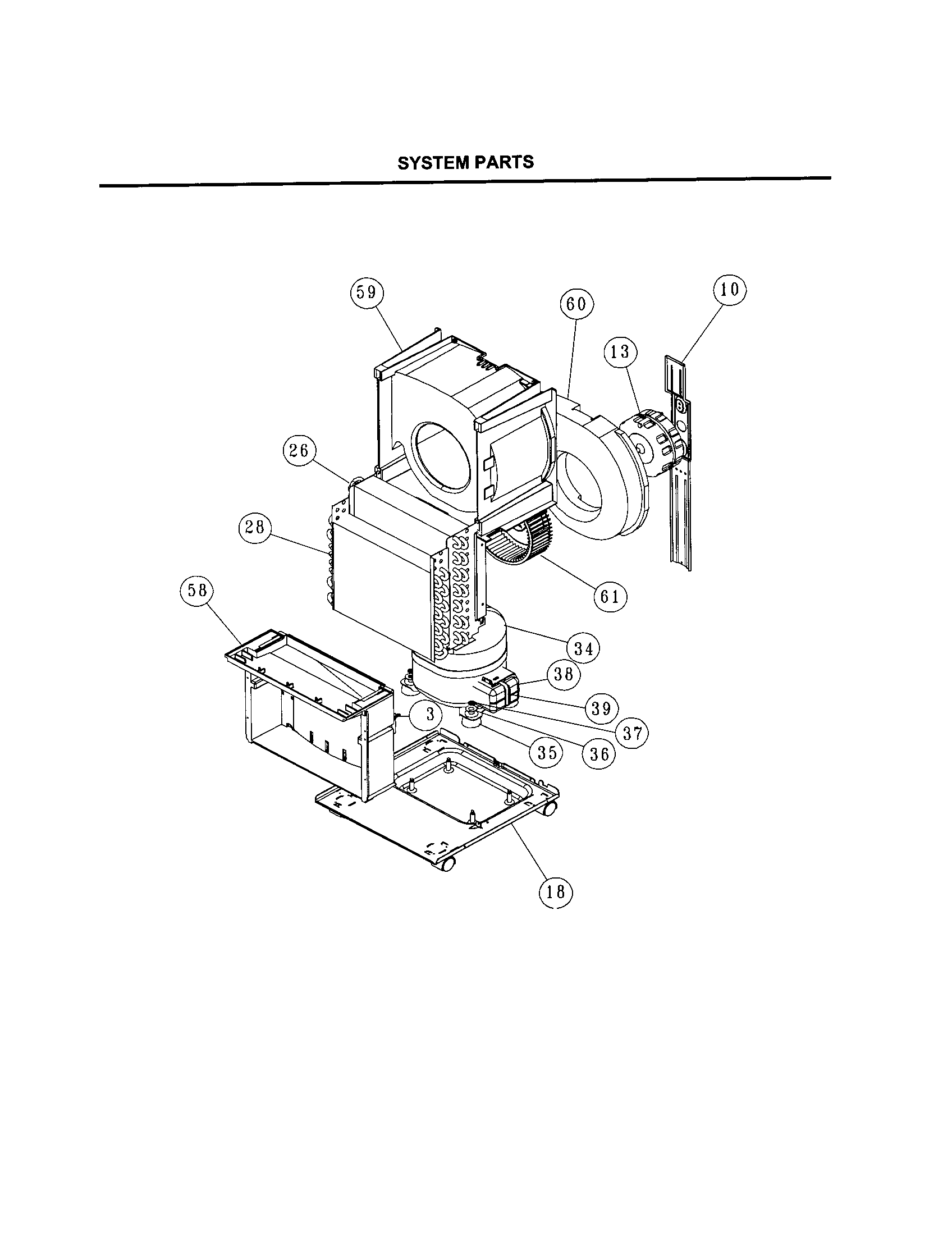

System parts diagram

Compressor

Part #327603702

$168.49
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481

#NI

All parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Overload Protector 5304416099

#NI

All parts diagram

Overload protector

Part #5304416099

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 327101603

#NI

All parts diagram

Terminal cover

Part #327101603

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 327000009

#NI

All parts diagram

Owner's manual

Part #327000009

The manufacturer no longer makes this part, and there's no substitute part

Tubing 5304410096

#NI

All parts diagram

Tubing

Part #5304410096

The manufacturer no longer makes this part, and there's no substitute part

Overlay 327360502
#5

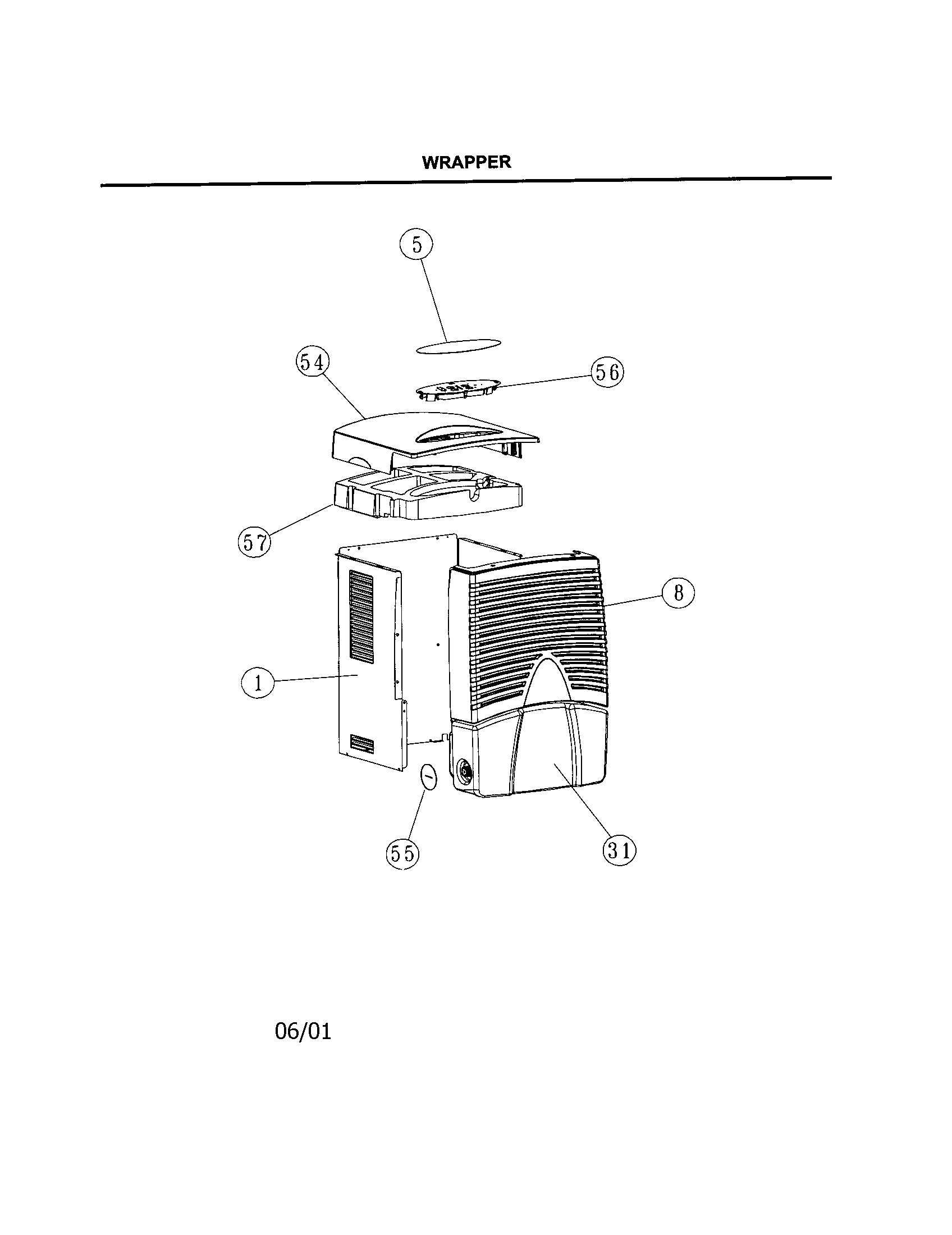

Wrapper diagram

Overlay

Part #327360502

The manufacturer no longer makes this part, and there's no substitute part

Hose Cap 327160101
#55

Wrapper diagram

Hose cap

Part #327160101

The manufacturer no longer makes this part, and there's no substitute part

Caster 5304416308

#NI

All parts diagram

Caster

Part #5304416308

The manufacturer no longer makes this part, and there's no substitute part

Washer 5303002664
#36

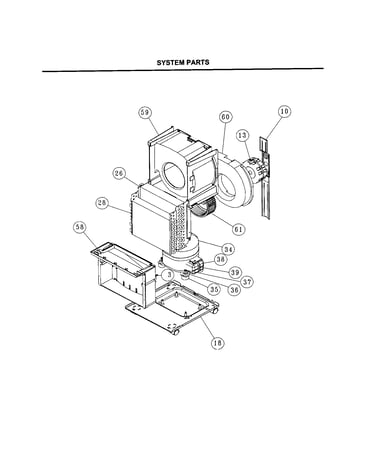

System parts diagram

Washer

Part #5303002664

The manufacturer no longer makes this part, and there's no substitute part
