Frigidaire
Top-Mount Refrigerator

Model # FFHI2131QS1 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFHI2131QS1 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

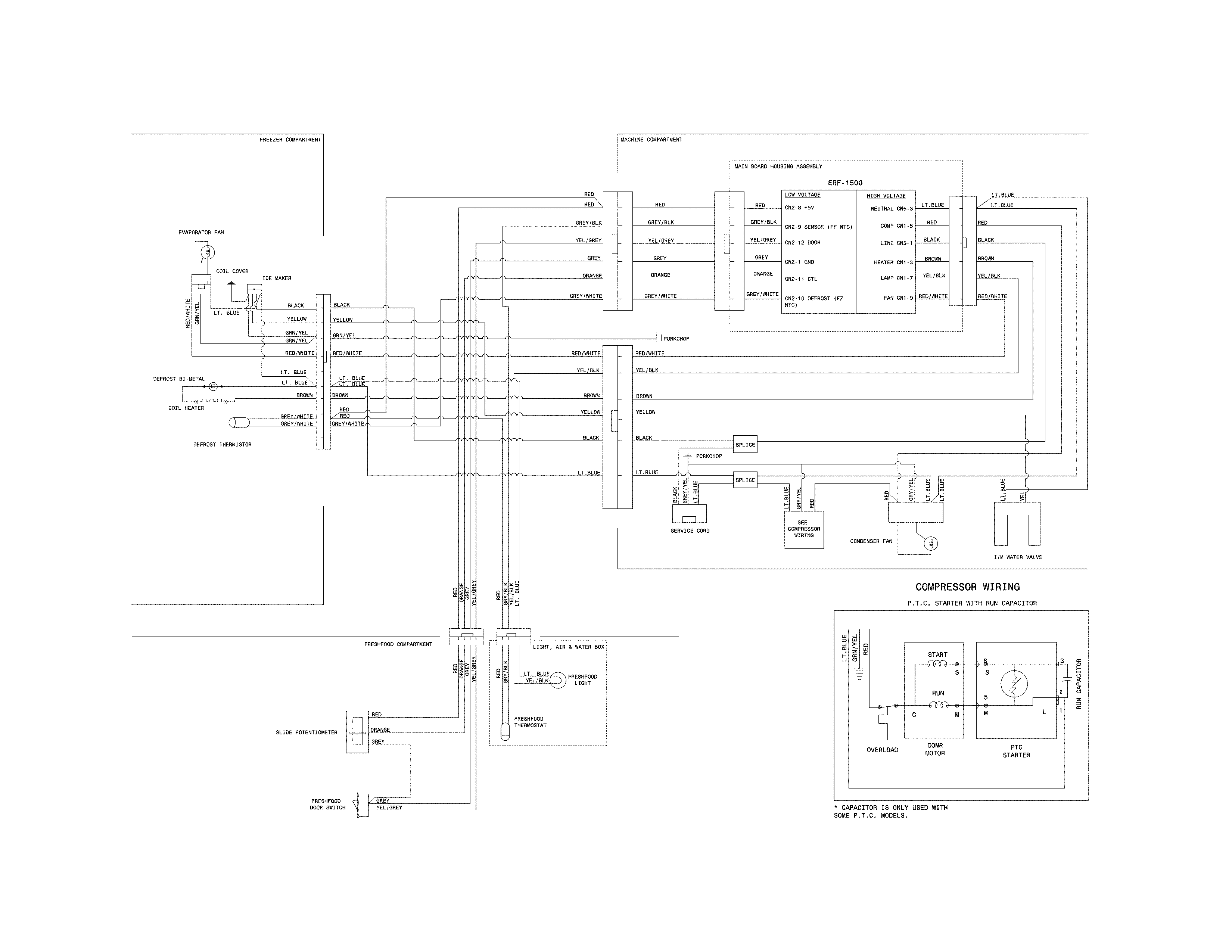

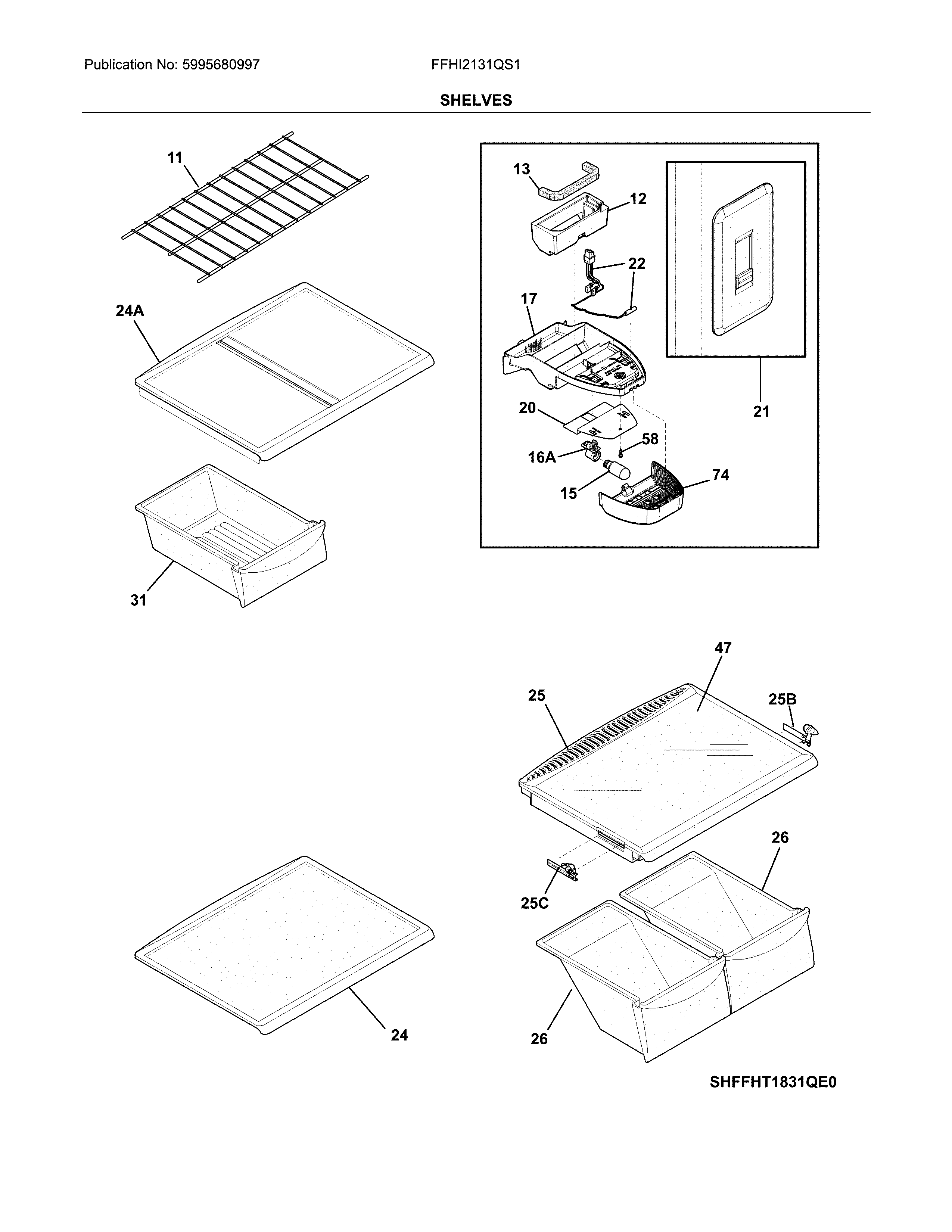

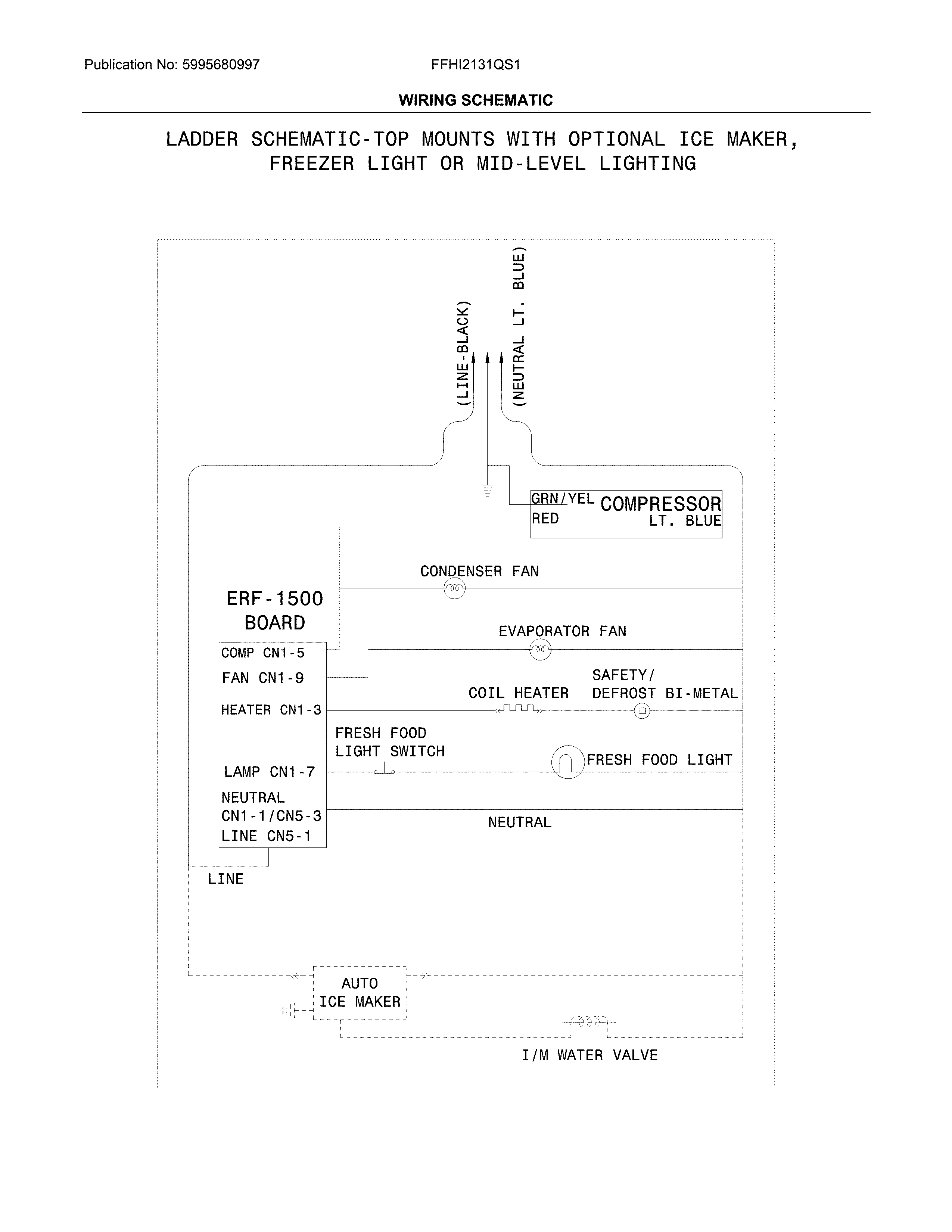

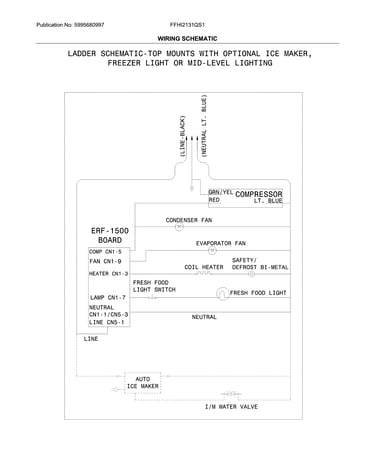

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Refrigerator Ice Maker 241798224
#2

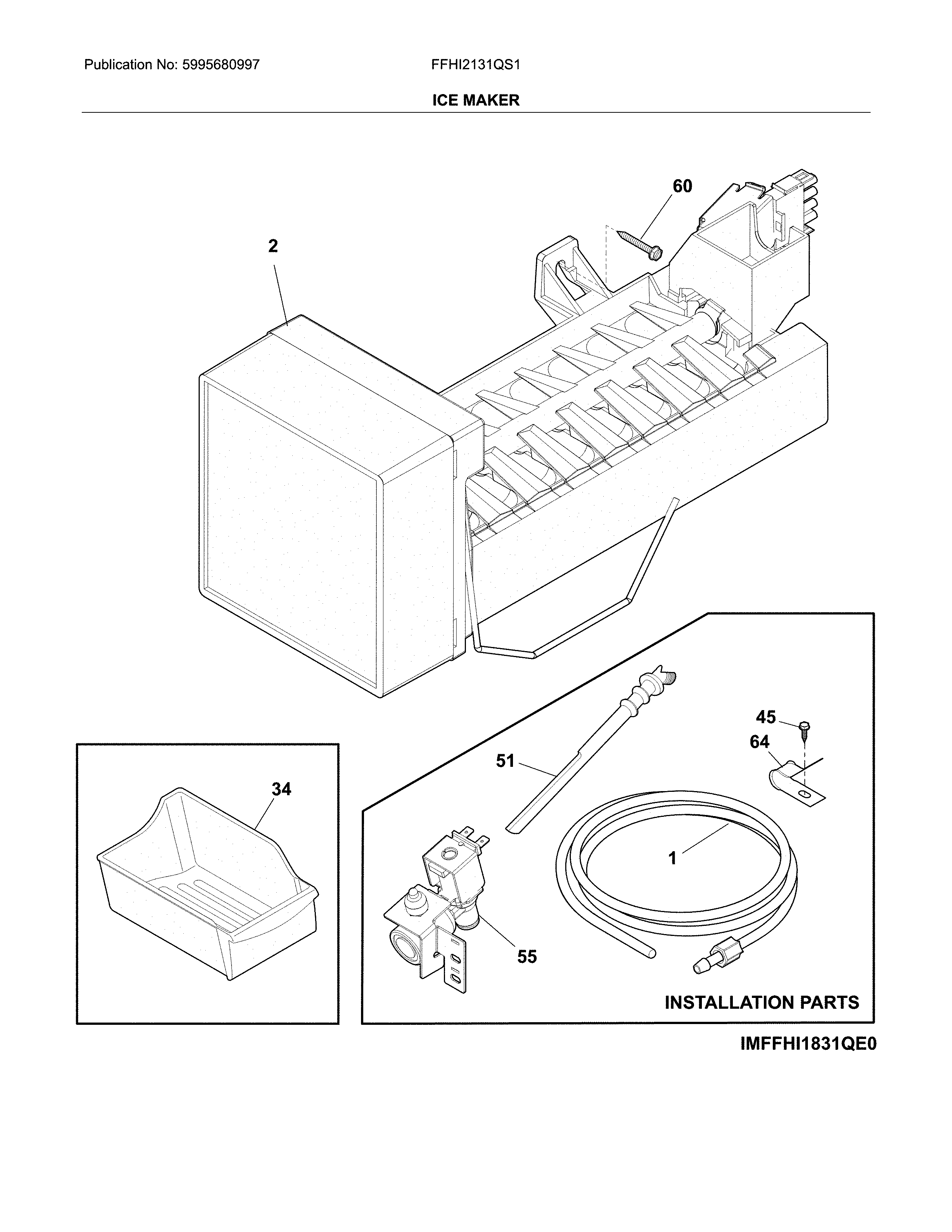

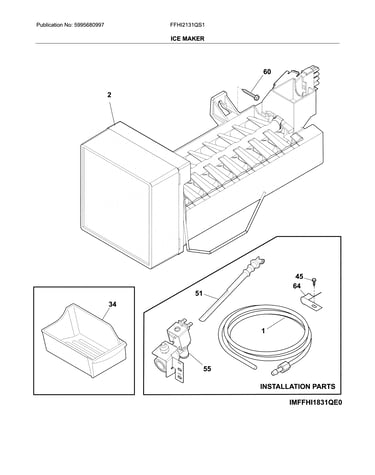

Ice maker diagram

Refrigerator ice maker

Part #241798224

Replaced by #241798231

?
Manufacturer substitution
This part replaces 241798224. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Dryer 242047603
#4

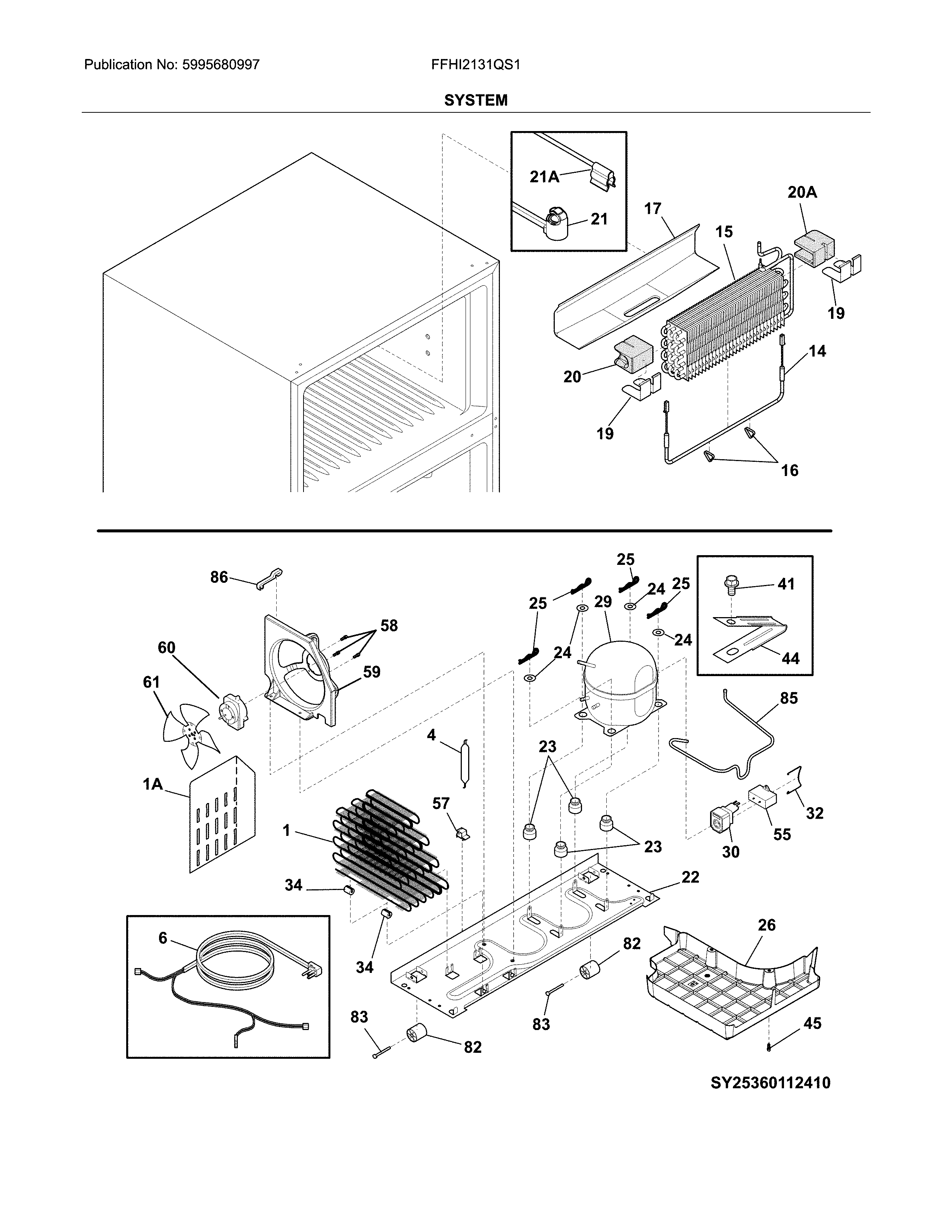

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Bin 240337901
#48A

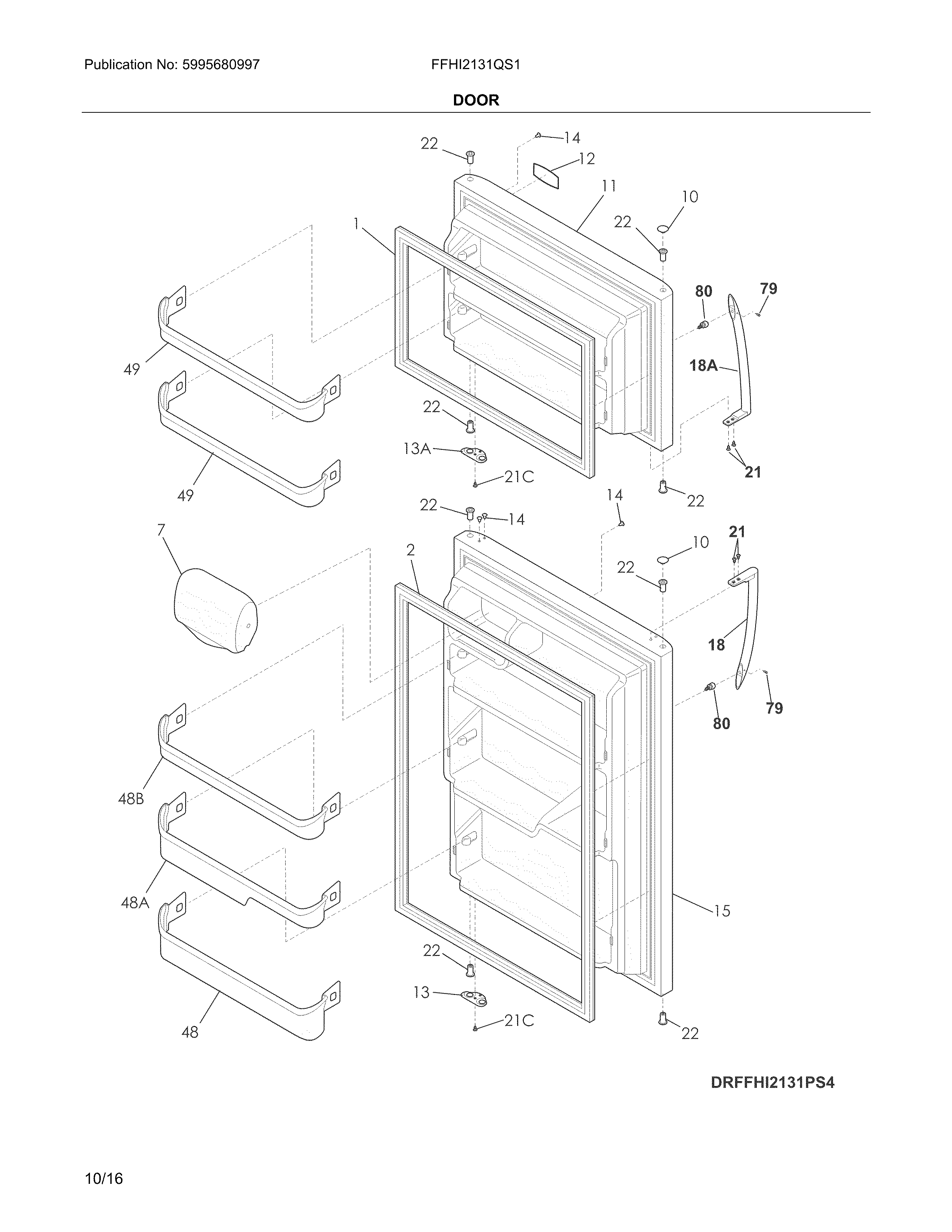

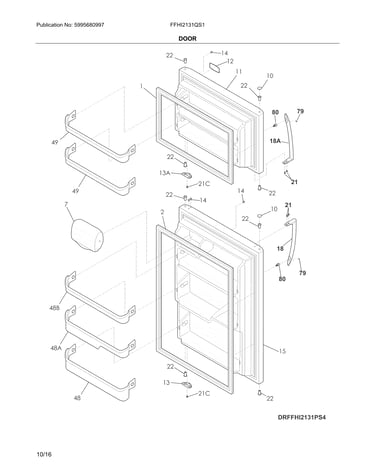

Door diagram

Refrigerator door bin

Part #240337901

BEST SELLER
$44.16 |
12% OFF Phone Price : $50.16
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

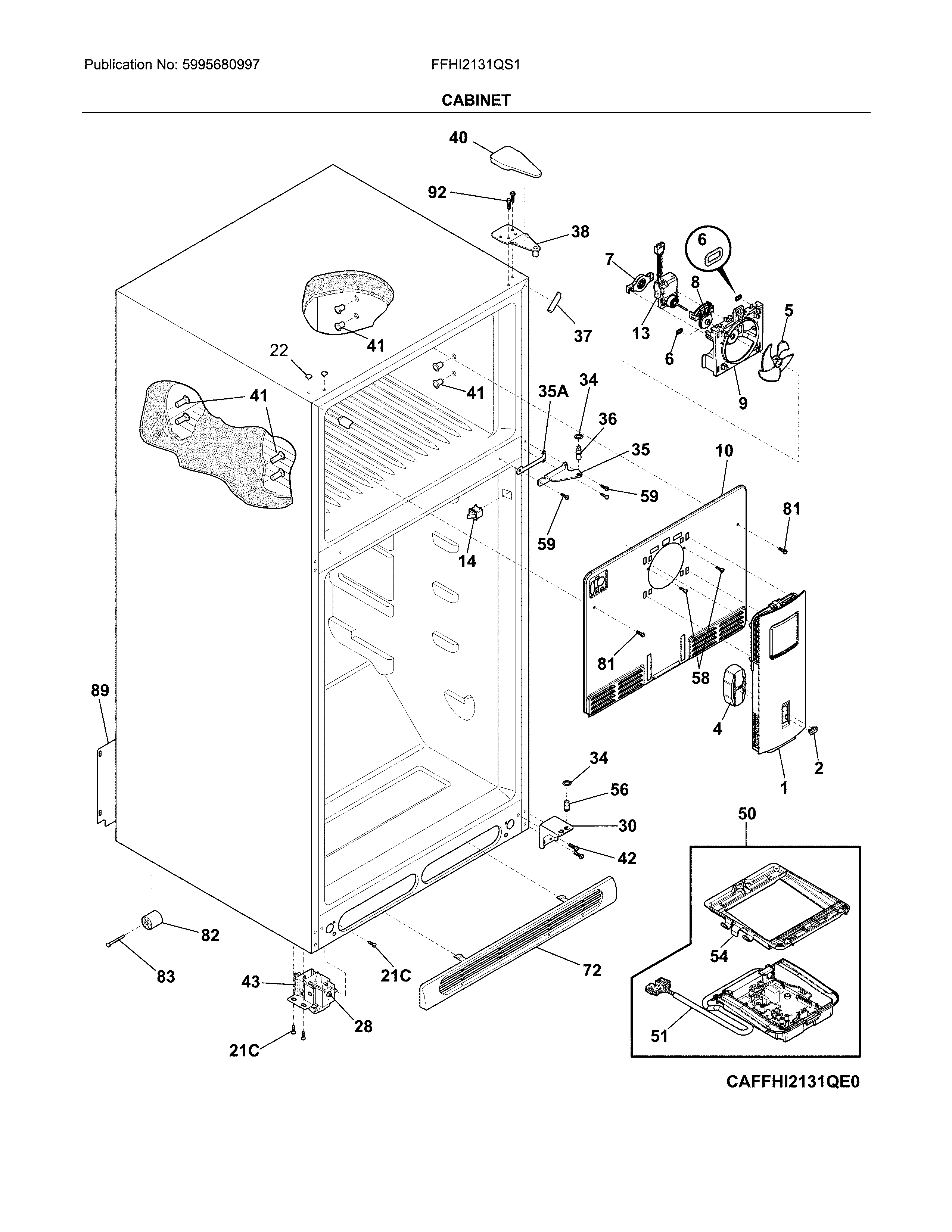

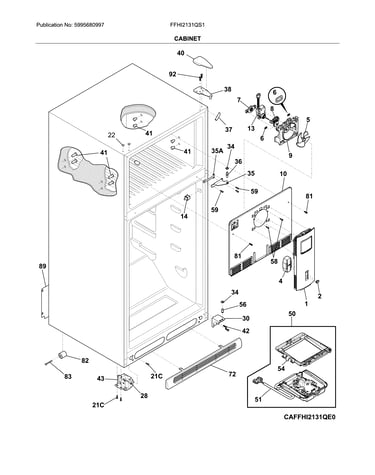

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Kenmore Elite Refrigerator Water Inlet Valve Assembly (replaces 241803703) 242252603
#55

Ice maker diagram

Kenmore elite refrigerator water inlet valve assembly (replaces 241803703)

Part #242252603

BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Evaporator Fan Motor 242077702
#13

Cabinet diagram

Refrigerator evaporator fan motor

Part #242077702

Replaced by #242077705

?
Manufacturer substitution
This part replaces 242077702. Substitute parts can look different from the original.
BEST SELLER
$87.80 |
6% OFF Phone Price : $93.80
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$91.38 |
6% OFF Phone Price : $97.38
In Stock
