Craftsman
Power Sander

Model # 315268190 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315268190 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

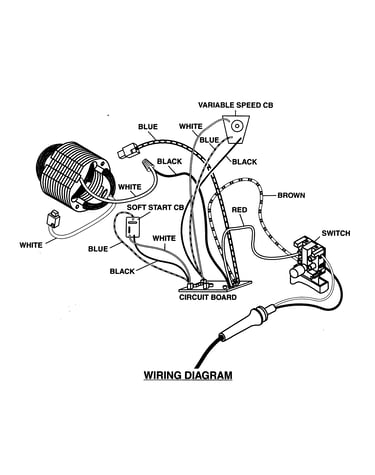

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Screw 660299004
#25

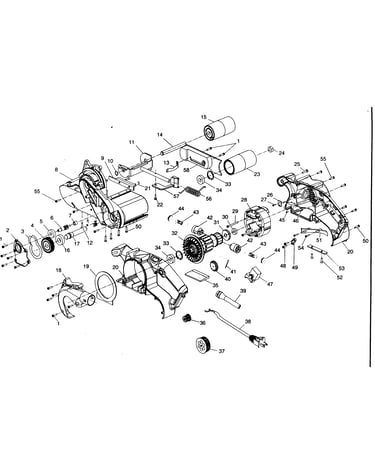

Housing assy diagram

Screw

Part #660299004

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 660106002
#13

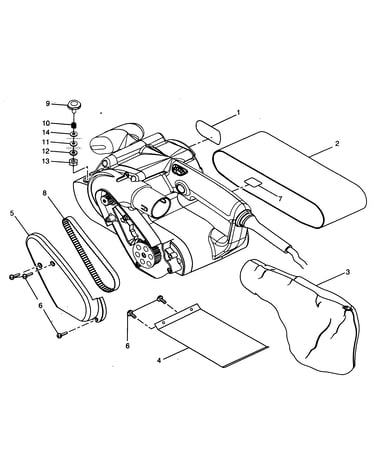

Sander diagram

Lock nut

Part #660106002

The manufacturer no longer makes this part, and there's no substitute part

Socket Set 660568001
#46

Housing assy diagram

Socket set

Part #660568001

The manufacturer no longer makes this part, and there's no substitute part

Screw 660013005
#22

Housing assy diagram

Screw

Part #660013005

The manufacturer no longer makes this part, and there's no substitute part

Cover 590539001
#19

Housing assy diagram

Cover

Part #590539001

The manufacturer no longer makes this part, and there's no substitute part

Housing Ay 300141037
#20

Housing assy diagram

Housing ay

Part #300141037

The manufacturer no longer makes this part, and there's no substitute part

Shaft 620233001
#14

Housing assy diagram

Shaft

Part #620233001

The manufacturer no longer makes this part, and there's no substitute part

Screw 660366001
#21

Housing assy diagram

Screw

Part #660366001

The manufacturer no longer makes this part, and there's no substitute part

Sander Wear Plate 301041001
#4

Sander diagram

Sander wear plate

Part #301041001

The manufacturer no longer makes this part, and there's no substitute part

Sander Idler Roller 300777003
#23

Housing assy diagram

Sander idler roller

Part #300777003

The manufacturer no longer makes this part, and there's no substitute part
