Model # 153313340 Official Kenmore water heater
Here are the diagrams and repair parts for Official Kenmore 153313340 water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153313340 Water Heaters
#3A

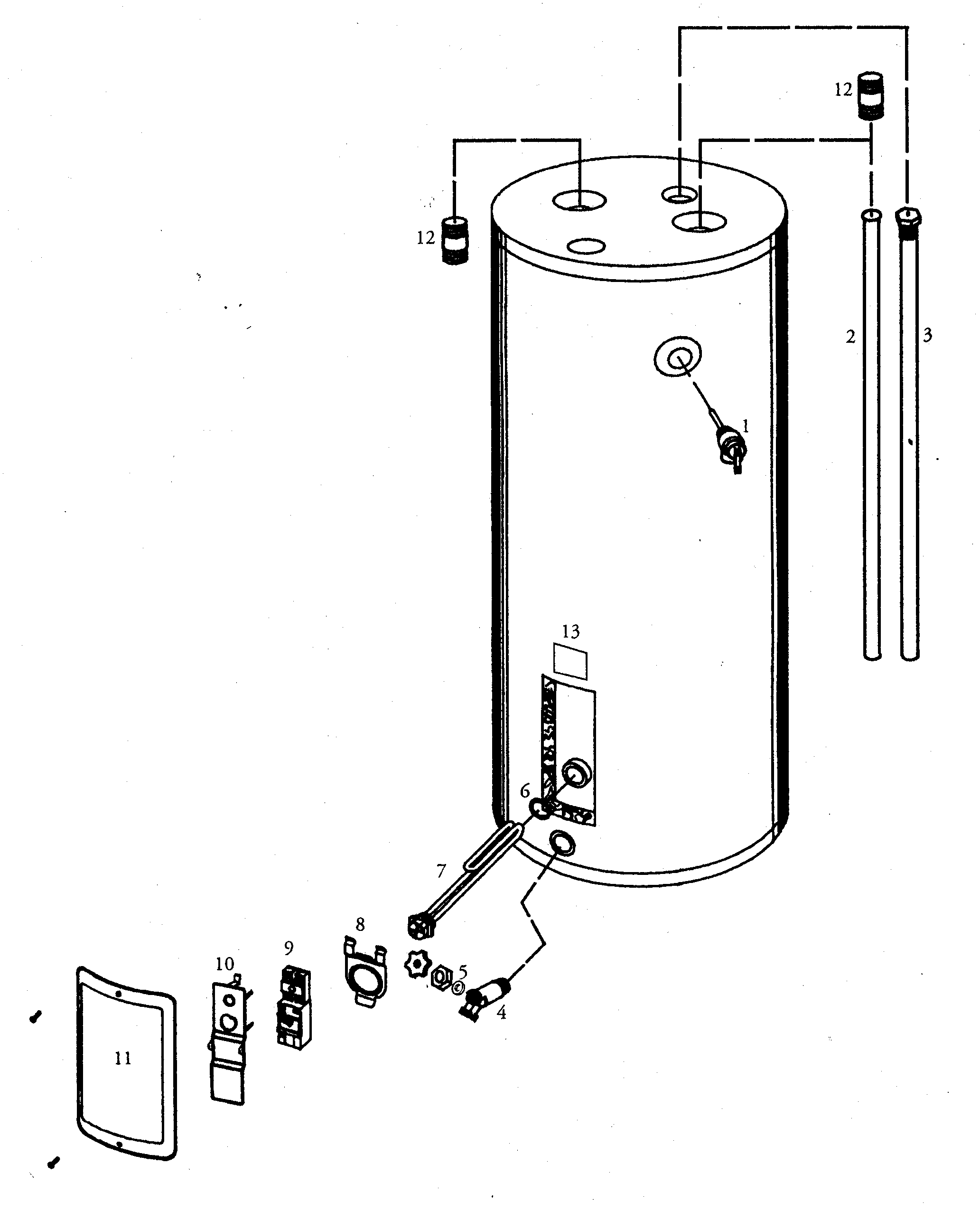

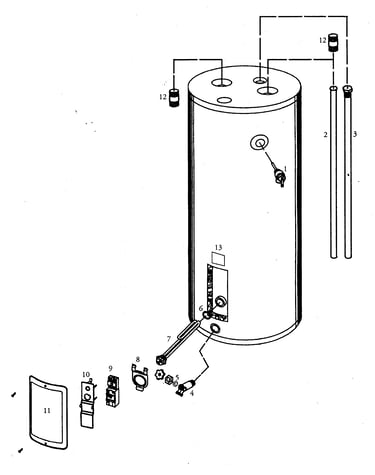

Water heater diagram
Anode rod
Part #9001824
Replaced by #100108260
?
Manufacturer substitution
This part replaces 9001824. Substitute parts can look different from the original.
$48.89
In Stock
#7
Water heater diagram
Element
Part #31906
Replaced by #100108346
?
Manufacturer substitution
This part replaces 31906. Substitute parts can look different from the original.
$62.22
In Stock
#11
Water heater diagram
Water heater access panel, lower
Part #9003900
Replaced by #100109599
?
Manufacturer substitution
This part replaces 9003900. Substitute parts can look different from the original.
$30.00
In Stock
#12
Water heater diagram
Nipple
Part #9003915
Replaced by #100108409
?
Manufacturer substitution
This part replaces 9003915. Substitute parts can look different from the original.
$25.71
In Stock
#8
Water heater diagram
Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)
Part #9000309
Replaced by #100108380
?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
#2
Water heater diagram
Water heater dip tube
Part #9002360
Replaced by #100108763
?
Manufacturer substitution
This part replaces 9002360. Substitute parts can look different from the original.
$26.67
In Stock
#1
Water heater diagram
Temperature and pressure valve
Part #33086
Replaced by #100108779
?
Manufacturer substitution
This part replaces 33086. Substitute parts can look different from the original.
$76.59
In Stock
#4
Water heater diagram
Valve
Part #9003911
Replaced by #100108605
?
Manufacturer substitution
This part replaces 9003911. Substitute parts can look different from the original.
$27.78
In Stock
#9
Water heater diagram
Thermostat
Part #31918
Replaced by #100108424
?
Manufacturer substitution
This part replaces 31918. Substitute parts can look different from the original.
$32.99
In Stock
#6
Water heater diagram
Water heater heating element gasket
Part #9000308
Replaced by #9000308005
?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Most common symptoms to help you fix your water heaters
Choose a symptom to see related water heater repairs.
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…
Main causes: water supply needs chlorine treatment, anode rod too reactive…
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…
Main causes: faulty pressure relief valve, water is overheating…
Repair guides for electric water heaters
How to replace a water heater element
If your water heater runs out of hot water quickly and one of the two heating elements has failed, replace the element f…
Repair difficulty
Time required
30 minutes or less
How to replace an electric water heater thermostat
If the water temperature fluctuates or you don't get enough hot water, follow these instructions to replace your water h…
Repair difficulty
Time required
30 minutes or less
How to replace a water heater temperature and pressure (T&P) relief valve
Replace a broken temperature/pressure (T&P) relief valve on an electric water heater using these instructions.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your water heaters
Use the advice and tips in these articles and videos to get the most out of your water heater.
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Find out what’s wrong with your appliance by following a circuit.…
Read about some water heater repairs that you can easily do yourself.…
