Model # PRD366GHC/11 Official Thermador dual-fuel range

Here are the diagrams and repair parts for Official Thermador PRD366GHC-11 dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

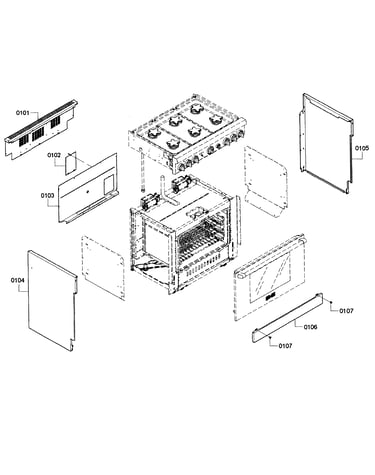

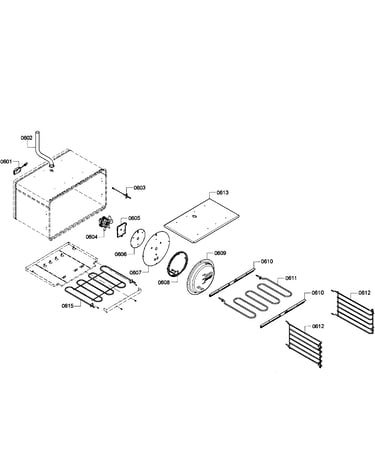

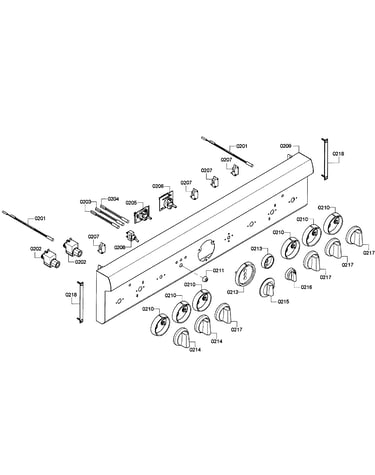

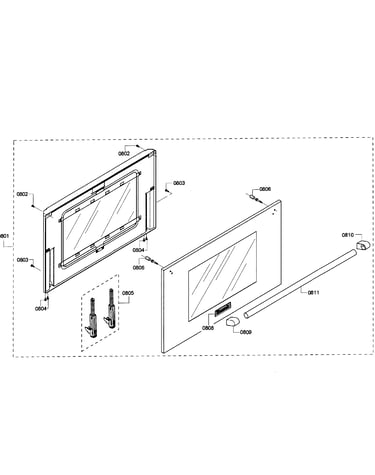

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Burner Cap 645415
#301

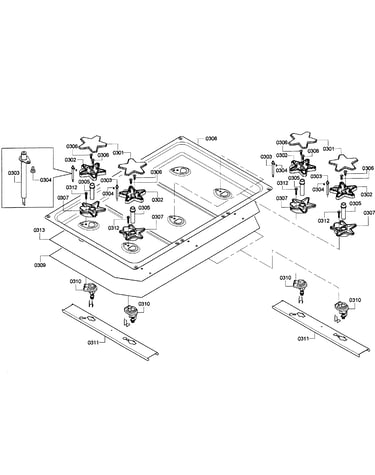

Burners assy diagram

Burner cap

Part #645415

Replaced by #00645415

?
Manufacturer substitution
This part replaces 645415. Substitute parts can look different from the original.
$58.29 |
9% OFF Phone Price : $64.29
In Stock
Pcb Control 649291
#501

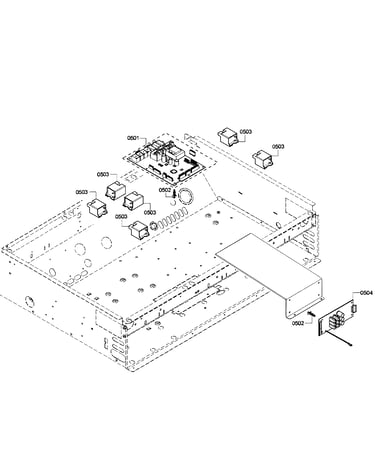

Pcb's assy diagram

Pcb control

Part #649291

Replaced by #00709785

?
Manufacturer substitution
This part replaces 649291. Substitute parts can look different from the original.
This item is not returnable
$338.55 |
$12.00 OFF Phone Price : $350.55
In Stock
Terminal Box 436364
#702

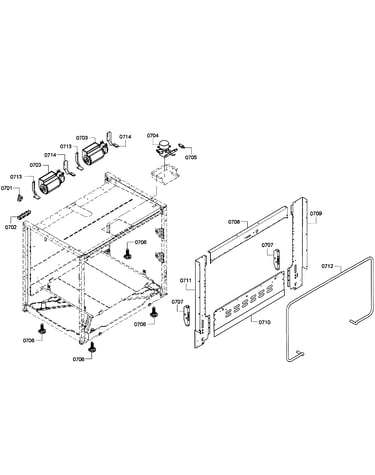

Cabinet assy diagram

Terminal box

Part #436364

Replaced by #00436364

?
Manufacturer substitution
This part replaces 436364. Substitute parts can look different from the original.
$32.67
In Stock
Screw 617173
#304

Burners assy diagram

Screw

Part #617173

Replaced by #00617173

?
Manufacturer substitution
This part replaces 617173. Substitute parts can look different from the original.
This item is not returnable
$3.34
In Stock
Ignition 427090
#503

Pcb's assy diagram

Ignition

Part #427090

Replaced by #00619017

?
Manufacturer substitution
This part replaces 427090. Substitute parts can look different from the original.
$138.31 |
8% OFF Phone Price : $150.31
In Stock
Range Surface Burner Grate 145306
#901

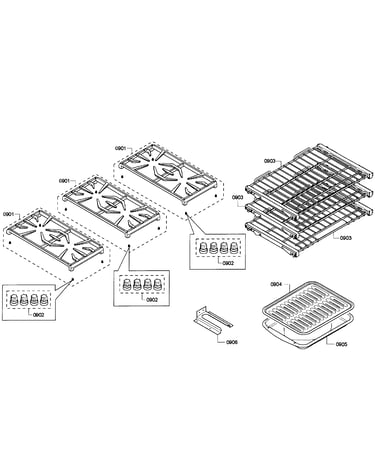

Grates/shelfs diagram

Range surface burner grate

Part #145306

Replaced by #00145306

?
Manufacturer substitution
This part replaces 145306. Substitute parts can look different from the original.
$189.96 |
6% OFF Phone Price : $201.96
In Stock
Gas Tube 676041
#411

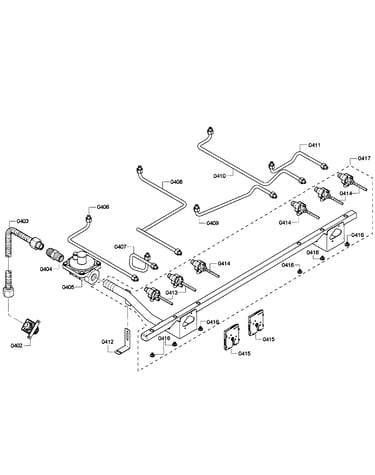

Manifold assy diagram

Gas tube

Part #676041

Replaced by #00676041

?
Manufacturer substitution
This part replaces 676041. Substitute parts can look different from the original.
$43.62
In Stock
Door Seal 649556
#712

Cabinet assy diagram

Door seal

Part #649556

Replaced by #00791967

?
Manufacturer substitution
This part replaces 649556. Substitute parts can look different from the original.
$124.96
In Stock
Switch-doo 618400
#705

Cabinet assy diagram

Switch-doo

Part #618400

Replaced by #00618400

?
Manufacturer substitution
This part replaces 618400. Substitute parts can look different from the original.
$23.49
In Stock
Screw 420807
#416

Manifold assy diagram

Screw

Part #420807

Replaced by #00420807

?
Manufacturer substitution
This part replaces 420807. Substitute parts can look different from the original.
This item is not returnable
$3.69
In Stock
