Model # HBL456AUC Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBL456AUC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

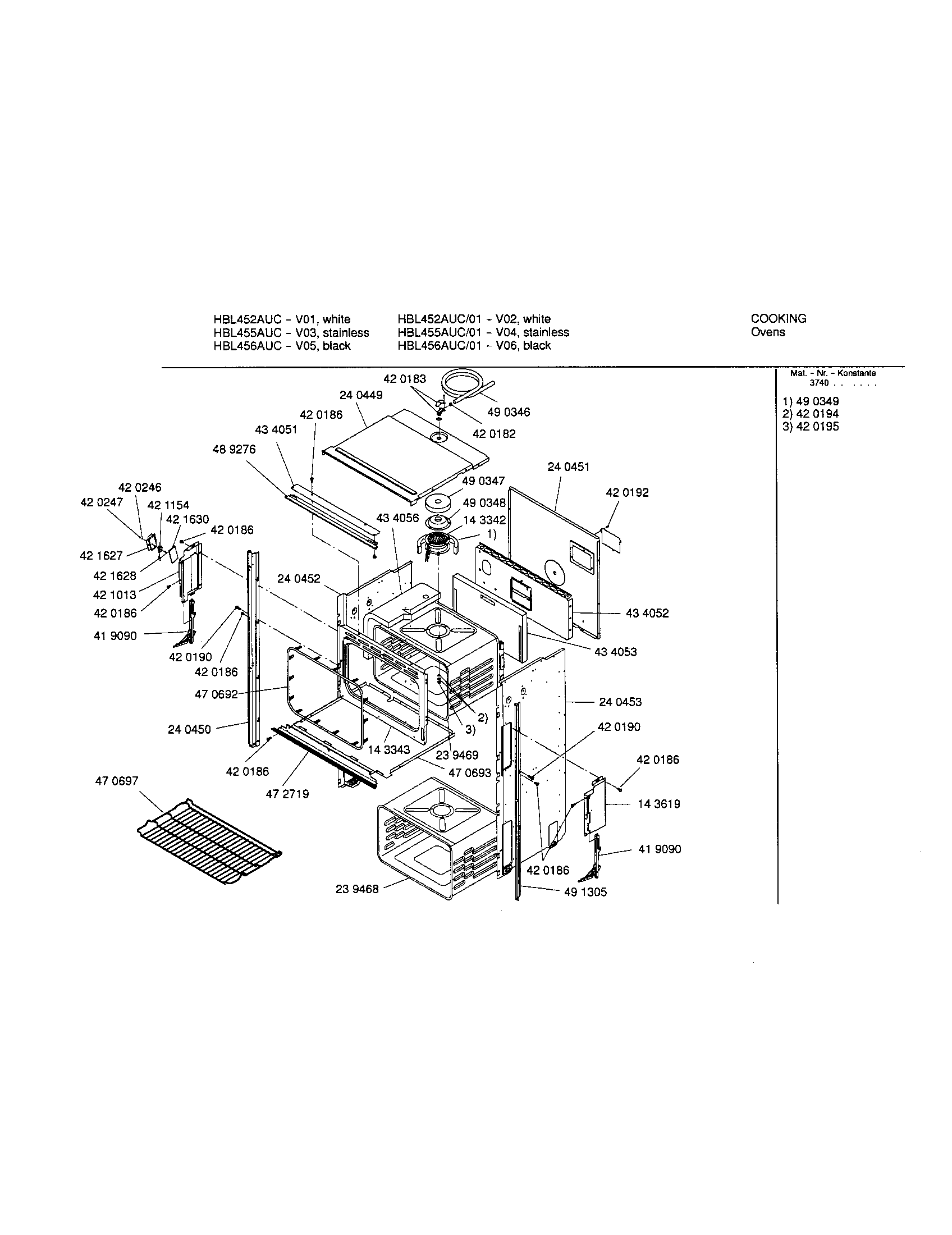

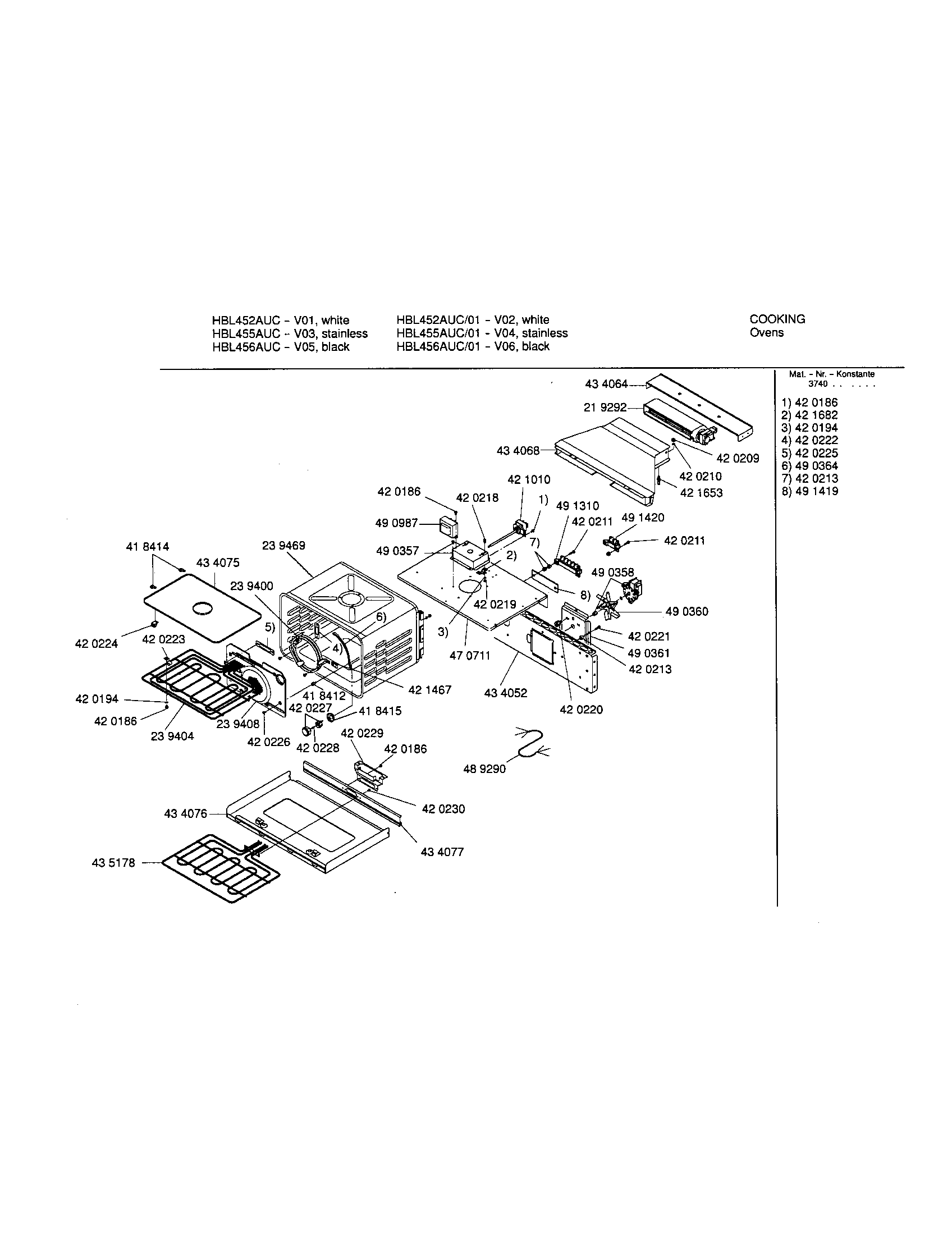

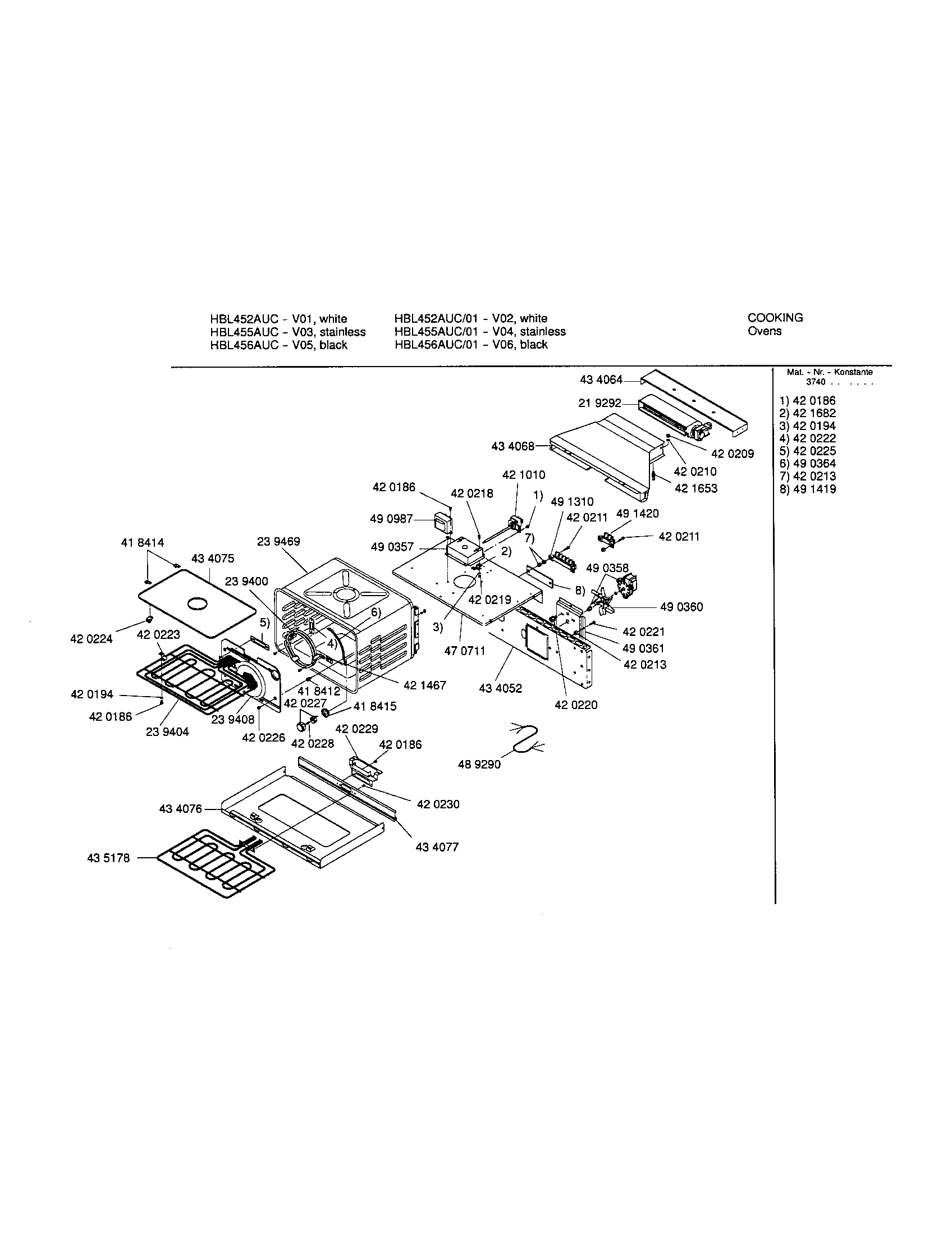

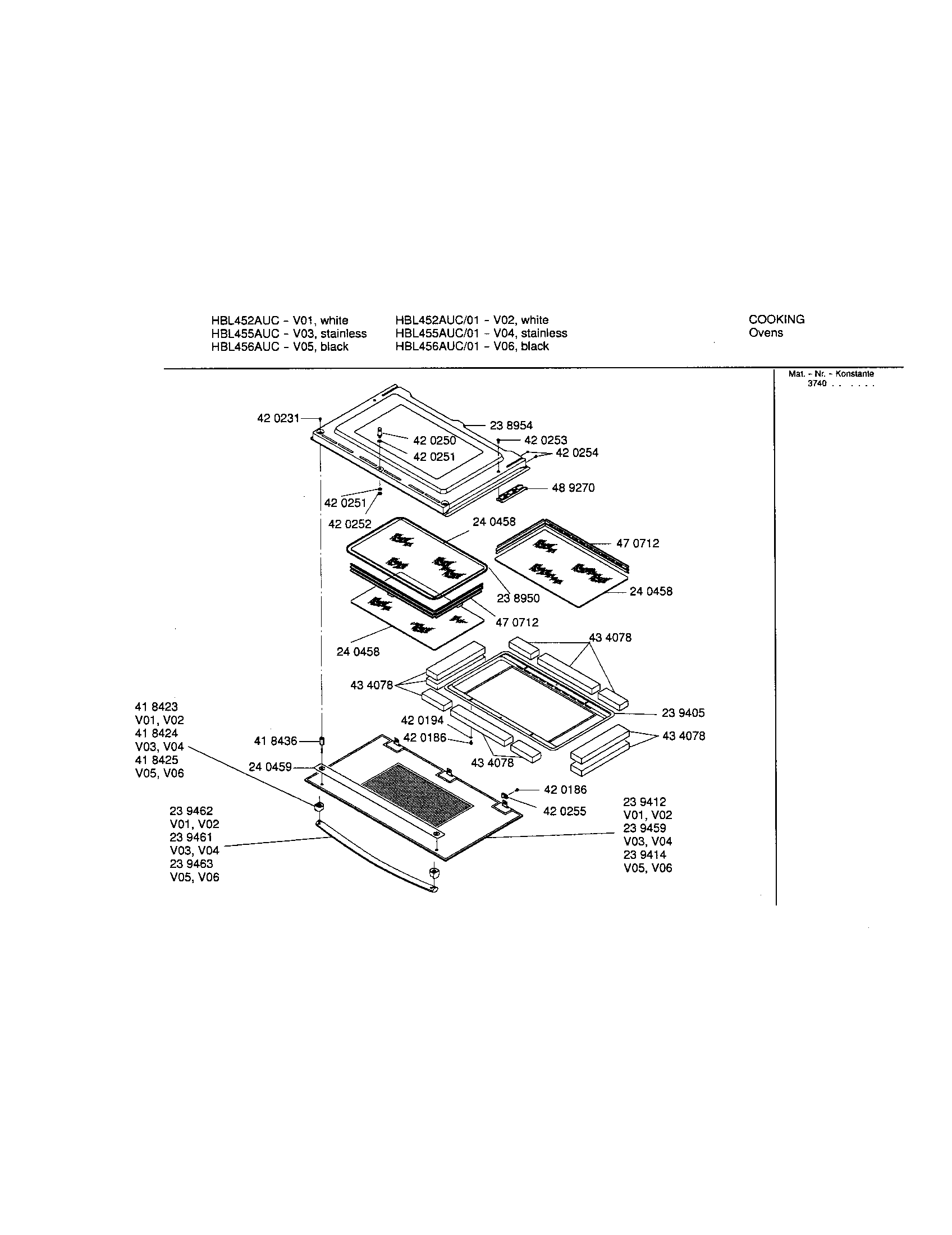

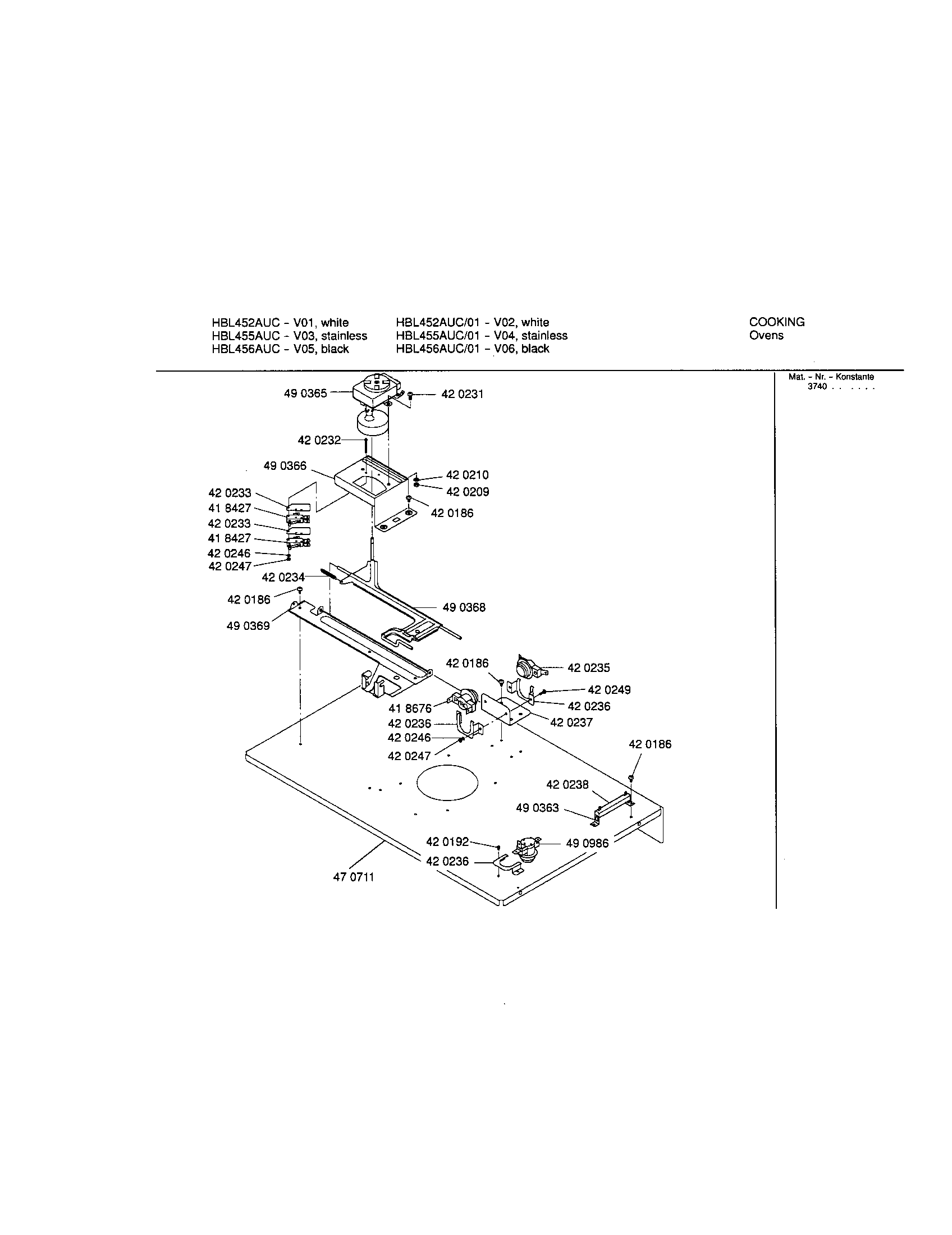

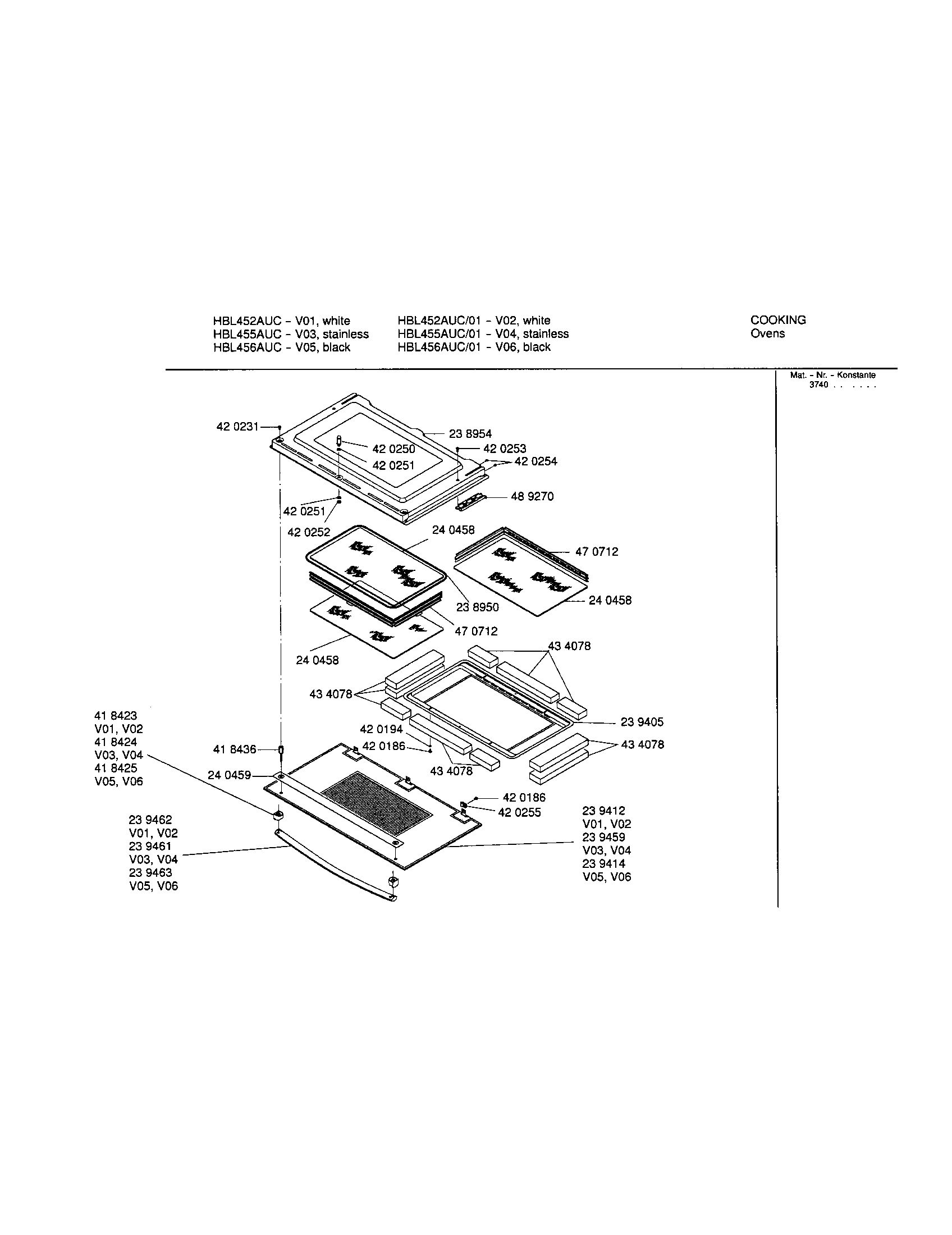

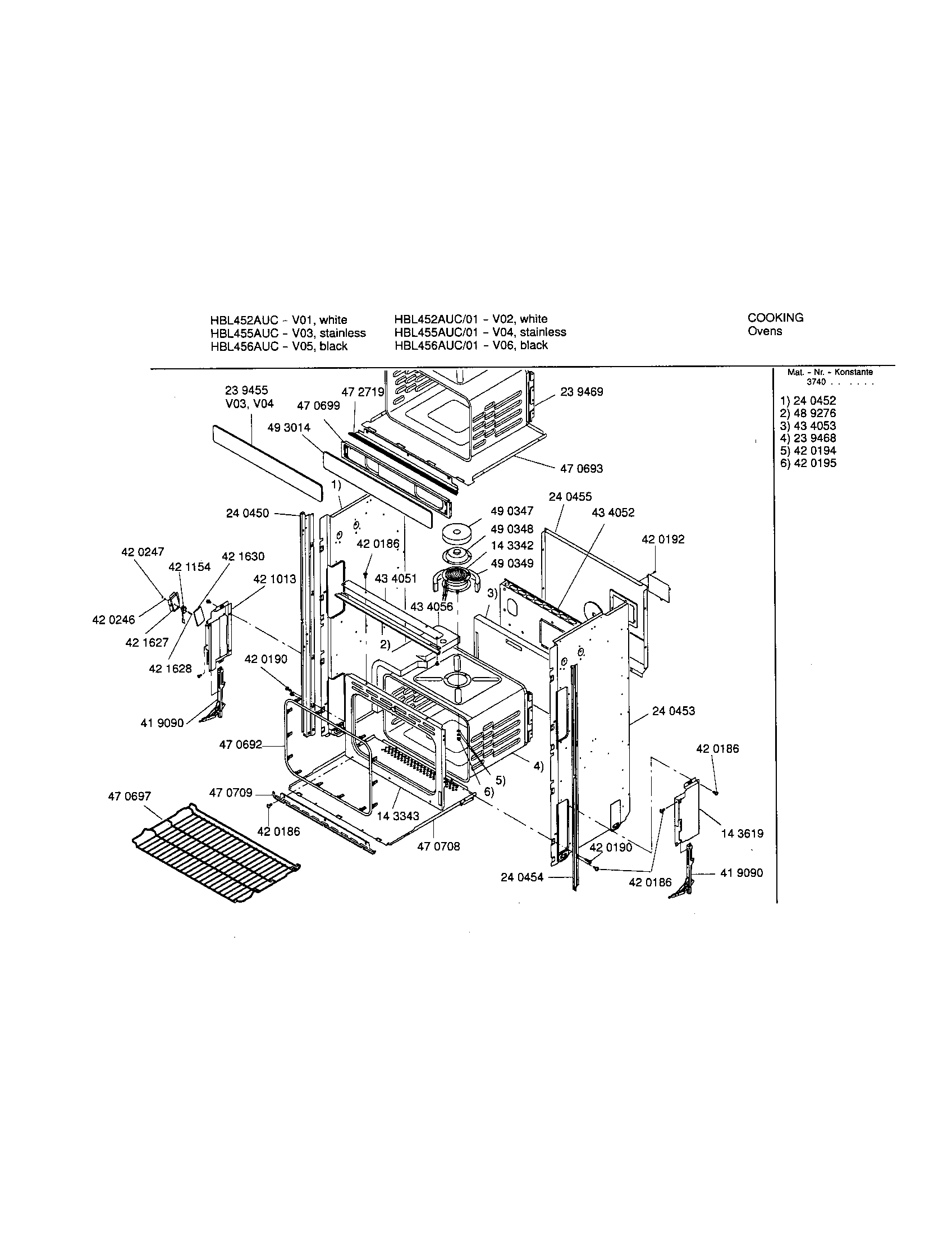

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |

Oven Bulb 420228
Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79
19% OFF Phone Price : $31.79
In Stock
Oven Selector Switch 490962
#490962

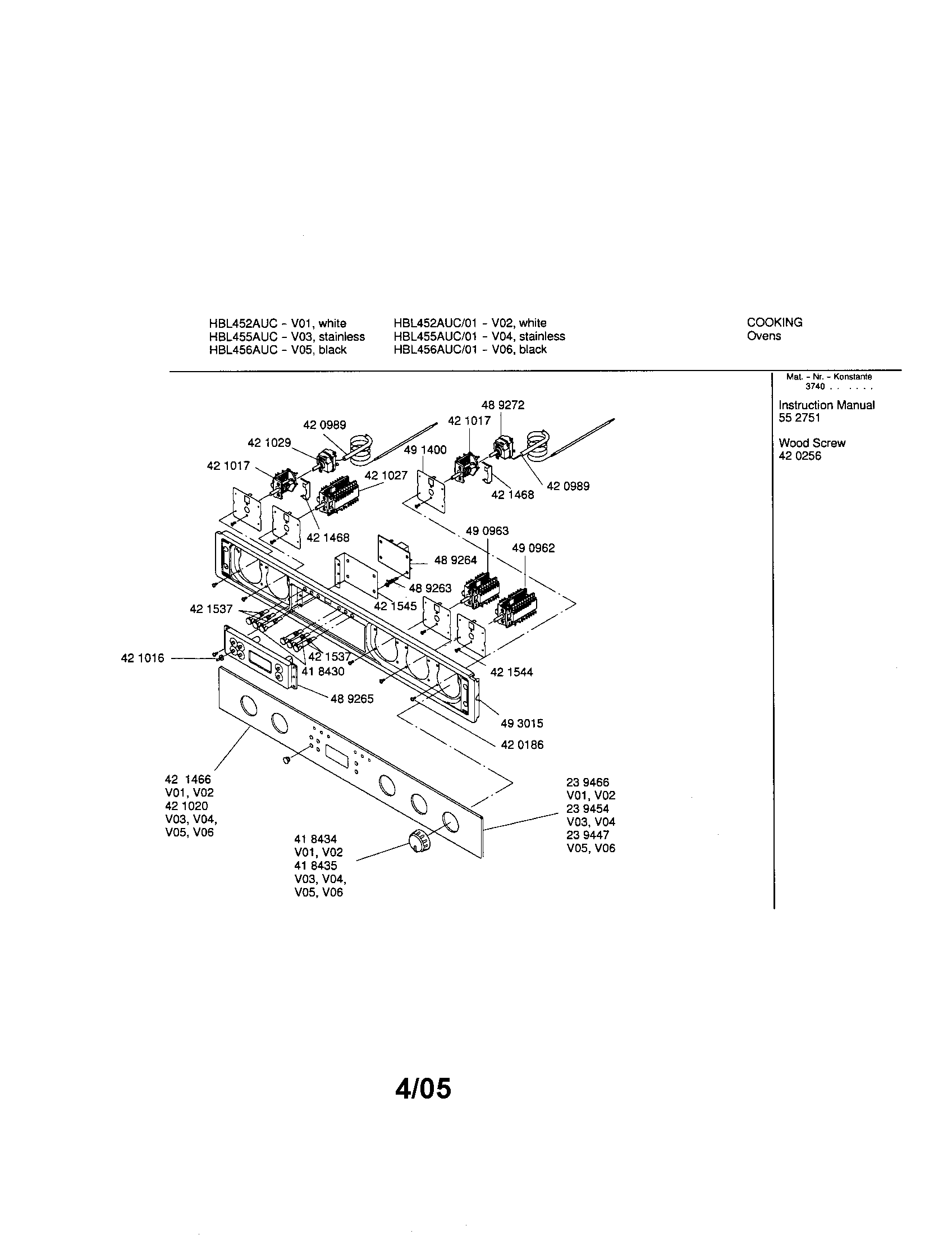

Fascia panel diagram

Oven selector switch

Part #490962

The manufacturer no longer makes this part, and there's no substitute part

Baffle 239408
Baffle

Part #239408

The manufacturer no longer makes this part, and there's no substitute part

Screw 420256
#420256

Fascia panel diagram

Screw

Part #420256

The manufacturer no longer makes this part, and there's no substitute part

Oven Thermostat 490986
Oven thermostat

Part #490986

The manufacturer no longer makes this part, and there's no substitute part

Channel 434068
Channel

Part #434068

The manufacturer no longer makes this part, and there's no substitute part

Spring 420234
Spring

Part #420234

The manufacturer no longer makes this part, and there's no substitute part

Glass Panel 239447
#239447

Fascia panel diagram

Glass panel

Part #239447

The manufacturer no longer makes this part, and there's no substitute part

Oven Element 239404
Oven element

Part #239404

The manufacturer no longer makes this part, and there's no substitute part

Bracket 491400
#491400

Fascia panel diagram

Bracket

Part #491400

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Main causes: broken broil element, faulty broil burner igniter, control system failure…
