Bosch
Washer

Model # WFMC220RUC/13 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC220RUC-13 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Washer Hot Water Inlet Valve 422245
#407

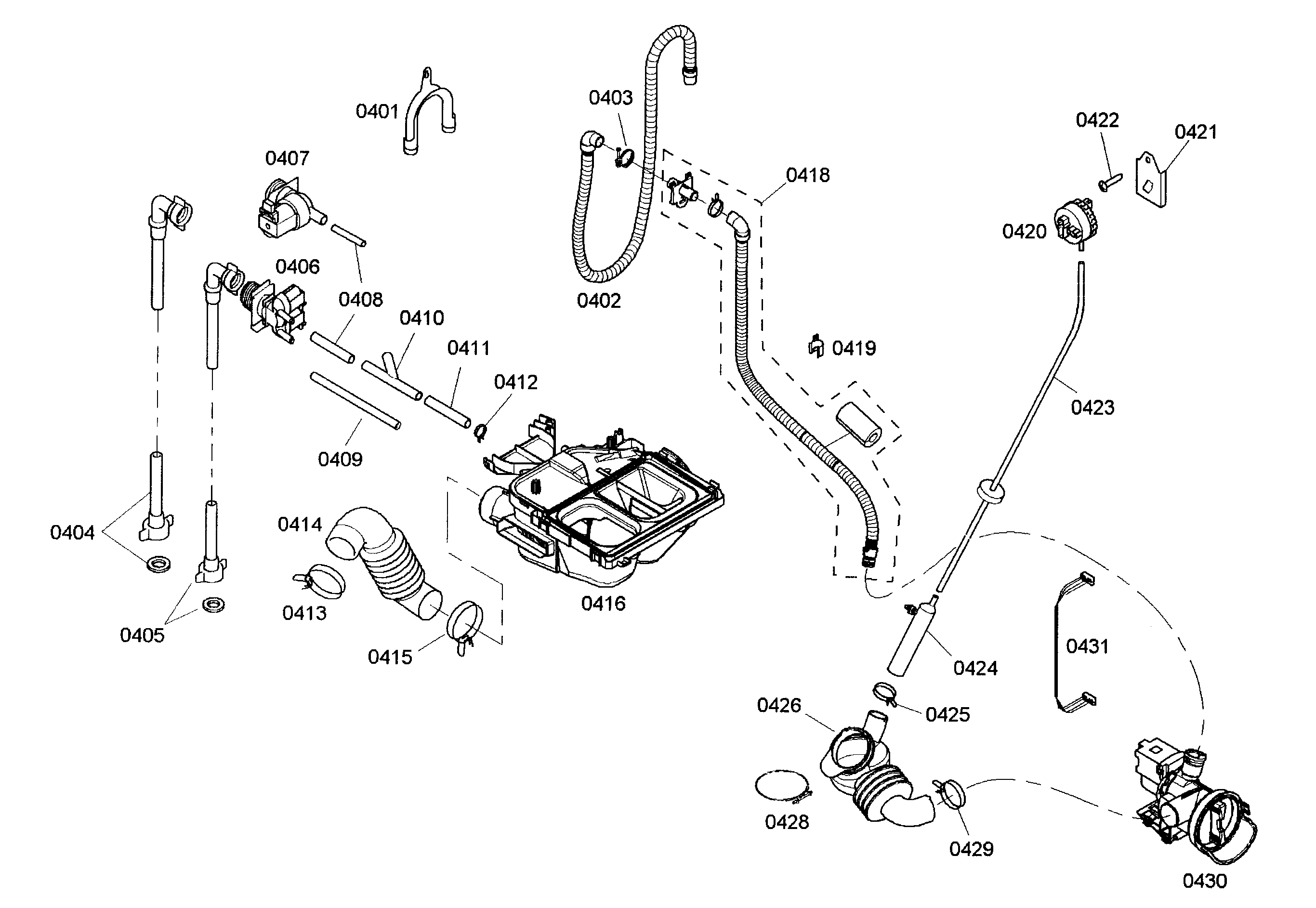

Dispenser assy/pump assy diagram

Washer hot water inlet valve

Part #422245

Replaced by #00422245

?
Manufacturer substitution
This part replaces 422245. Substitute parts can look different from the original.
BEST SELLER
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Washer Door Seal 667489
#318A

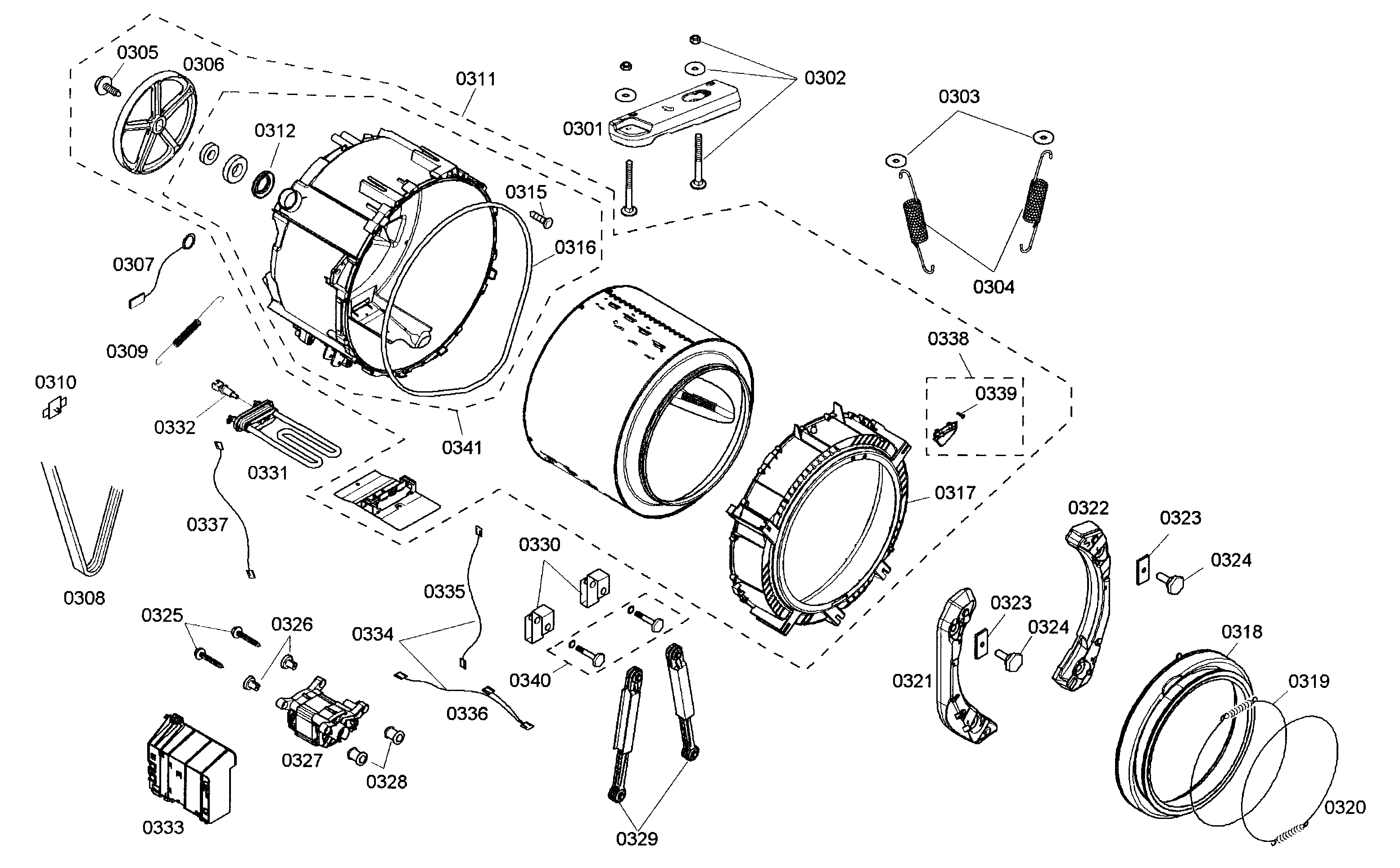

Drum assy diagram

Washer door seal

Part #667489

Replaced by #00667489

?
Manufacturer substitution
This part replaces 667489. Substitute parts can look different from the original.
$91.09 |
6% OFF Phone Price : $97.09
In Stock
Magnet Valve 422244
#406

Dispenser assy/pump assy diagram

Magnet valve

Part #422244

Replaced by #00422244

?
Manufacturer substitution
This part replaces 422244. Substitute parts can look different from the original.
$59.49 |
9% OFF Phone Price : $65.49
In Stock
Boot Gasket 445193
#318

Drum assy diagram

Boot gasket

Part #445193

Replaced by #00667489

?
Manufacturer substitution
This part replaces 445193. Substitute parts can look different from the original.
$91.09 |
6% OFF Phone Price : $97.09
In Stock
Washer Door Boot Clamp 644646
#320

Drum assy diagram

Washer door boot clamp

Part #644646

The manufacturer no longer makes this part, and there's no substitute part

Seal 416363
#312

Drum assy diagram

Seal

Part #416363

Replaced by #00613084

?
Manufacturer substitution
This part replaces 416363. Substitute parts can look different from the original.
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Spring 491683
#304

Drum assy diagram

Spring

Part #491683

Replaced by #00491683

?
Manufacturer substitution
This part replaces 491683. Substitute parts can look different from the original.
$100.80
In Stock
Washer Inlet Hose 493766
#405

Dispenser assy/pump assy diagram

Washer inlet hose

Part #493766

Replaced by #00493766

?
Manufacturer substitution
This part replaces 493766. Substitute parts can look different from the original.
$43.98
In Stock
Washer Electronic Control Board 670509
#106

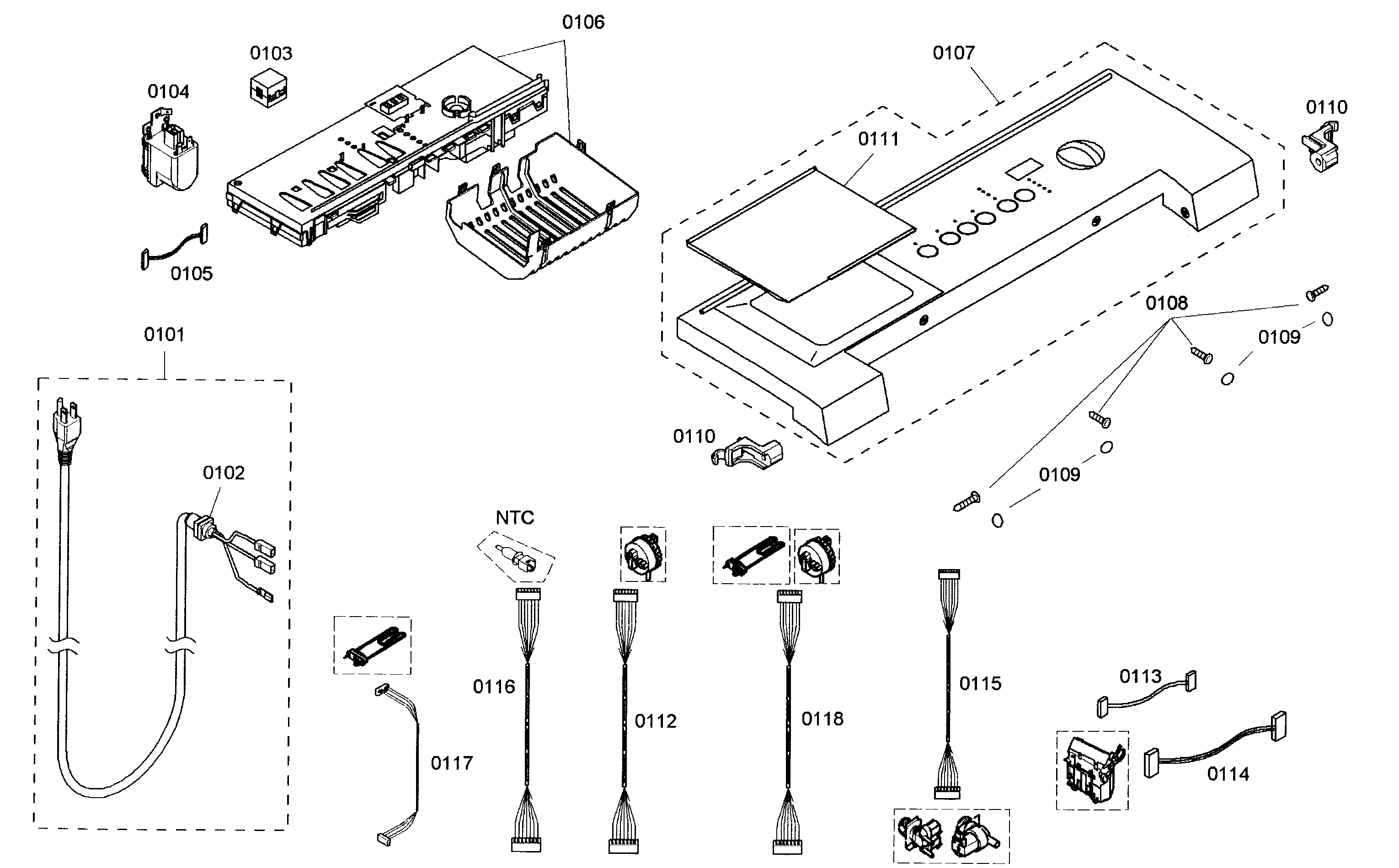

Control panel diagram

Washer electronic control board

Part #670509

Replaced by #00670509

?
Manufacturer substitution
This part replaces 670509. Substitute parts can look different from the original.
$529.42 |
$12.00 OFF Phone Price : $541.42
In Stock
Washer Tub Pulley Screw 422237
#305

Drum assy diagram

Washer tub pulley screw

Part #422237

Replaced by #00422237

?
Manufacturer substitution
This part replaces 422237. Substitute parts can look different from the original.
This item is not returnable
$4.97
In Stock
