Electric Wall Oven

Model # JT952WF4WW Official GE electric oven

Here are the diagrams and repair parts for Official GE JT952WF4WW electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

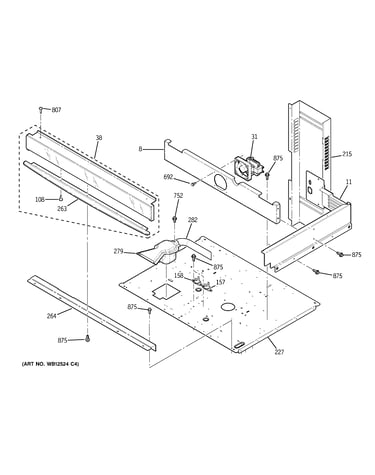

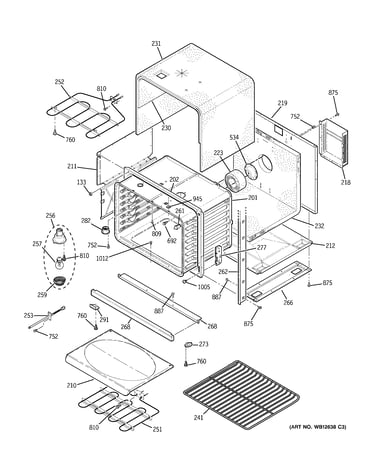

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Oven Lamp WB08T10022
Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Wall Oven Temperature Sensor WB23T10015
Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Pack Window WB56T10152
#338

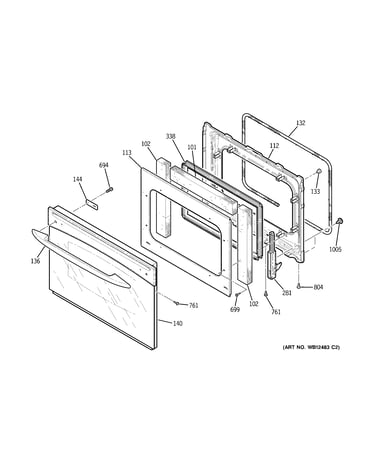

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$370.15 |
$12.00 OFF Phone Price : $382.15
In Stock
Range Bake Element WB44T10055
Range bake element

Part #WB44T10055

Replaced by #WB44T10021

?
Manufacturer substitution
This part replaces WB44T10055. Substitute parts can look different from the original.
BEST SELLER
$48.21 |
11% OFF Phone Price : $54.21
In Stock
Oven Lamp Holder WB08T10002
Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Range Oven Meat Probe Sensor (replaces Wb20k5034, Wb20x5034, Wb20x5064) WB20X5050
#280

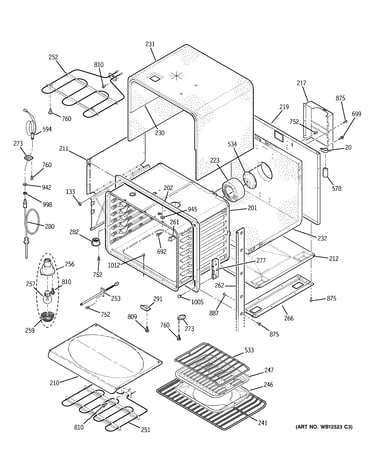

Upper body diagram

Range oven meat probe sensor (replaces wb20k5034, wb20x5034, wb20x5064)

Part #WB20X5050

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

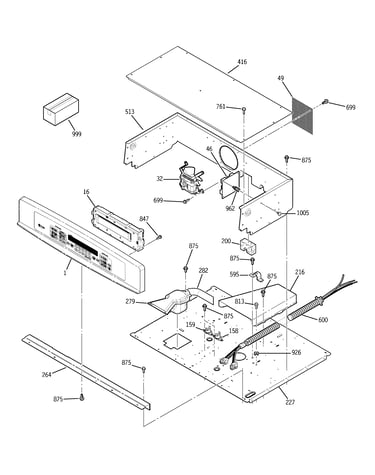

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Convection Element (replaces Wb44t10020) WB44T10053
#298

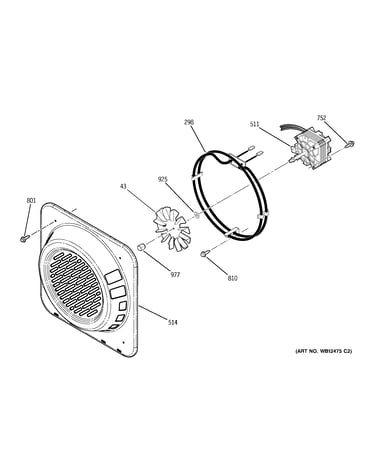

Convection fan diagram
