Troybilt
Front-Tine Tiller

Model # 21A-148H063 Official Troybilt tiller/edger

Here are the diagrams and repair parts for Official Troybilt 21A-148H063 tiller/edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Cable Tie 1763682
#13

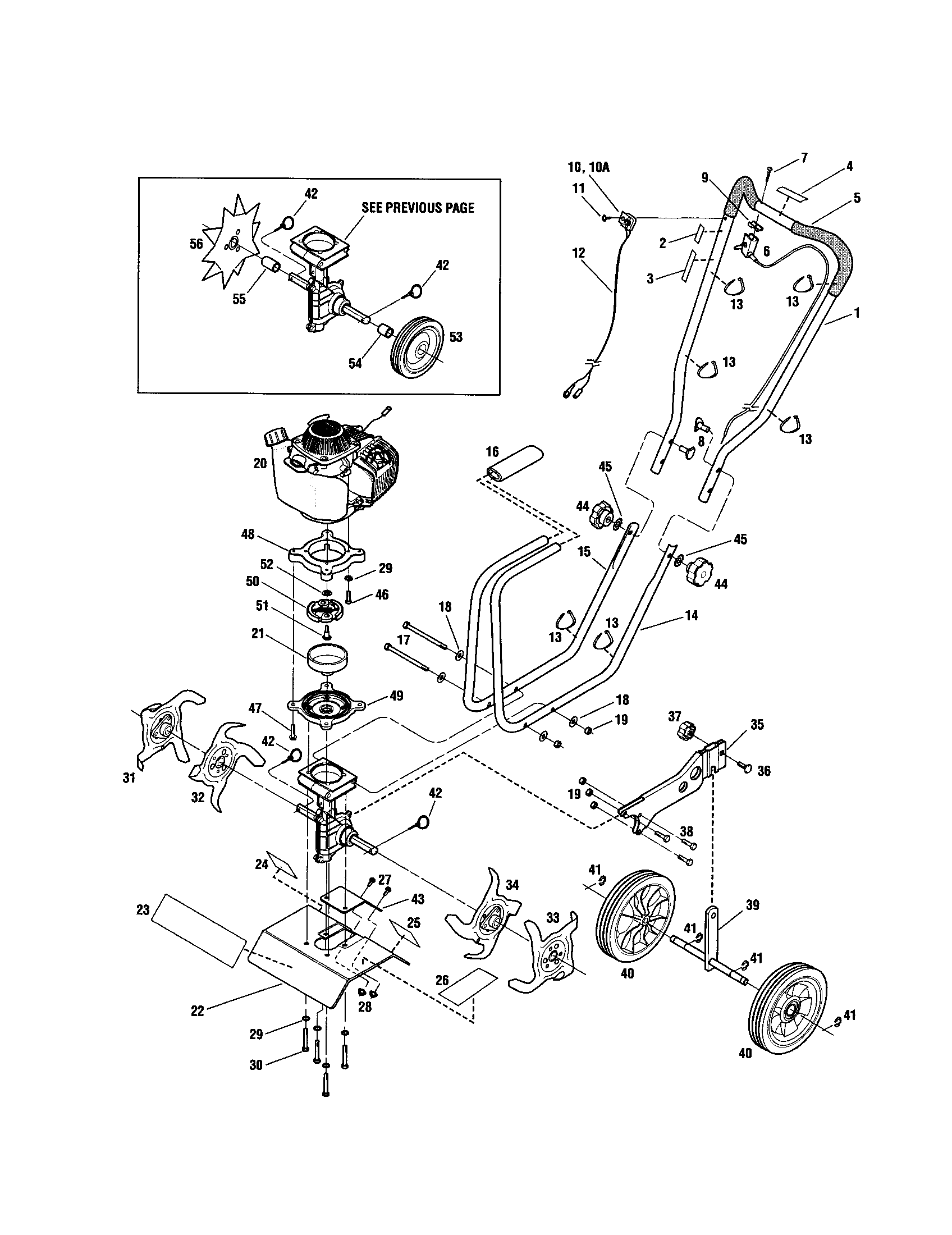

Engine/outer tine/handles diagram

Cable tie

Part #1763682

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 1763682. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Oil Seal 1983632
#3

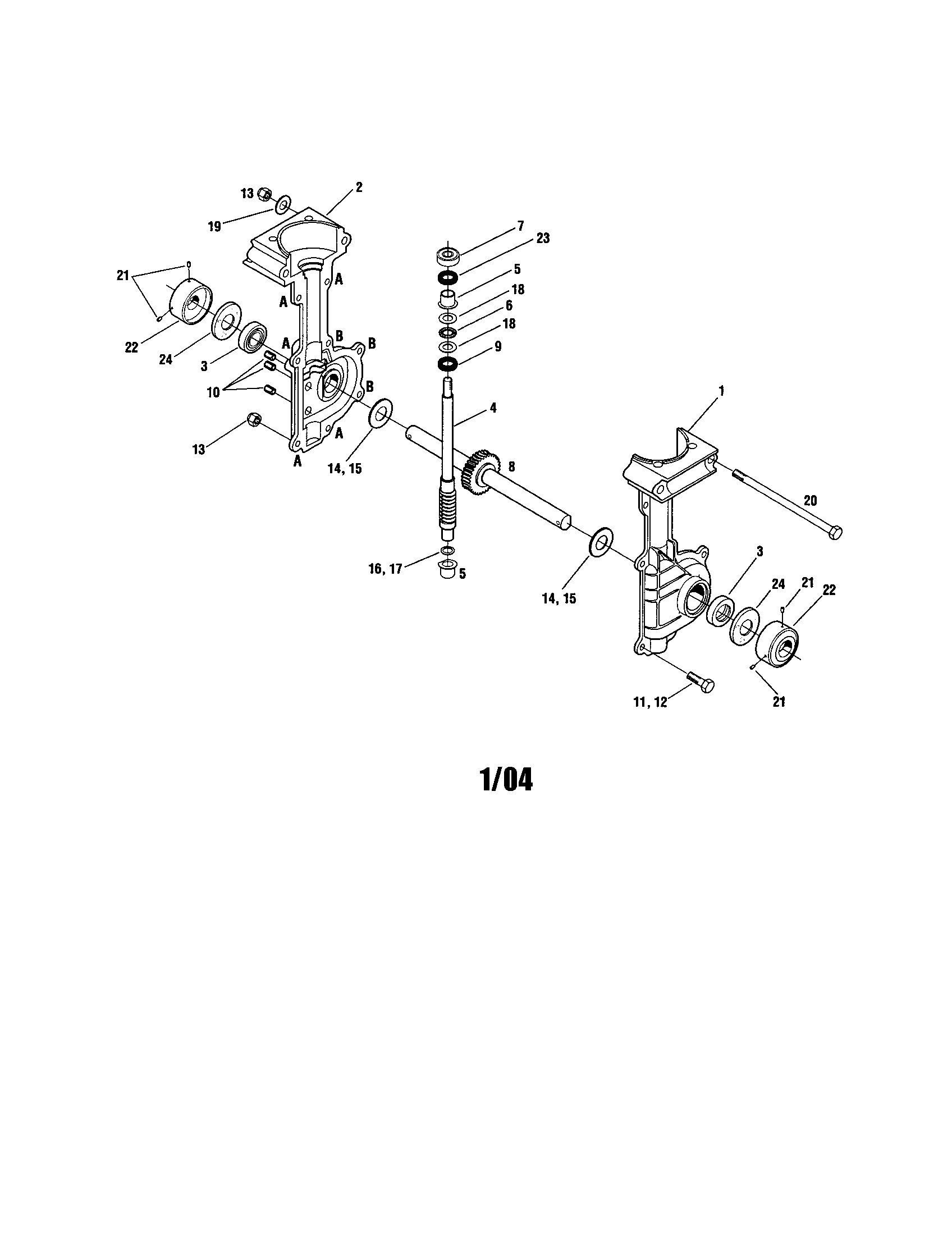

Transmission assembly diagram

Oil seal

Part #1983632

Replaced by #921-04044

?
Manufacturer substitution
This part replaces 1983632. Substitute parts can look different from the original.
$13.91
In Stock
Hex Cap Screw, 1/4-20 X 710-0501
#30

Engine/outer tine/handles diagram

Hex cap screw, 1/4-20 x

Part #710-0501

$12.34
In Stock
Lawn & Garden Equipment Hex Bolt 710-0597
Lawn & garden equipment hex bolt

Part #710-0597

This item is not returnable
$5.80
In Stock
Screw 1747166
#21

Transmission assembly diagram

Screw

Part #1747166

Replaced by #1747166

?
Manufacturer substitution
This part replaces 1747166. Substitute parts can look different from the original.
This item is not returnable
$6.97
In Stock
Ball Bearing 1983637
#7

Transmission assembly diagram

Ball bearing

Part #1983637

Replaced by #1983637

?
Manufacturer substitution
This part replaces 1983637. Substitute parts can look different from the original.
$51.36
In Stock
Washer 1983713
#24

Transmission assembly diagram

Washer

Part #1983713

Replaced by #1983713

?
Manufacturer substitution
This part replaces 1983713. Substitute parts can look different from the original.
$8.97
In Stock
Screw 1731025
#8

Engine/outer tine/handles diagram

Screw

Part #1731025

Replaced by #710-1174

?
Manufacturer substitution
This part replaces 1731025. Substitute parts can look different from the original.
This item is not returnable
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Throttle Cable 1917755
#6

Engine/outer tine/handles diagram

Throttle cable

Part #1917755

Replaced by #1917755P

?
Manufacturer substitution
This part replaces 1917755. Substitute parts can look different from the original.
$46.36
In Stock
Washer 1983642
#17

Transmission assembly diagram

Washer

Part #1983642

Replaced by #936-0616

?
Manufacturer substitution
This part replaces 1983642. Substitute parts can look different from the original.
$7.94
In Stock
