Amana
Countertop Microwave

Model # ACM2160AW-PACM2160AW0 Official Amana microwave

Here are the diagrams and repair parts for Official Amana ACM2160AW-PACM2160AW0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

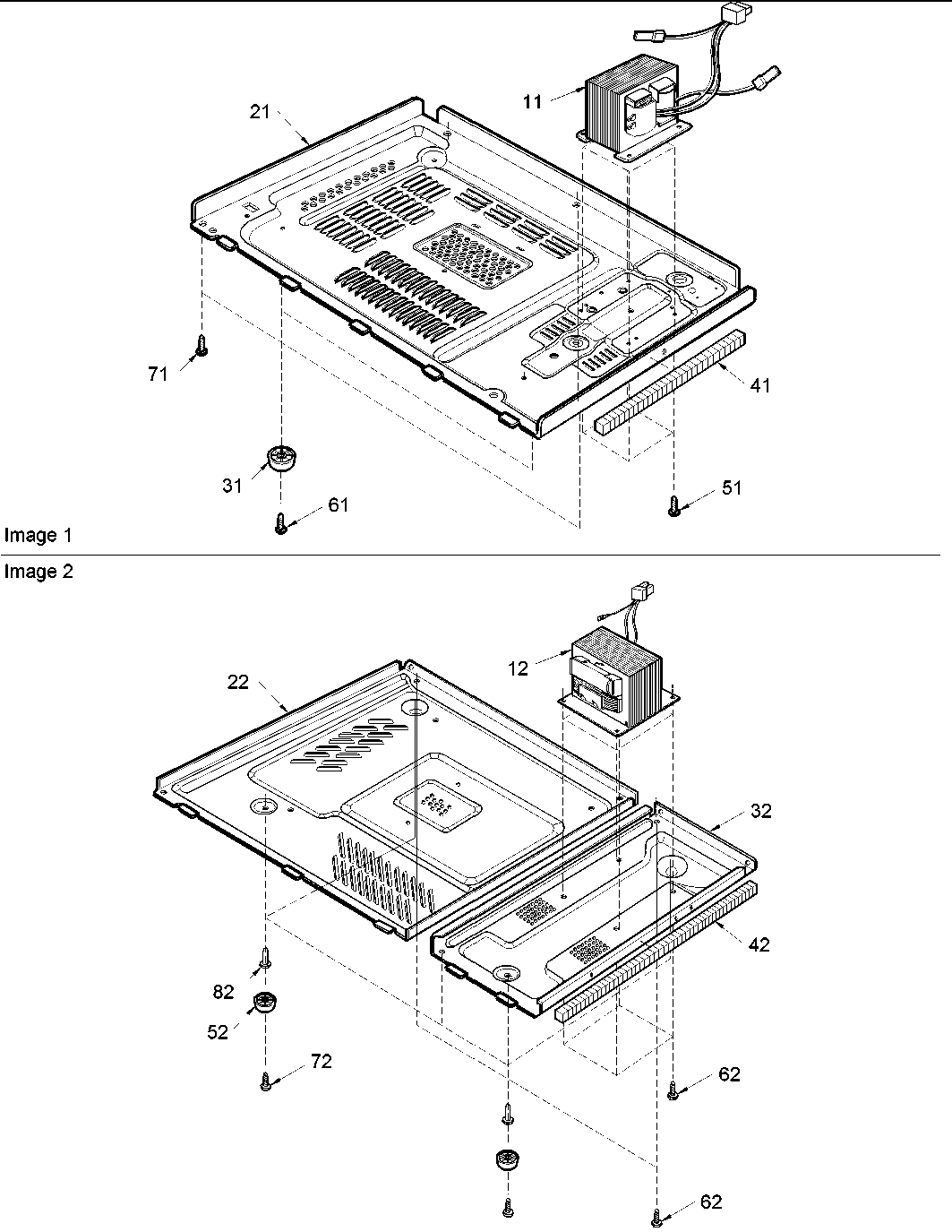

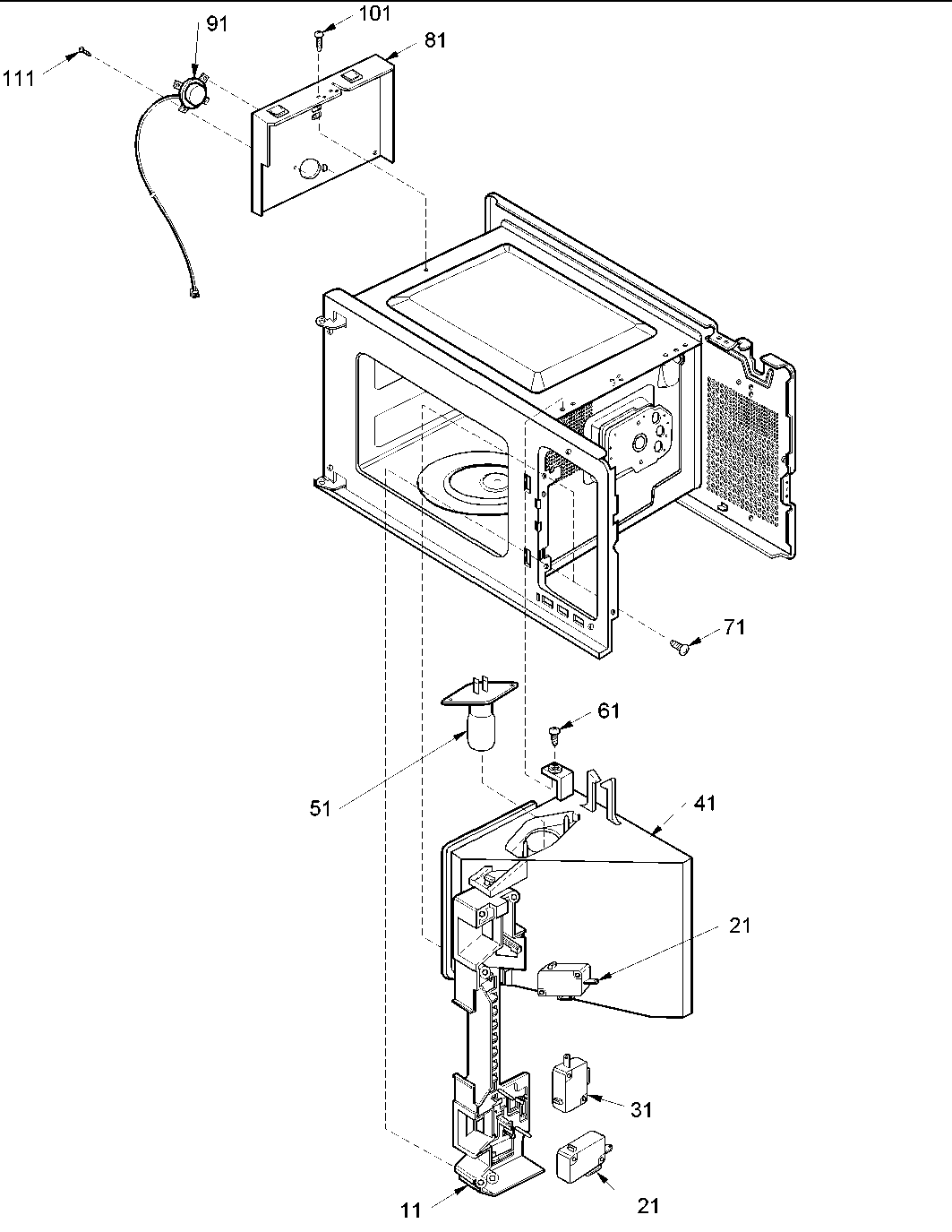

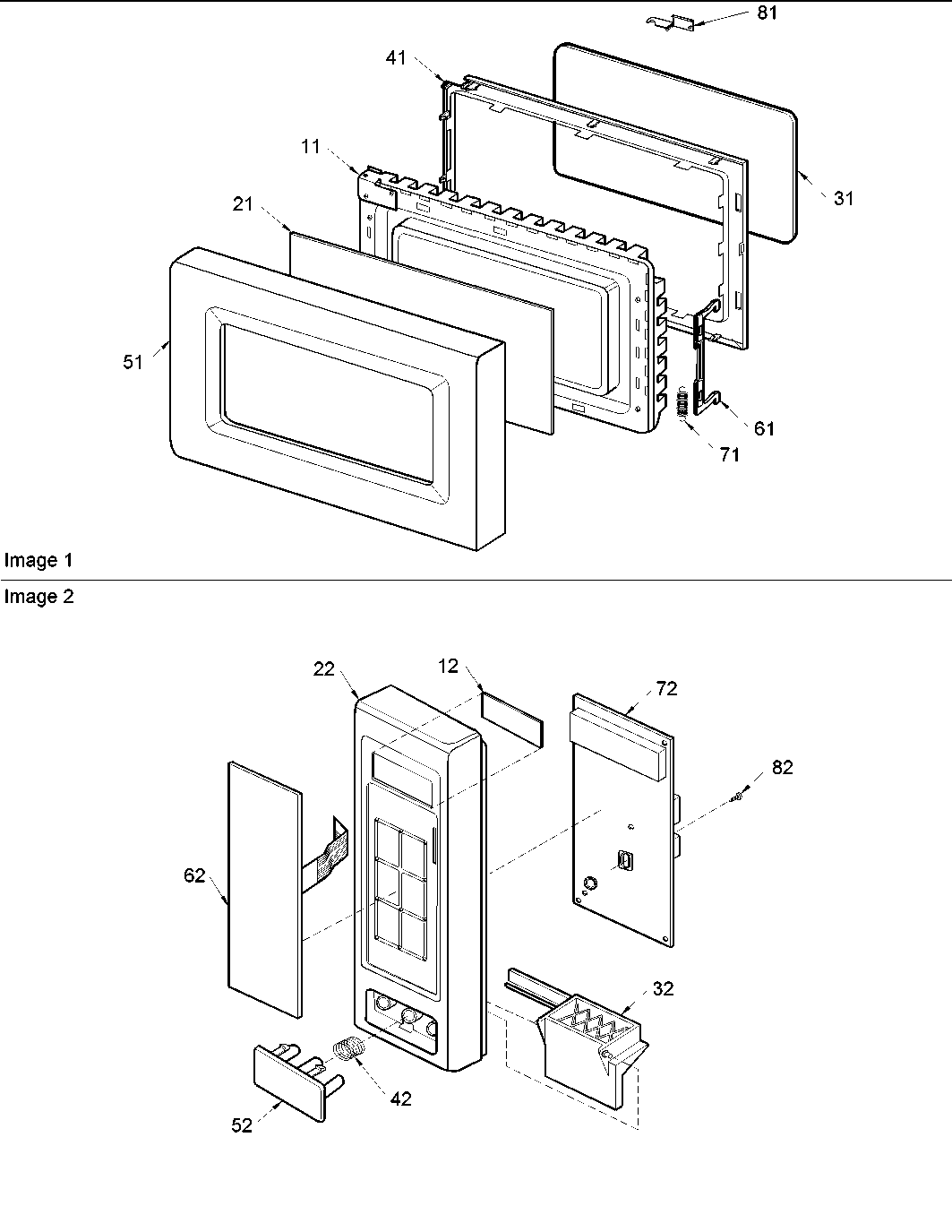

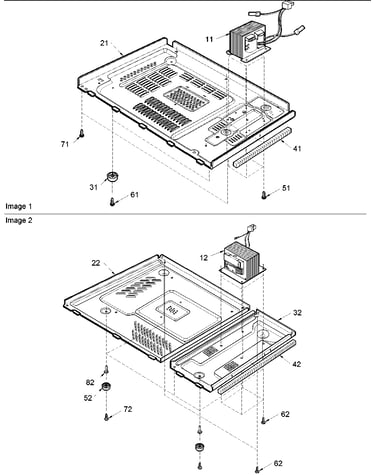

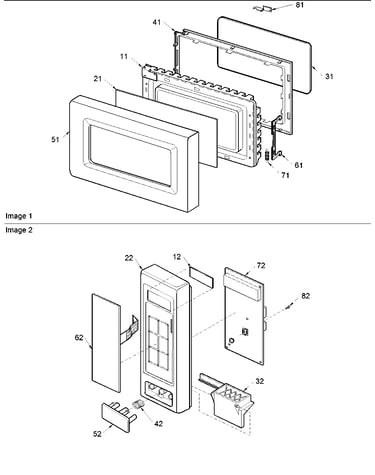

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Magnetron R0131116
#81

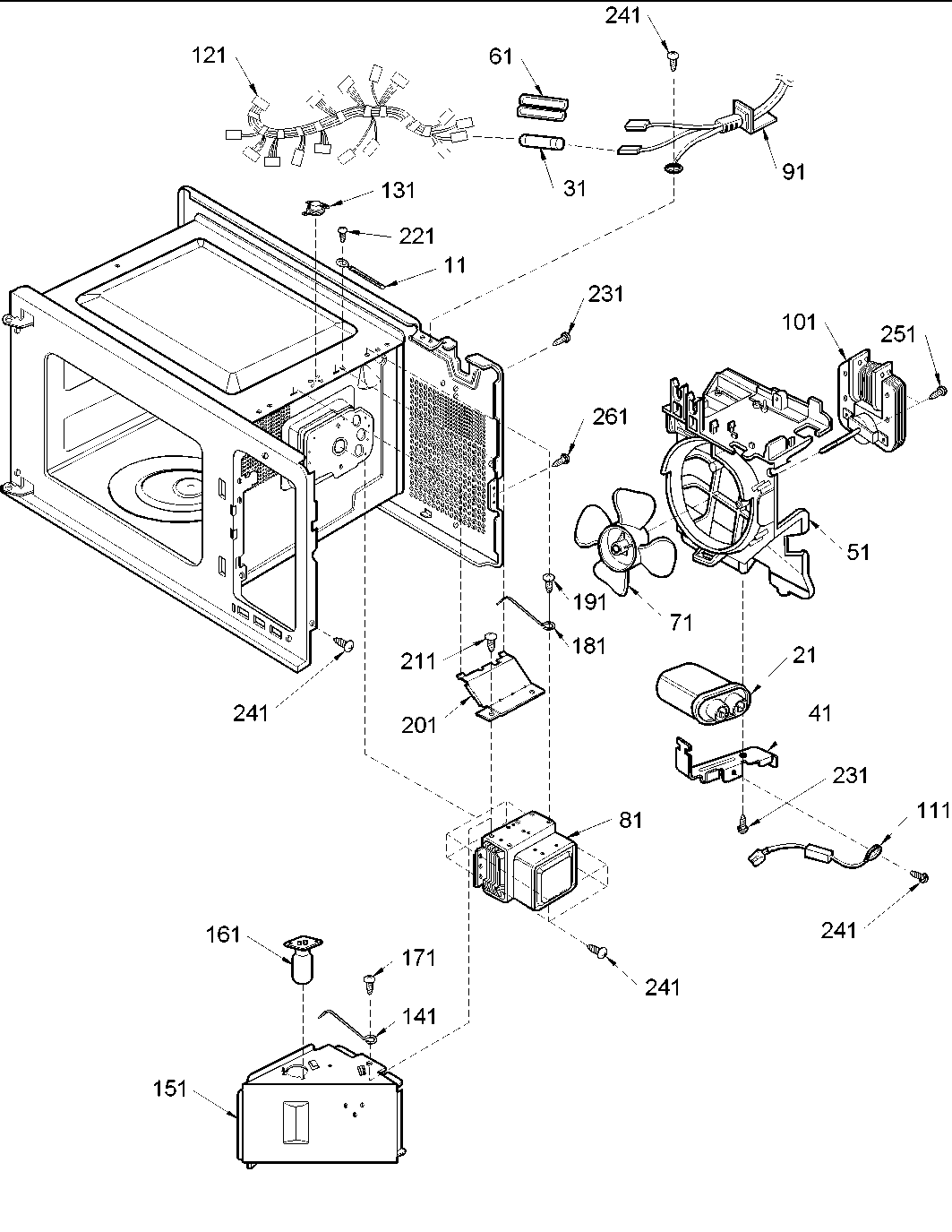

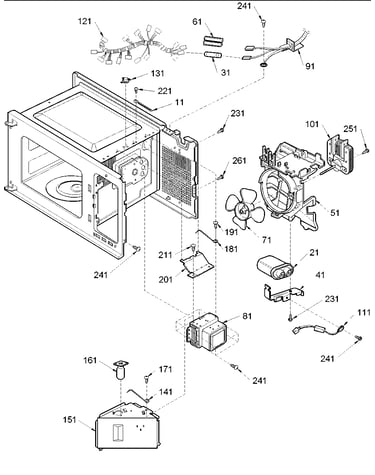

Interior diagram

Magnetron

Part #R0131116

The manufacturer no longer makes this part, and there's no substitute part

Diode R0131275
#111

Interior diagram

Diode

Part #R0131275

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R0131275. Substitute parts can look different from the original.
BEST SELLER
$20.69 |
22% OFF Phone Price : $26.69
In Stock
"screw, Tappi" R0131246
#221

Interior diagram

"screw, tappi"

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Capacitor R0131325
#21

Interior diagram

Capacitor

Part #R0131325

$107.20
In Stock
Fuse R0131110
#31

Interior diagram

Fuse

Part #R0131110

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces R0131110. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Glass Tray R0131323
#31

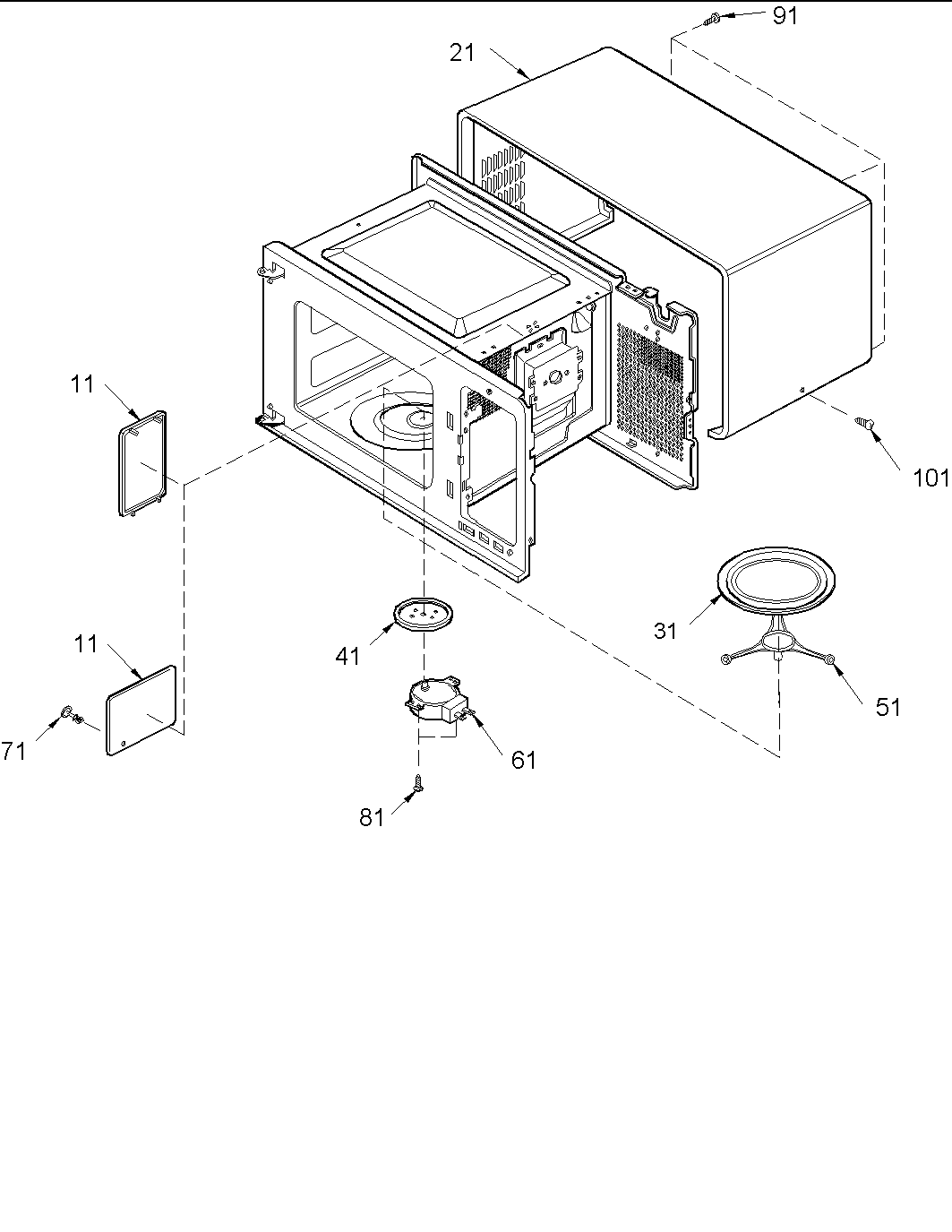

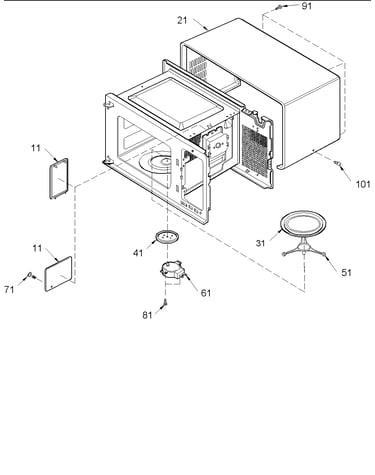

Oven cavity diagram

Glass tray

Part #R0131323

The manufacturer no longer makes this part, and there's no substitute part

"screw,tap Ti" R0131029
"screw,tap ti"

Part #R0131029

Replaced by #R0131029

?
Manufacturer substitution
This part replaces R0131029. Substitute parts can look different from the original.
$13.11
In Stock
(see Note 1) N/P
#231

Interior diagram

(see note 1)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Rivet Assembly (pacm2160ab0, 2160ac0, 2160as0, 2160aw0) R0131362
#71

Oven cavity diagram

Rivet assembly (pacm2160ab0, 2160ac0, 2160as0, 2160aw0)

Part #R0131362

The manufacturer no longer makes this part, and there's no substitute part

Out Case R0131343
#21

Oven cavity diagram

Out case

Part #R0131343

The manufacturer no longer makes this part, and there's no substitute part
