Model # TC-P50ST30 Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TC-P50ST30 plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

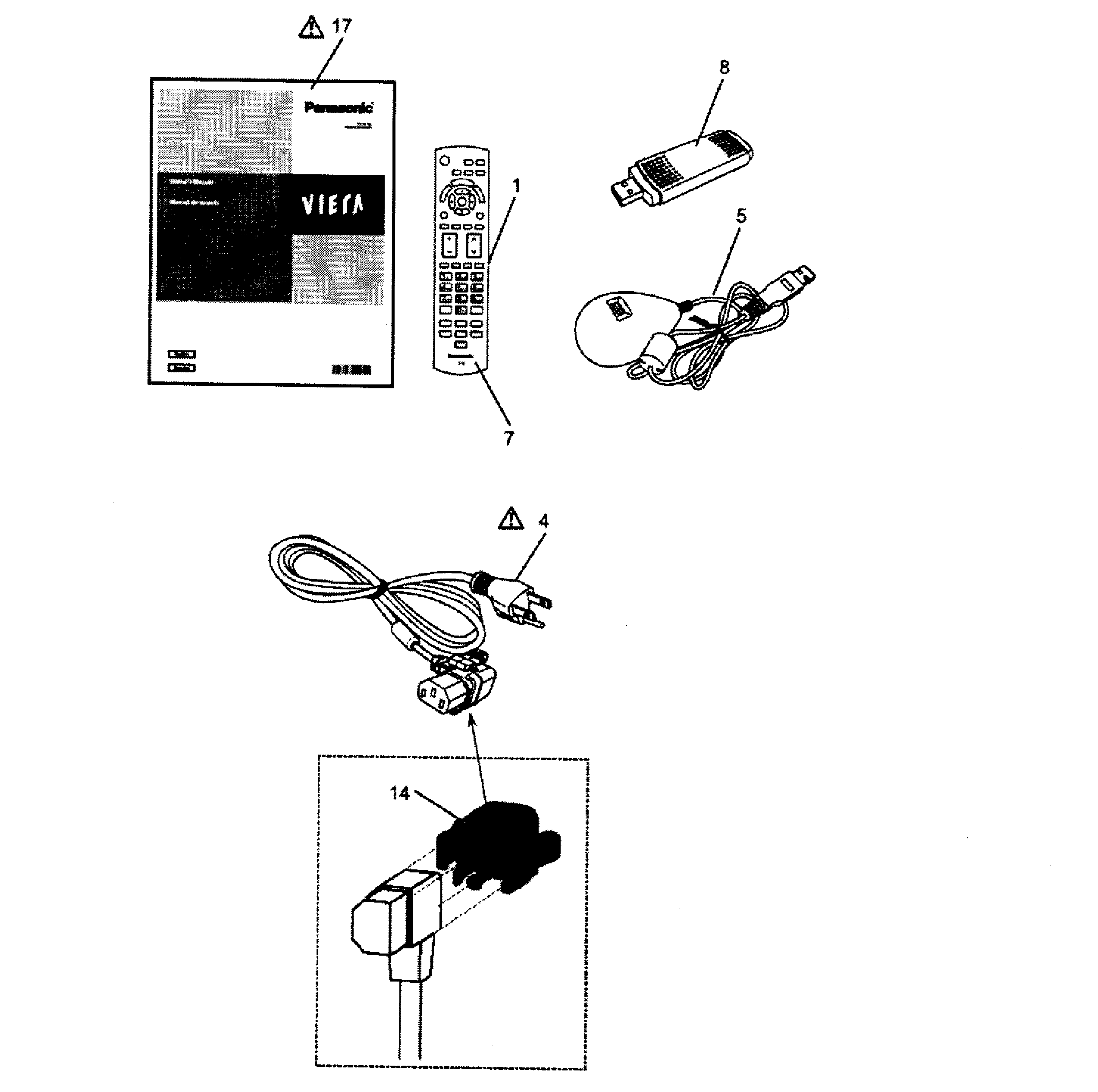

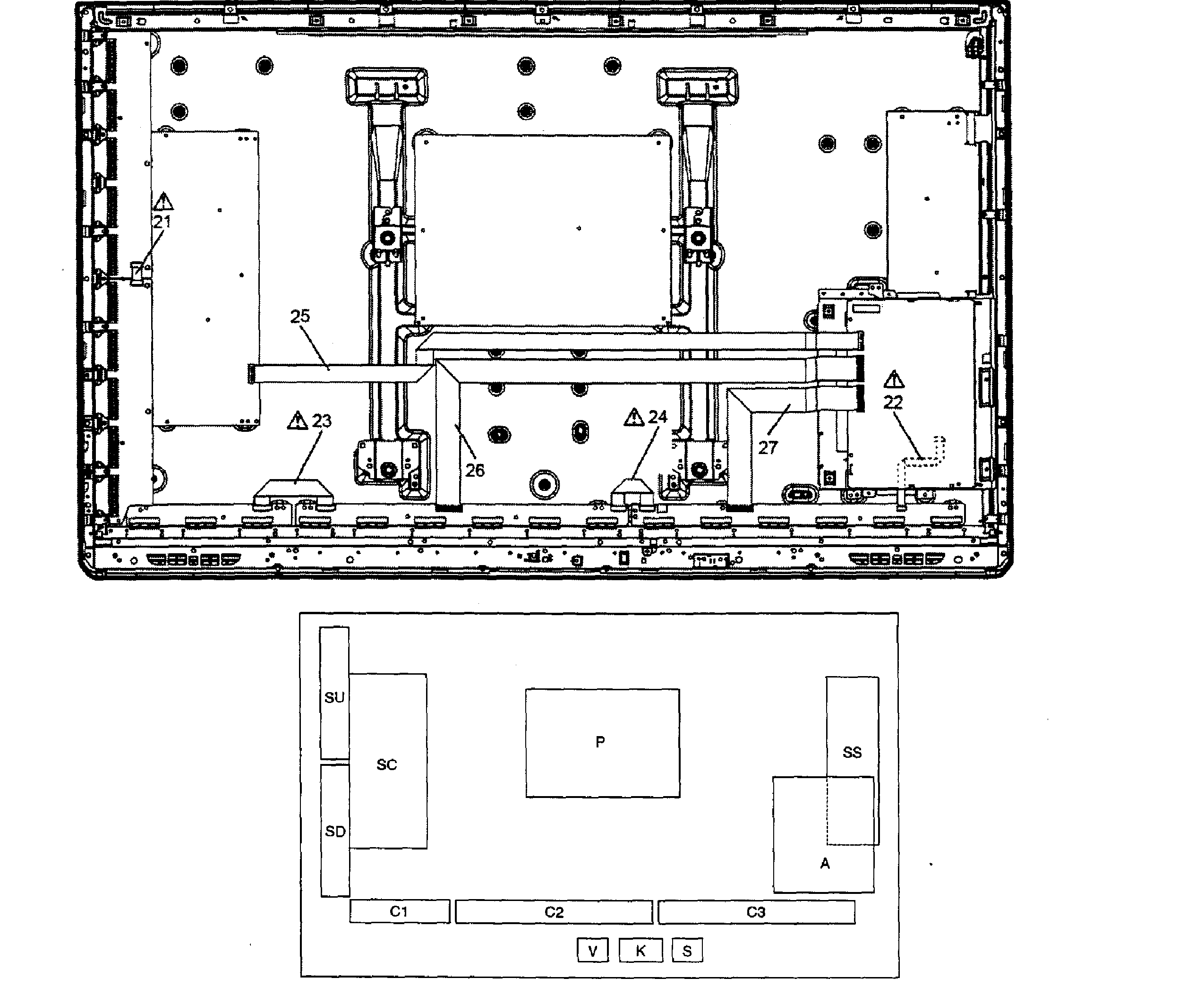

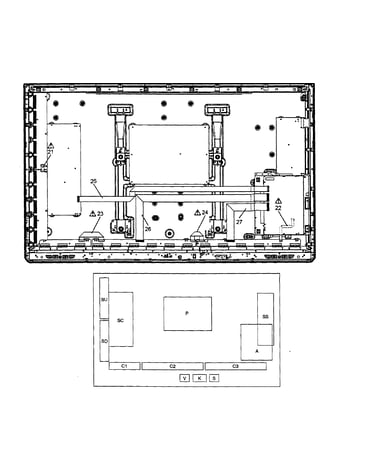

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Integrated Circuit C0CBALC00012
#NI

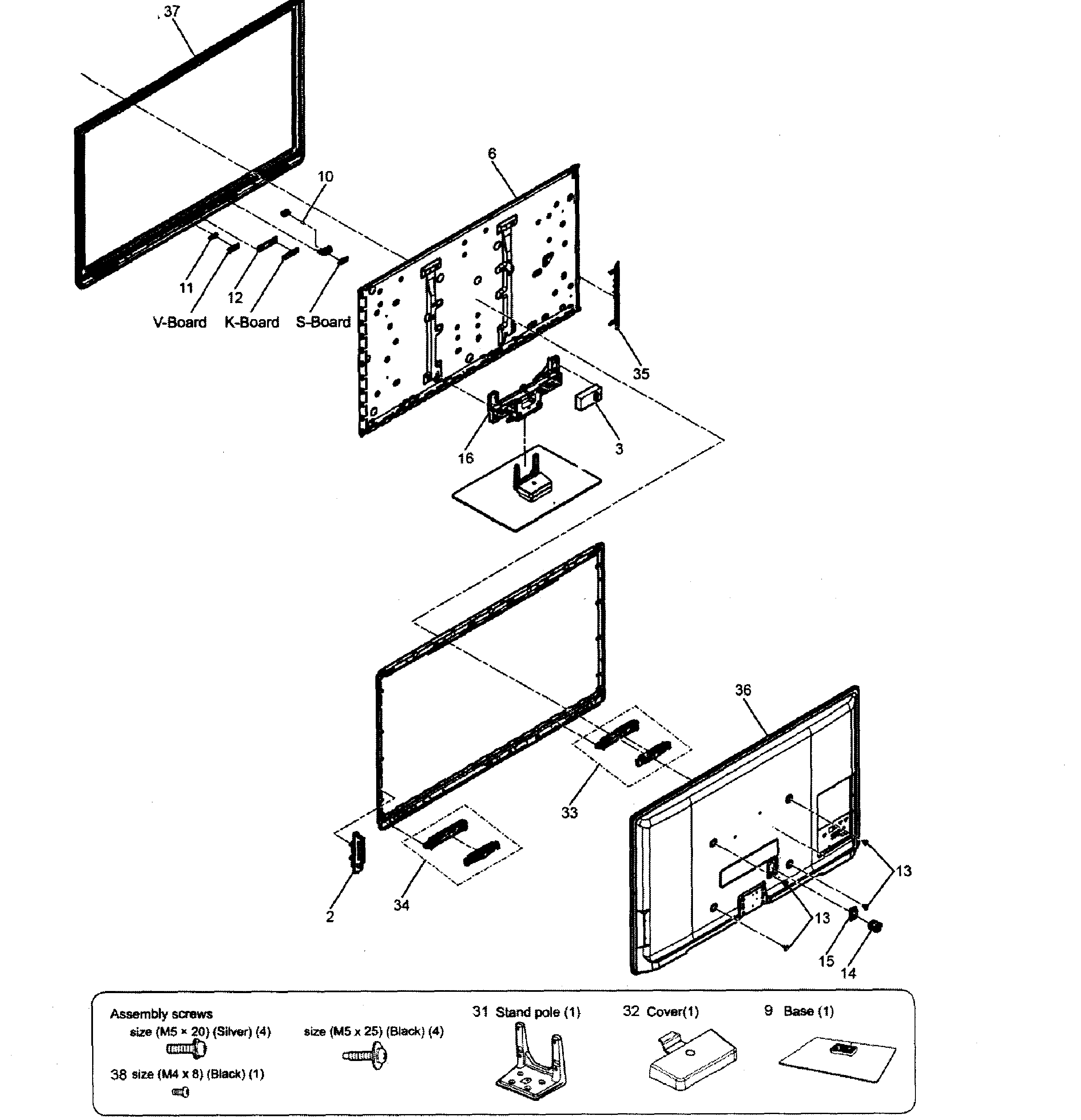

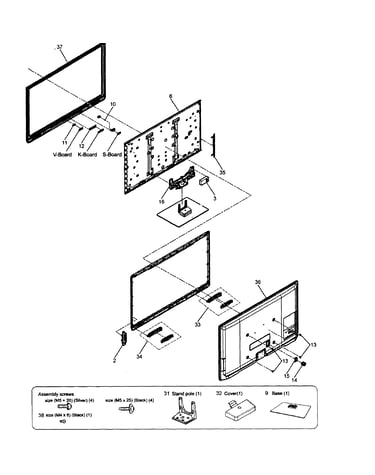

Cabinet parts diagram

Integrated circuit

Part #C0CBALC00012

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0CBADE00049
#NI

Cabinet parts diagram

Integrated circuit

Part #C0CBADE00049

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit B3PBE0000058
#NI

Cabinet parts diagram

Integrated circuit

Part #B3PBE0000058

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0JBAU000089
#NI

Cabinet parts diagram

Integrated circuit

Part #C0JBAU000089

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBZYY00352
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBZYY00352

The manufacturer no longer makes this part, and there's no substitute part

Pole Stand TBL5ZA3065
#31

Cabinet parts diagram

Pole stand

Part #TBL5ZA3065

The manufacturer no longer makes this part, and there's no substitute part

Lc Filter J0HAAB000036
#NI

Cabinet parts diagram

Lc filter

Part #J0HAAB000036

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBEYY00114
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBEYY00114

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBAYY00715
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBAYY00715

The manufacturer no longer makes this part, and there's no substitute part

3d Led Pan TKKC5412-1
#11

Cabinet parts diagram

3d led pan

Part #TKKC5412-1

The manufacturer no longer makes this part, and there's no substitute part
