Model # IMKTM1/BY18B Official Maytag brands refrigeration
Here are the diagrams and repair parts for Official Maytag IMKTM1/BY18B brands refrigeration, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
IMKTM1/BY18B BRANDS REFRIGERATION
#8

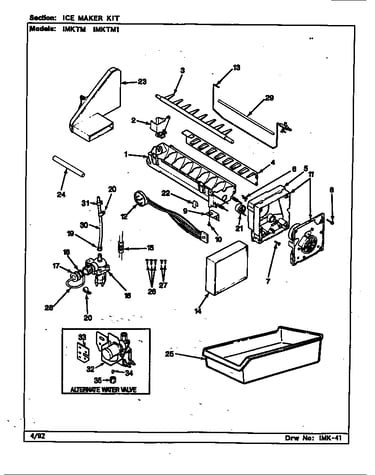

Ice maker kit diagram
Refrigerator screw
Part #95106-1
Replaced by #WP681249
?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#5
Ice maker kit diagram
Support module
Part #95103-1
Replaced by #WP2195914
?
Manufacturer substitution
This part replaces 95103-1. Substitute parts can look different from the original.
$40.73 |
13% OFF Phone Price : $46.73
In Stock
#3
Ice maker kit diagram
Refrigerator ice ejector
Part #95101-1
Replaced by #WP627843
?
Manufacturer substitution
This part replaces 95101-1. Substitute parts can look different from the original.
$35.05 |
15% OFF Phone Price : $41.05
In Stock
#4
Ice maker kit diagram
Stripper, ic
Part #95102-1
Replaced by #WP2182124
?
Manufacturer substitution
This part replaces 95102-1. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
#6
Ice maker kit diagram
Retainer, th
Part #95104-1
Replaced by #WP2315522
?
Manufacturer substitution
This part replaces 95104-1. Substitute parts can look different from the original.
This item is not returnable
$7.28 |
12% OFF Phone Price : $8.28
In Stock
Igniter screw
Part #400021-1
Replaced by #WP400021-1
?
Manufacturer substitution
This part replaces 400021-1. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
#29
Ice maker kit diagram
Sleeve, sensor arm
Part #67556-1
The manufacturer no longer makes this part, and there's no substitute part
#35
Ice maker kit diagram
Nut, brass
Part #69432-1
The manufacturer no longer makes this part, and there's no substitute part
#31
Ice maker kit diagram
Clamp spring
Part #60333-4
The manufacturer no longer makes this part, and there's no substitute part
#11A
Ice maker kit diagram
Screw, motor to module a
Part #95110-1
The manufacturer no longer makes this part, and there's no substitute part
