Gas Line Trimmer

Model # 944511460 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 944511460 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#48

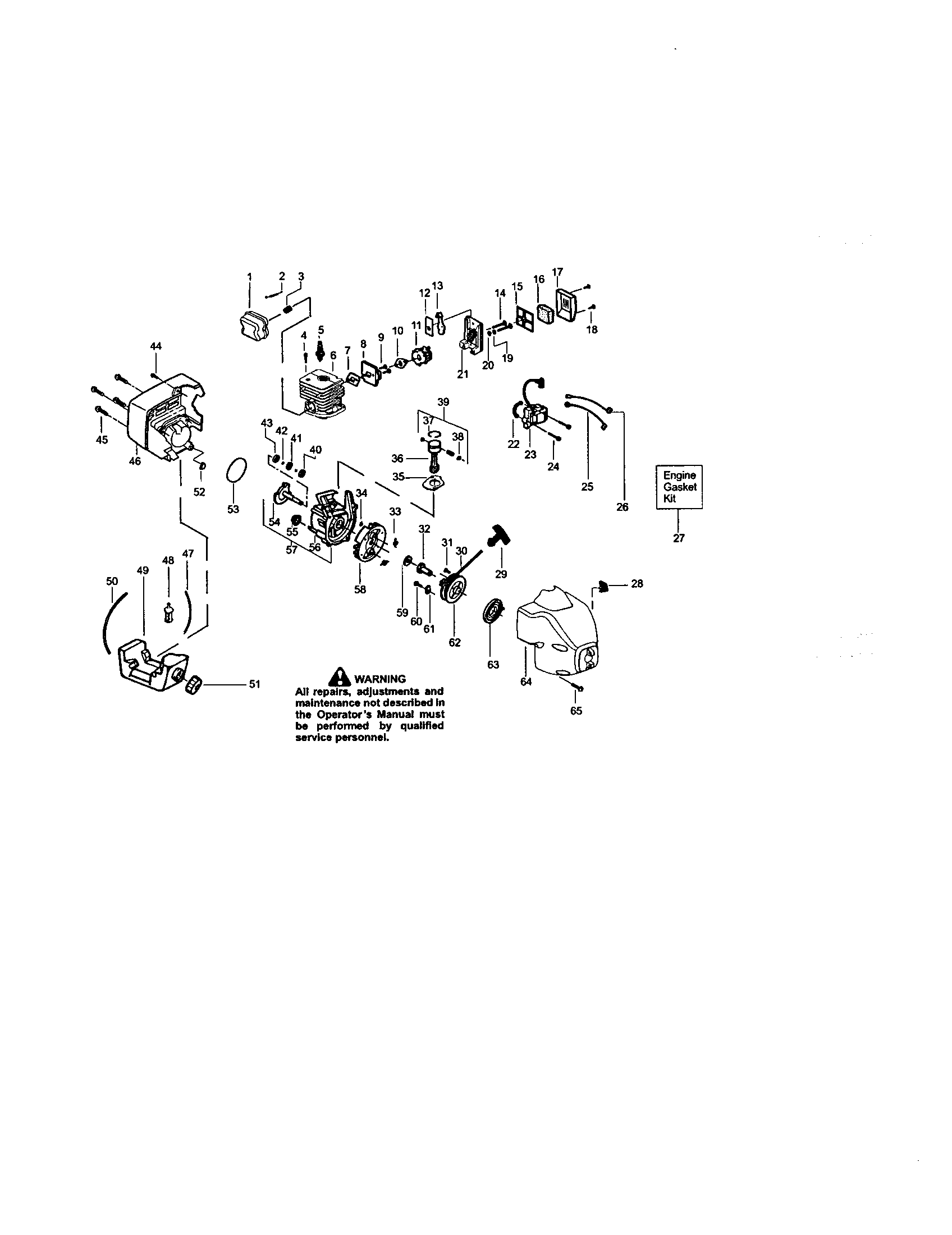

Crankshaft diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#47

Crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#50

Crankshaft diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Line Trimmer Fuel Tank Cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370) 530014347
#51

Crankshaft diagram

Line trimmer fuel tank cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370)

Part #530014347

BEST SELLER
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Husqvarna Lawn & Garden Equipment Engine Carburetor Diaphragm And Gasket Kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937) 530069844
#3

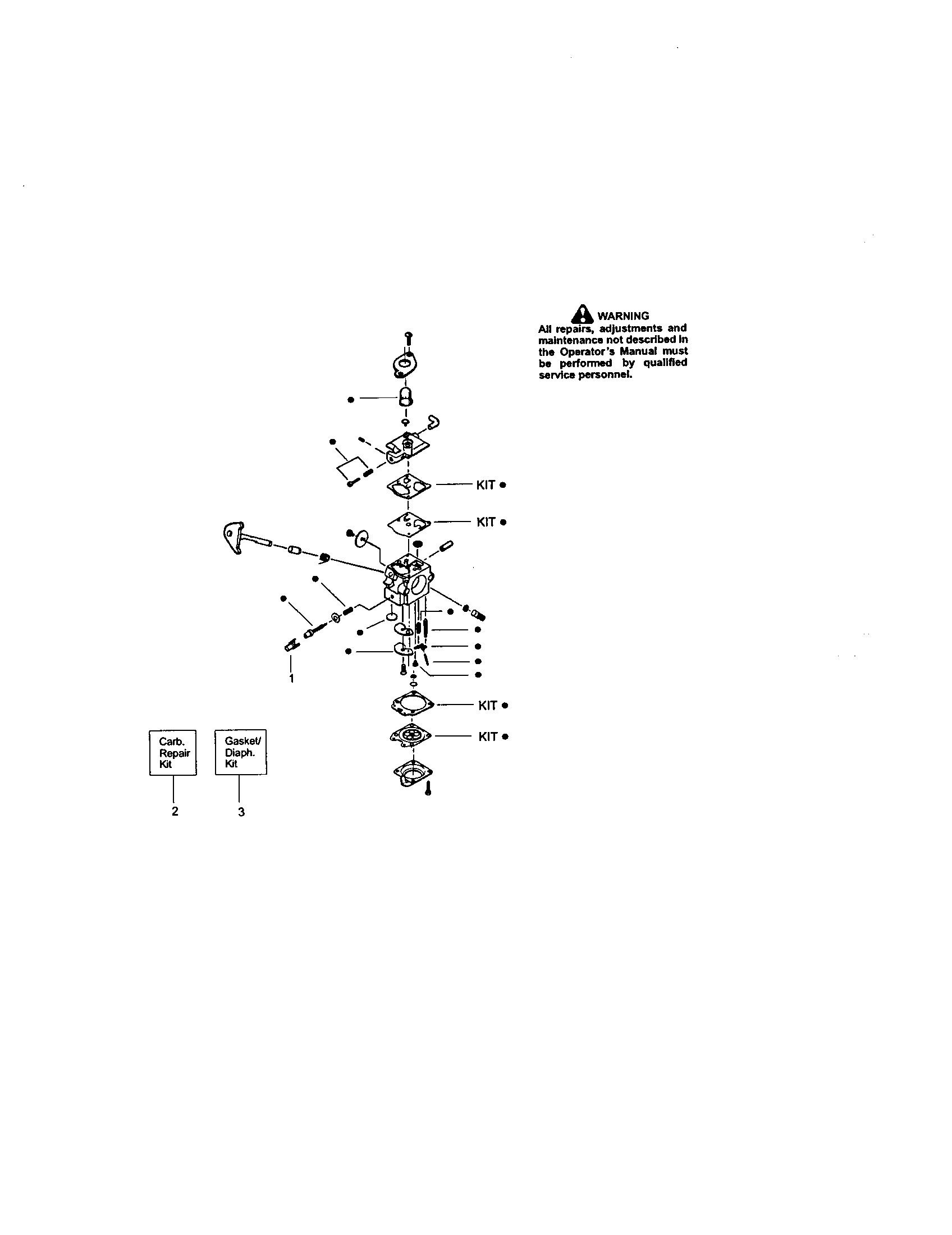

Carburetor #530069754-wa226 diagram

Husqvarna lawn & garden equipment engine carburetor diaphragm and gasket kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937)

Part #530069844

BEST SELLER
This item is not returnable
$26.00 |
19% OFF Phone Price : $32.00
In Stock
Flywheel Assembly 530069886
#58

Crankshaft diagram

Flywheel assembly

Part #530069886

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530069886. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Lawn & Garden Equipment Screw 530015814
#13

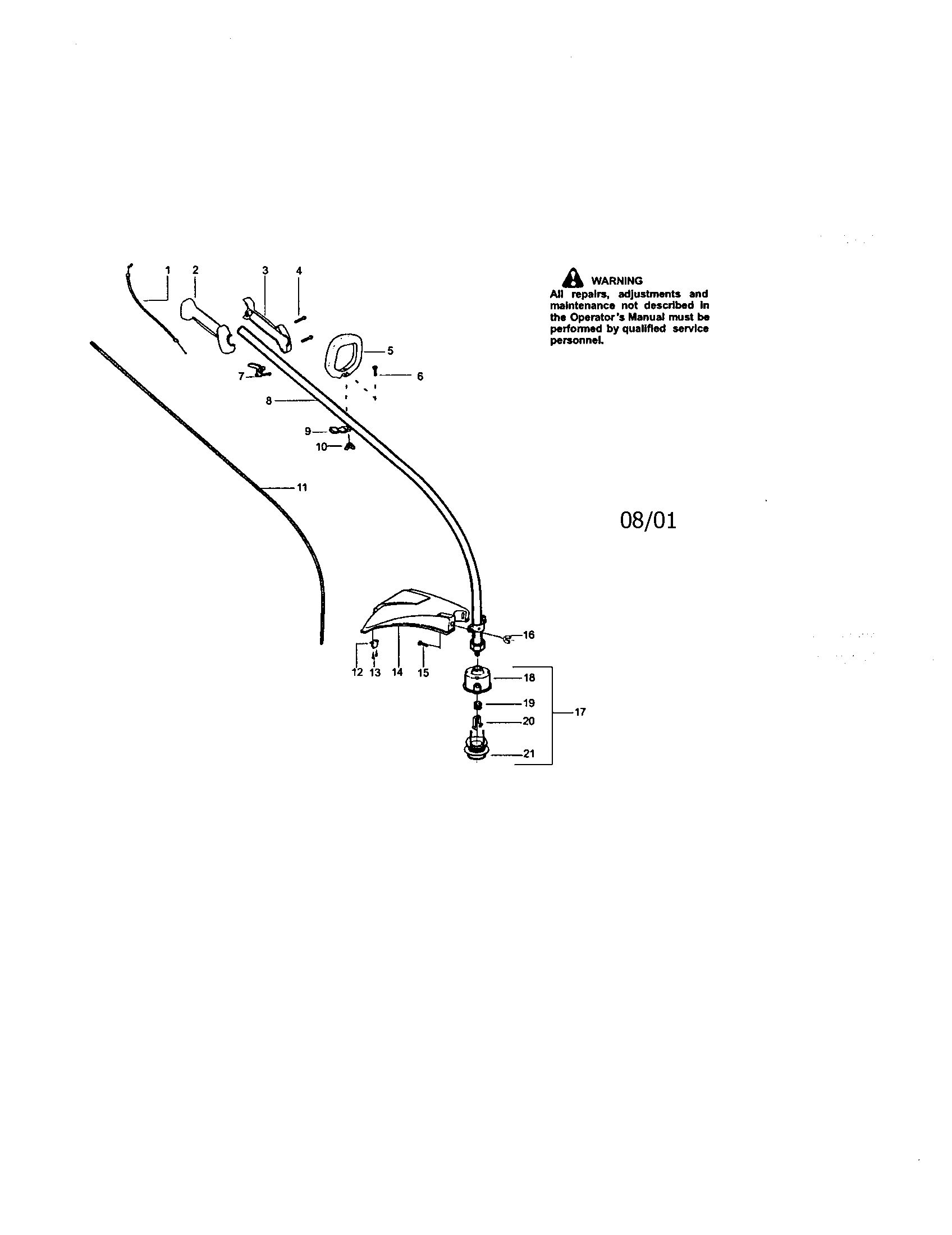

Driveshaft diagram

Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Lawn & Garden Equipment Kill Switch (replaces 530037692, 530-037692, 530-069292, 530-069572, 530069764) 530069572
#28

Crankshaft diagram

Lawn & garden equipment kill switch (replaces 530037692, 530-037692, 530-069292, 530-069572, 530069764)

Part #530069572

This item is not returnable
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Start Spring 530042086
#63

Crankshaft diagram

Start spring

Part #530042086

Replaced by #545008011

?
Manufacturer substitution
This part replaces 530042086. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Throttle Cable 530055159
#1

Driveshaft diagram

Throttle cable

Part #530055159

Replaced by #530071549

?
Manufacturer substitution
This part replaces 530055159. Substitute parts can look different from the original.
This item is not returnable
$14.86
In Stock
