Model # CSA1201RSS05 Official GE microwave

Here are the diagrams and repair parts for Official GE CSA1201RSS05 microwave, as well as links to manuals and error code tables, if available.

By Schematic

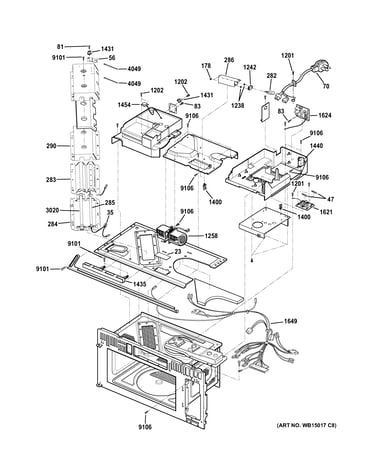

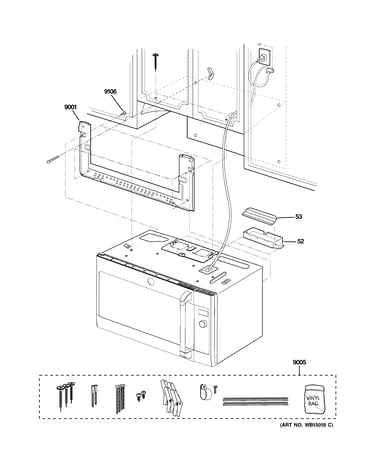

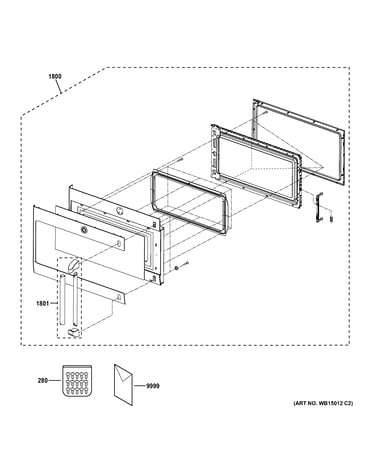

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
CSA1201RSS05 Microwave
Primary Switch WB24X0815
#604

Latch board parts diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$30.84 |
16% OFF Phone Price : $36.84
In Stock
Cable WB18X10286
#1648

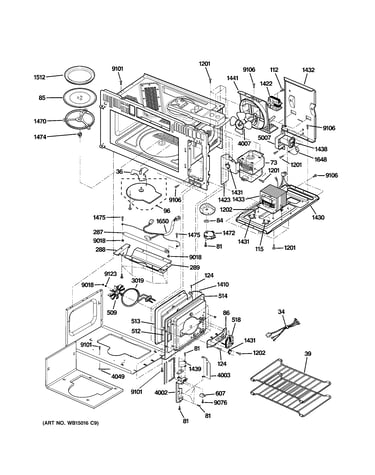

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$25.62 |
19% OFF Phone Price : $31.62
In Stock
Monitor Switch WB24X0817
Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
BEST SELLER
$28.49 |
17% OFF Phone Price : $34.49
In Stock
Microwave Thermostat WB20X10048
Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Magnetron WB27X10865
#73

Interior parts (1) diagram

Magnetron

Part #WB27X10865

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#291

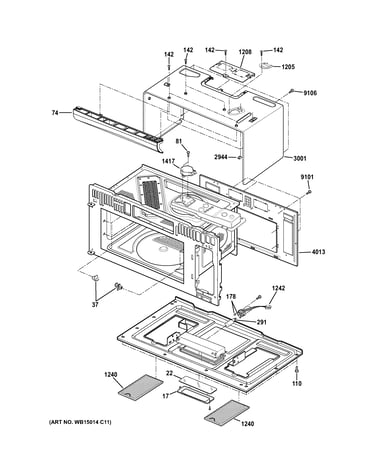

Oven cavity parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

BEST SELLER
$39.54 |
13% OFF Phone Price : $45.54
In Stock
Encoder Board WB27X11022
#1610

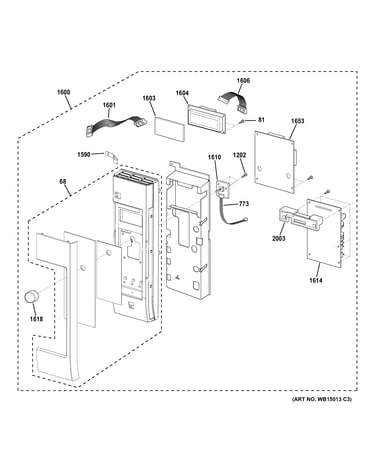

Control parts diagram

Encoder board

Part #WB27X11022

Replaced by #WB27X32632

?
Manufacturer substitution
This part replaces WB27X11022. Substitute parts can look different from the original.
$53.29 |
10% OFF Phone Price : $59.29
In Stock
Latch Board WB06X10256
#28

Latch board parts diagram

Latch board

Part #WB06X10256

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB06X10256. Substitute parts can look different from the original.
This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Wall Oven Display Board WB06X10835
#1604

Control parts diagram

Wall oven display board

Part #WB06X10835

Replaced by #WB27X44086

?
Manufacturer substitution
This part replaces WB06X10835. Substitute parts can look different from the original.
$321.64 |
$12.00 OFF Phone Price : $333.64
In Stock
