GE
Bottom-Mount Refrigerator

Model # GDE21EYKGRFS Official GE refrigerator

Here are the diagrams and repair parts for Official GE GDE21EYKGRFS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

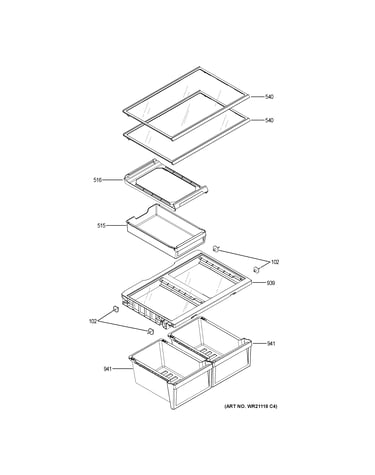

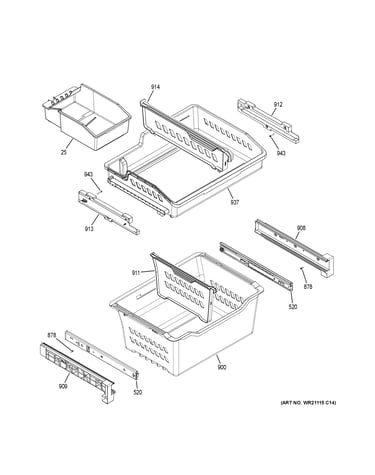

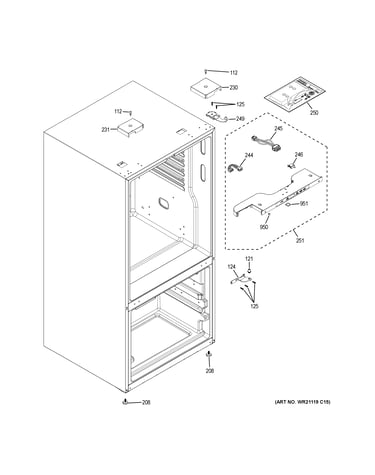

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
R600 Drier W/ Red Cap WR87X30875
#740

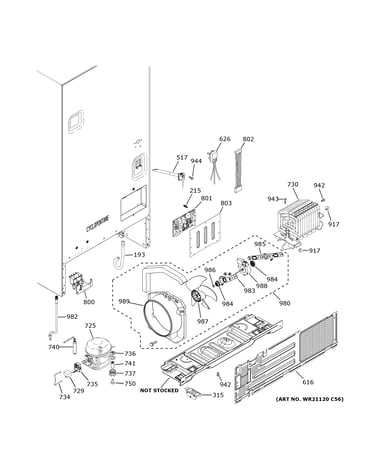

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
Hotpoint Ge Refrigerator Water Filter (replaces Xwf) XWFE
#281

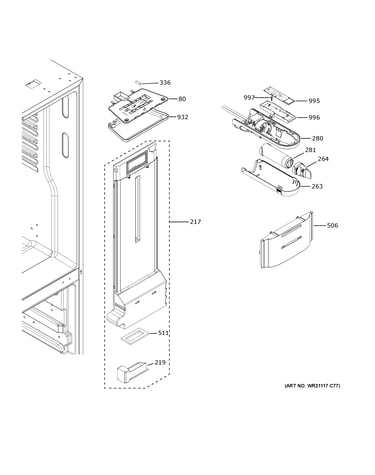

Fresh food section diagram

Hotpoint ge refrigerator water filter (replaces xwf)

Part #XWFE

BEST SELLER

Get free shipping with Automatic Reorder

$71.06 |
8% OFF Phone Price : $77.06
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X10069
#241

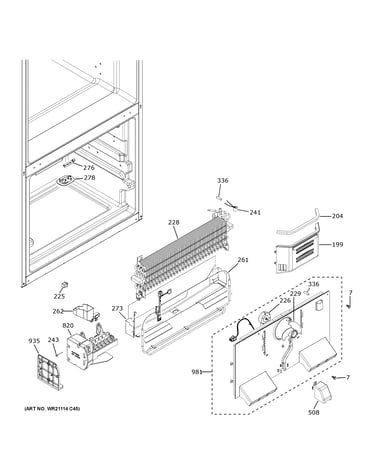

Freezer section diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X10069

BEST SELLER
This item is not returnable
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Refrigerator Ice Maker WR30X39385
#820

Freezer section diagram

Refrigerator ice maker

Part #WR30X39385

BEST SELLER
$162.02 |
7% OFF Phone Price : $174.02
In Stock
Hotpoint Refrigerator Evaporator Fan Blade (replaces Wr60x10208) WR60X30922
#229

Freezer section diagram

Hotpoint refrigerator evaporator fan blade (replaces wr60x10208)

Part #WR60X30922

BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Air Damper (replaces Wr31x20918) WR60X27396
#219

Fresh food section diagram

Refrigerator air damper (replaces wr31x20918)

Part #WR60X27396

BEST SELLER
$118.81 |
9% OFF Phone Price : $130.81
In Stock
Refrigerator Water Filter Bypass (replaces Wr17x30044) WR17X33825
#264

Fresh food section diagram

Refrigerator water filter bypass (replaces wr17x30044)

Part #WR17X33825

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Duct Air Tower Ff Assembly WR14X25128
#217

Fresh food section diagram

Duct air tower ff assembly

Part #WR14X25128

BEST SELLER
$79.96
In Stock
Refrigerator Condenser Fan (replaces Wr60x10053, Wr60x10155, Wr60x24483) WR60X10209
#988

Machine compartment diagram

Refrigerator condenser fan (replaces wr60x10053, wr60x10155, wr60x24483)

Part #WR60X10209

BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
