Thermador
Electric Wall Oven

Model # ME272ES01 Official Thermador oven

Here are the diagrams and repair parts for Official Thermador ME272ES01 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

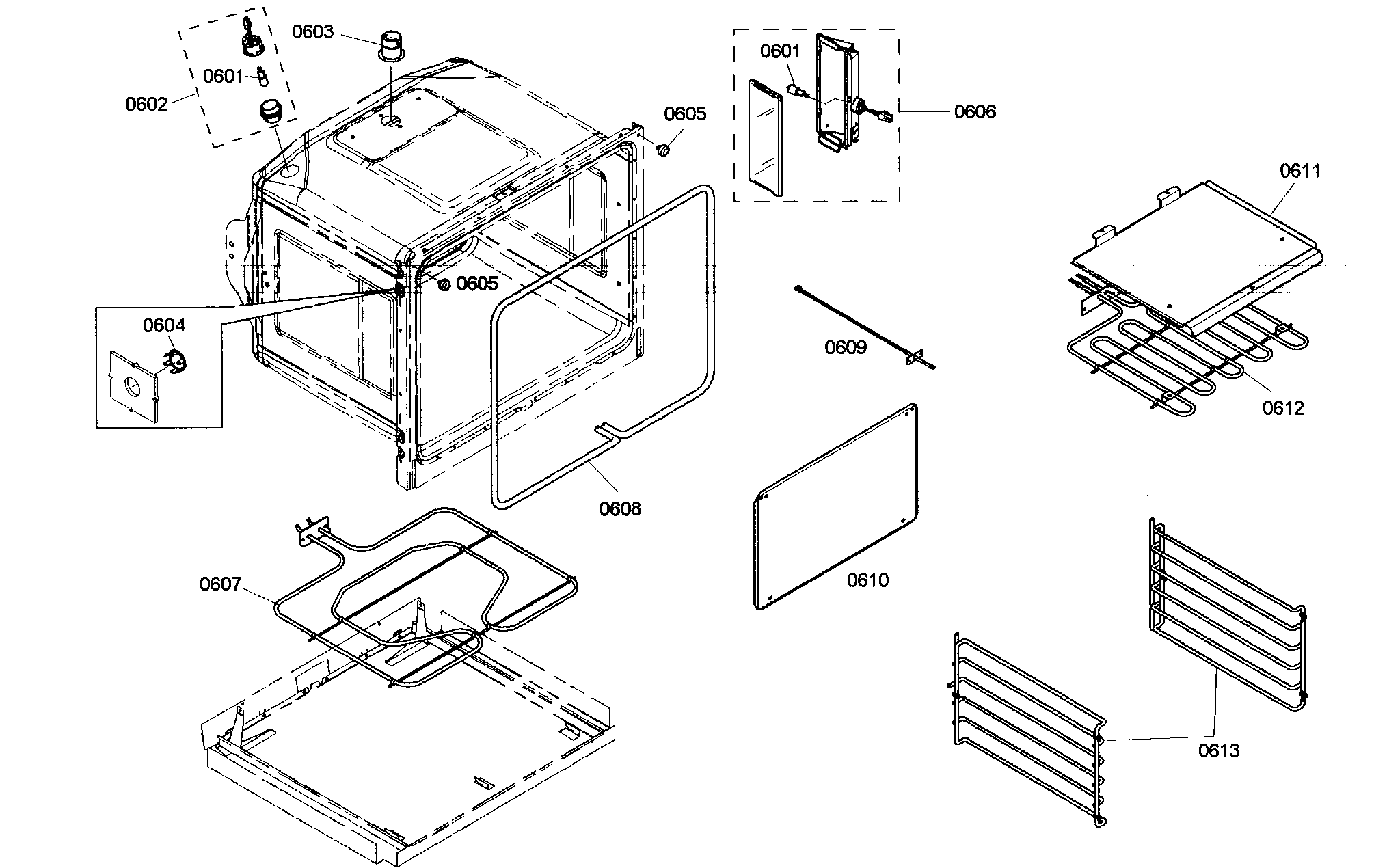

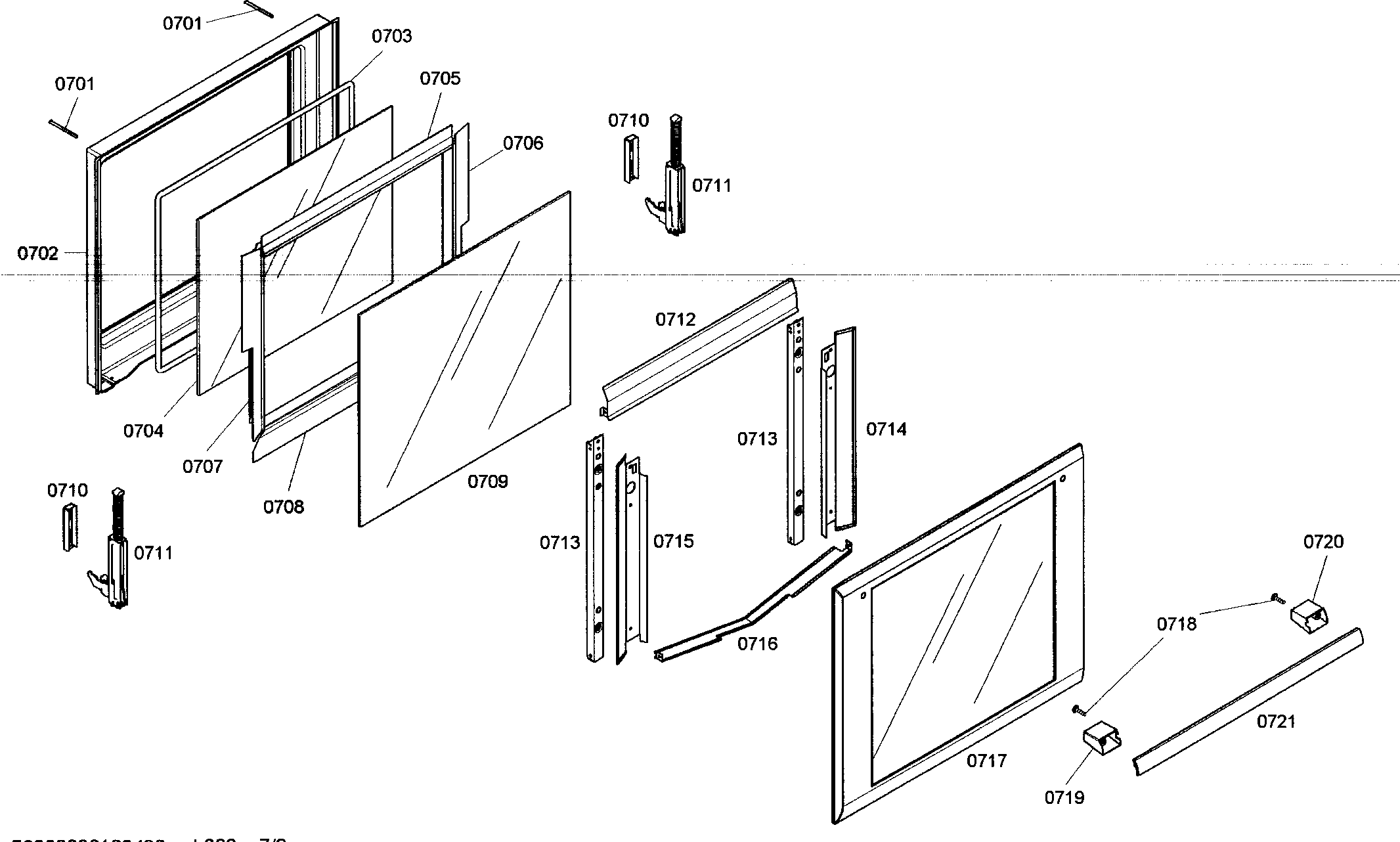

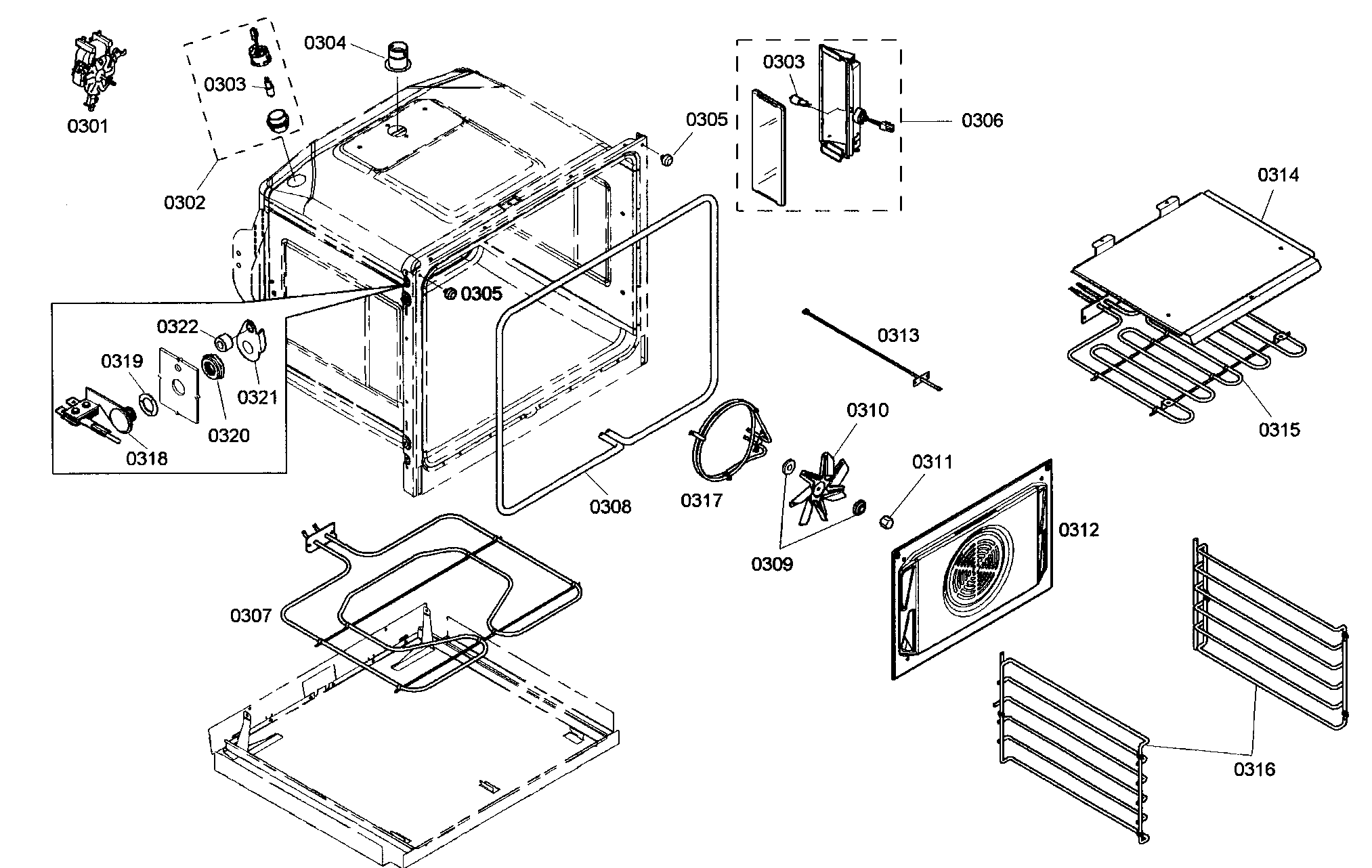

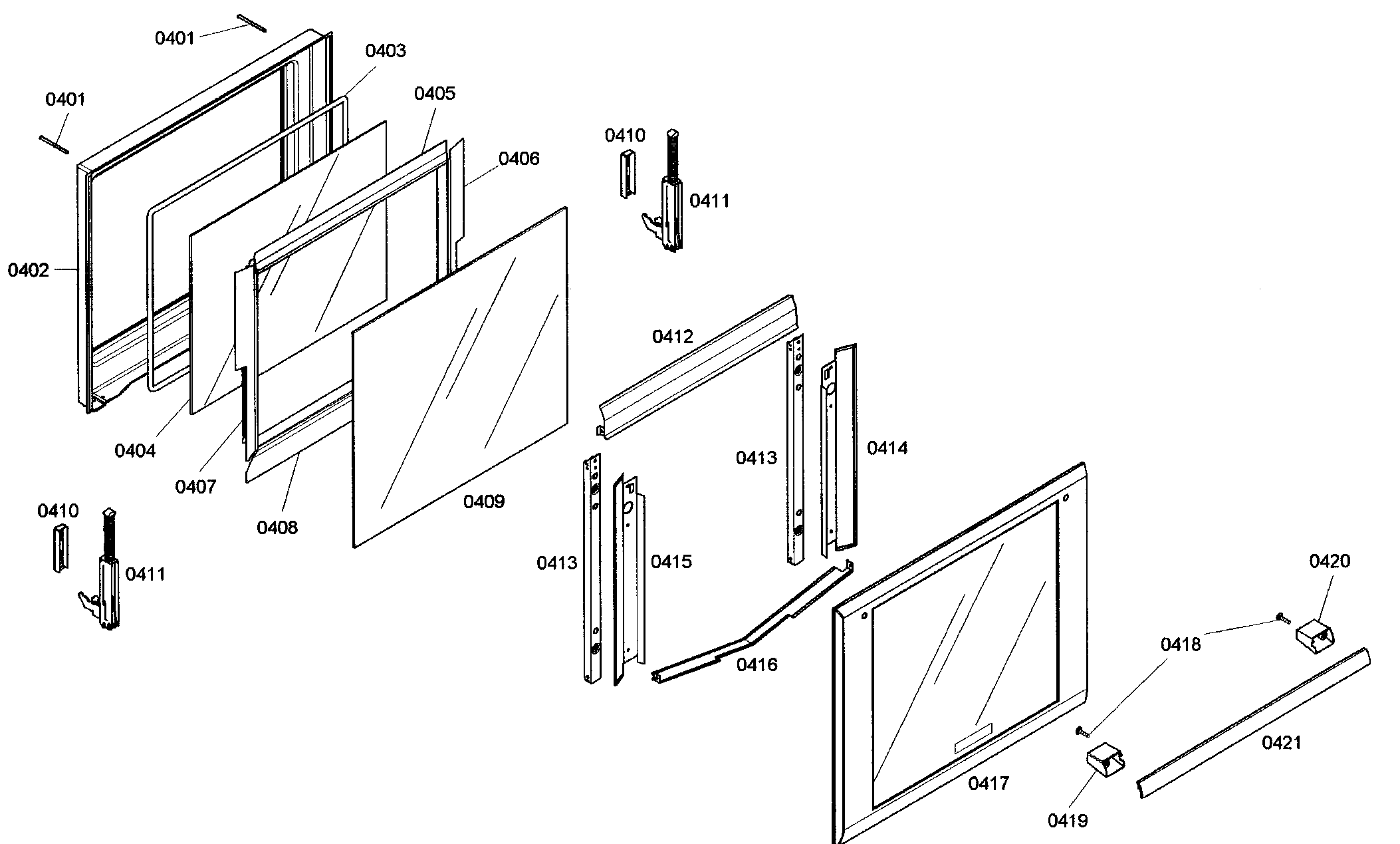

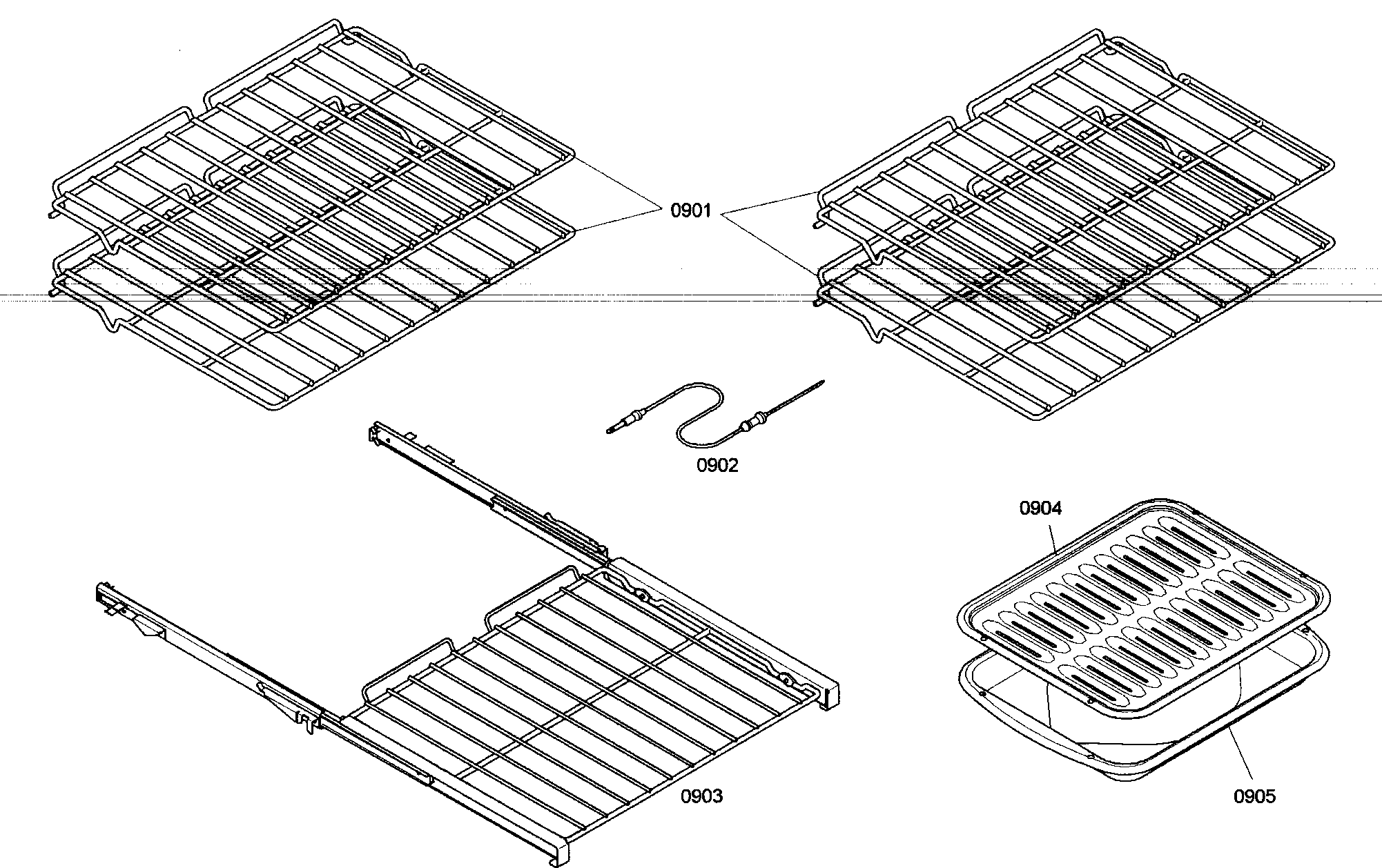

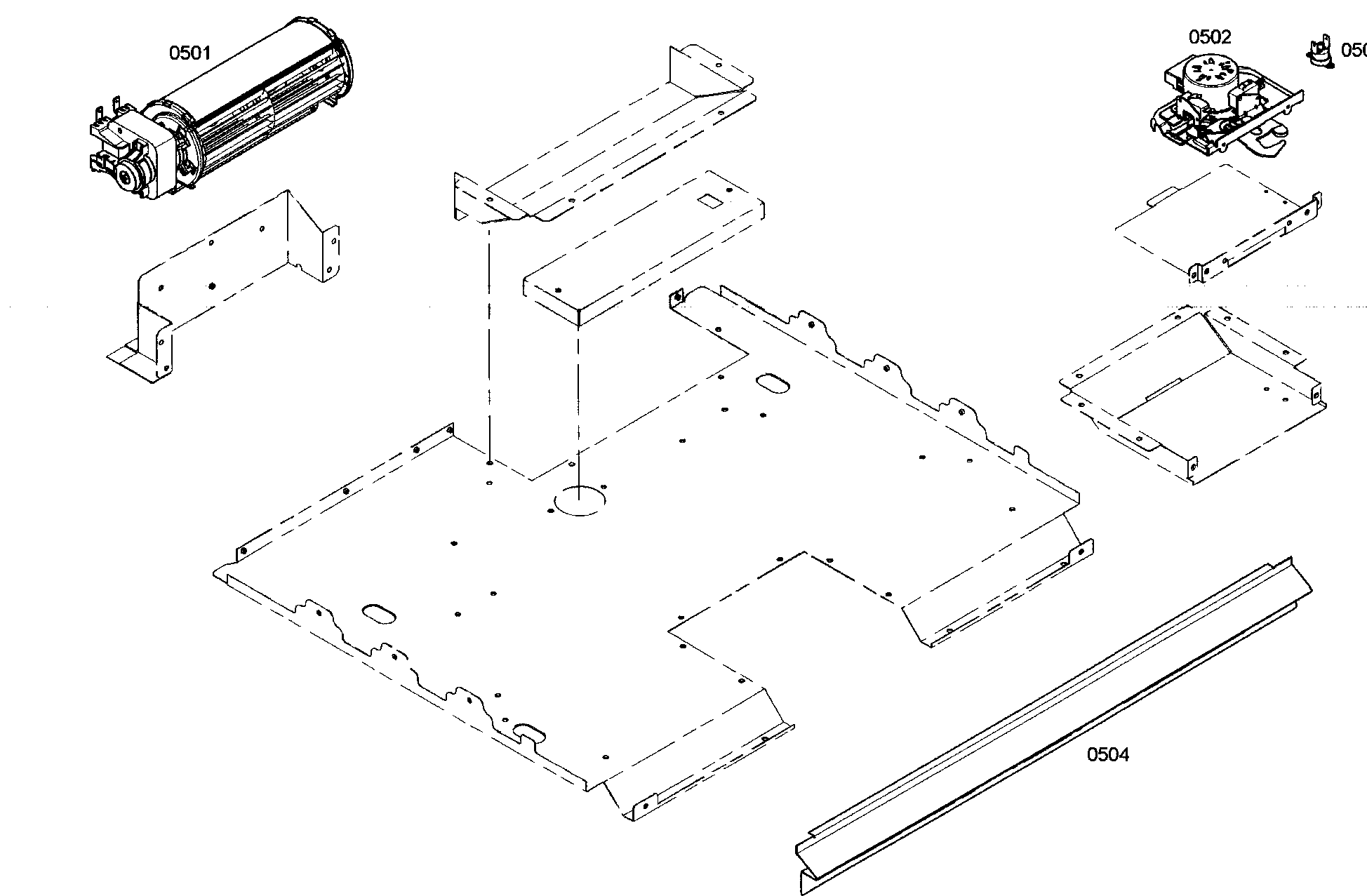

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Sensor 642855
Sensor

Part #642855

Replaced by #00642855

?
Manufacturer substitution
This part replaces 642855. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Power Supply 663802
#204

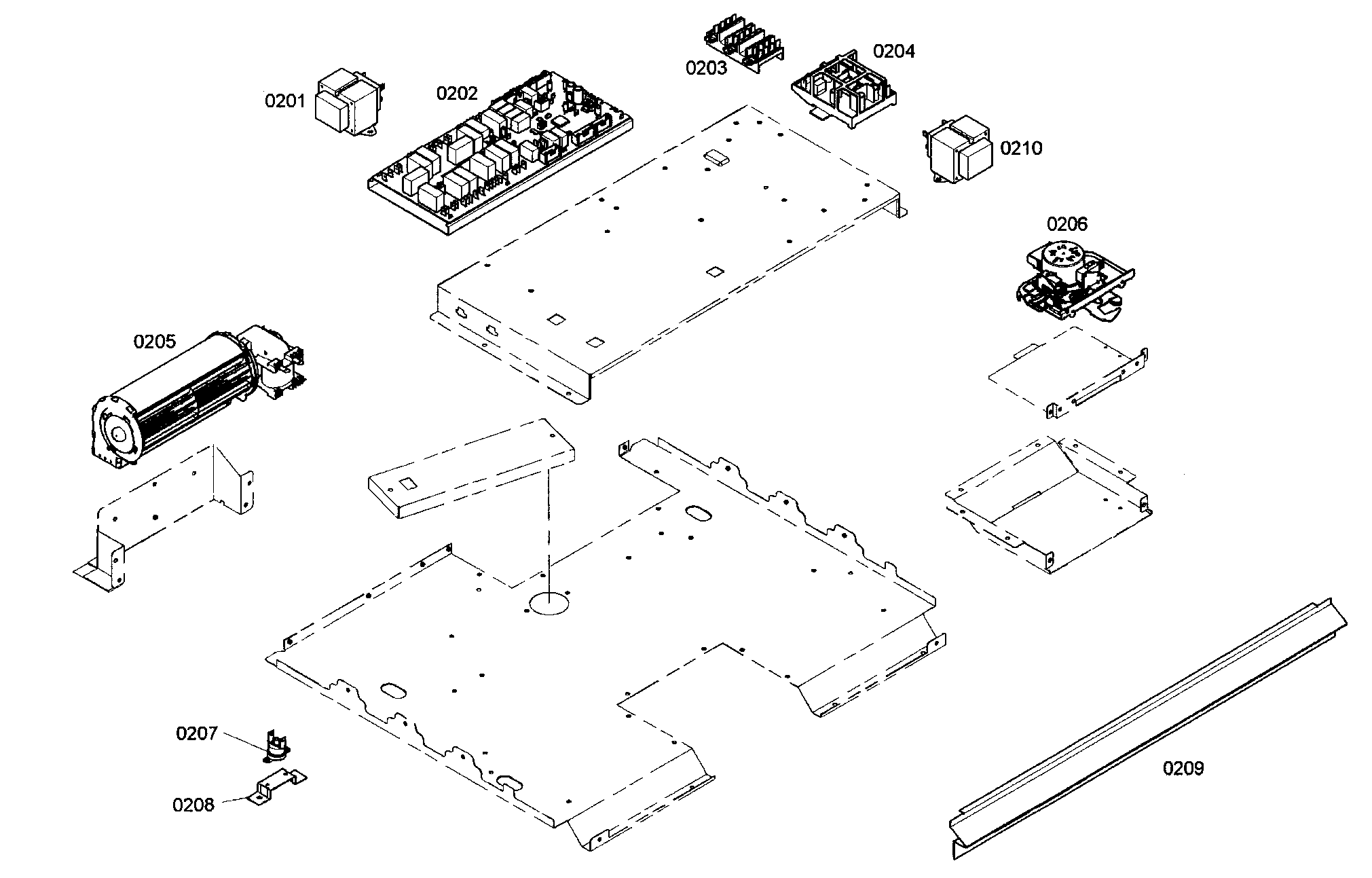

Control assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
9% OFF Phone Price : $140.19
In Stock
Door Latch 663804
Door latch

Part #663804

Replaced by #00751505

?
Manufacturer substitution
This part replaces 663804. Substitute parts can look different from the original.
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Element 144723
Element

Part #144723

Replaced by #00144723

?
Manufacturer substitution
This part replaces 144723. Substitute parts can look different from the original.
$108.79 |
10% OFF Phone Price : $120.79
In Stock
Spacer 427919
Spacer

Part #427919

Replaced by #00427919

?
Manufacturer substitution
This part replaces 427919. Substitute parts can look different from the original.
$19.80
In Stock
Trim Plate 643430
Trim plate

Part #643430

Replaced by #00680904

?
Manufacturer substitution
This part replaces 643430. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
Connection 414692
#805

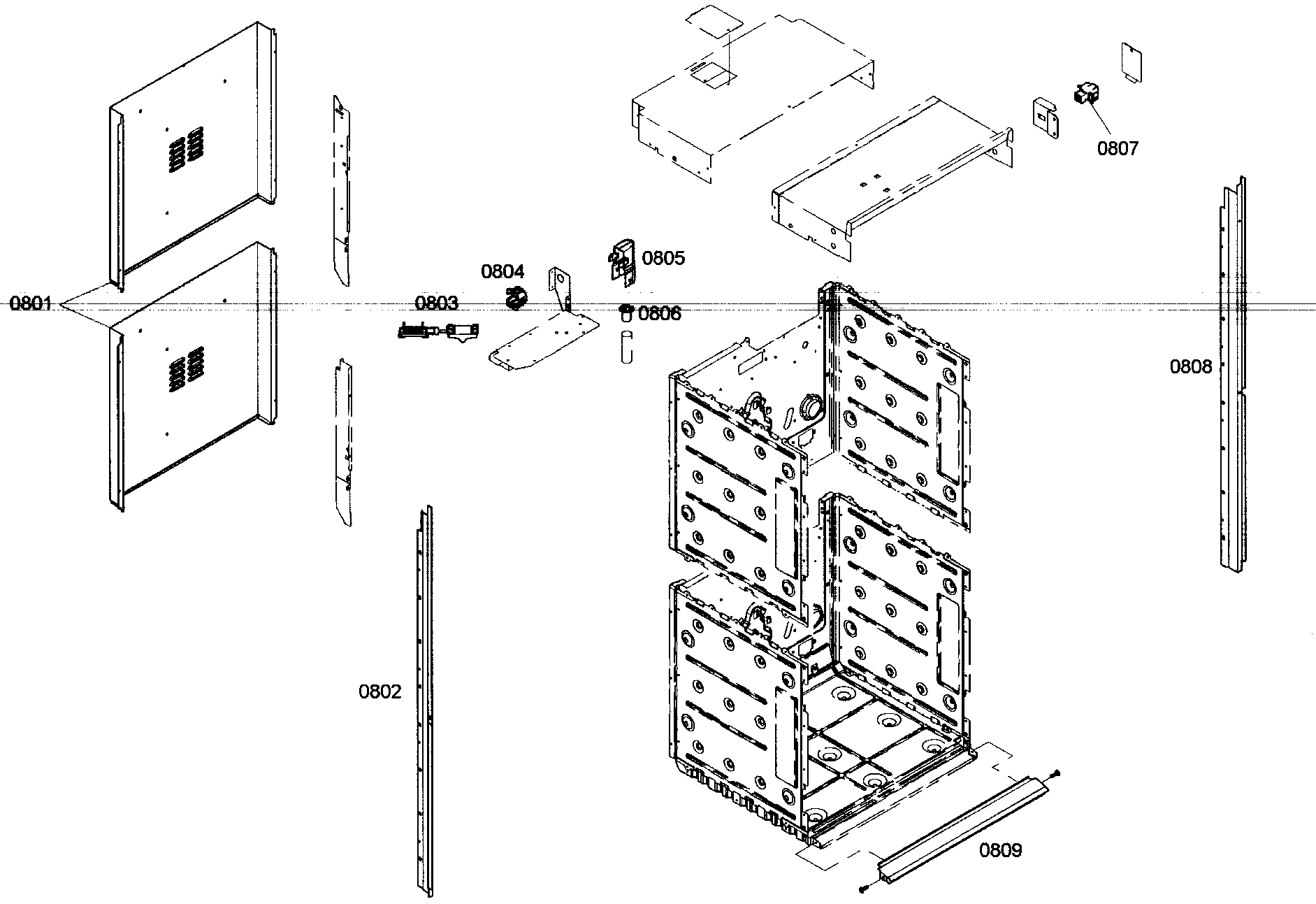

Mounting assy diagram

Connection

Part #414692

Replaced by #00414692

?
Manufacturer substitution
This part replaces 414692. Substitute parts can look different from the original.
$49.31
In Stock
Harness 663793
#NI

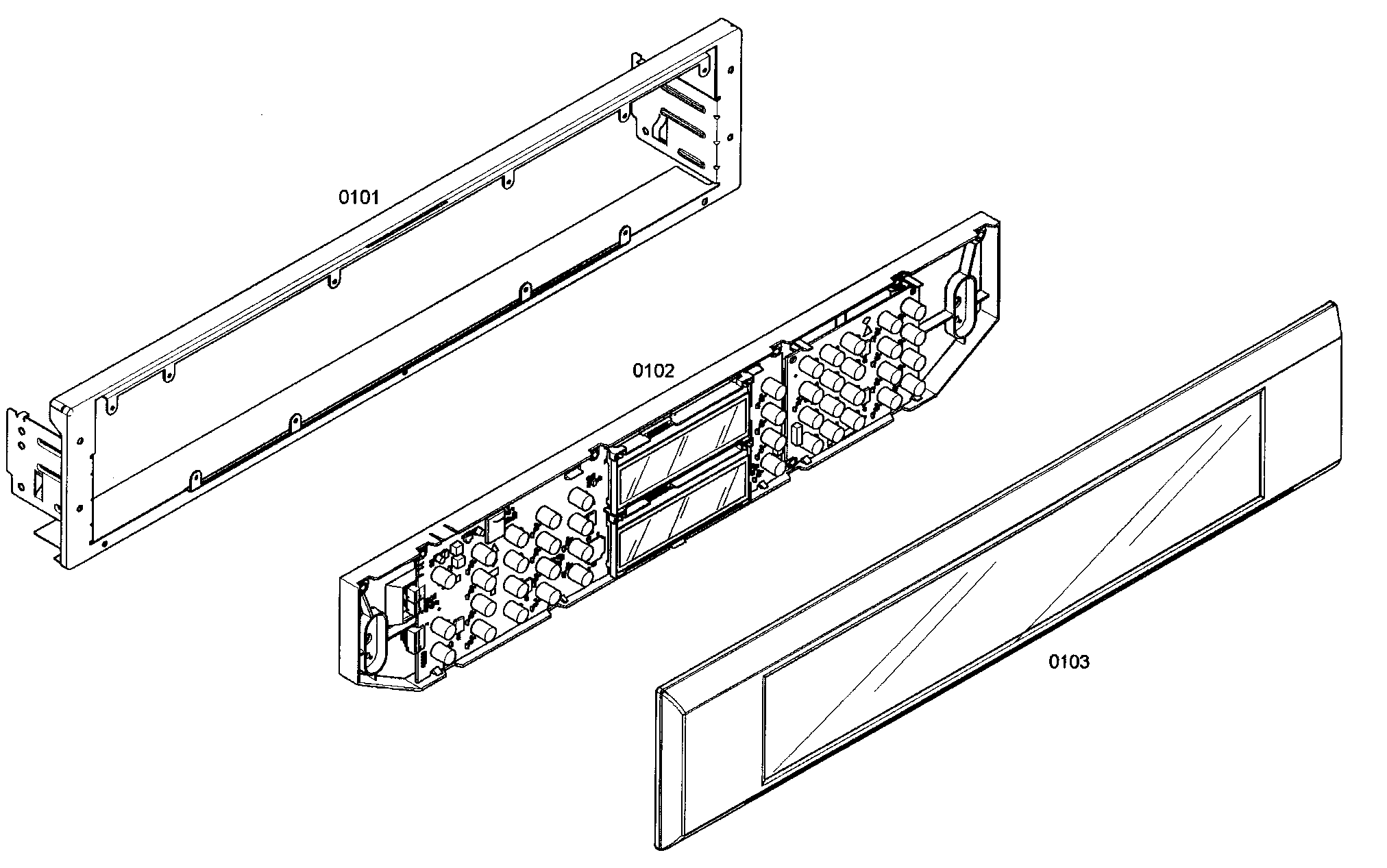

Control panel diagram

Harness

Part #663793

Replaced by #00663793

?
Manufacturer substitution
This part replaces 663793. Substitute parts can look different from the original.
$64.40
In Stock
Bracket 643434
Bracket

Part #643434

Replaced by #00643434

?
Manufacturer substitution
This part replaces 643434. Substitute parts can look different from the original.
$64.40
In Stock
Glass Panel 665058
Glass panel

Part #665058

Replaced by #00665058

?
Manufacturer substitution
This part replaces 665058. Substitute parts can look different from the original.
$108.89 |
10% OFF Phone Price : $120.89
In Stock
