Kenmore
Floor Scrubber

Model # 10070100 Official Kenmore floor polisher

Here are the diagrams and repair parts for Official Kenmore 10070100 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Button 934164
#69

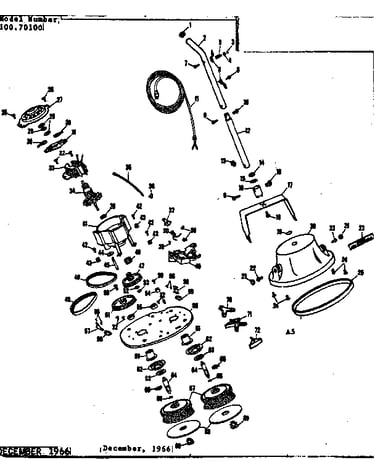

Floor polisher diagram

Button

Part #934164

The manufacturer no longer makes this part, and there's no substitute part

Plug Handle 32523
#1

Floor polisher diagram

Plug handle

Part #32523

The manufacturer no longer makes this part, and there's no substitute part

Screw 03301
#50

Floor polisher diagram

Screw

Part #03301

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 938120
#41

Floor polisher diagram

Housing assembly

Part #938120

The manufacturer no longer makes this part, and there's no substitute part

Shaft 38131
#45

Floor polisher diagram

Shaft

Part #38131

The manufacturer no longer makes this part, and there's no substitute part

Pulley 38119
#46

Floor polisher diagram

Pulley

Part #38119

The manufacturer no longer makes this part, and there's no substitute part

Screw 03040-1
#26

Floor polisher diagram

Screw

Part #03040-1

The manufacturer no longer makes this part, and there's no substitute part

Seal 32545
#19

Floor polisher diagram

Seal

Part #32545

The manufacturer no longer makes this part, and there's no substitute part

Spring 30679
#5

Floor polisher diagram

Spring

Part #30679

The manufacturer no longer makes this part, and there's no substitute part

Instruction Book 38178-1

#NI

All parts diagram

Instruction book

Part #38178-1

The manufacturer no longer makes this part, and there's no substitute part
