Kenmore
Electric Range

Model # 79046262503 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79046262503 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

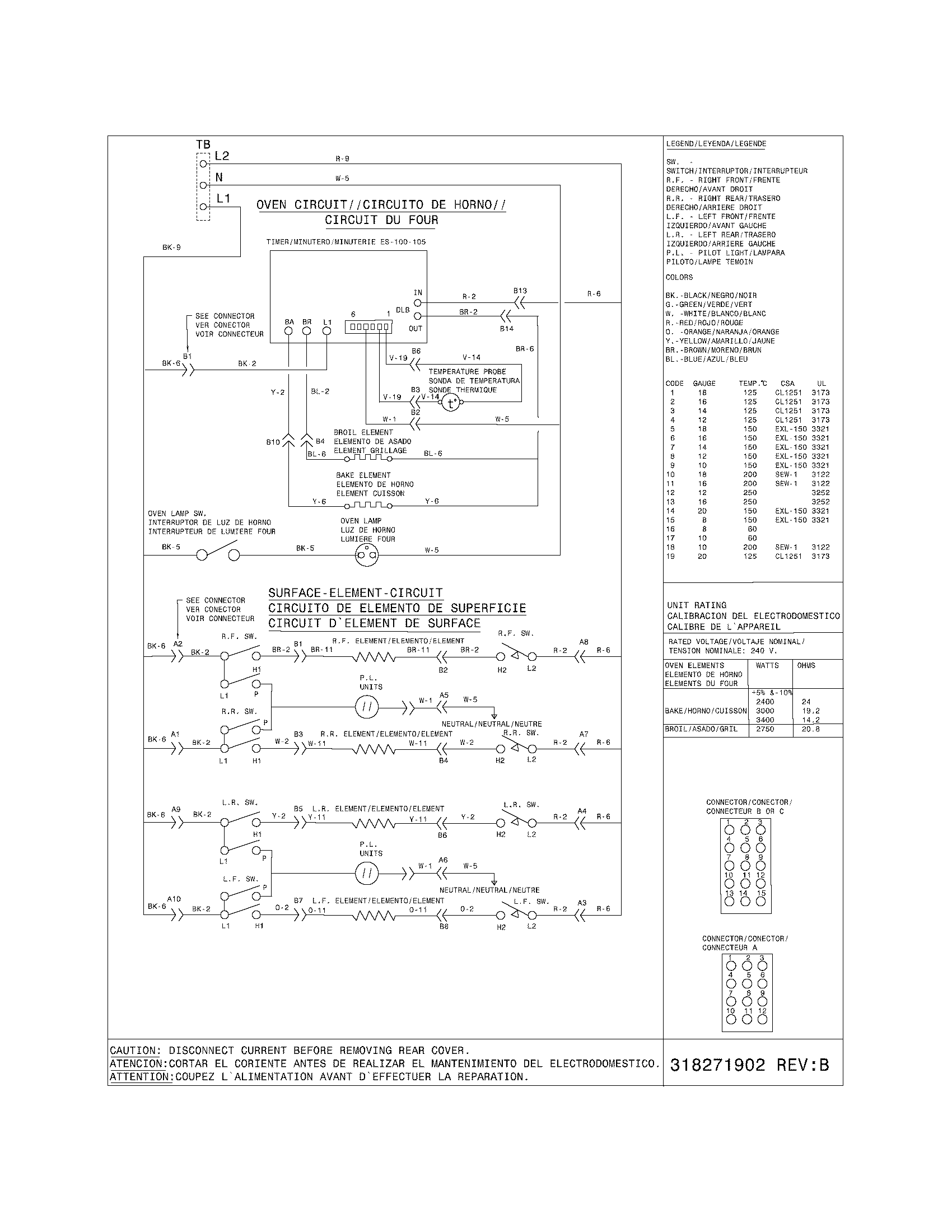

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Range Surface Element, 8-in 5303012223
#15

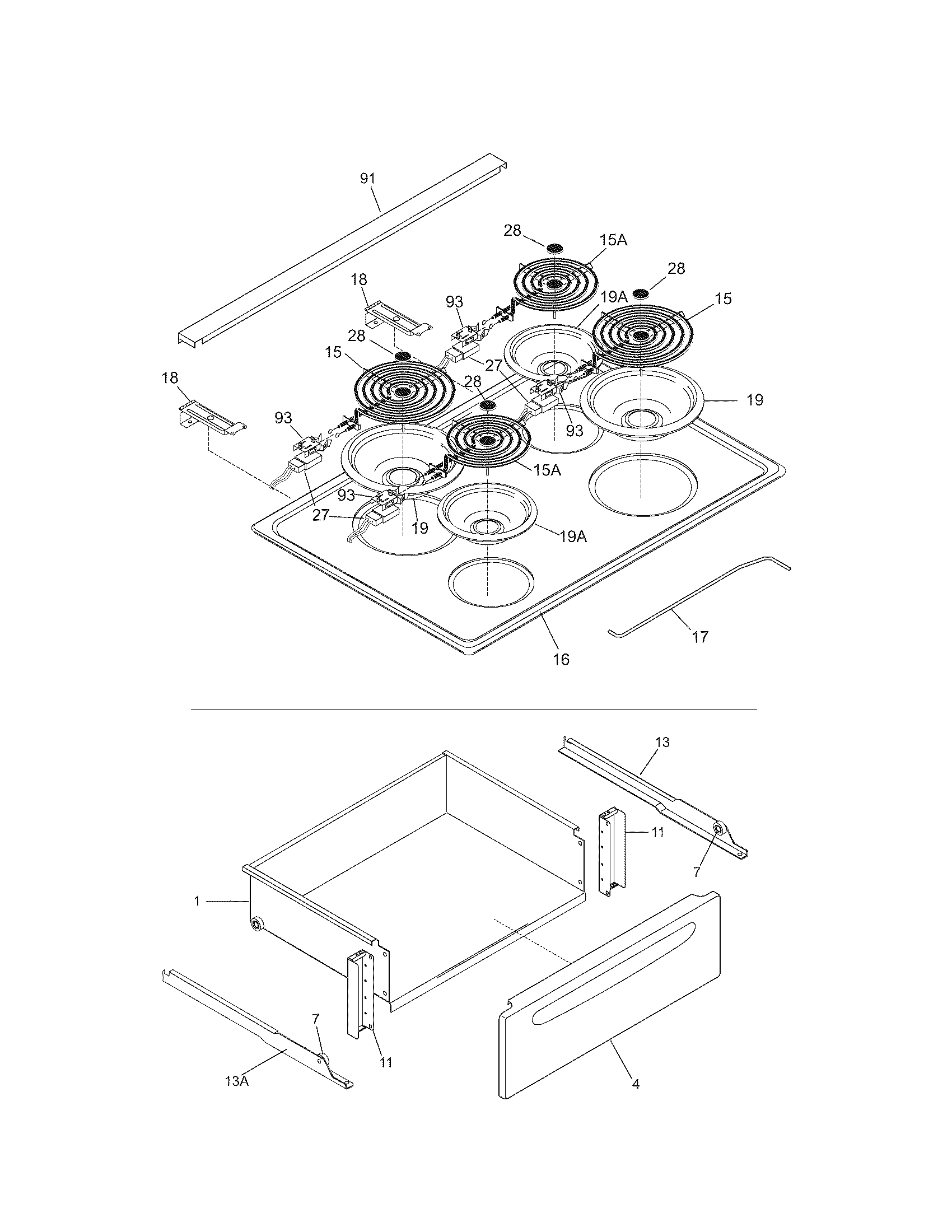

Top/drawer diagram

Range surface element, 8-in

Part #5303012223

Replaced by #316442301

?
Manufacturer substitution
This part replaces 5303012223. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Range Oven Light Bulb 5303013071
#15

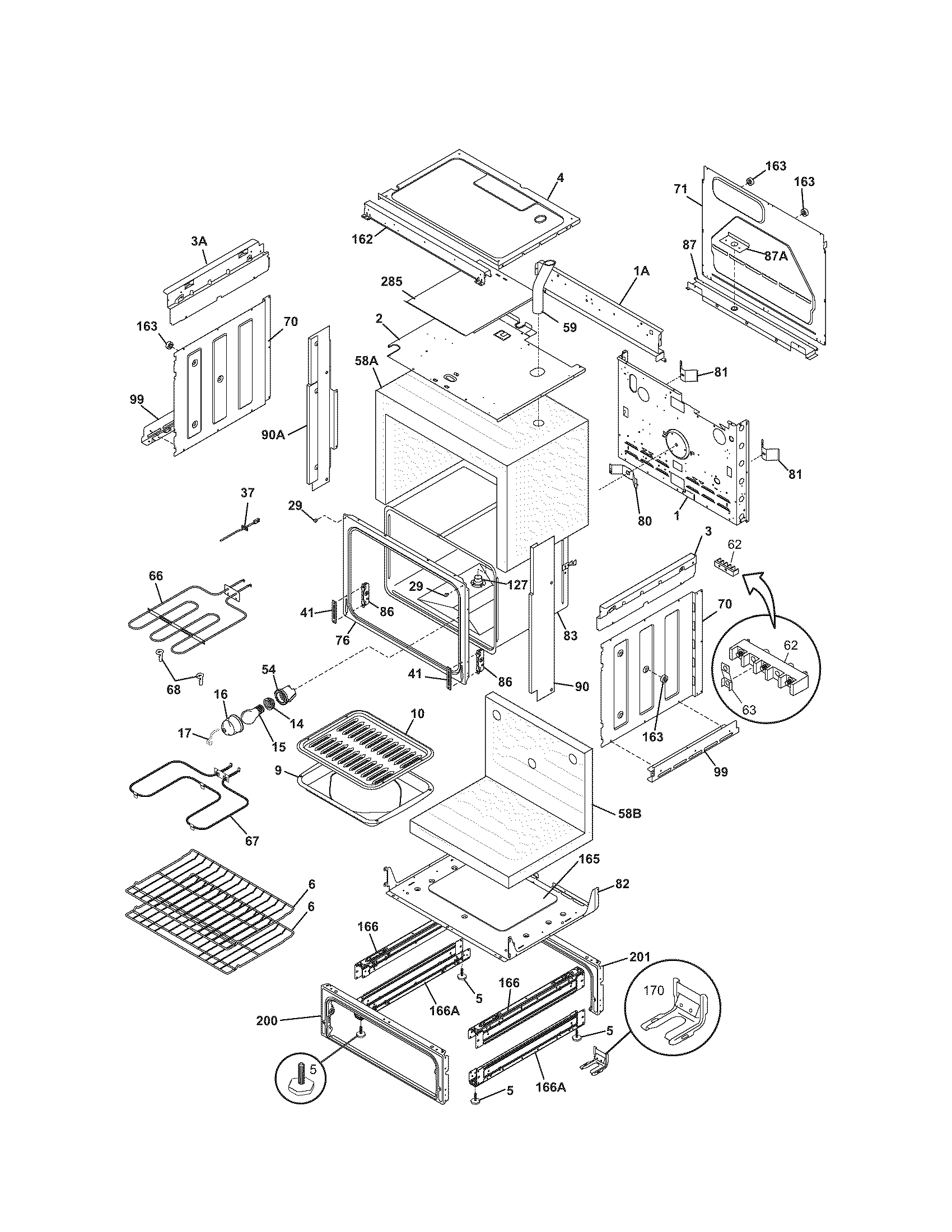

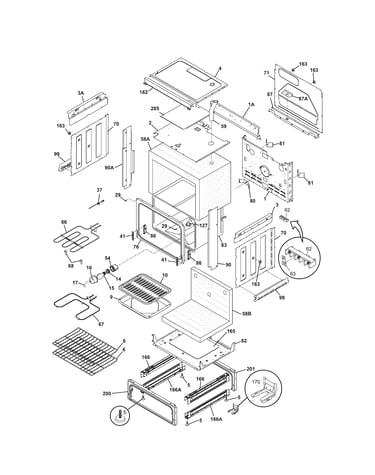

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5303912666
#27

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Cooktop Surface Element 08067762
#15A

Top/drawer diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Range Bake Element 318255002
#67

Body diagram

Range bake element

Part #318255002

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255002. Substitute parts can look different from the original.
BEST SELLER
$150.14 |
7% OFF Phone Price : $162.14
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Small Single Surface Unit Switch 318369615
#54

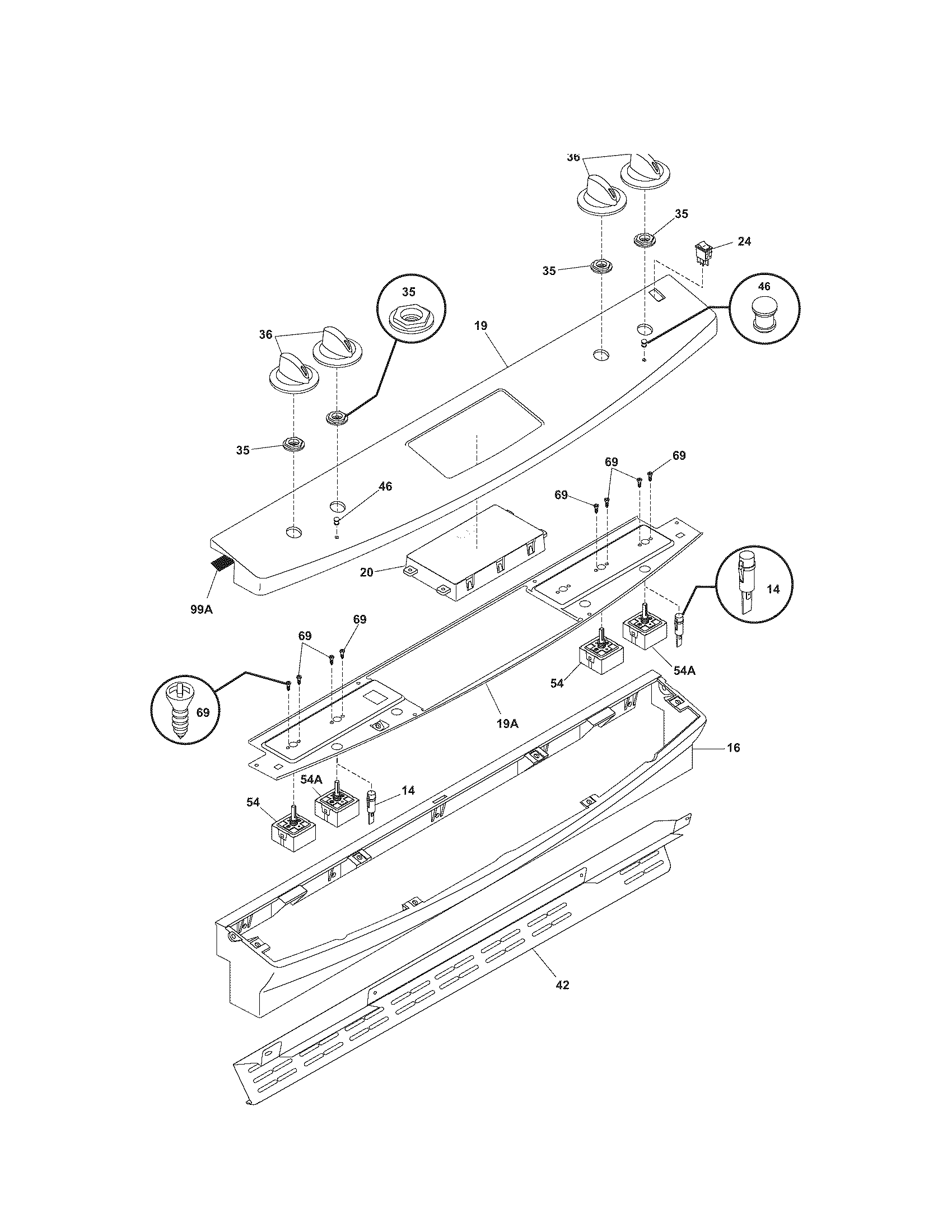

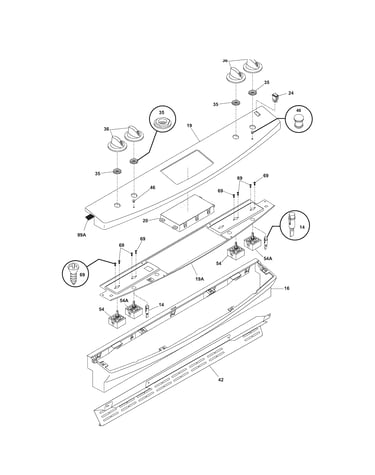

Backguard diagram

Range small single surface unit switch

Part #318369615

The manufacturer no longer makes this part, and there's no substitute part

Oven Switch 318369616
#54A

Backguard diagram

Oven switch

Part #318369616

Replaced by #903136-9020

?
Manufacturer substitution
This part replaces 318369616. Substitute parts can look different from the original.
BEST SELLER
$72.58 |
8% OFF Phone Price : $78.58
In Stock
Ikea Range Screw 5304453707
#NI

Backguard diagram

Ikea range screw

Part #5304453707

$14.69
In Stock
Range Screw 5303311333
Range screw

Part #5303311333

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 5303311333. Substitute parts can look different from the original.
$14.69
In Stock
