Model # 11073491200 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11073491200 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

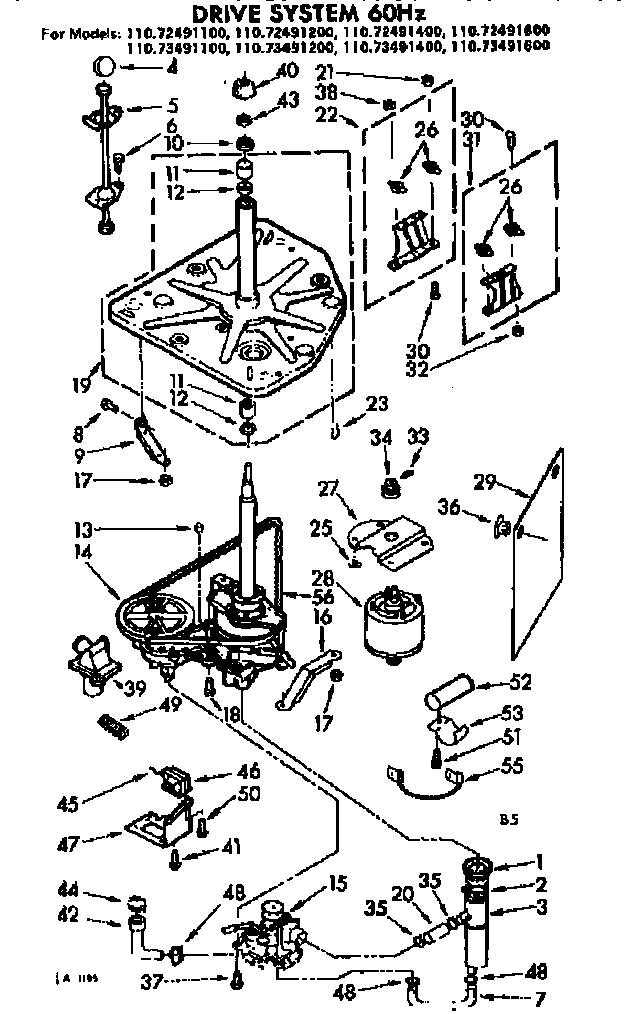

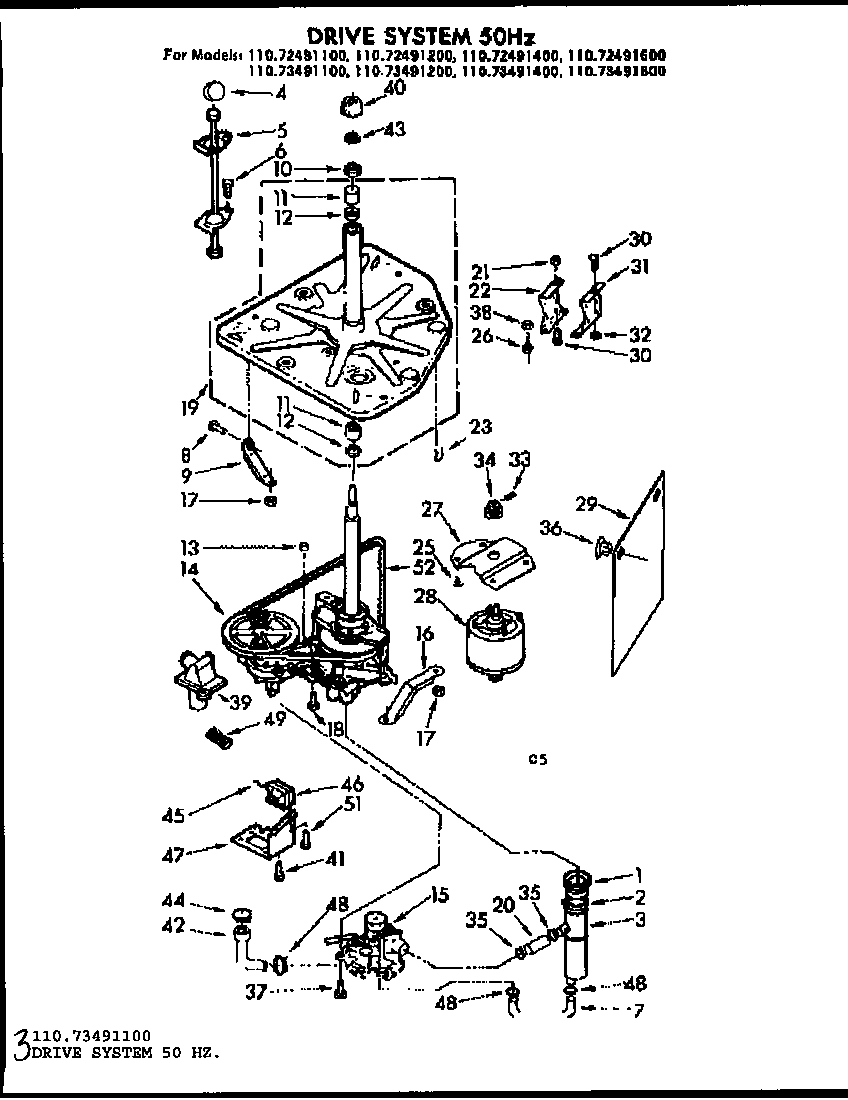

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11073491200 Washer

  • Block 97360
    #12

    Tub and basket assembly diagram

    Block

    Part #97360

    Replaced by #WP389140

    ?
    Manufacturer substitution
    This part replaces 97360. Substitute parts can look different from the original.
    BEST SELLER
    $18.87
    10% OFF Phone Price : $20.87
    In Stock
  • Gasket 96690
    #13

    Tub and basket assembly diagram

    Gasket

    Part #96690

    Replaced by #W10814296

    ?
    Manufacturer substitution
    This part replaces 96690. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $3.69
    21% OFF Phone Price : $4.69
    In Stock
  • Hose 353403
    #30

    Tub and basket assembly diagram

    Hose

    Part #353403

    Replaced by #WP353244

    ?
    Manufacturer substitution
    This part replaces 353403. Substitute parts can look different from the original.
    BEST SELLER
    $43.64
    12% OFF Phone Price : $49.64
    In Stock
  • Seal, Center Post 356934
    Seal, center post

    Part #356934

    Replaced by #WP8577376

    ?
    Manufacturer substitution
    This part replaces 356934. Substitute parts can look different from the original.
    BEST SELLER
    $6.77
    28% OFF Was : $9.40
    In Stock
  • Screw 18724
    #5

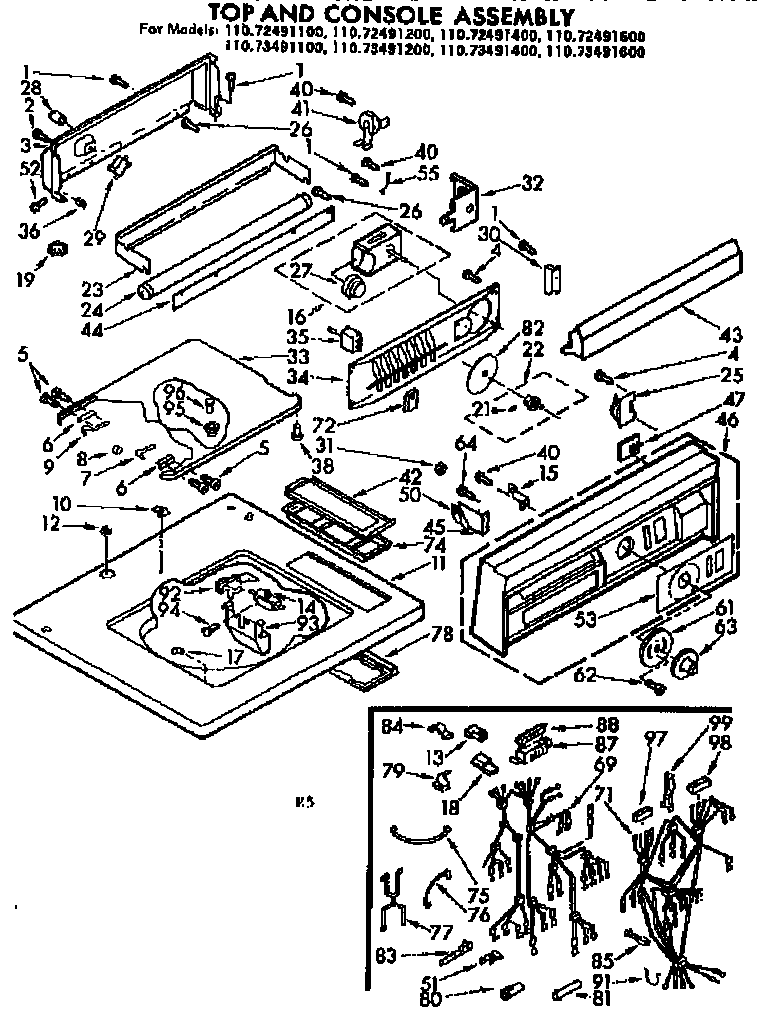

    Top and console assembly diagram

    Screw

    Part #18724

    Replaced by #WPW10119828

    ?
    Manufacturer substitution
    This part replaces 18724. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $3.58
    22% OFF Phone Price : $4.58
    In Stock
  • Clamp 370446
    #51

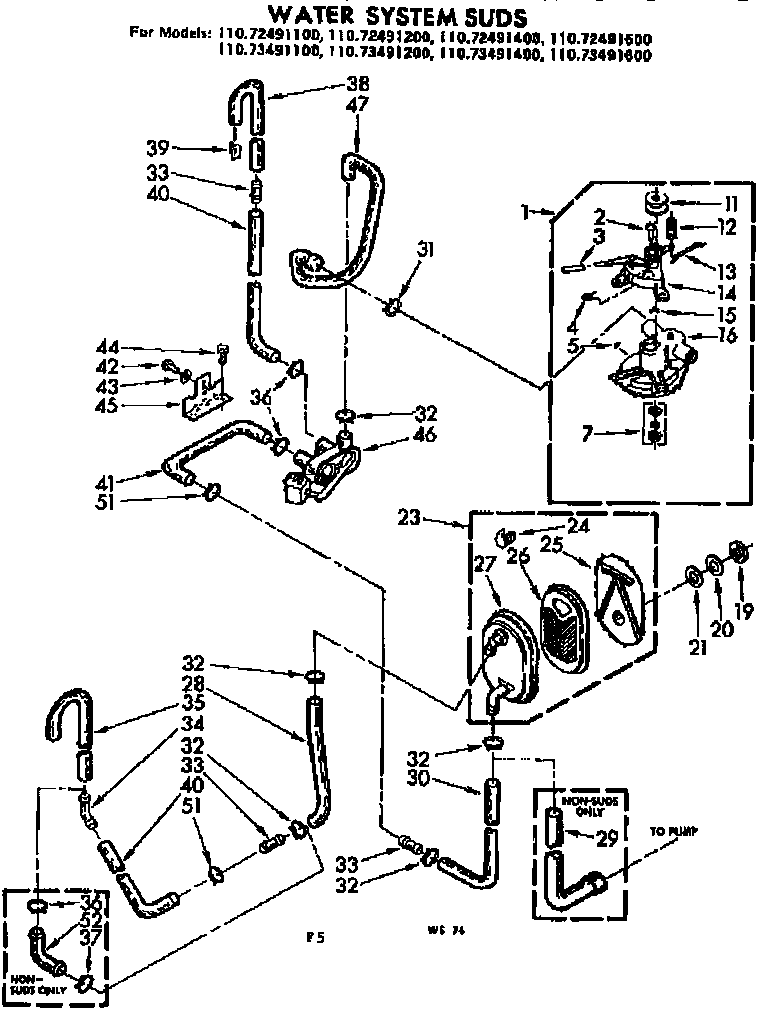

    Water system suds diagram

    Clamp

    Part #370446

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 370446. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Clamp 353093
    Clamp

    Part #353093

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 353093. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Clamp 96991
    Clamp

    Part #96991

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 96991. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Clamp 370445
    #37

    Water system suds diagram

    Clamp

    Part #370445

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 370445. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Hose Clamp 272851
    #59

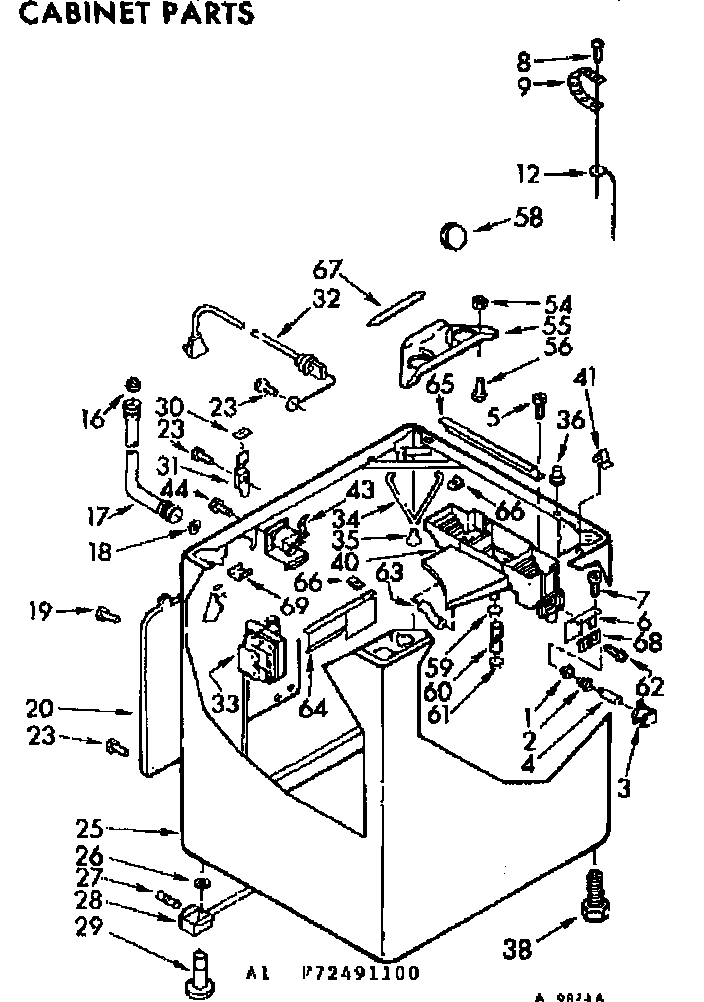

    Cabinet parts diagram

    Hose clamp

    Part #272851

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 272851. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
