Model # 3620 Official Makita router

Here are the diagrams and repair parts for Official Makita 3620 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 50 parts |

#10

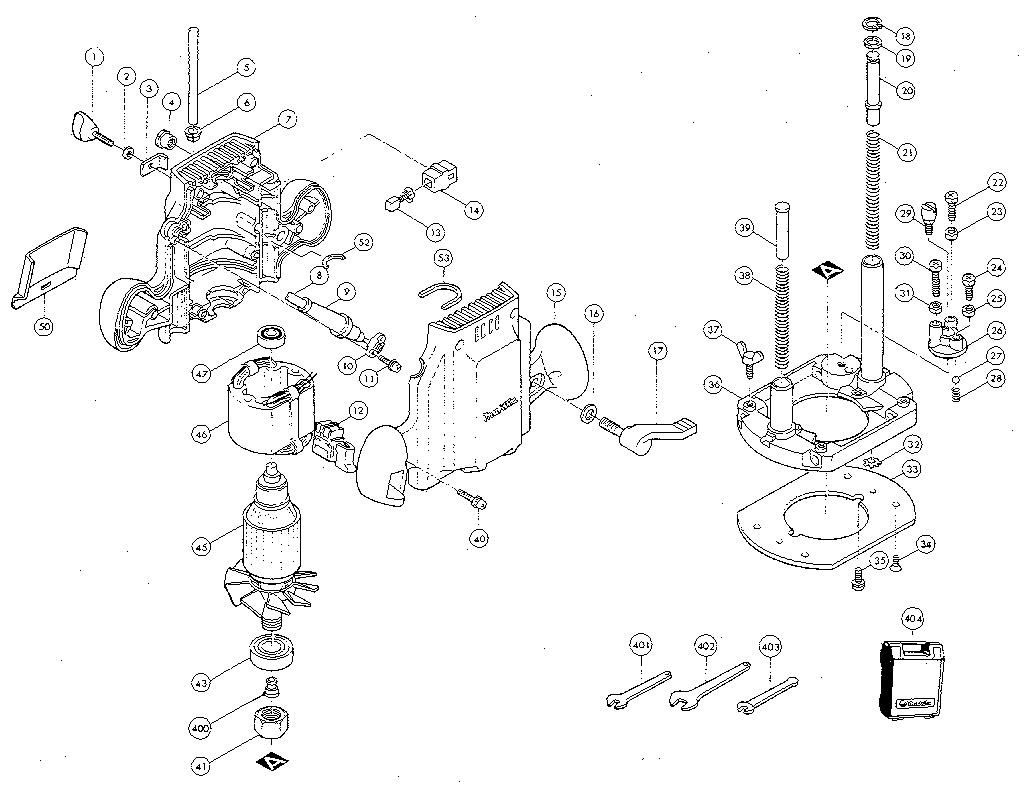

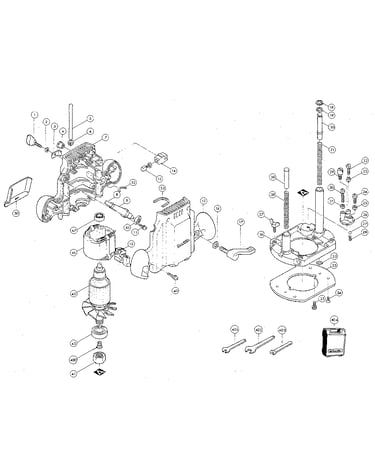

Unit parts diagram

Strain relef

Part #687002-9

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Makita plate

Part #343352-9

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Makita depth pointr

Part #410960-2

The manufacturer no longer makes this part, and there's no substitute part

#43

Unit parts diagram

Makita bearing

Part #211275-8

The manufacturer no longer makes this part, and there's no substitute part

#39

Unit parts diagram

Makita pn

Part #256651-9

The manufacturer no longer makes this part, and there's no substitute part

#26

Unit parts diagram

Makita stopper assembly

Part #134437-0

The manufacturer no longer makes this part, and there's no substitute part

#32

Unit parts diagram

Makita self lock

Part #259019-8

The manufacturer no longer makes this part, and there's no substitute part

#402

Unit parts diagram

Wrench

Part #781011-1

The manufacturer no longer makes this part, and there's no substitute part

#35

Unit parts diagram

Screw

Part #911206-4

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Washer

Part #941101-4

The manufacturer no longer makes this part, and there's no substitute part
