Jenn-Air
Dishwasher

Model # JDPSS246LM1 Official Jenn-Air dishwasher

Here are the diagrams and repair parts for Official Jenn-Air JDPSS246LM1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

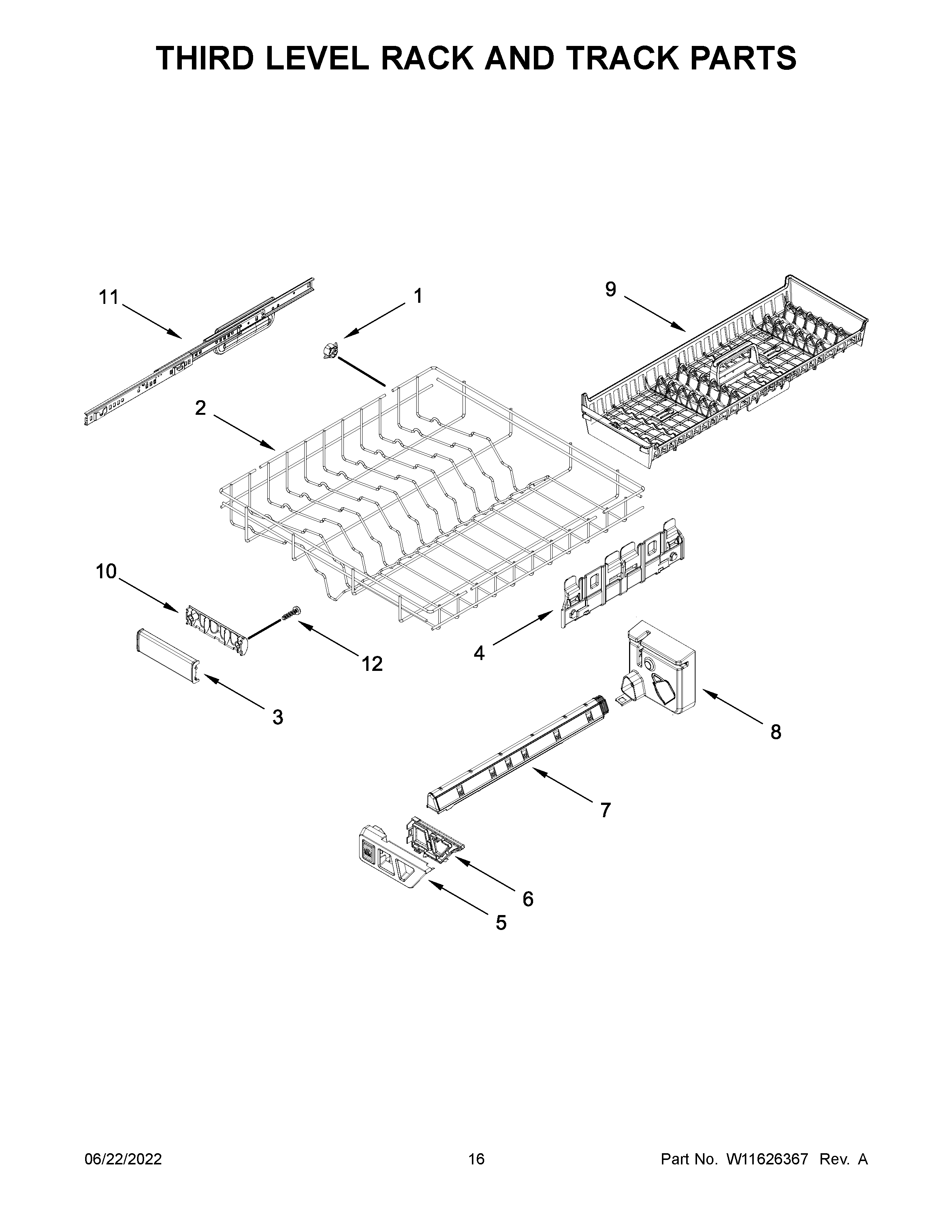

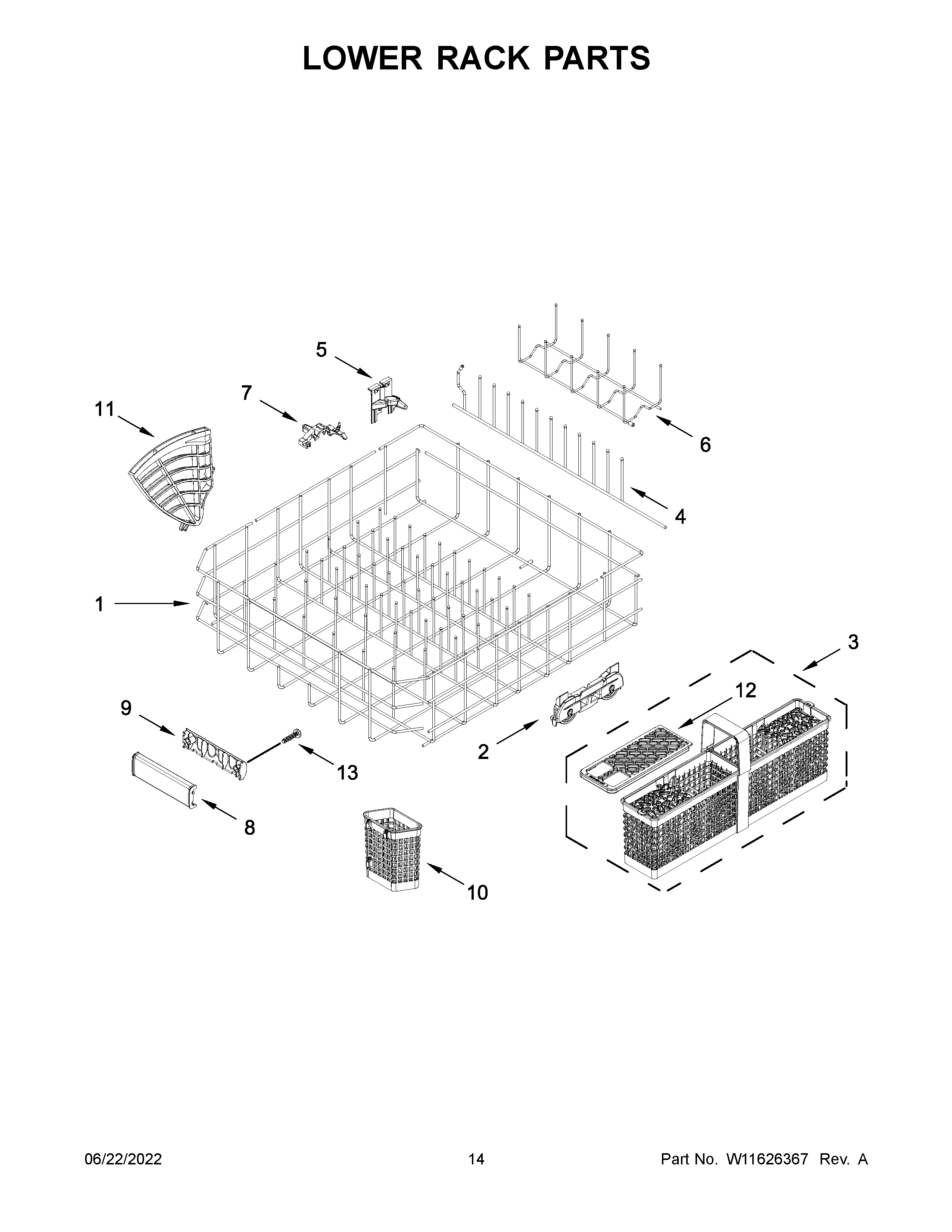

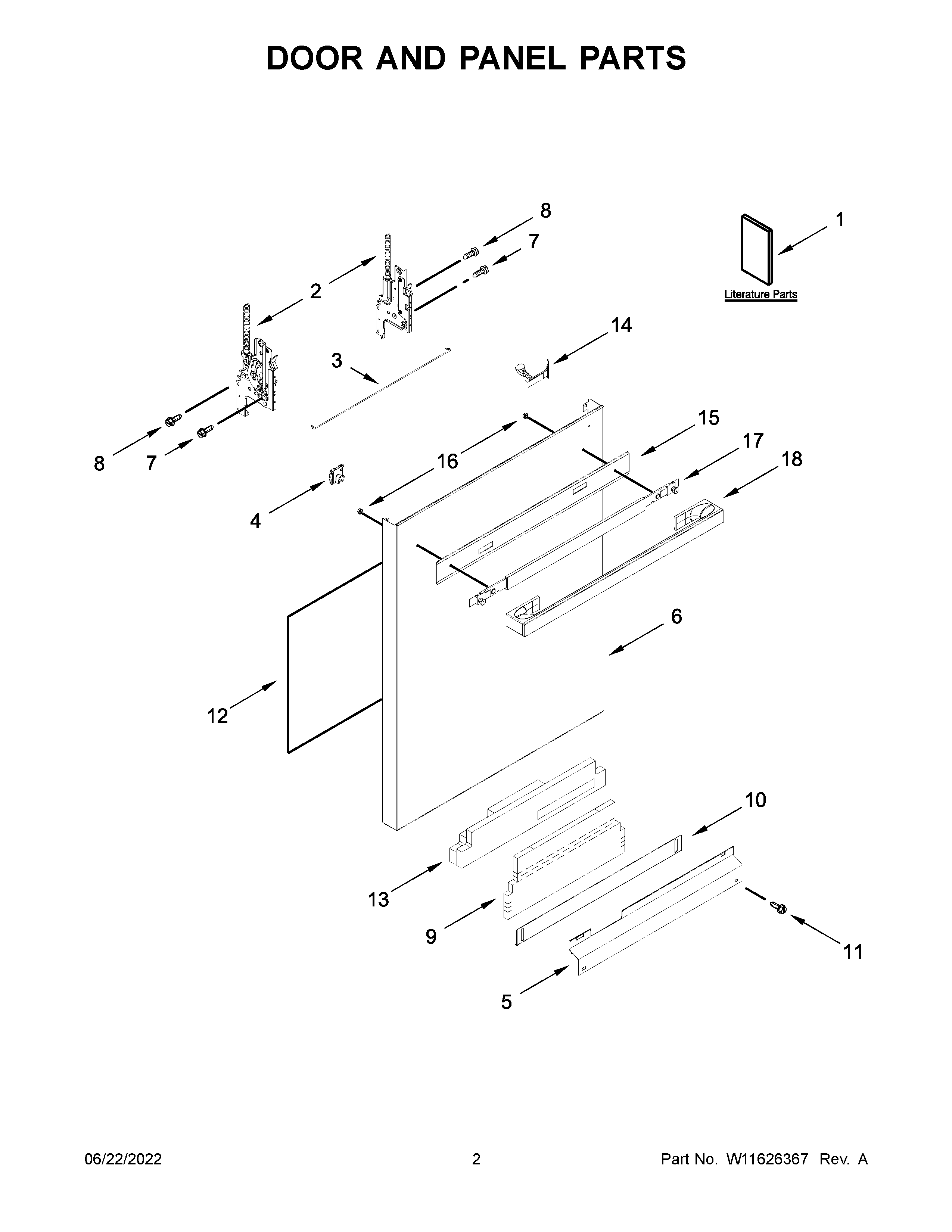

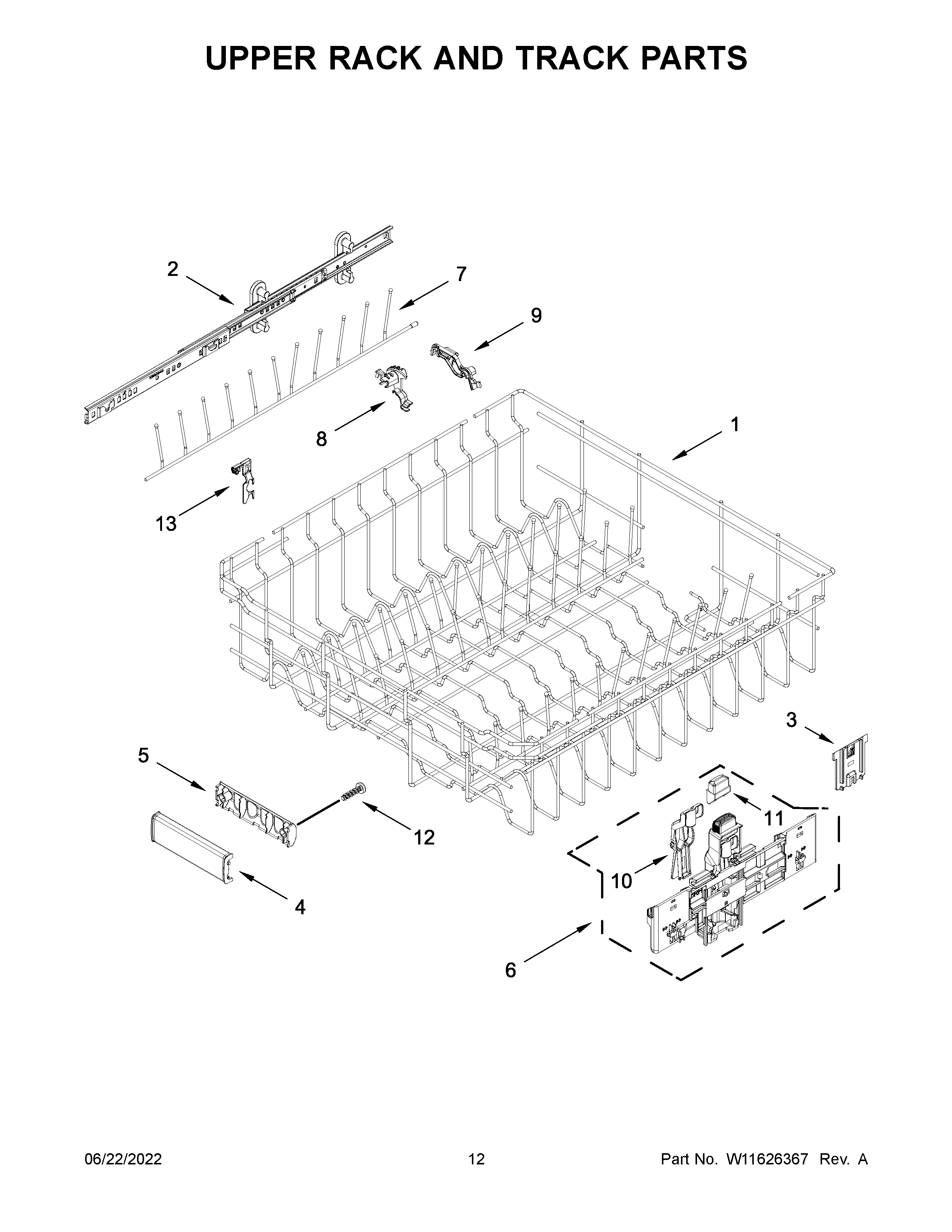

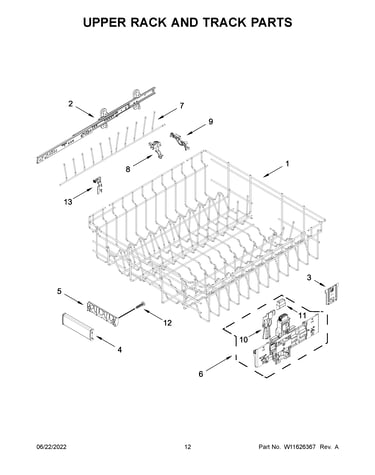

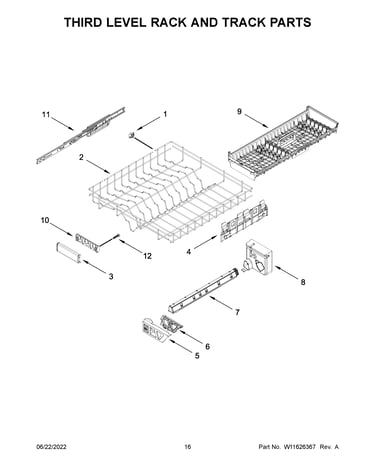

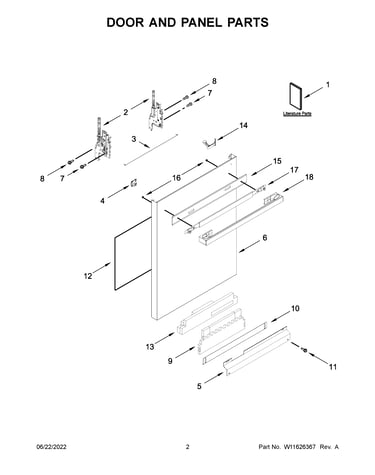

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Fill Valve Assembly W11025970
#23

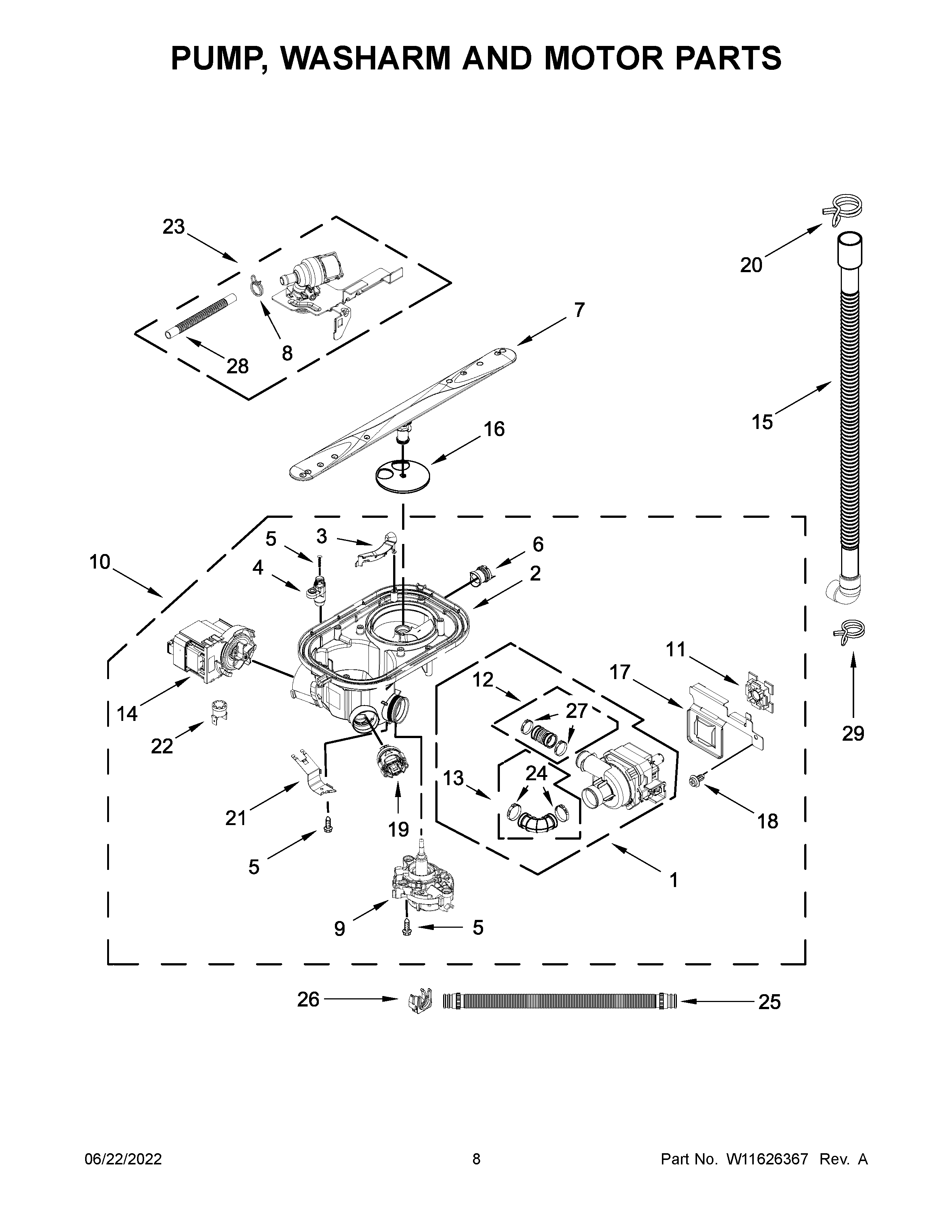

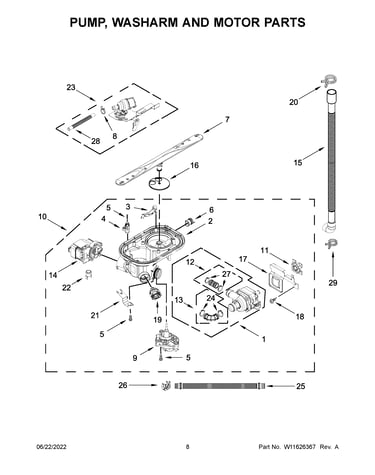

Pump, washarm and motor parts diagram

Fill valve assembly

Part #W11025970

Replaced by #W11434044

?
Manufacturer substitution
This part replaces W11025970. Substitute parts can look different from the original.
BEST SELLER
$35.24 |
15% OFF Phone Price : $41.24
In Stock
Maytag Appliance Hose Clamp (replaces 22003072, 596669, W10286357) WP596669
#8

Pump, washarm and motor parts diagram

Maytag appliance hose clamp (replaces 22003072, 596669, w10286357)

Part #WP596669

BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Manifold And Spray Arm Assembly W11174340
#9

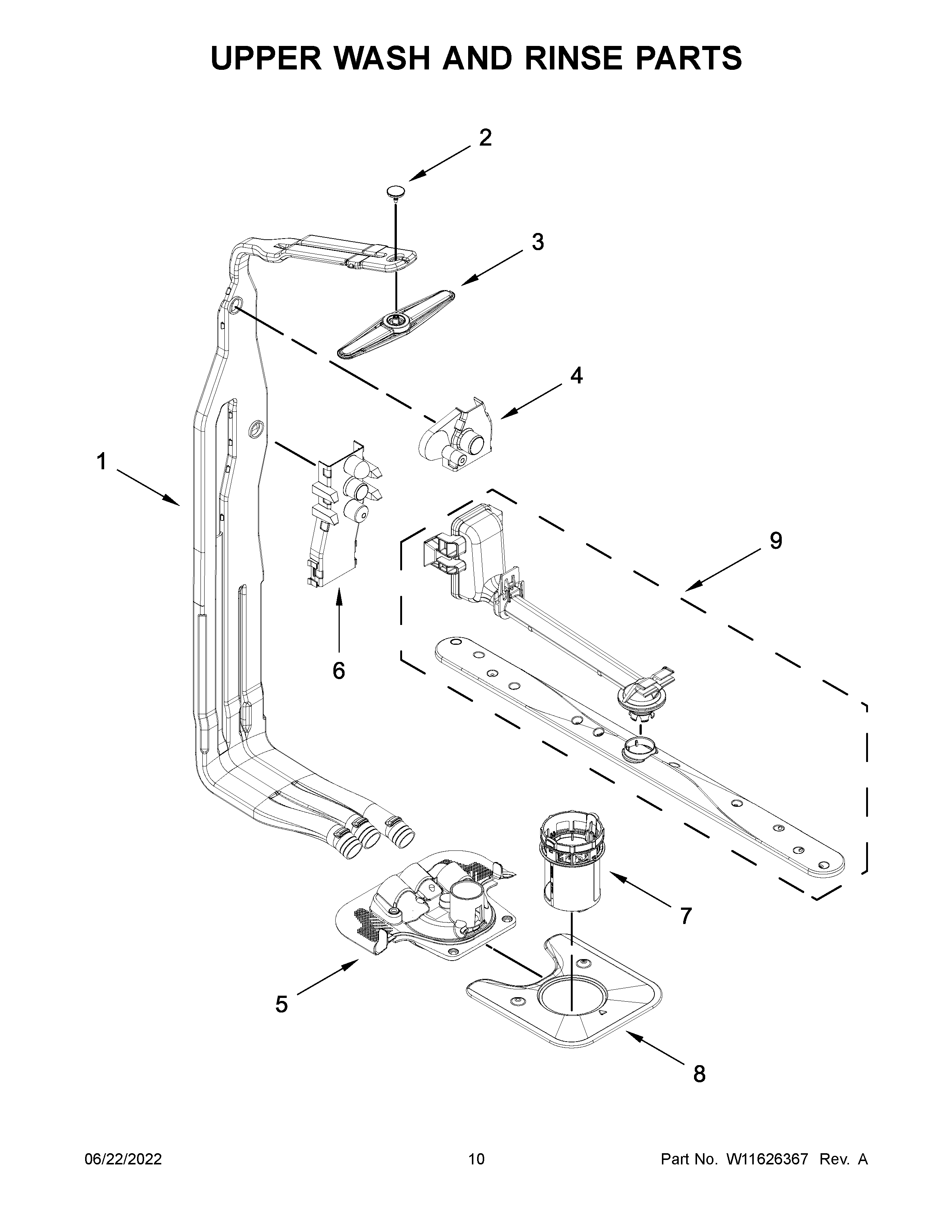

Upper wash and rinse parts diagram

Dishwasher manifold and spray arm assembly

Part #W11174340

Replaced by #W11545334

?
Manufacturer substitution
This part replaces W11174340. Substitute parts can look different from the original.
BEST SELLER
$39.67 |
13% OFF Phone Price : $45.67
In Stock
Dishwasher Mounting Bracket 8269145
#11

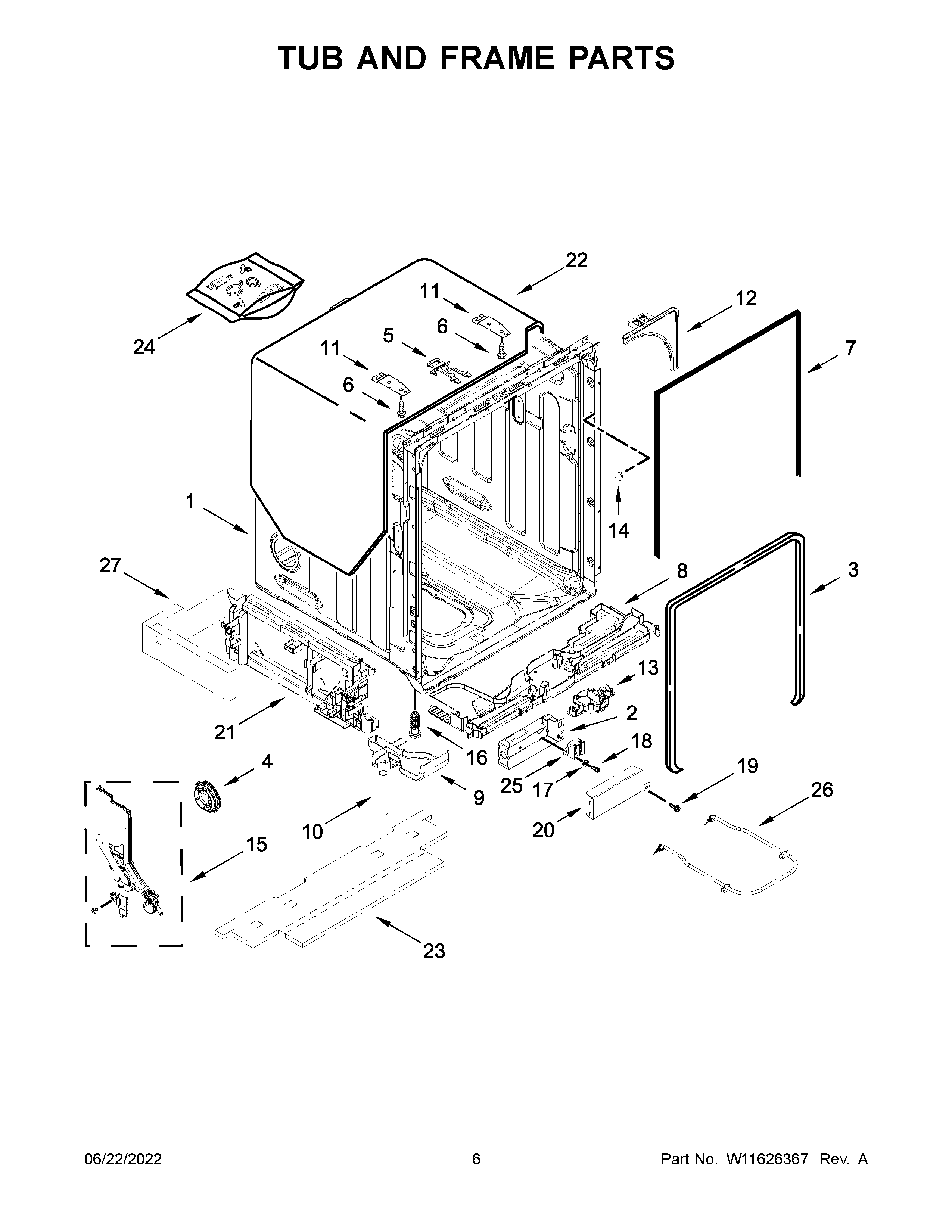

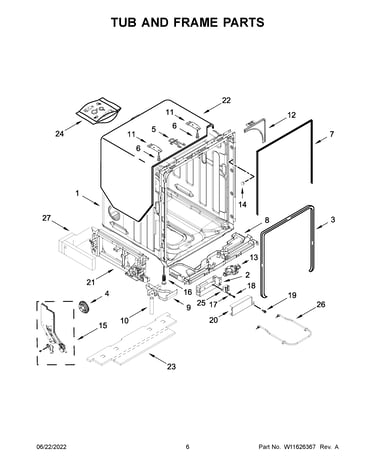

Tub and frame parts diagram

Dishwasher mounting bracket

Part #8269145

Replaced by #WP8269145

?
Manufacturer substitution
This part replaces 8269145. Substitute parts can look different from the original.
BEST SELLER
$16.31 |
11% OFF Phone Price : $18.31
In Stock
Gasket-tub,d W11035860
#3

Tub and frame parts diagram

Gasket-tub,d

Part #W11035860

Replaced by #W11483553

?
Manufacturer substitution
This part replaces W11035860. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Dishwasher Screw W10348409
#9

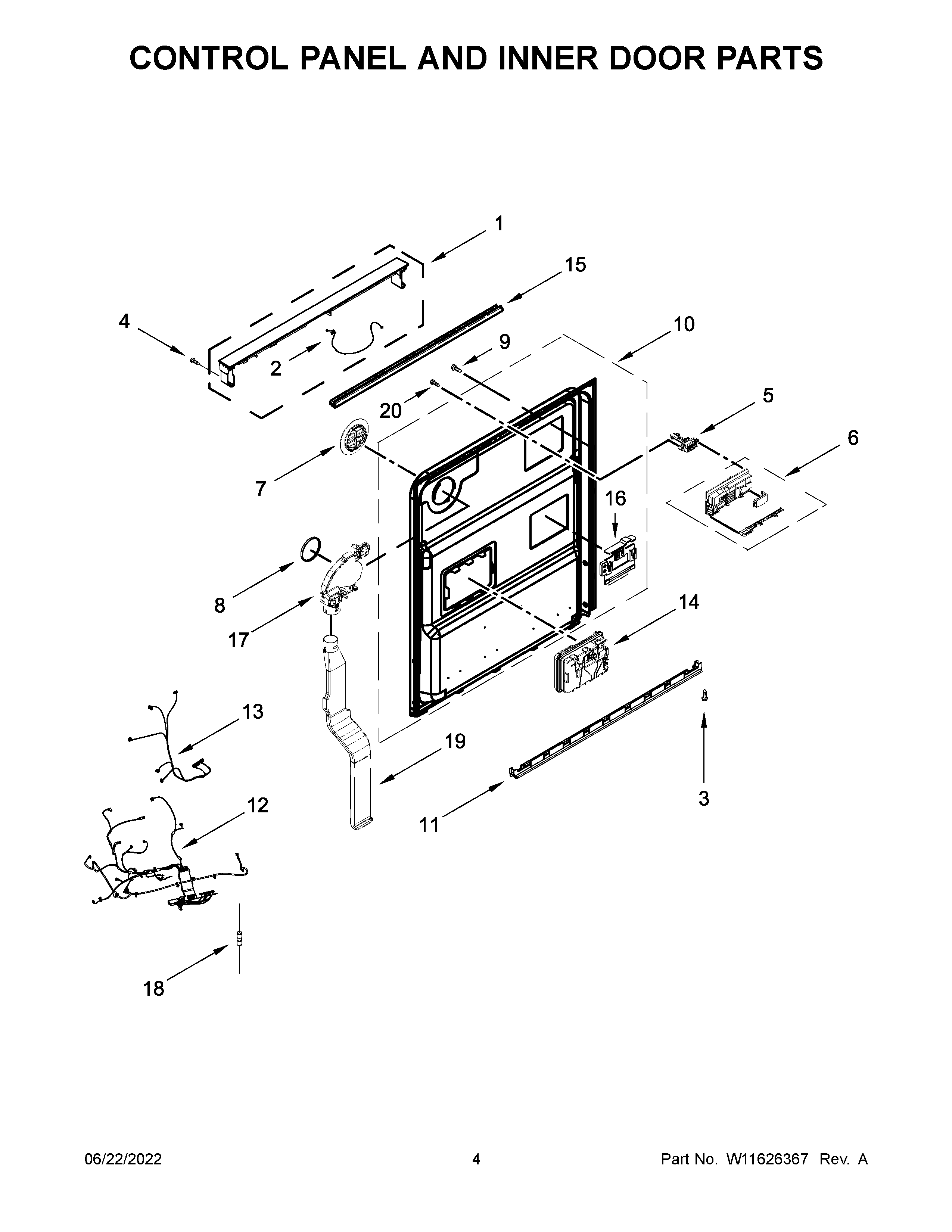

Control panel and inner door parts diagram

Dishwasher screw

Part #W10348409

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces W10348409. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Latch Assembly (includes Switch) W11091934
#5

Control panel and inner door parts diagram

Latch assembly (includes switch)

Part #W11091934

Replaced by #W11412299

?
Manufacturer substitution
This part replaces W11091934. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.10 |
11% OFF Phone Price : $18.10
In Stock
Dishwasher Screw 9741232
Dishwasher screw

Part #9741232

Replaced by #WP9741232

?
Manufacturer substitution
This part replaces 9741232. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Hose Clamp 370445
#20

Pump, washarm and motor parts diagram

Dishwasher hose clamp

Part #370445

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Hose-pressur W11250985
#12

Pump, washarm and motor parts diagram

Hose-pressur

Part #W11250985

Replaced by #W11419334

?
Manufacturer substitution
This part replaces W11250985. Substitute parts can look different from the original.
$31.60 |
16% OFF Phone Price : $37.60
In Stock
