Model # DMC-GX1KK Official Panasonic digital camera

Here are the diagrams and repair parts for Official Panasonic DMC-GX1KK digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Panasonic Flash Stop VMP0B13
#85

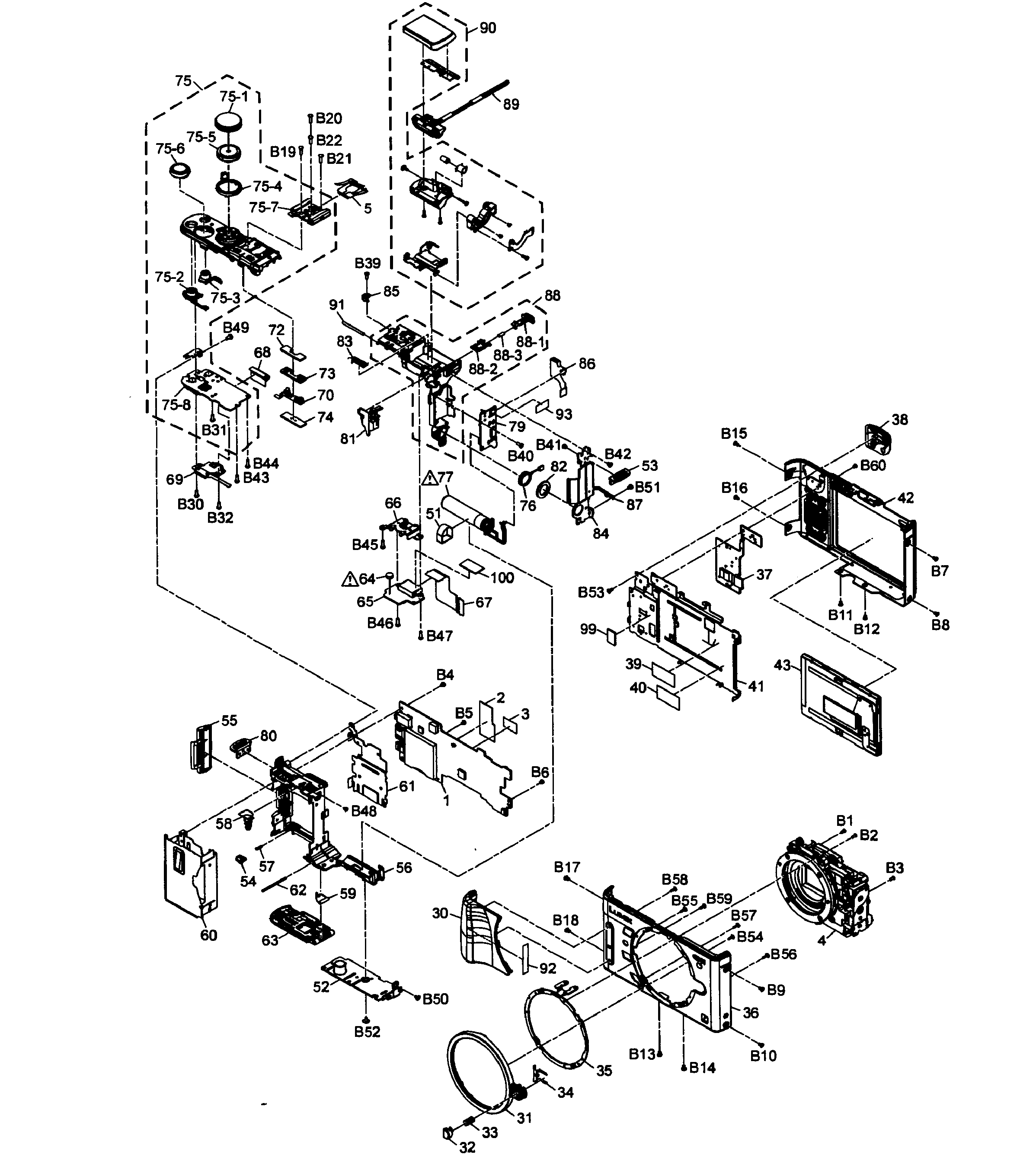

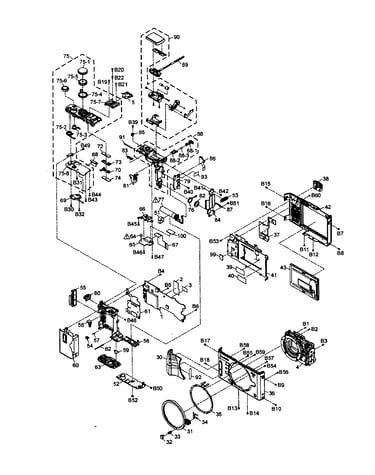

Main assy diagram

Panasonic flash stop

Part #VMP0B13

This item is not returnable
$5.19
In Stock
Panasonic Shoe Cover VKF4970
#NI

Main assy diagram

Panasonic shoe cover

Part #VKF4970

This item is not returnable
$2.16
In Stock
Panasonic Earth Line VYQ7121
#87

Main assy diagram

Panasonic earth line

Part #VYQ7121

This item is not returnable
$5.19
In Stock
Panasonic Shad Frame VDW2023
#302

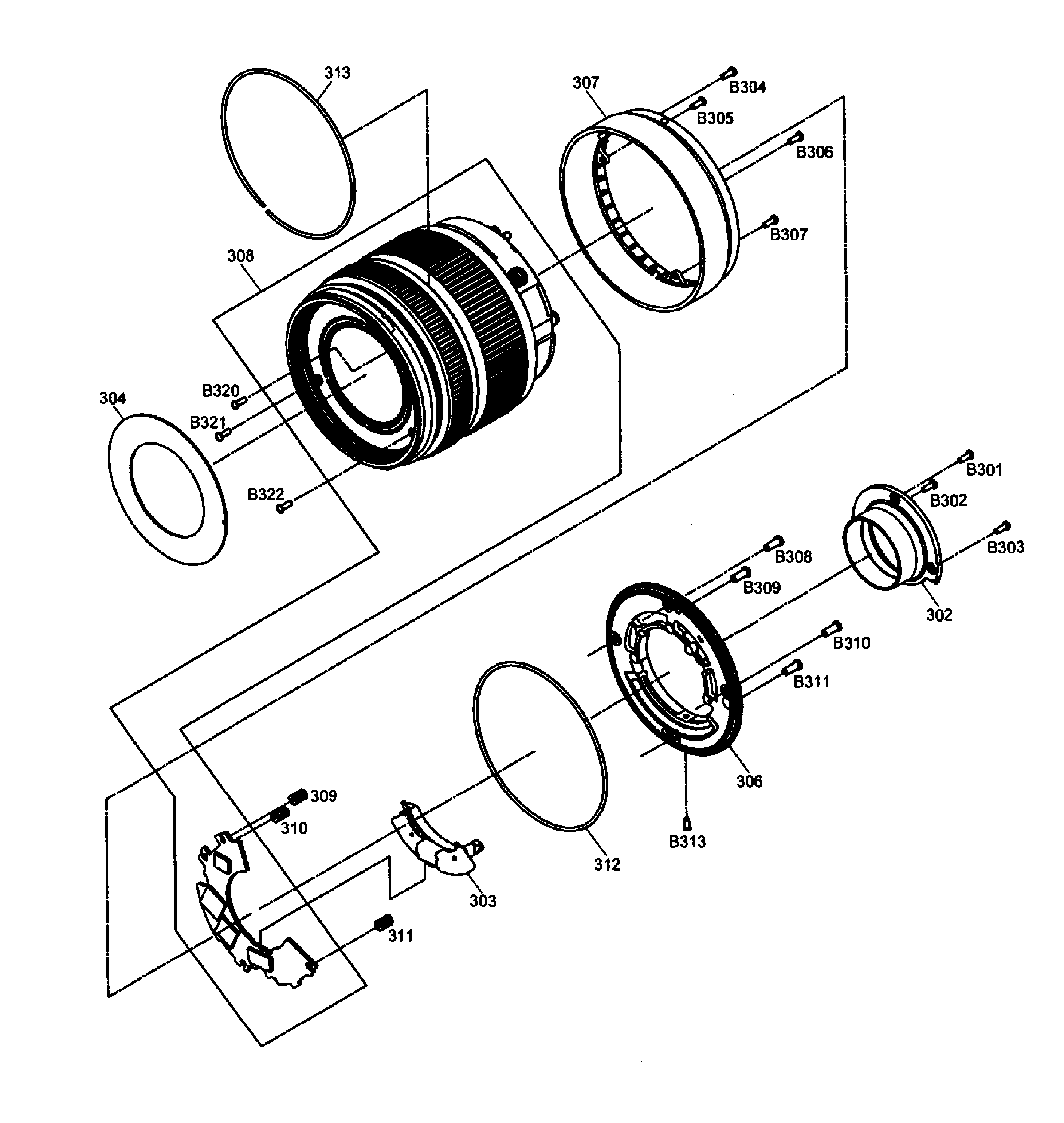

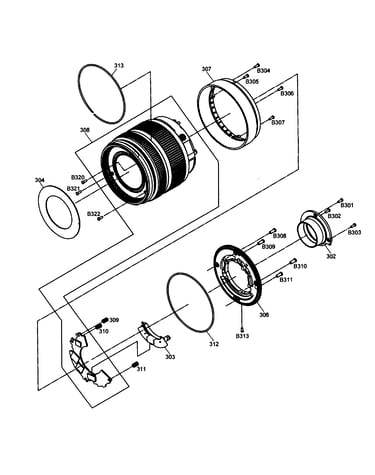

Lens assy diagram

Panasonic shad frame

Part #VDW2023

$52.83
In Stock
Panasonic Rec Button VGU0K40
#75-2

Main assy diagram

Panasonic rec button

Part #VGU0K40

$8.33
In Stock
Panasonic Front Ring VGK3824
#31

Main assy diagram

Panasonic front ring

Part #VGK3824

$13.96
In Stock
Panasonic Fuse 1.5a ERBRE1R50V
#NI

Main assy diagram

Panasonic fuse 1.5a

Part #ERBRE1R50V

This item is not returnable
$2.16
In Stock
Panasonic Microphone VEK0S34
#70

Main assy diagram

Panasonic microphone

Part #VEK0S34

$19.14
In Stock
Panasonic Side Plate VMP0B00
#84

Main assy diagram

Panasonic side plate

Part #VMP0B00

This item is not returnable
$7.10
In Stock
Panasonic Shoe Sprin VMC2111
#5

Main assy diagram

Panasonic shoe sprin

Part #VMC2111

This item is not returnable
$2.76
In Stock
