Roper
Top-Mount Refrigerator

Model # RT16LMXEW00 Official Roper top-mount refrigerator

Here are the diagrams and repair parts for Official Roper RT16LMXEW00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

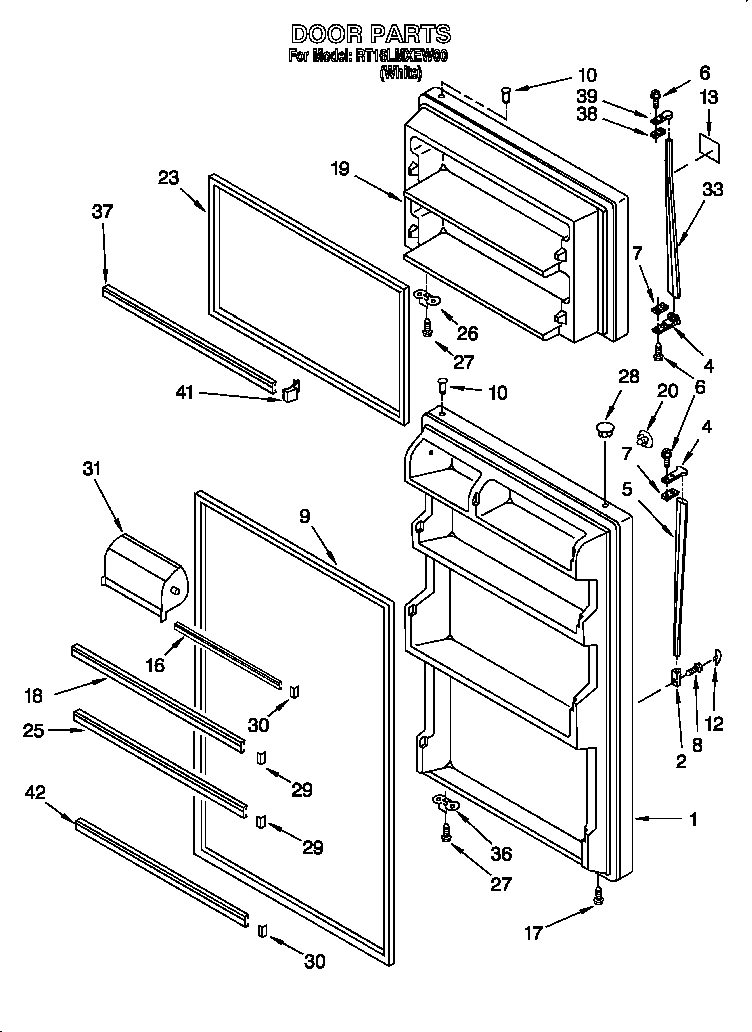

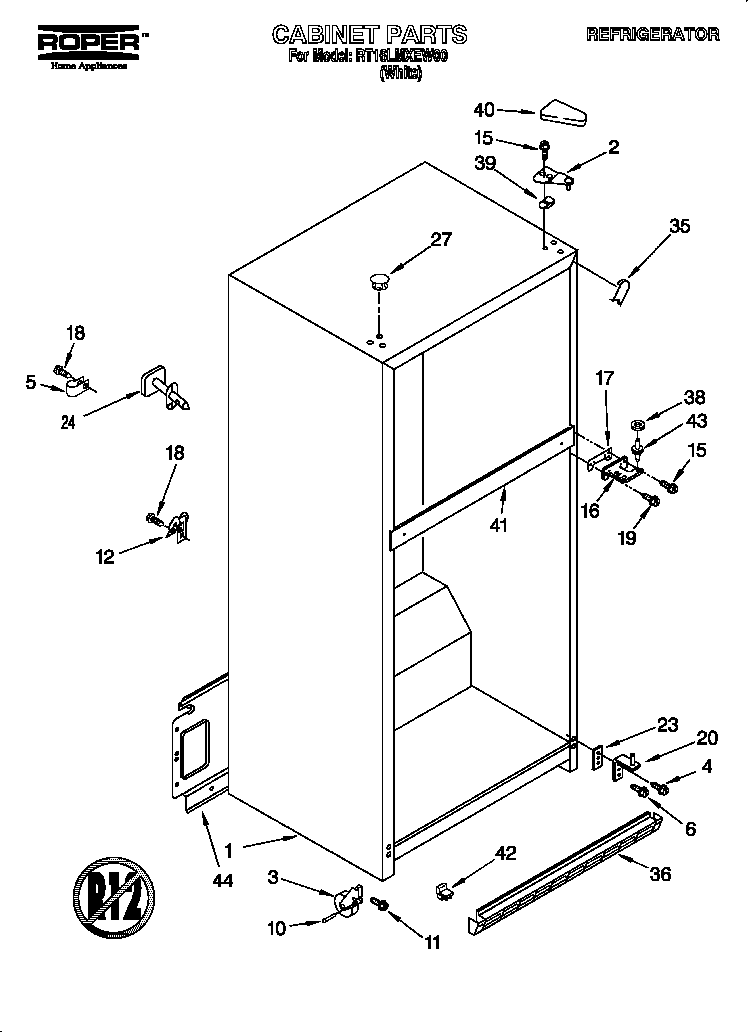

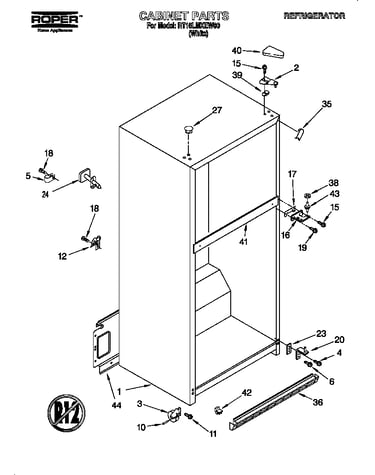

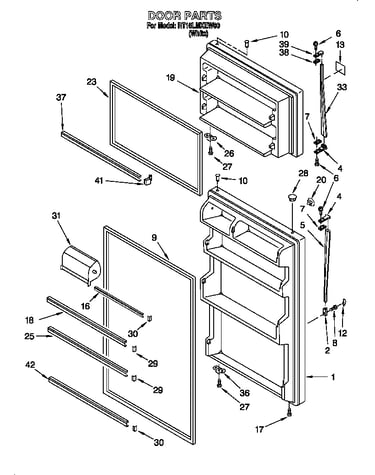

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

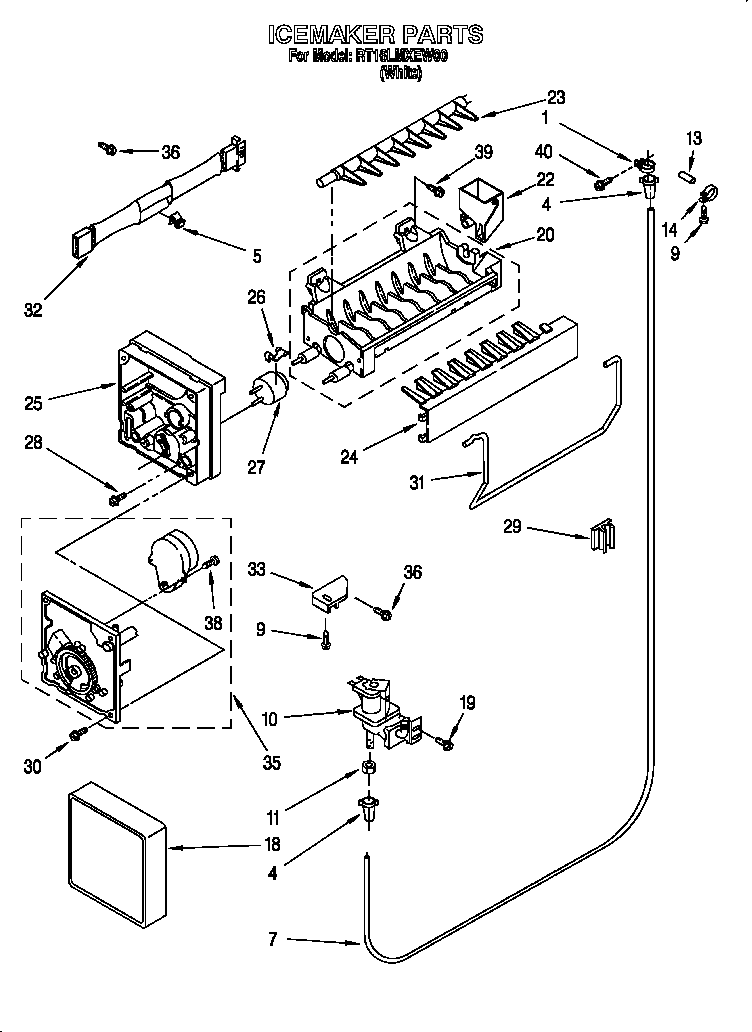

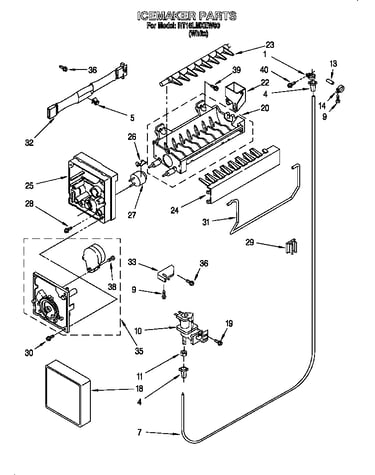

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Light Bulb 946059
#17

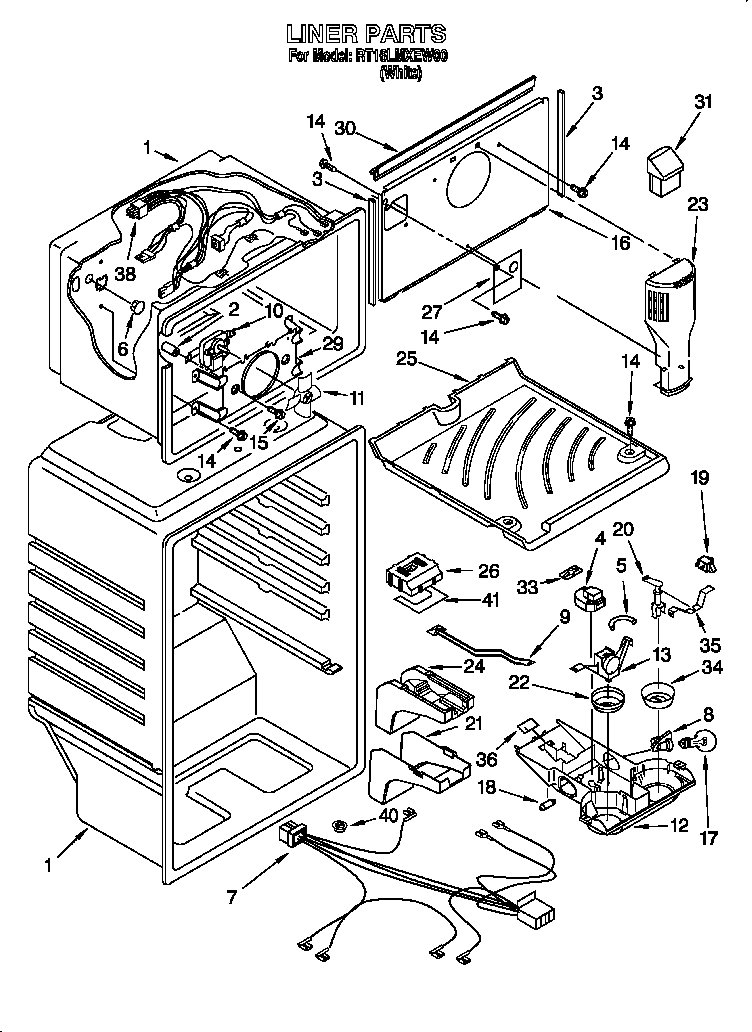

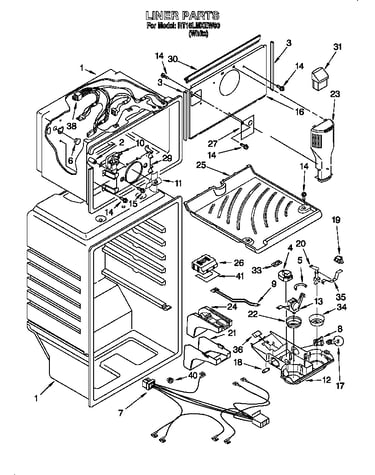

Liner diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 2174865
#29

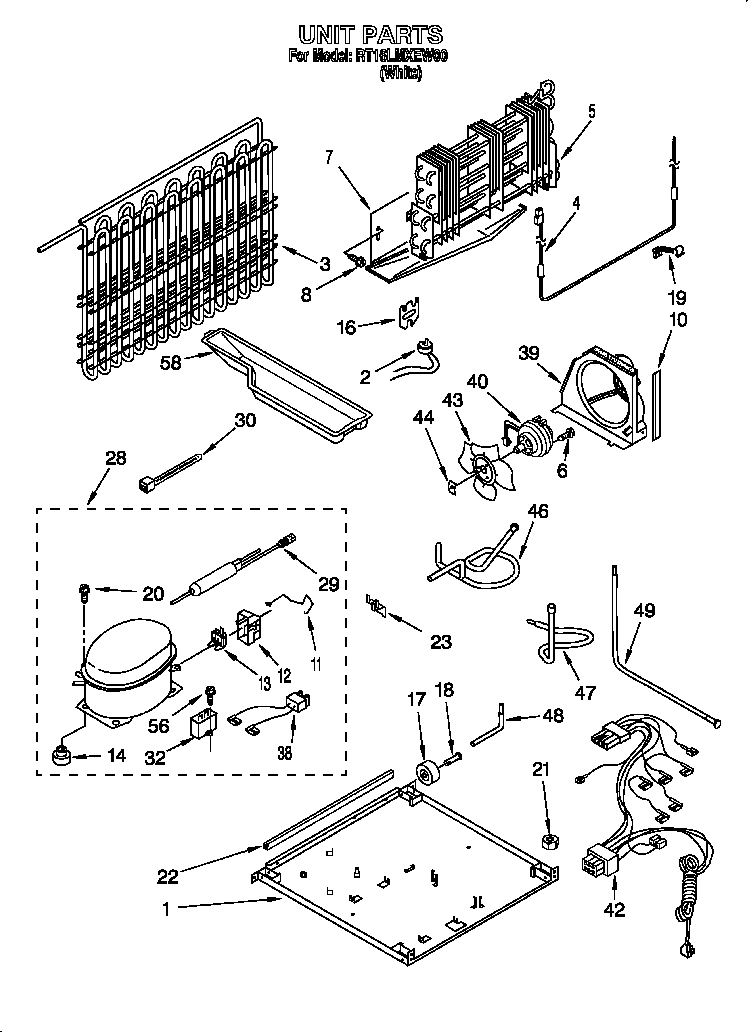

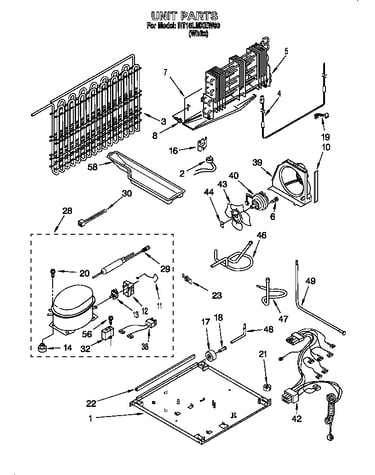

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Water Tube 2181948
#7

Icemaker diagram

Refrigerator water tube

Part #2181948

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2181948. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Crisper Pan 2166256
#4

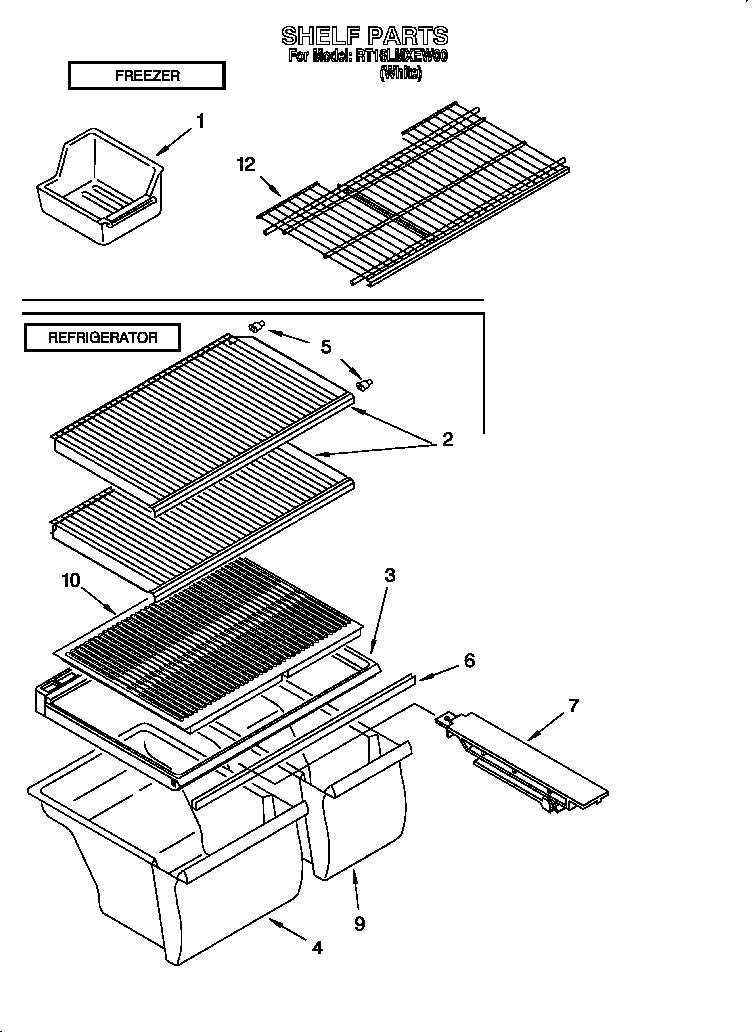

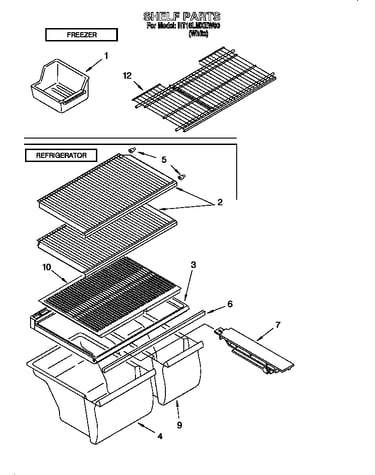

Shelf diagram

Refrigerator crisper pan

Part #2166256

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2166256. Substitute parts can look different from the original.
BEST SELLER
$79.65 |
7% OFF Phone Price : $85.65
In Stock
Refrigerator Defrost Bi-metal 2182380
#2

Unit diagram

Refrigerator defrost bi-metal

Part #2182380

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2182380. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Compressor 2169441
#28

Unit diagram

Refrigerator compressor

Part #2169441

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2169441. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Refrigerator Inlet Valve 2181917
#10

Icemaker diagram

Refrigerator inlet valve

Part #2181917

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces 2181917. Substitute parts can look different from the original.
BEST SELLER
$46.01 |
12% OFF Phone Price : $52.01
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
