Kenmore
Electric Cooktop

Model # 79042733404 Official Kenmore electric cooktop

Here are the diagrams and repair parts for Official Kenmore 79042733404 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

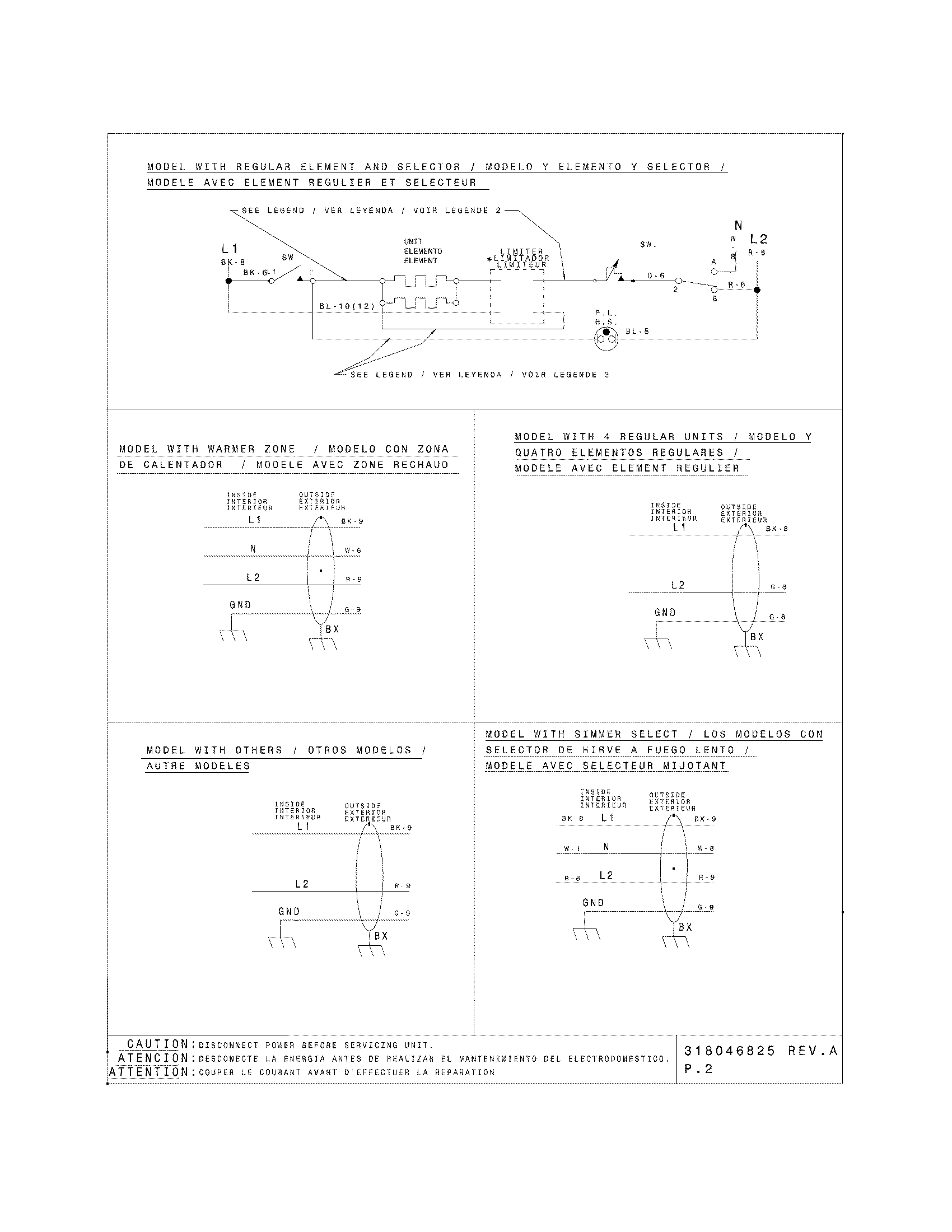

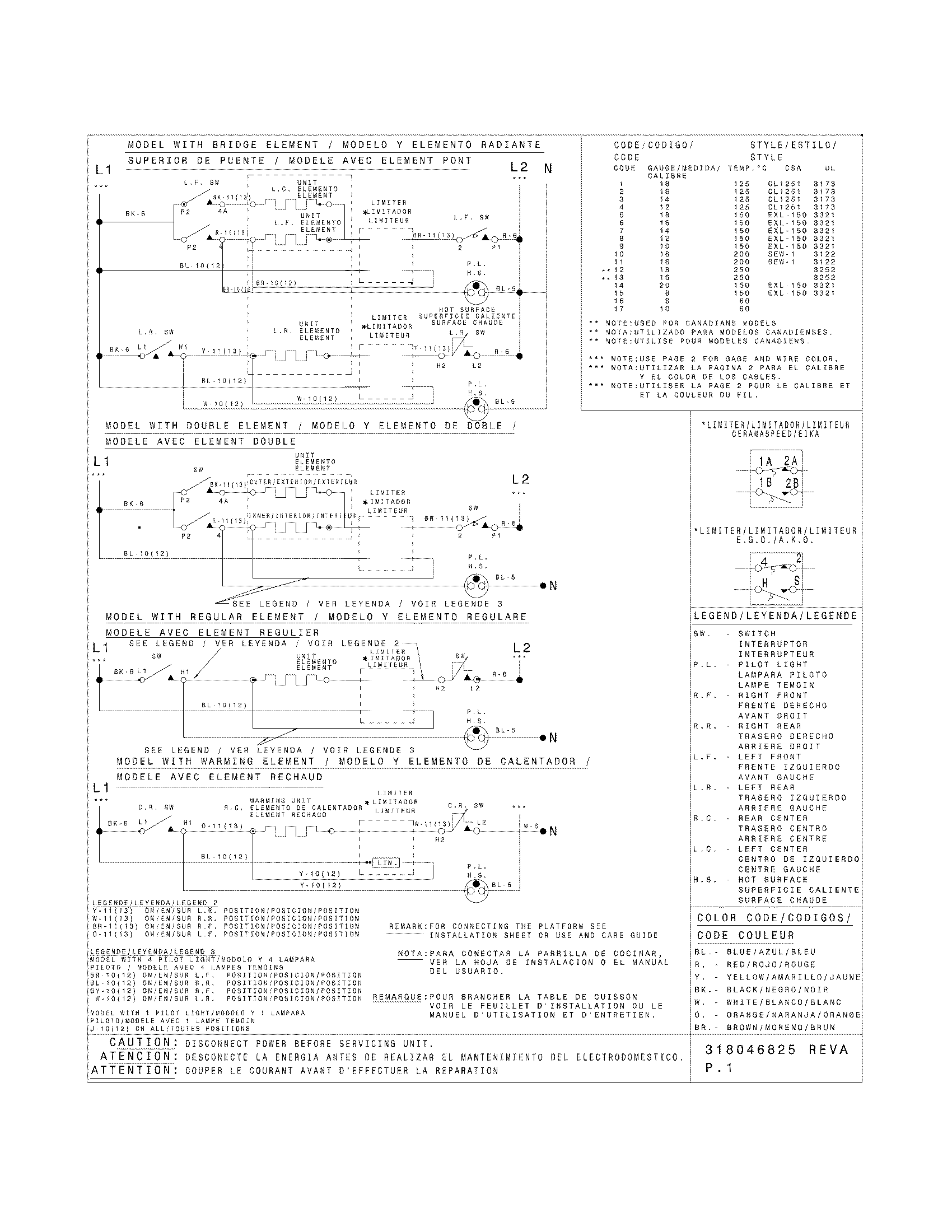

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Element 318198830
#15

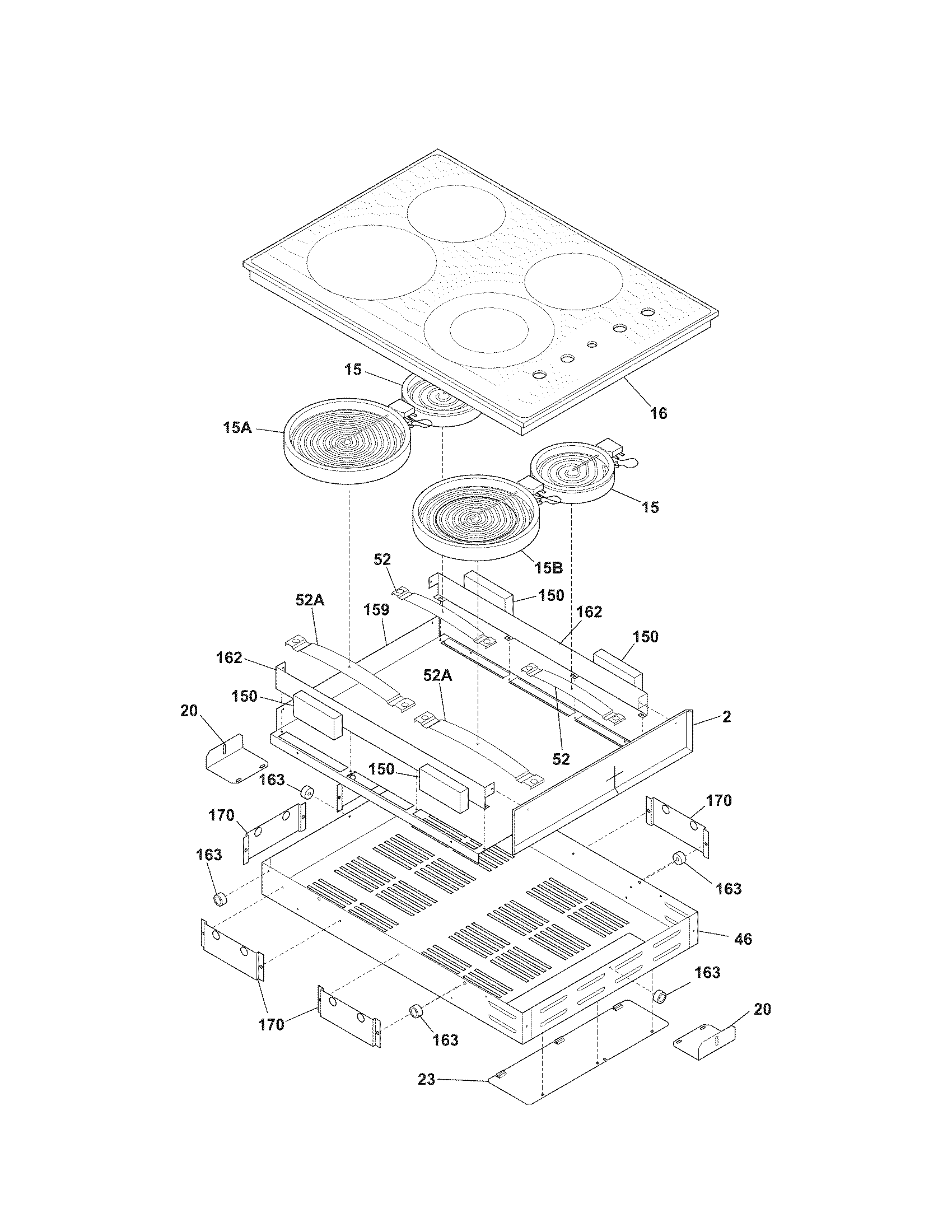

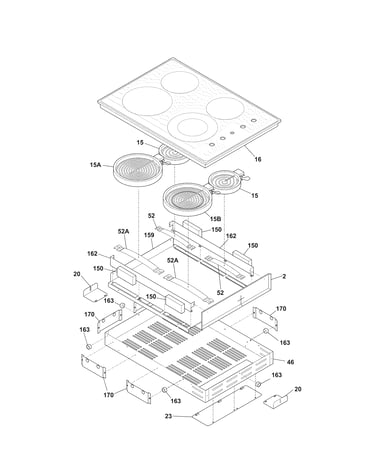

Main top/surface units diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Dual Radiant Surface Element 316418401
#15B

Main top/surface units diagram

Range dual radiant surface element

Part #316418401

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316418401. Substitute parts can look different from the original.
BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Switch 318191003
#54A

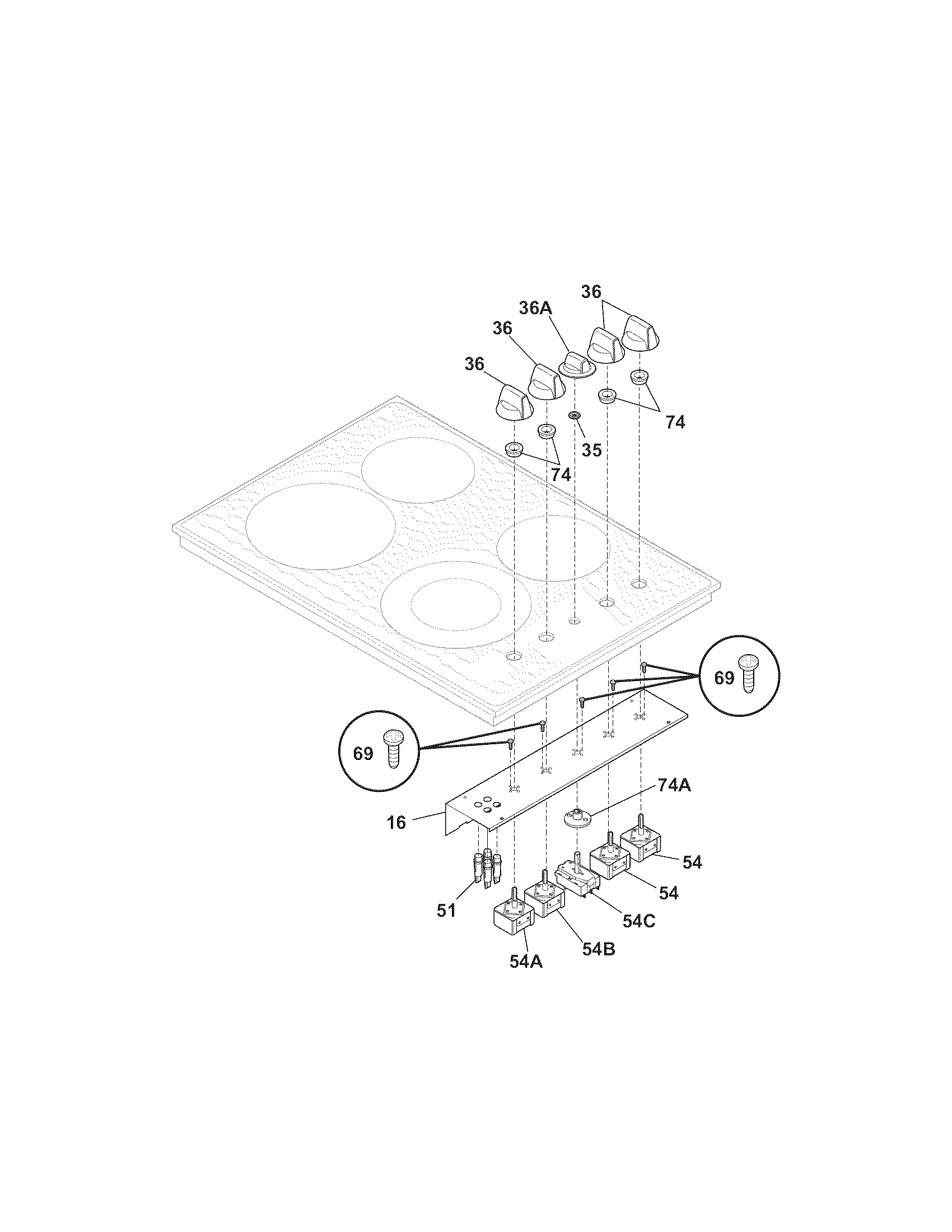

Control panel diagram

Switch

Part #318191003

Replaced by #318191000

?
Manufacturer substitution
This part replaces 318191003. Substitute parts can look different from the original.
BEST SELLER
$67.09 |
8% OFF Phone Price : $73.09
In Stock
Range Surface Element Control Switch (replaces 318220011, 318369609) 318293824
#54

Control panel diagram

Range surface element control switch (replaces 318220011, 318369609)

Part #318293824

BEST SELLER
$70.51 |
8% OFF Phone Price : $76.51
In Stock
Range Screw 5303323134
#69

Control panel diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Main top/surface units diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Cooktop Element Control Knob Bushing 318146010
#74A

Control panel diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Kenmore Pro Range Screw, 10 X 24 X 29/32-in 5303323130
#NI

Control panel diagram

Kenmore pro range screw, 10 x 24 x 29/32-in

Part #5303323130

$14.69
In Stock
Range Screw 5303323140
#NI

Main top/surface units diagram

Range screw

Part #5303323140

$11.17
In Stock
Cooking Appliance Spacer 318531702
#163

Main top/surface units diagram

Cooking appliance spacer

Part #318531702

$9.77
In Stock
