GE
Gas Range

Model # JGBP24BEA2WH Official GE gas range

Here are the diagrams and repair parts for Official GE JGBP24BEA2WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
40a15bulb STD372401
#235

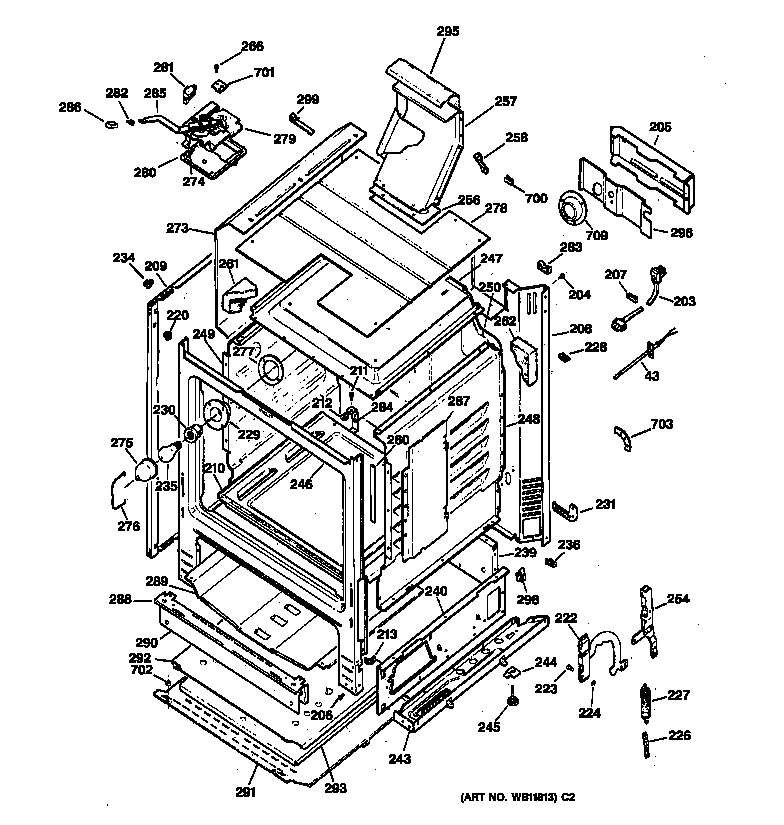

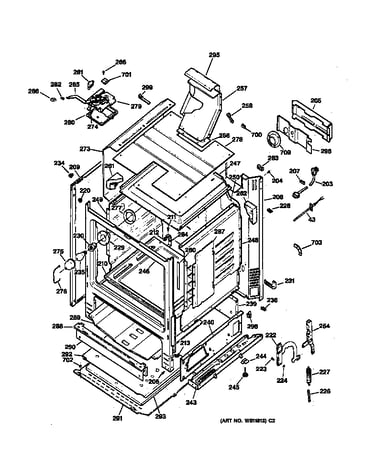

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Range Surface Burner Valve WB21K40
#15

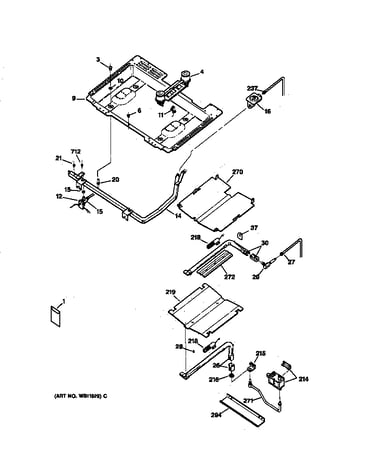

Gas & burner parts diagram

Range surface burner valve

Part #WB21K40

Replaced by #WB21K12

?
Manufacturer substitution
This part replaces WB21K40. Substitute parts can look different from the original.
$77.48 |
7% OFF Phone Price : $83.48
In Stock
Range Door Bumper (replaces Wb02k0015, Wb02x10905) WB2K15
#103

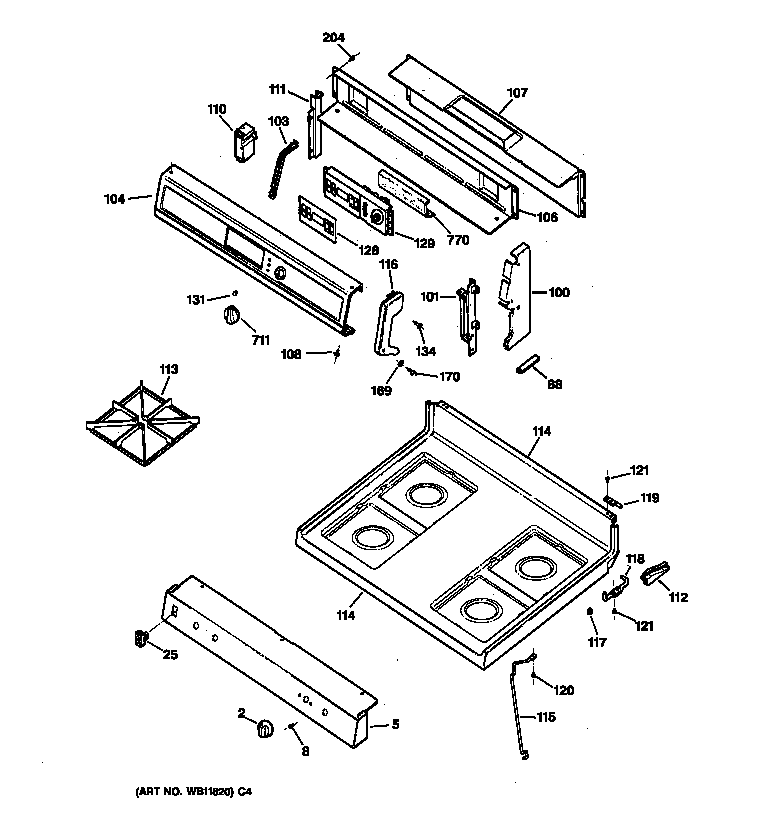

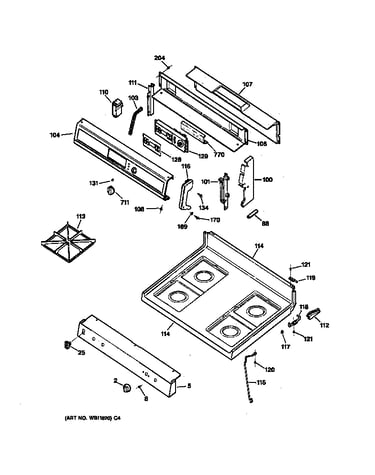

Control panel & cooktop diagram

Range door bumper (replaces wb02k0015, wb02x10905)

Part #WB2K15

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Spark Module (replaces Wb13k0017, Wb13k17, Wb13k20, Wb13k26) WB20K5037
#110

Control panel & cooktop diagram

Range spark module (replaces wb13k0017, wb13k17, wb13k20, wb13k26)

Part #WB20K5037

$83.32 |
7% OFF Phone Price : $89.32
In Stock
Range Surface Burner Igniter WB19K20
#11

Gas & burner parts diagram

Range surface burner igniter

Part #WB19K20

Replaced by #WB18X26988

?
Manufacturer substitution
This part replaces WB19K20. Substitute parts can look different from the original.
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Range Oven Gas Valve (replaces Wb19k0014, Wb19k9) WB19K14
#214

Gas & burner parts diagram

Range oven gas valve (replaces wb19k0014, wb19k9)

Part #WB19K14

$270.87 |
$12.00 OFF Phone Price : $282.87
In Stock
Screw 8-3 WB1K10002
#8

Control panel & cooktop diagram

Screw 8-3

Part #WB1K10002

Replaced by #WB01K10002

?
Manufacturer substitution
This part replaces WB1K10002. Substitute parts can look different from the original.
This item is not returnable
$17.51 |
10% OFF Phone Price : $19.51
In Stock
Range Screw WB1K42
Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Door Handle WB15K10010
#365

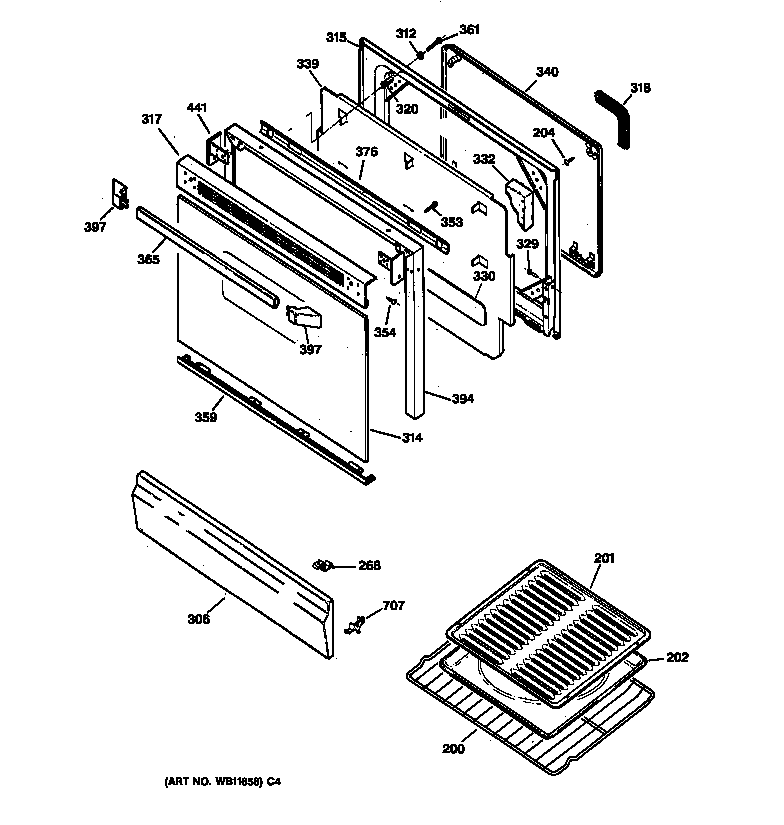

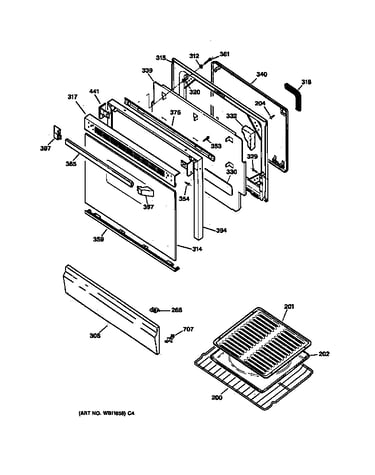

Door parts diagram

Door handle

Part #WB15K10010

Replaced by #WB15X10047

?
Manufacturer substitution
This part replaces WB15K10010. Substitute parts can look different from the original.
$78.30 |
7% OFF Phone Price : $84.30
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
#108

Control panel & cooktop diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
