Kenmore
Upright Vacuum

Model # 21434000000 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 21434000000 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Kenmore Clamp 2101506
#9

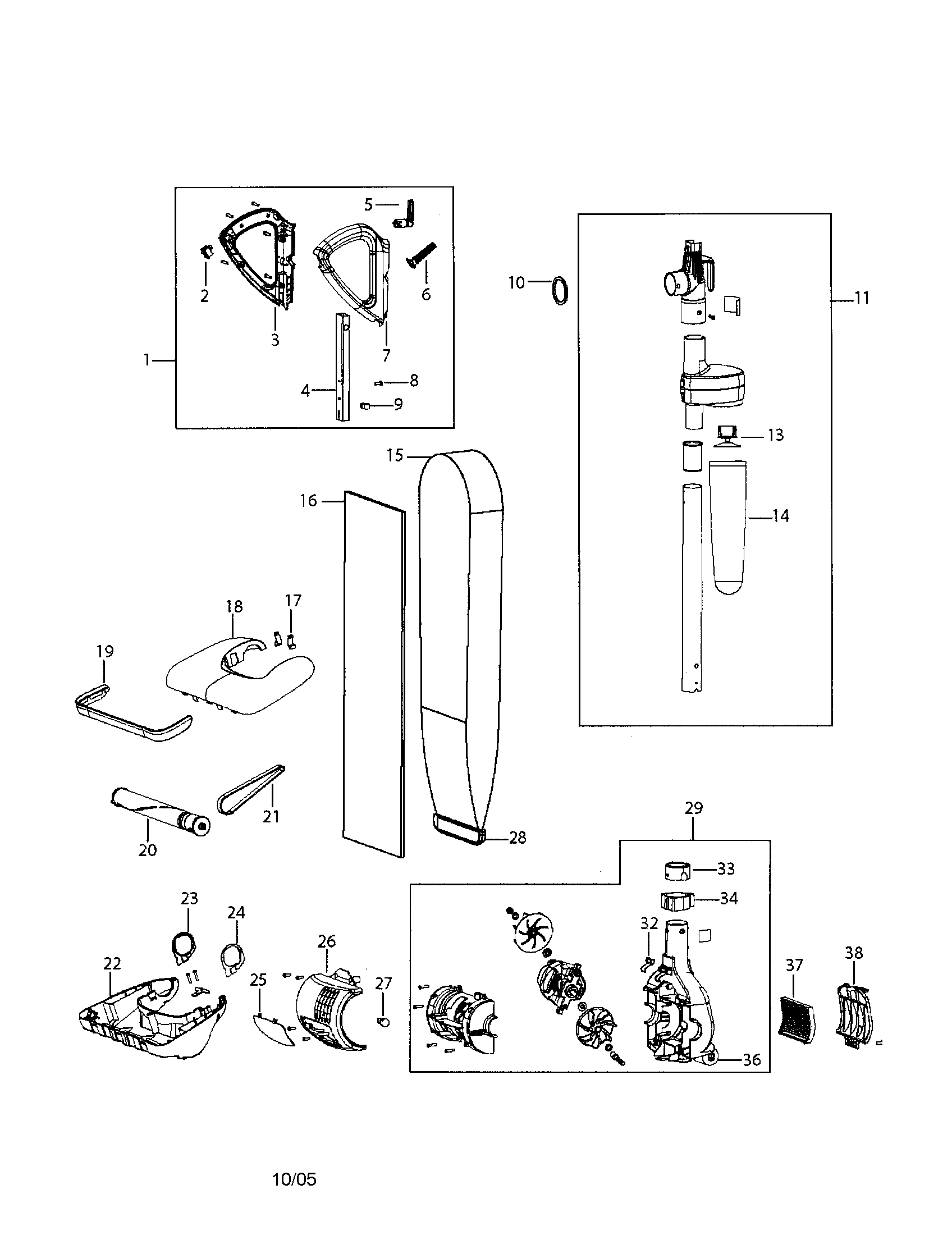

Prolite upright vac diagram

Kenmore clamp

Part #2101506

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Bushing 2135040
#23

Prolite upright vac diagram

Kenmore bushing

Part #2135040

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Bulb 5559069
#27

Prolite upright vac diagram

Kenmore bulb

Part #5559069

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Spring 2108455
#32

Prolite upright vac diagram

Kenmore spring

Part #2108455

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Motor Assembly 2146060
#29

Prolite upright vac diagram

Kenmore vacuum motor assembly

Part #2146060

The manufacturer no longer makes this part, and there's no substitute part

Bissell Grip 2103983
#7

Prolite upright vac diagram

Bissell grip

Part #2103983

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Receptacle 2107321

#(NI)

All parts diagram

Kenmore receptacle

Part #2107321

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Yoke 2133962
#34

Prolite upright vac diagram

Kenmore yoke

Part #2133962

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Cord Wrap 2133931
#5

Prolite upright vac diagram

Kenmore cord wrap

Part #2133931

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Wipr Blade 2103917

#(NI)

All parts diagram

Kenmore wipr blade

Part #2103917

The manufacturer no longer makes this part, and there's no substitute part
