Model # 4057-2110 Official Craftsman 7-roller twin port pump

Here are the diagrams and repair parts for Official Craftsman 4057-2110 7-roller twin port pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |

Packing 15340
#5

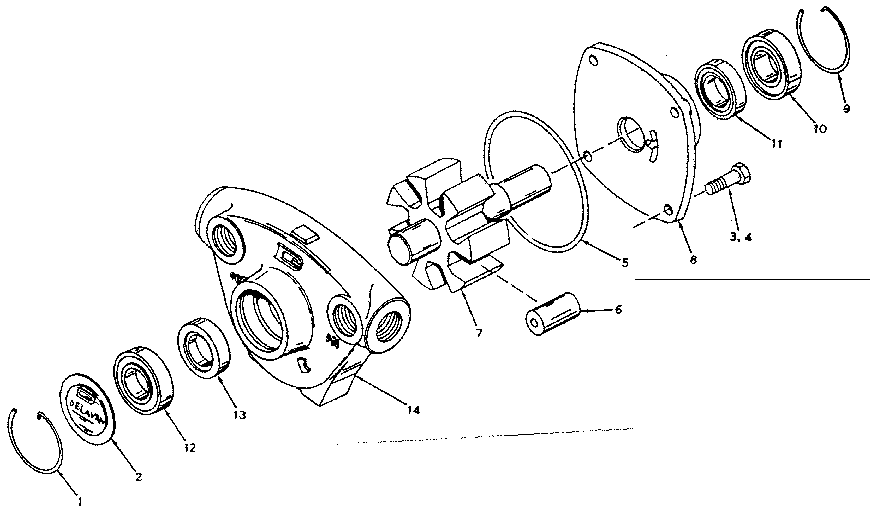

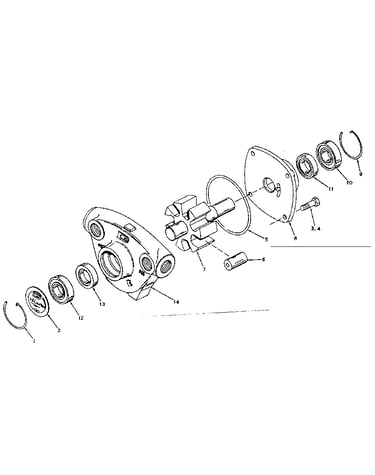

Replacement parts diagram

Packing

Part #15340

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 15334
Retaining ring

Part #15334

The manufacturer no longer makes this part, and there's no substitute part

Bearing 16228
Bearing

Part #16228

The manufacturer no longer makes this part, and there's no substitute part

Rotor 22123
#7

Replacement parts diagram

Rotor

Part #22123

The manufacturer no longer makes this part, and there's no substitute part

Bolt 15339
#4

Replacement parts diagram

Bolt

Part #15339

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 22405
#2

Replacement parts diagram

Nameplate

Part #22405

The manufacturer no longer makes this part, and there's no substitute part

End Plate 22087
#8

Replacement parts diagram

End plate

Part #22087

The manufacturer no longer makes this part, and there's no substitute part

Seal 20469
Seal

Part #20469

The manufacturer no longer makes this part, and there's no substitute part

Body 22085
#14

Replacement parts diagram

Body

Part #22085

The manufacturer no longer makes this part, and there's no substitute part

Bolt 15341
#3

Replacement parts diagram

Bolt

Part #15341

The manufacturer no longer makes this part, and there's no substitute part
