Eureka
Upright Vacuum

Model # 4388AT Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4388AT upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

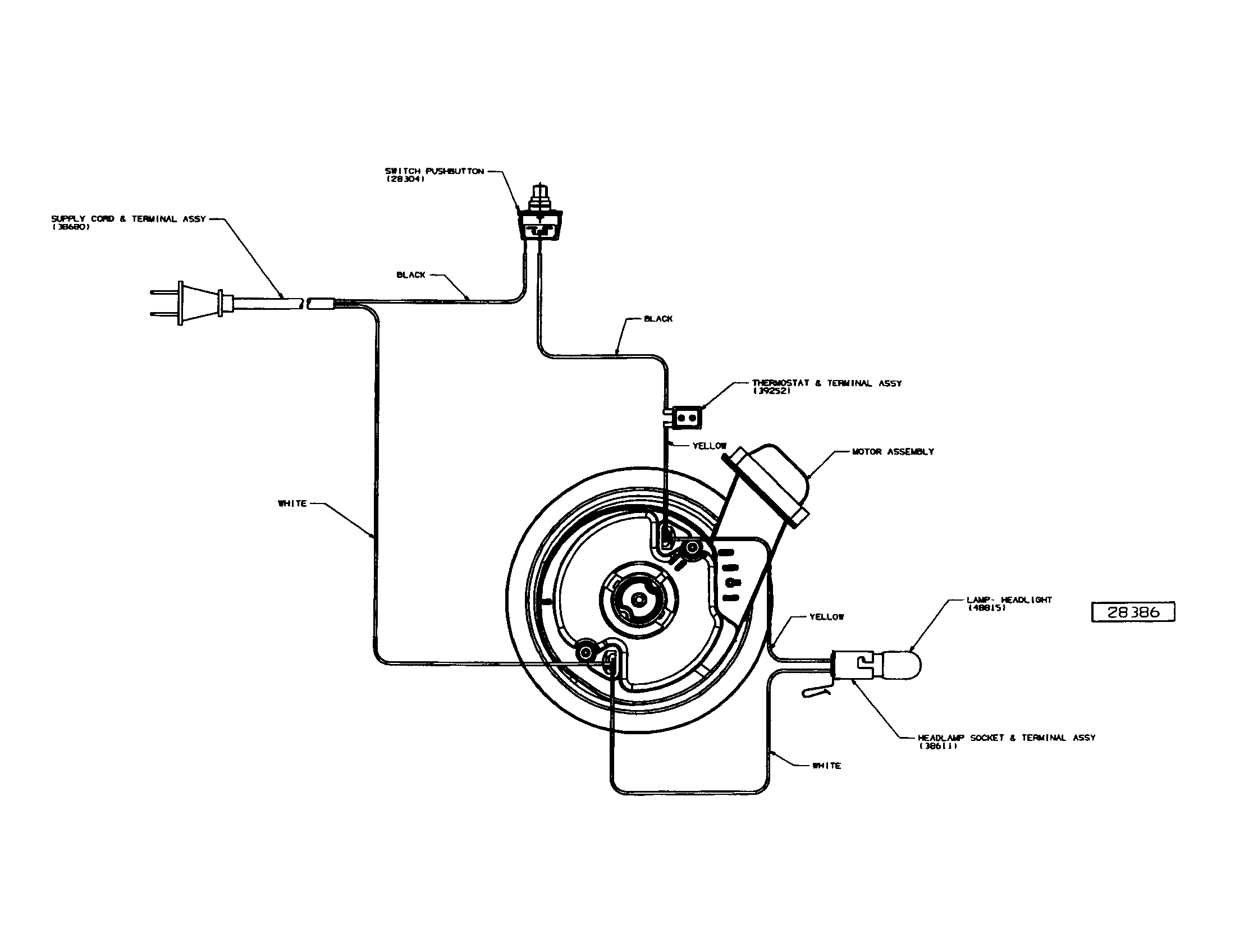

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Vacuum Wheel, Front 39173A-119N
#8

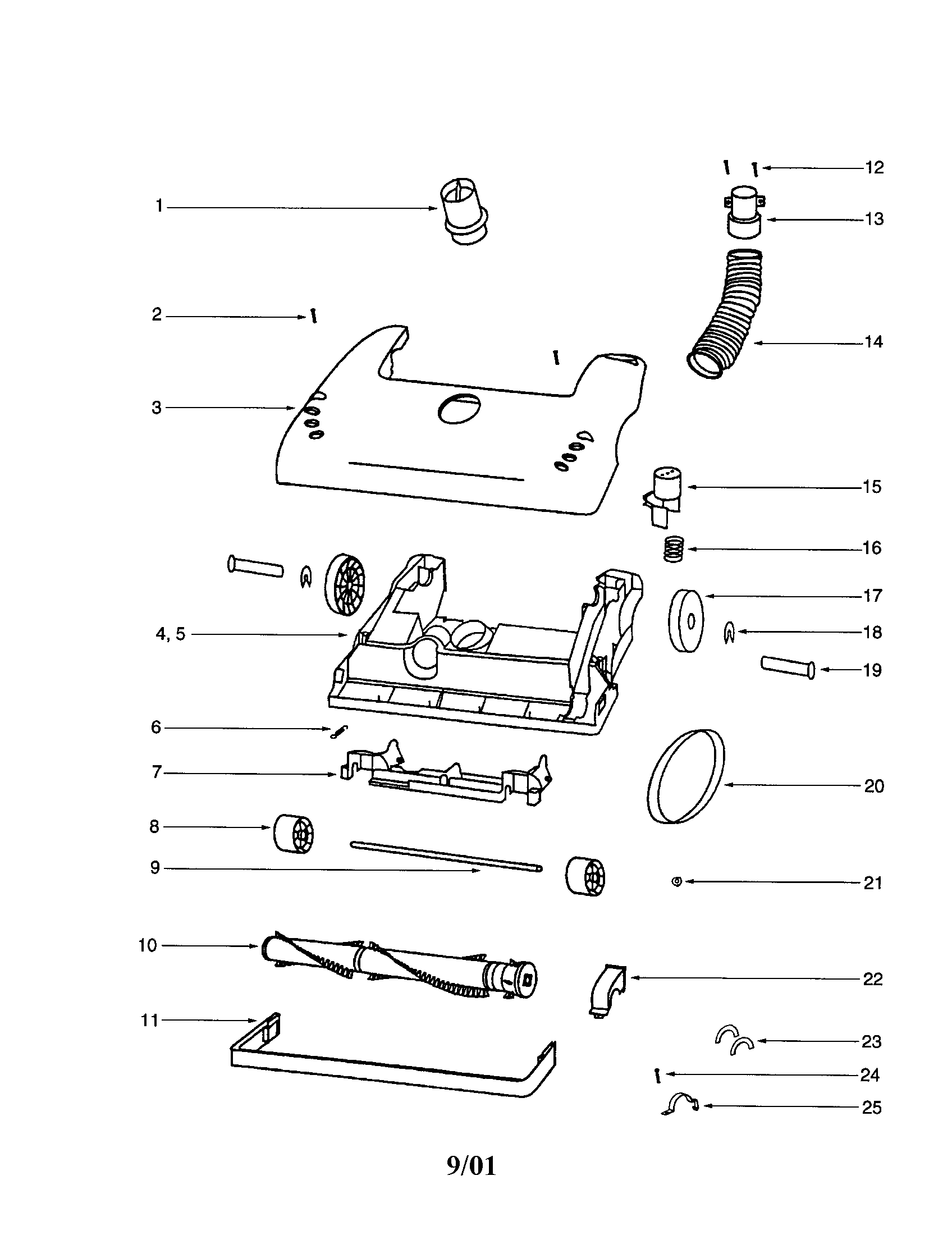

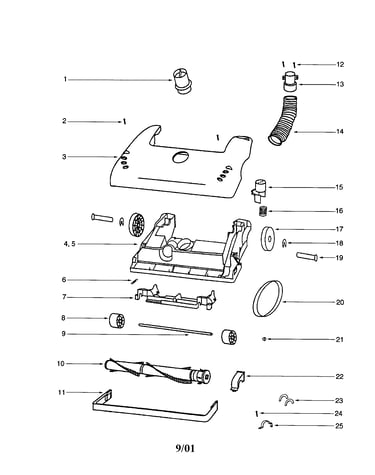

Base diagram

Vacuum wheel, front

Part #39173A-119N

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#8

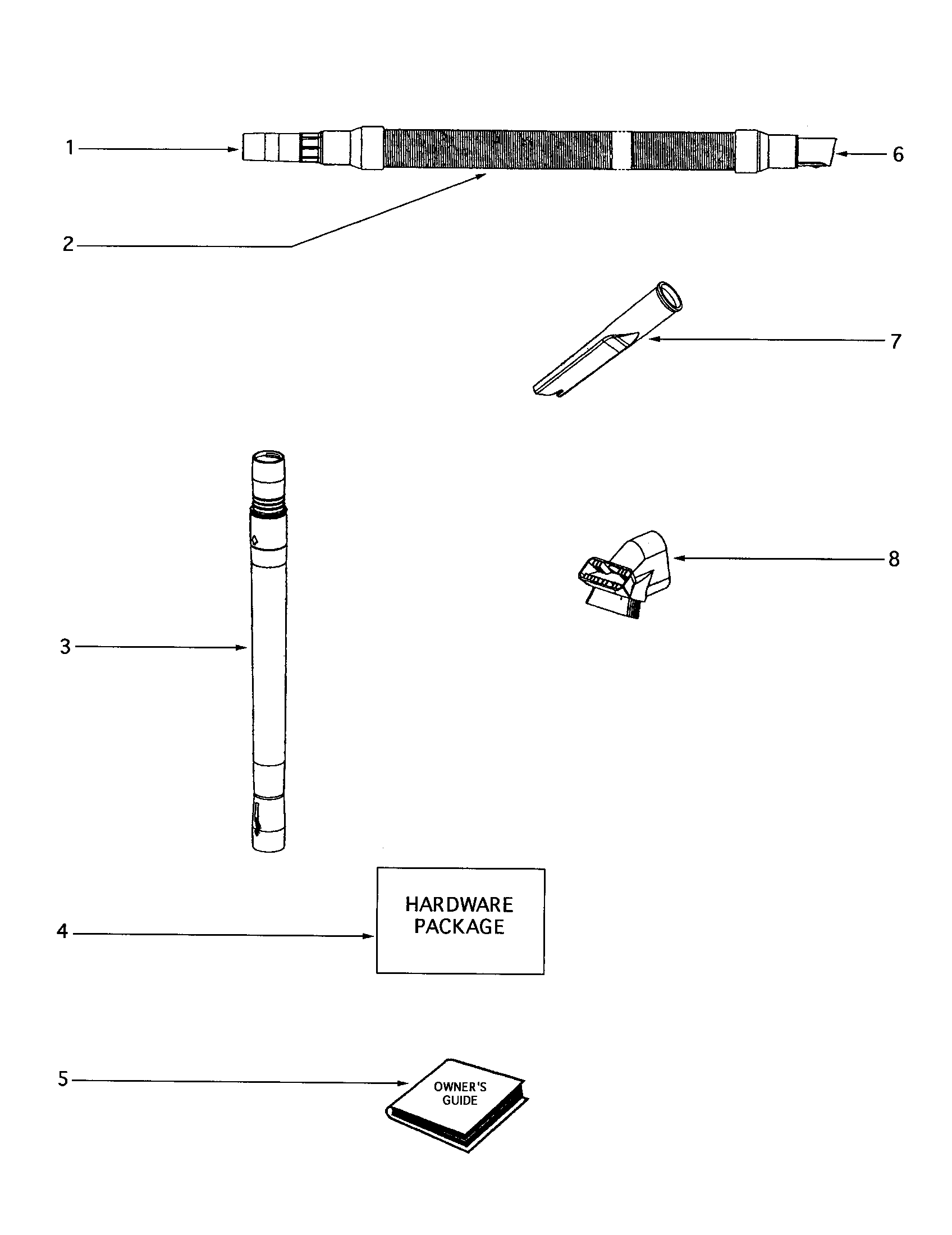

Hose diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Cuff Hose 27468D-119N
#13

Base diagram

Cuff hose

Part #27468D-119N

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 15536A-119N
#21

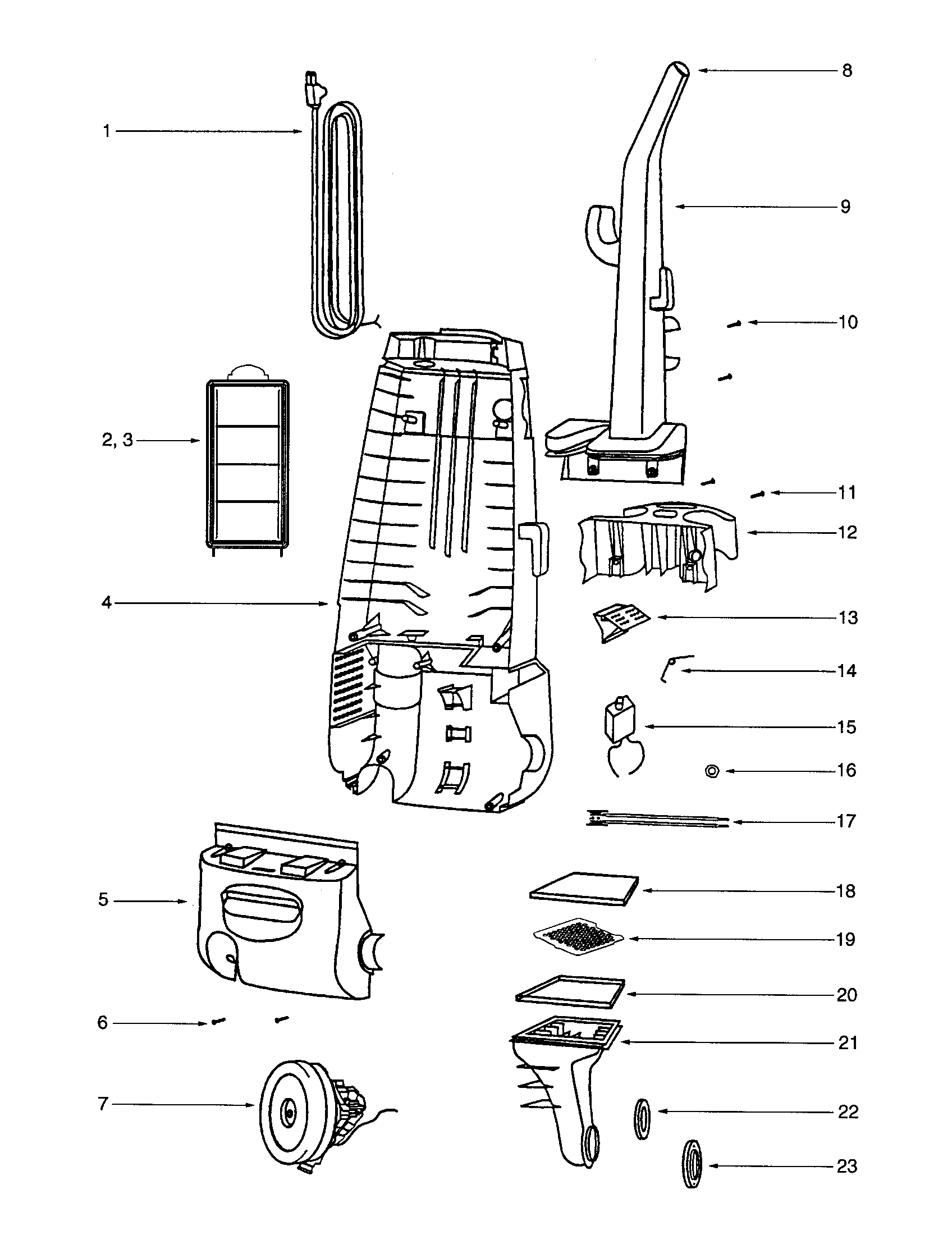

Housing diagram

Air duct

Part #15536A-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27171A
#22

Housing diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle Bracket 14993C-119N
#7

Base diagram

Vacuum wheel axle bracket

Part #14993C-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-1
#5

Base diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59297-2SV
#12

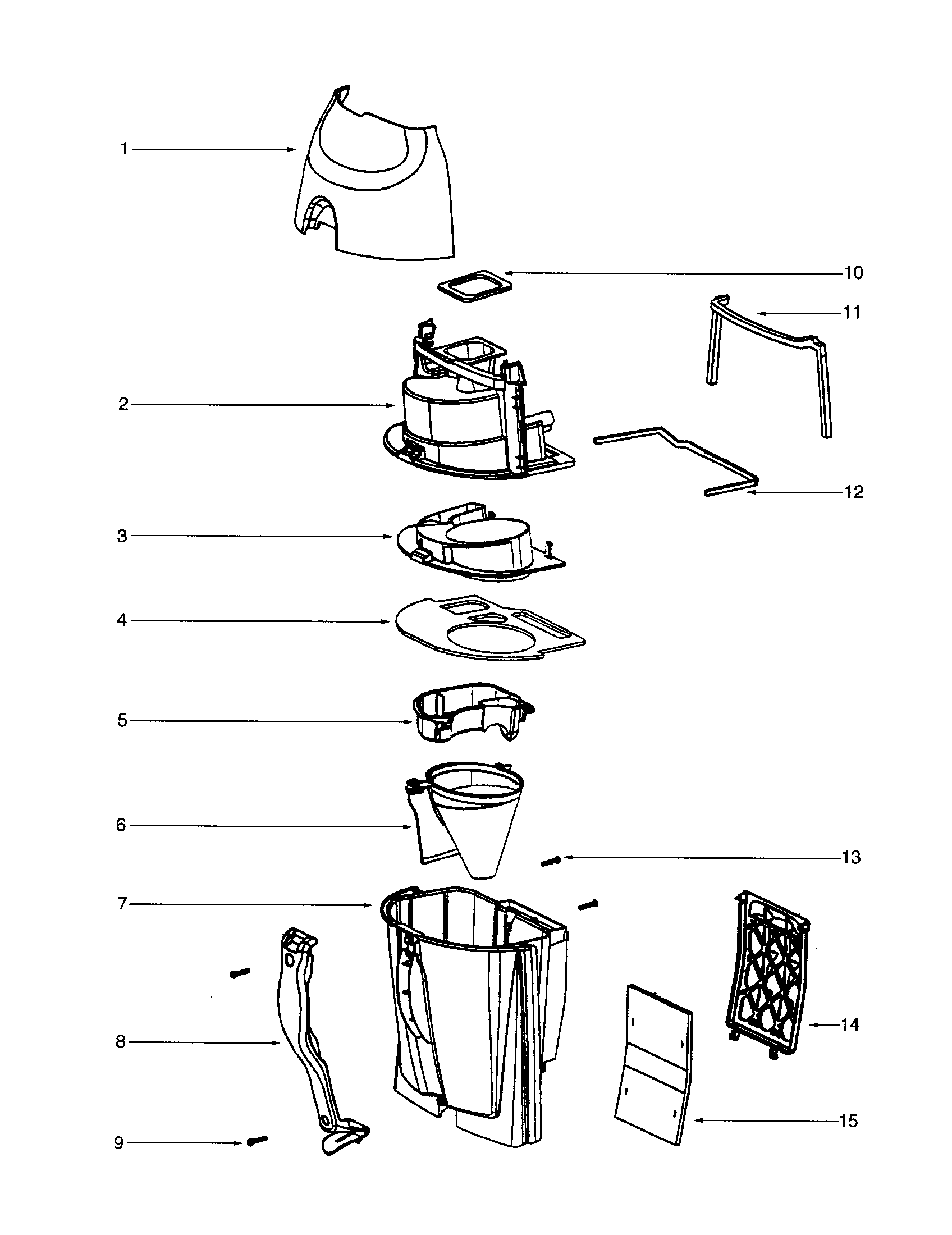

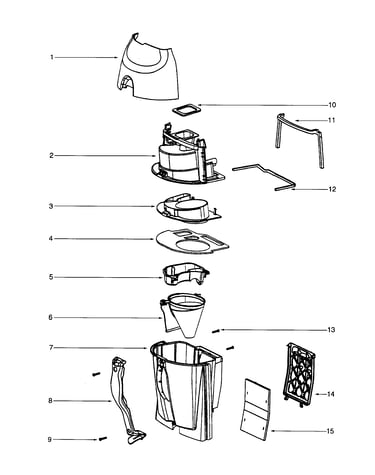

Cyclone assembly diagram

Gasket

Part #59297-2SV

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 15237A-288N
#11

Base diagram

Vacuum furniture guard

Part #15237A-288N

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle 38590A
#19

Base diagram

Rear axle

Part #38590A

The manufacturer no longer makes this part, and there's no substitute part
