Jenn-Air
Drawers & Bin

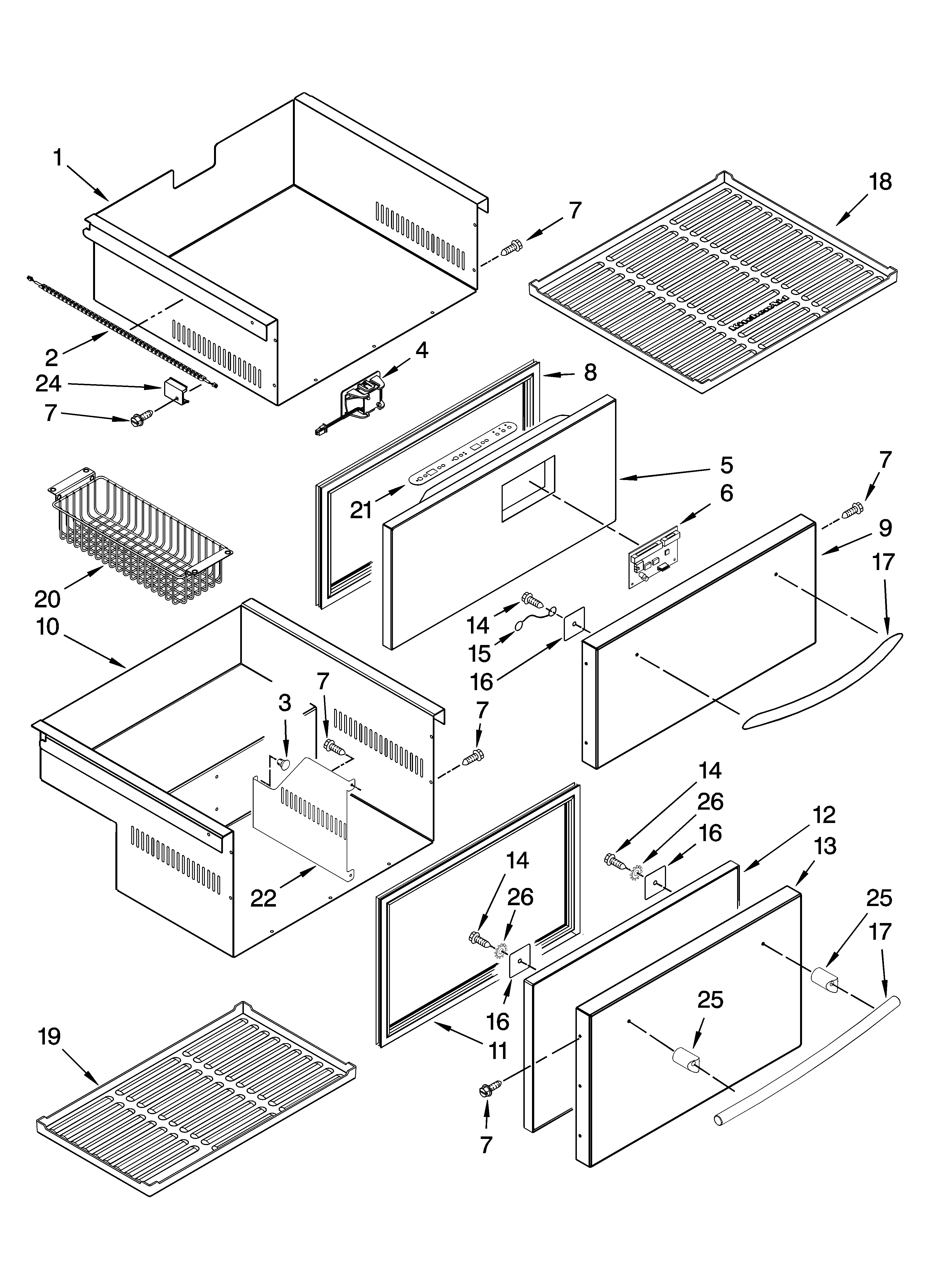

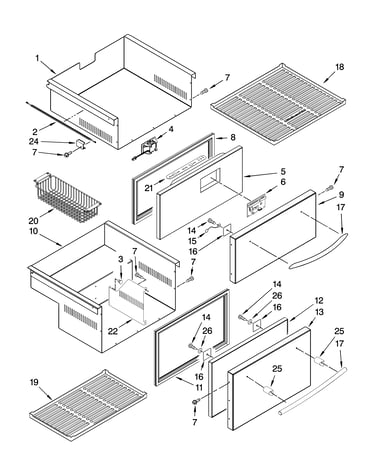

Model # JUD278DBES00 Official Jenn-Air ingredient center

Here are the diagrams and repair parts for Official Jenn-Air JUD278DBES00 ingredient center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Upright Freezer Run Capacitor 2169373
#5

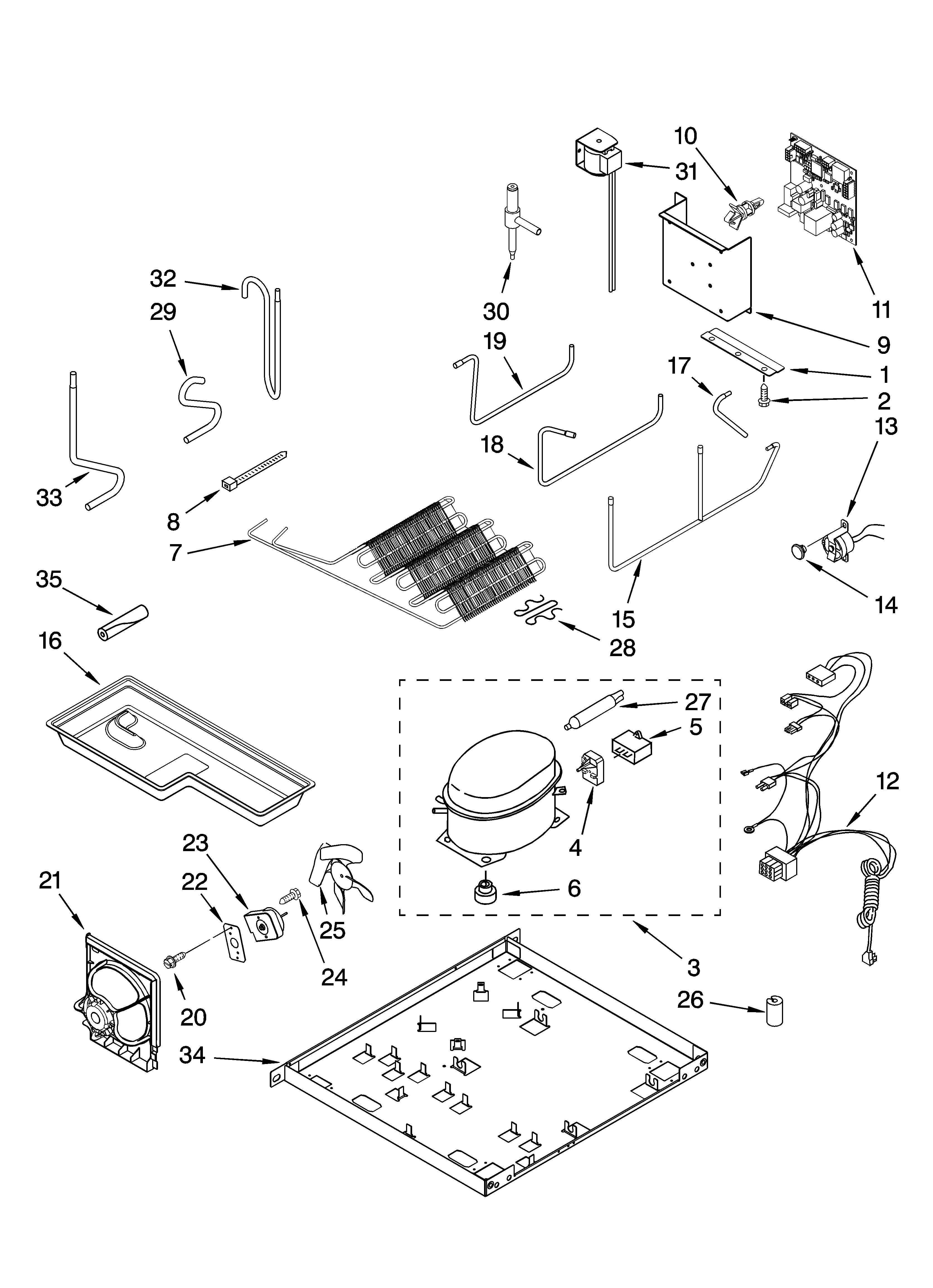

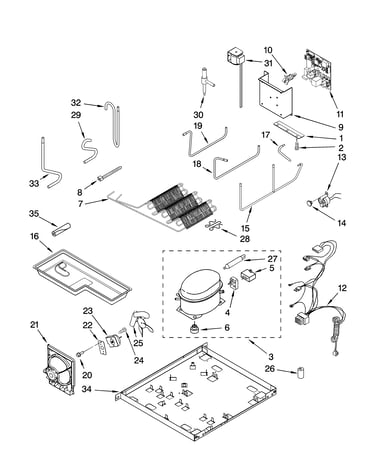

Unit parts diagram

Upright freezer run capacitor

Part #2169373

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2169373. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Condenser Motor 2188729
#23

Unit parts diagram

Condenser motor

Part #2188729

Replaced by #W10124096

?
Manufacturer substitution
This part replaces 2188729. Substitute parts can look different from the original.
BEST SELLER
$102.19 |
11% OFF Phone Price : $114.19
In Stock
Refrigerator Temperature Sensor 2188820
#12

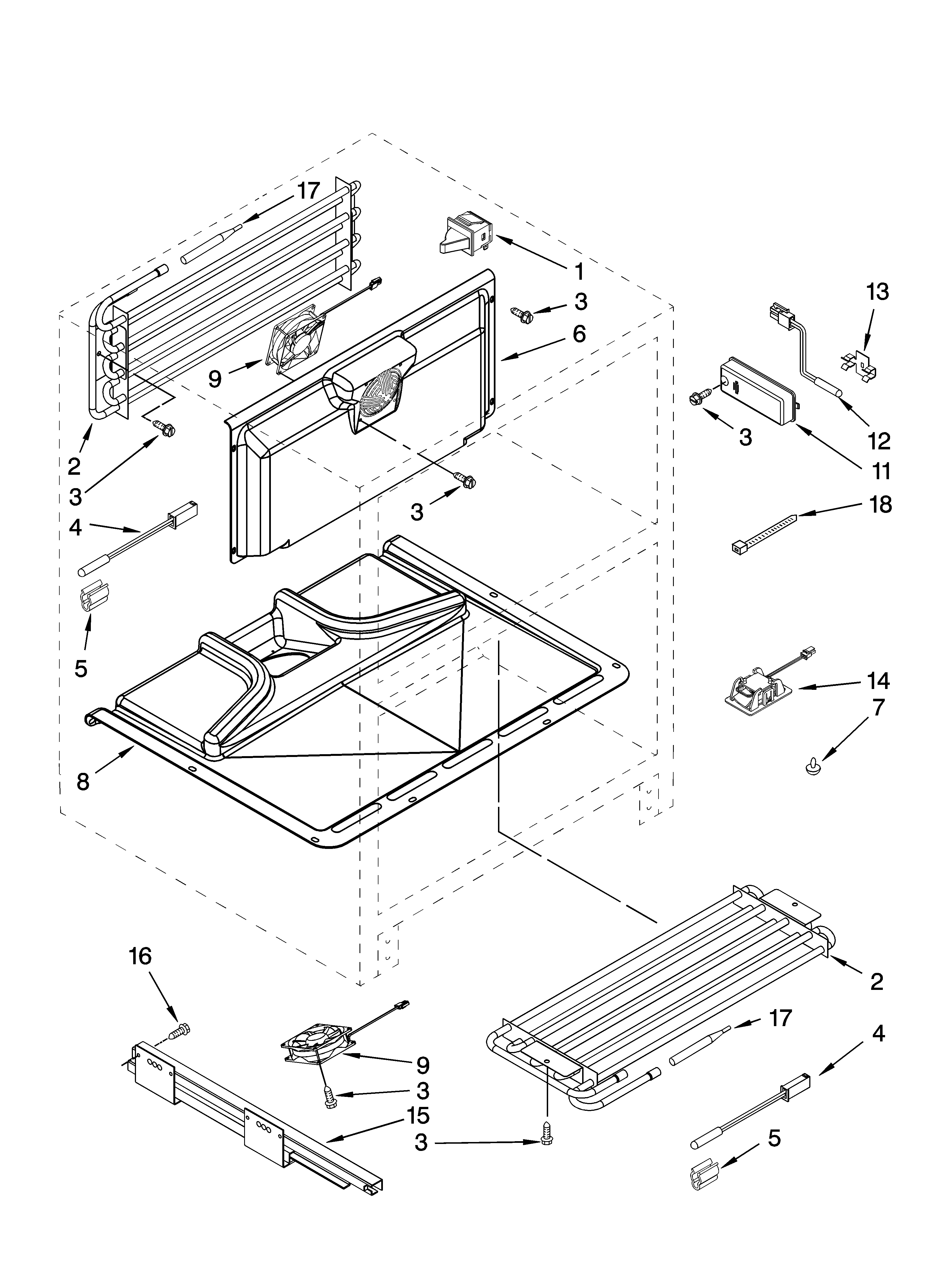

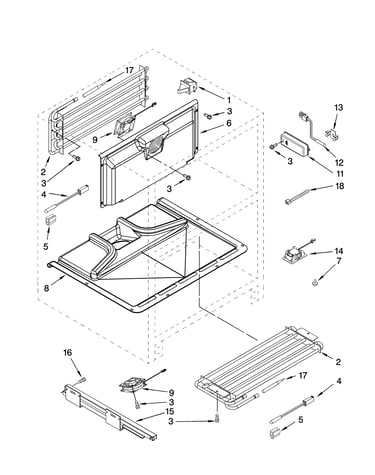

Liner parts diagram

Refrigerator temperature sensor

Part #2188820

Replaced by #WP2188820

?
Manufacturer substitution
This part replaces 2188820. Substitute parts can look different from the original.
BEST SELLER
$33.56 |
15% OFF Phone Price : $39.56
In Stock
Refrigerator Power Switch 2266802
#9

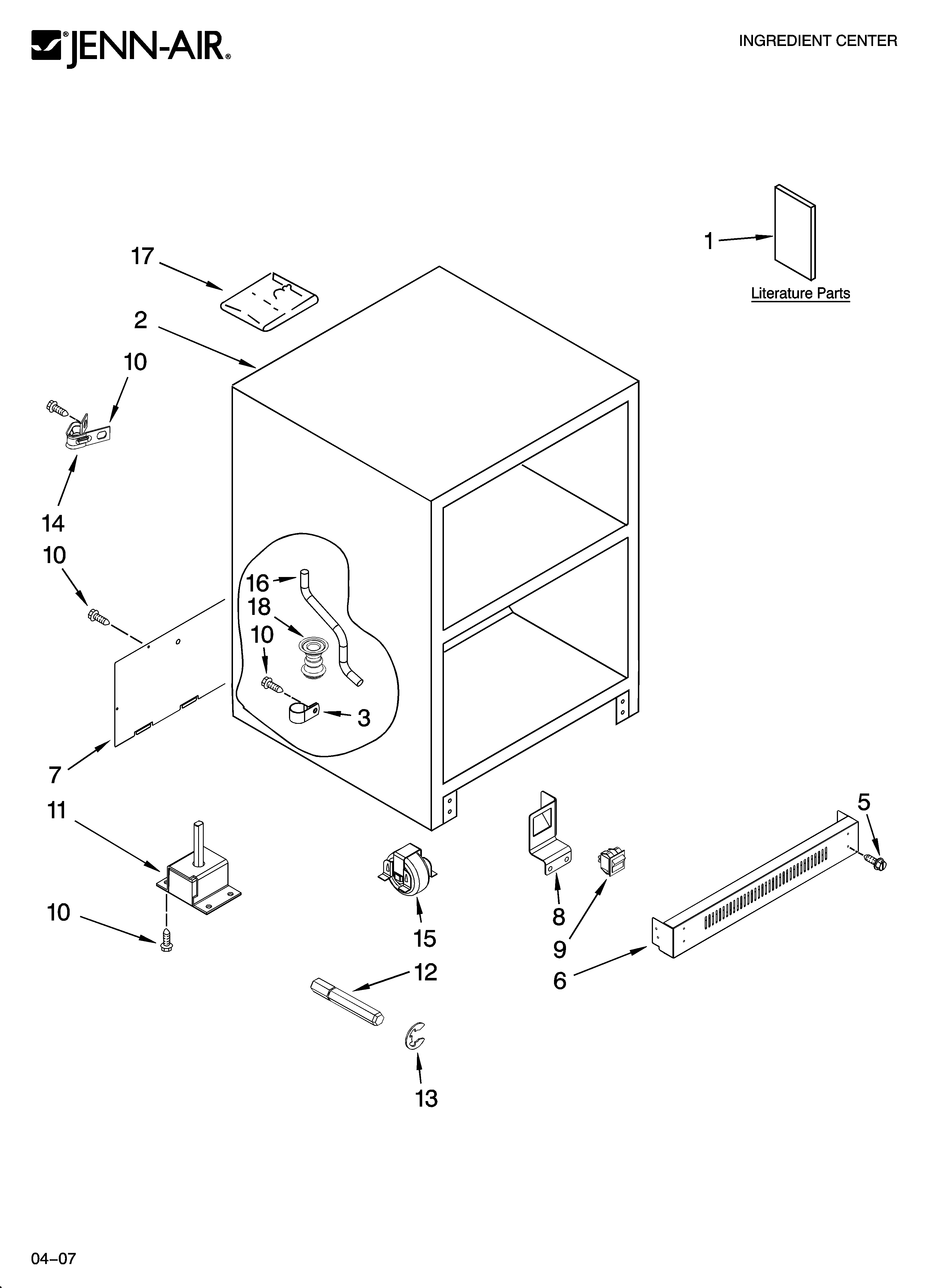

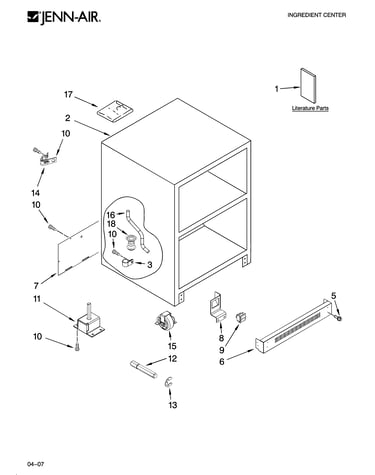

Cabinet parts diagram

Refrigerator power switch

Part #2266802

Replaced by #WP2266802

?
Manufacturer substitution
This part replaces 2266802. Substitute parts can look different from the original.
$36.04 |
14% OFF Phone Price : $42.04
In Stock
Refrigerator Screw 8281196
#20

Unit parts diagram

Refrigerator screw

Part #8281196

Replaced by #WP8281196

?
Manufacturer substitution
This part replaces 8281196. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Wire Tie 2221306
#8

Unit parts diagram

Refrigerator wire tie

Part #2221306

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 2221306. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cable Tie 857547
#18

Liner parts diagram

Cable tie

Part #857547

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Cabinet Roller 1112023
#15

Cabinet parts diagram

Refrigerator cabinet roller

Part #1112023

Replaced by #WPW10138054

?
Manufacturer substitution
This part replaces 1112023. Substitute parts can look different from the original.
$23.91 |
20% OFF Phone Price : $29.91
In Stock
Fitting 940139
#18

Cabinet parts diagram

Fitting

Part #940139

Replaced by #W11566763

?
Manufacturer substitution
This part replaces 940139. Substitute parts can look different from the original.
$22.82
In Stock
Refrigerator Clip 2209204
#13

Liner parts diagram

Refrigerator clip

Part #2209204

$10.00
In Stock
