Model # UT20699 Official Homelite trimmer/brushcutter

Here are the diagrams and repair parts for Official Homelite UT20699 trimmer/brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

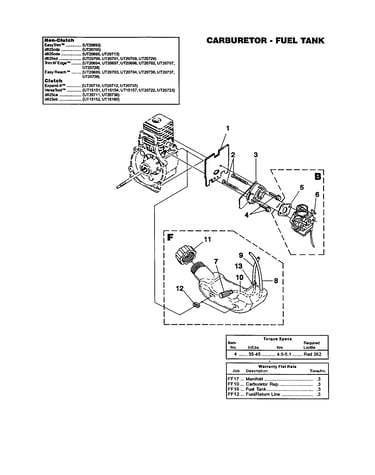

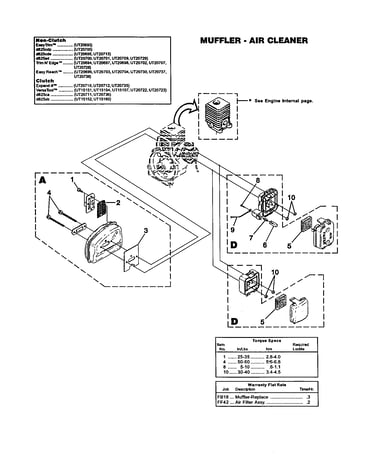

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Trigger UP03015
#19

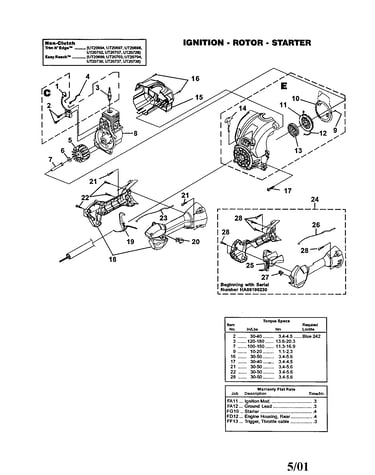

Ignition/rotor/starter diagram

Trigger

Part #UP03015

The manufacturer no longer makes this part, and there's no substitute part

Starter Assembly UP02962
#E

Ignition/rotor/starter diagram

Starter assembly

Part #UP02962

The manufacturer no longer makes this part, and there's no substitute part

Terminal A33055
#1

Ignition/rotor/starter diagram

Terminal

Part #A33055

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 95479A
#6

Ignition/rotor/starter diagram

Flat washer

Part #95479A

The manufacturer no longer makes this part, and there's no substitute part

Muffler Guard UP00027
#13

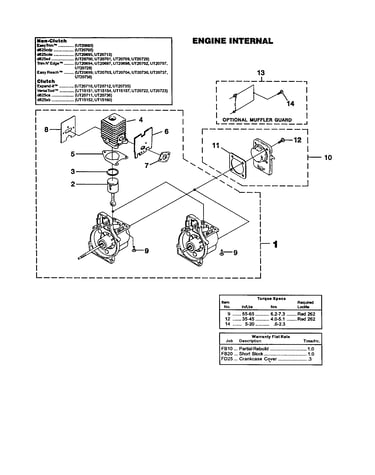

Engine internal diagram

Muffler guard

Part #UP00027

The manufacturer no longer makes this part, and there's no substitute part

Piston Rod UP00768
#2

Engine internal diagram

Piston rod

Part #UP00768

The manufacturer no longer makes this part, and there's no substitute part

Head Gear A04836D
#7

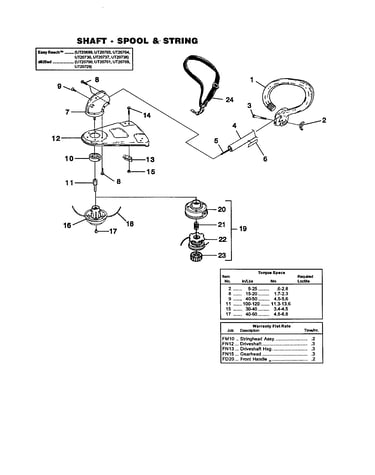

Shaft/spool and string diagram

Head gear

Part #A04836D

The manufacturer no longer makes this part, and there's no substitute part

Head Spring UP03210
#27

Ignition/rotor/starter diagram

Head spring

Part #UP03210

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 82537
Lawn & garden equipment screw

Part #82537

The manufacturer no longer makes this part, and there's no substitute part

Deflector A04683A
#12

Shaft/spool and string diagram

Deflector

Part #A04683A

The manufacturer no longer makes this part, and there's no substitute part
