Frigidaire
Gas Range

Model # FFGS3026TSB Official Frigidaire slide-in gas range

Here are the diagrams and repair parts for Official Frigidaire FFGS3026TSB slide-in gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

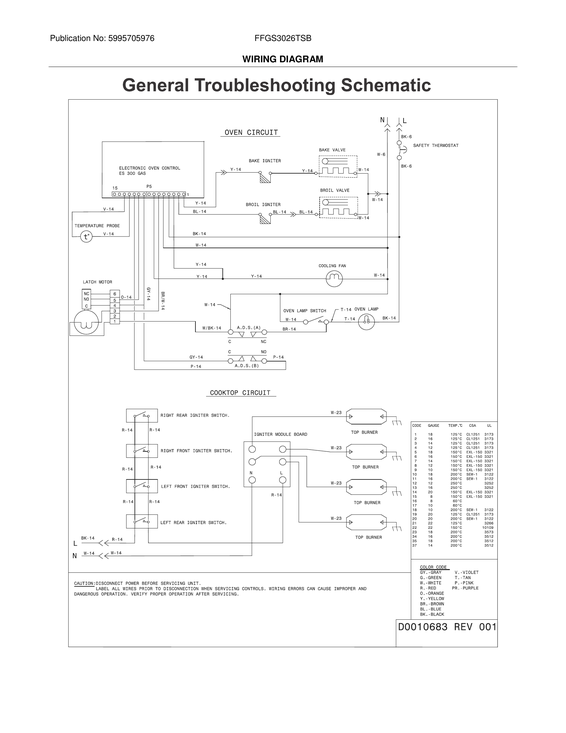

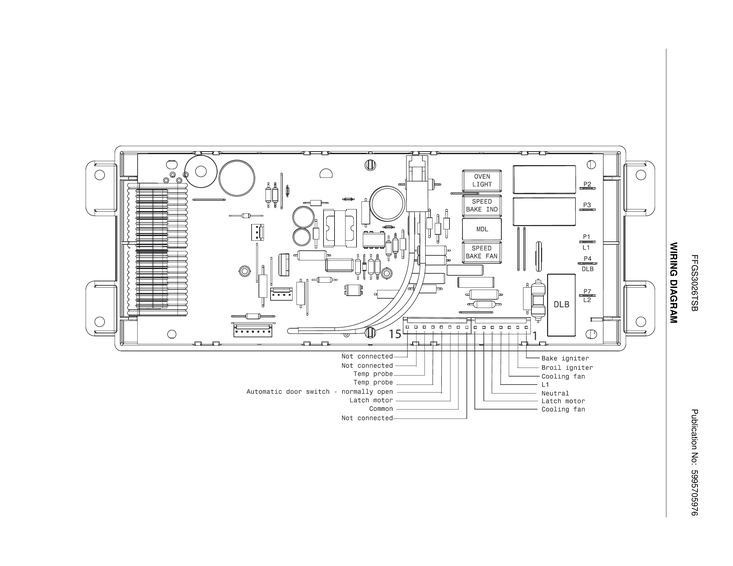

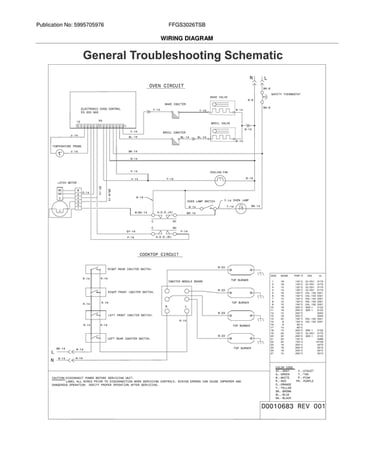

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Range Oven Door Inner Glass 316117503
#8

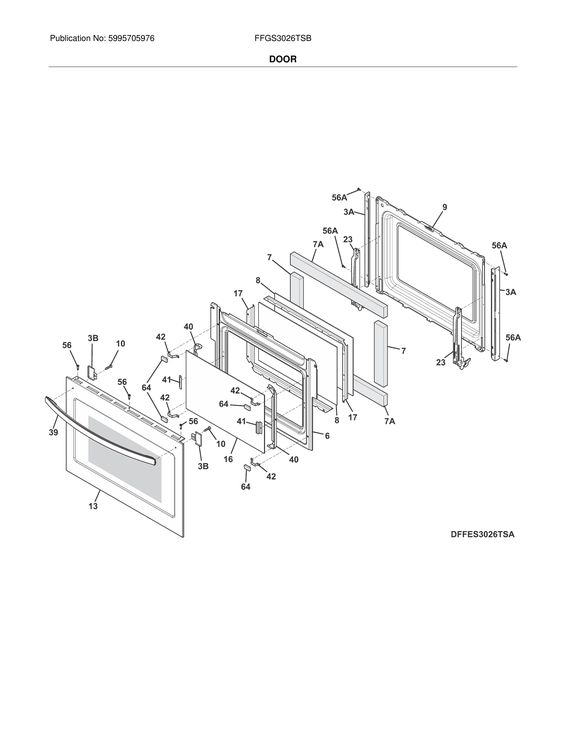

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10A

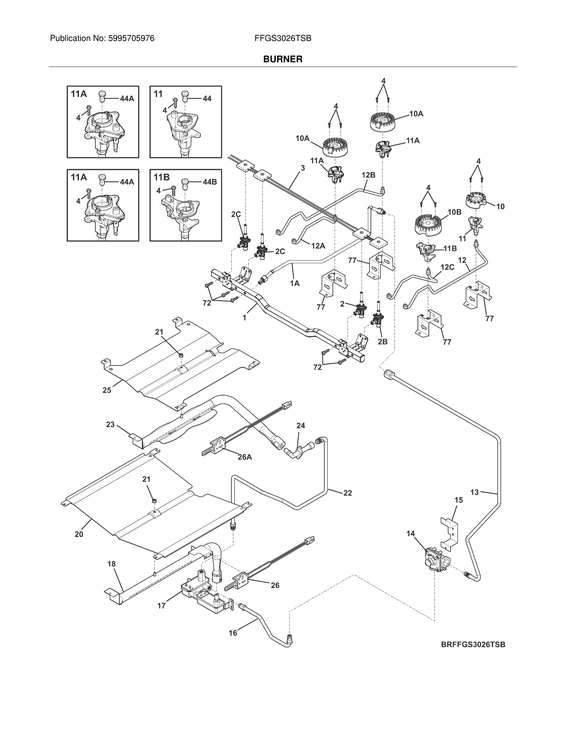

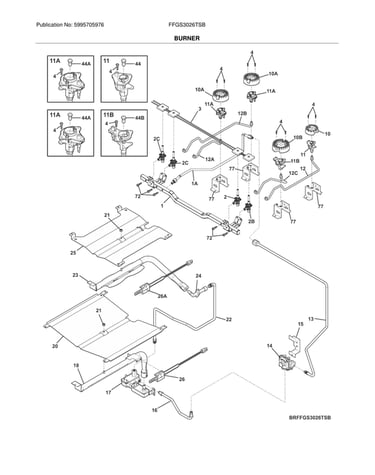

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

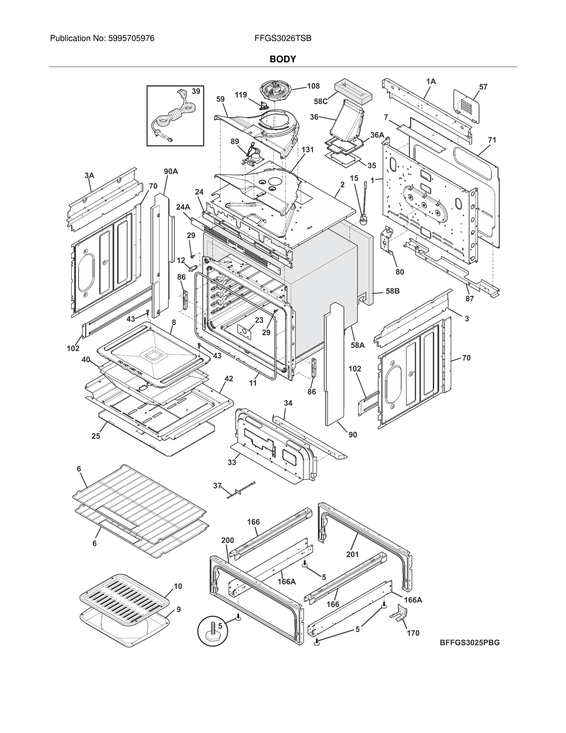

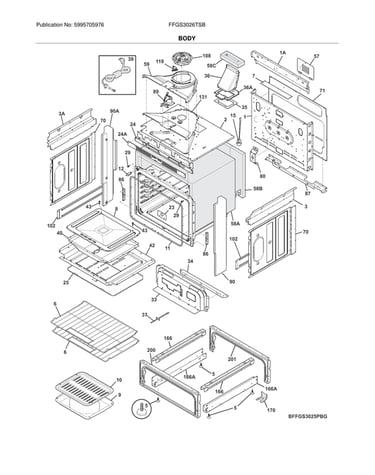

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

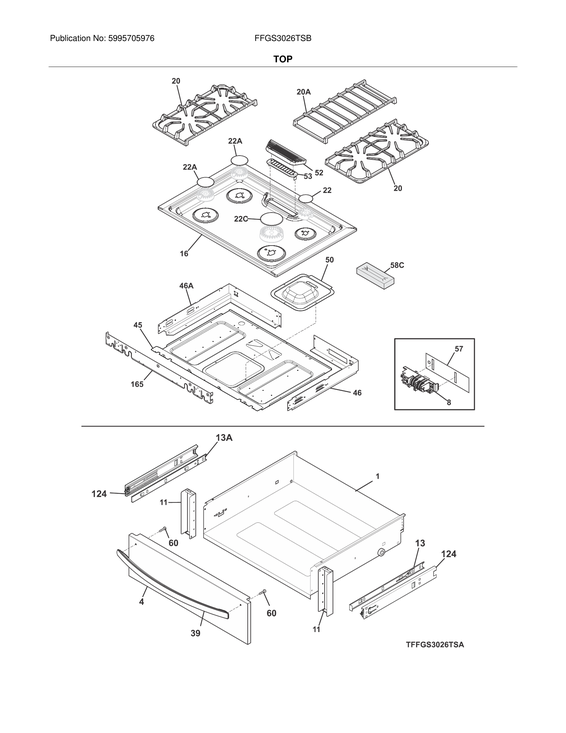

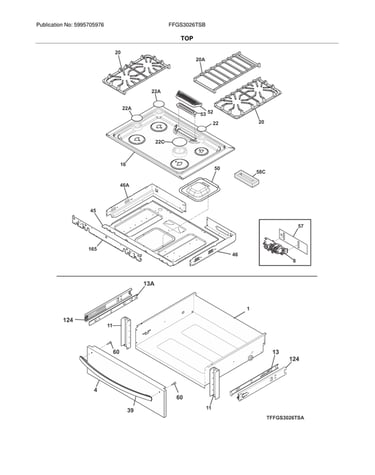

Top diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22

Top diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Range Spark Module (replaces 316262405) 808608802
#8

Top diagram

Range spark module (replaces 316262405)

Part #808608802

BEST SELLER
$69.05 |
8% OFF Phone Price : $75.05
In Stock
Range Oven Gas Valve 316031501
#17

Burner diagram

Range oven gas valve

Part #316031501

BEST SELLER
$184.91 |
6% OFF Phone Price : $196.91
In Stock
Range Pressure Regulator 316416700
#14

Burner diagram

Range pressure regulator

Part #316416700

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316416700. Substitute parts can look different from the original.
BEST SELLER
$66.32 |
8% OFF Phone Price : $72.32
In Stock
Range Oven Control Overlay (black) 316419145
#20A

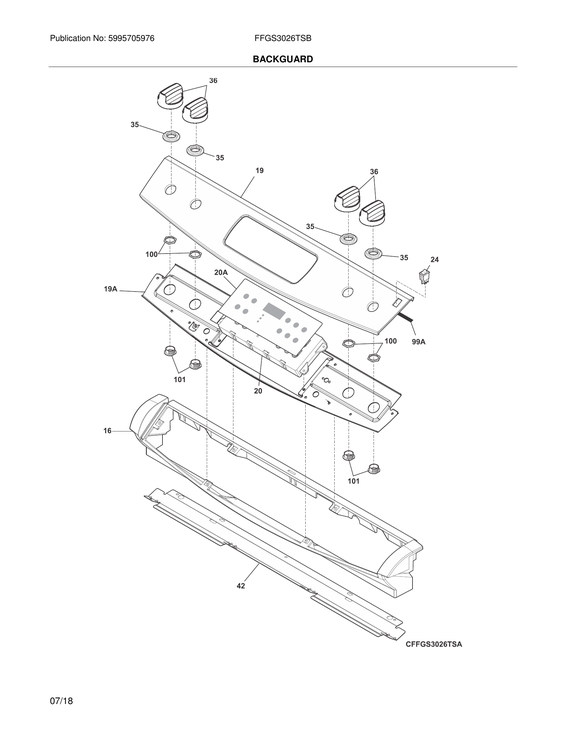

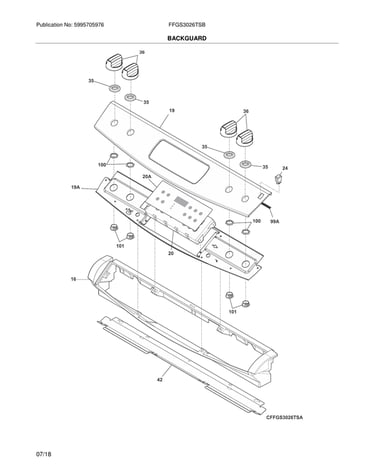

Backguard diagram

Range oven control overlay (black)

Part #316419145

BEST SELLER
$32.05 |
16% OFF Phone Price : $38.05
In Stock
Washer 5304490894
#60

Top diagram

Washer

Part #5304490894

Replaced by #316008401

?
Manufacturer substitution
This part replaces 5304490894. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
