Model # AVV18DAV1 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AVV18DAV1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Use & Care/i 49-7242

#9999

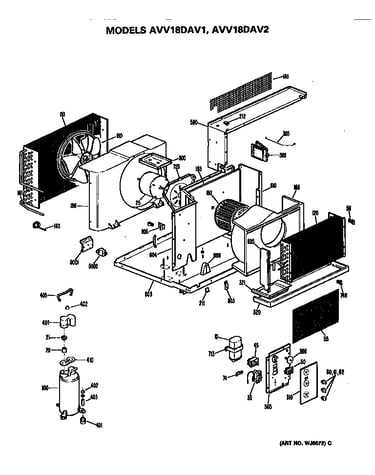

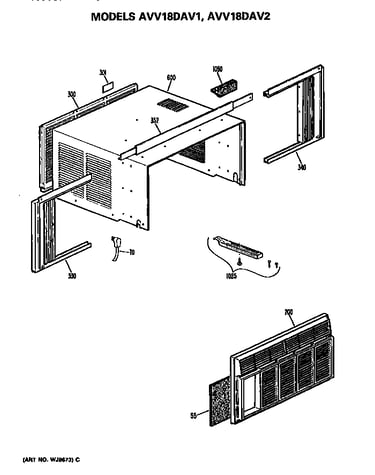

All parts diagram

Use & care/i

Part #49-7242

$8.49
In Stock
Grille Asm F WJ71X2338

#200

All parts diagram

Grille asm f

Part #WJ71X2338

Replaced by #WJ71X2309

?
Manufacturer substitution
This part replaces WJ71X2338. Substitute parts can look different from the original.
$260.99
In Stock
Mini Package Rack 31-8653

#9999

All parts diagram

Mini package rack

Part #31-8653

Replaced by #31-8818

?
Manufacturer substitution
This part replaces 31-8653. Substitute parts can look different from the original.
$39.49
In Stock
Terminal Cover Gasket WJ43X468

#410

All parts diagram

Terminal cover gasket

Part #WJ43X468

The manufacturer no longer makes this part, and there's no substitute part

Start Plate WJ11X11

#5001

All parts diagram

Start plate

Part #WJ11X11

The manufacturer no longer makes this part, and there's no substitute part

Clip Bracket WJ2X558

#803

All parts diagram

Clip bracket

Part #WJ2X558

The manufacturer no longer makes this part, and there's no substitute part

Plate Mtr Mt WJ65X401

#725

All parts diagram

Plate mtr mt

Part #WJ65X401

The manufacturer no longer makes this part, and there's no substitute part

Baffle WJ65X399

#805

All parts diagram

Baffle

Part #WJ65X399

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X698

#10

All parts diagram

Capacitor

Part #WJ20X698

The manufacturer no longer makes this part, and there's no substitute part

Start Assist WJ41X177

#5000

All parts diagram

Start assist

Part #WJ41X177

The manufacturer no longer makes this part, and there's no substitute part
