Model # AGS741L-P11559025 Official Amana gas range

Here are the diagrams and repair parts for Official Amana AGS741L-P11559025 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

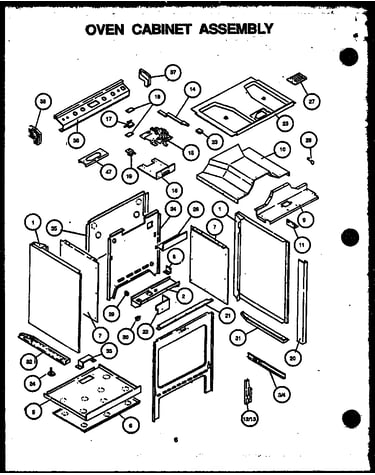

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Refrigerator Igniter R0710221
Refrigerator igniter

Part #R0710221

Replaced by #786324

?
Manufacturer substitution
This part replaces R0710221. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Screw 0059445

#NI

All parts diagram

Screw

Part #0059445

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0059445. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Switch 0300521
#14

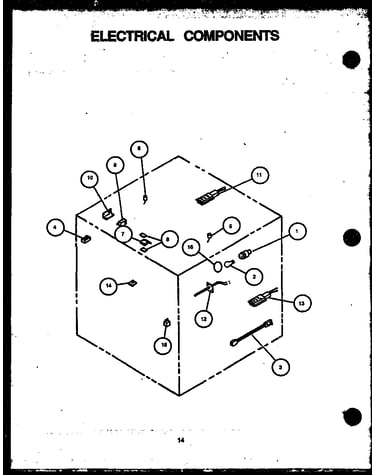

Electrical components diagram

Switch

Part #0300521

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl 0060872
#2

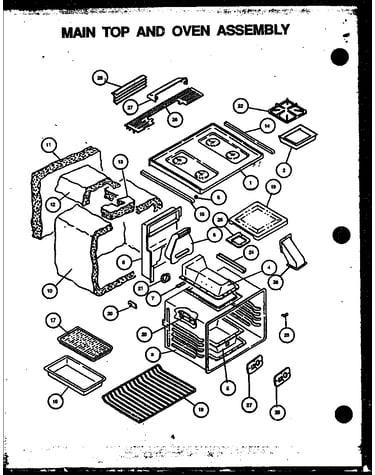

Main top and oven assembly diagram

Burner bowl

Part #0060872

Replaced by #WPY0060872

?
Manufacturer substitution
This part replaces 0060872. Substitute parts can look different from the original.
This item is not returnable
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Knob, Time/temp Set R0710238
#10

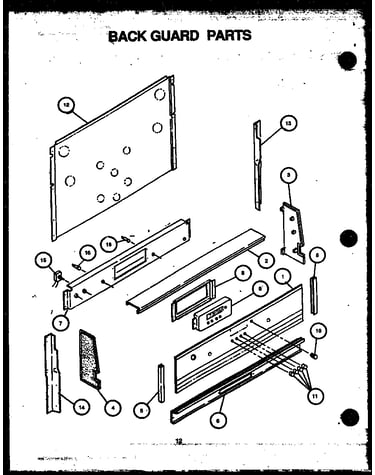

Back guard parts diagram

Knob, time/temp set

Part #R0710238

The manufacturer no longer makes this part, and there's no substitute part

Handle, Storage Drawer 0300727
#4

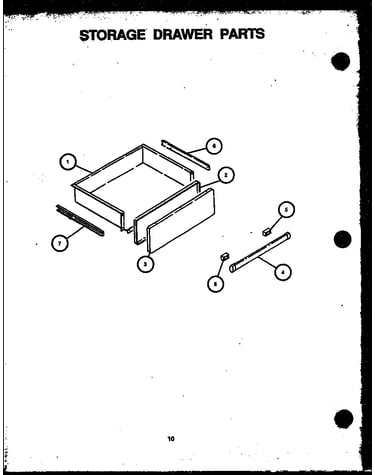

Storage drawer parts diagram

Handle, storage drawer

Part #0300727

The manufacturer no longer makes this part, and there's no substitute part

Orifice And Tubing Assembly R0710218
#6B

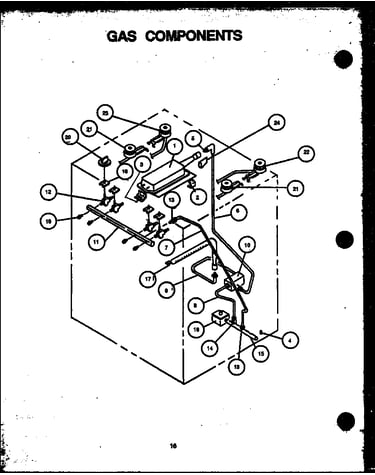

Gas components diagram

Orifice and tubing assembly

Part #R0710218

The manufacturer no longer makes this part, and there's no substitute part

Manifold 0302540
#11

Gas components diagram

Manifold

Part #0302540

The manufacturer no longer makes this part, and there's no substitute part

Raceway Wire R0705027

#NI

All parts diagram

Raceway wire

Part #R0705027

The manufacturer no longer makes this part, and there's no substitute part

Window Assembly R0708207
#6

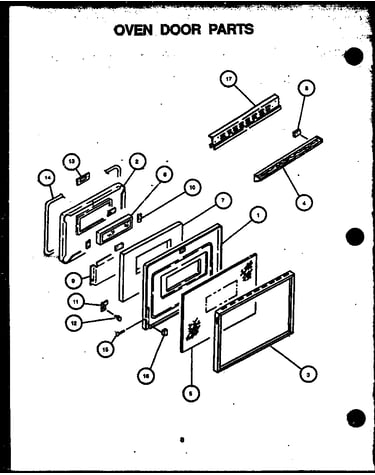

Oven door parts diagram

Window assembly

Part #R0708207

The manufacturer no longer makes this part, and there's no substitute part
