Craftsman
Lawn Sweeper

Model # 426260931 Official Craftsman 30" trailer lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 426260931 30" trailer lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Lock Nut STD541431
#14

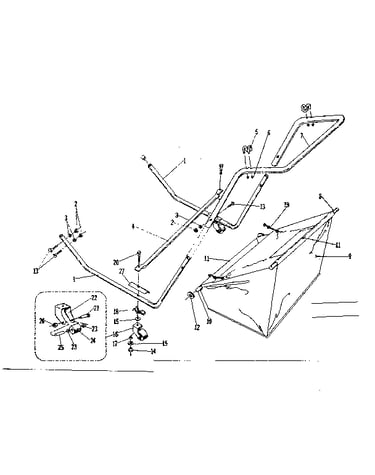

Frame and basket assembly diagram

Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD522507
#2

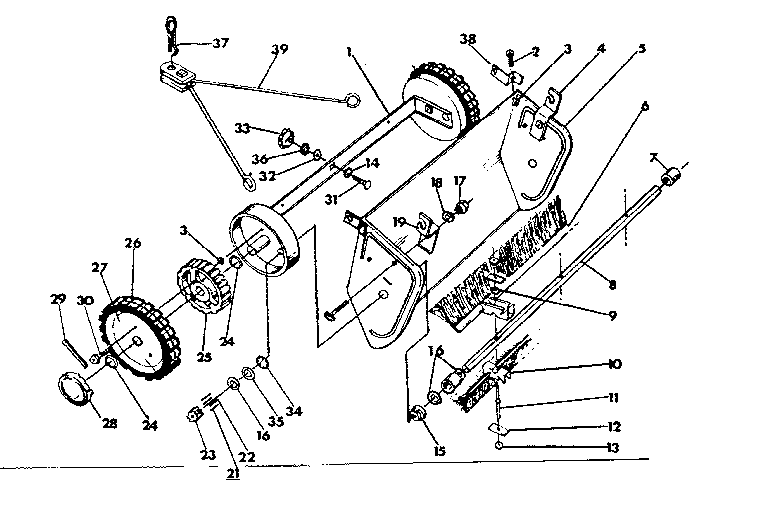

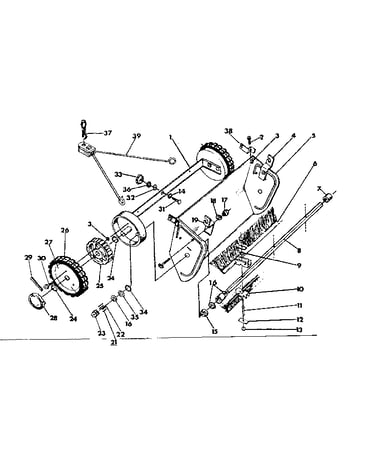

Sweeper head assembly diagram

Bolt

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Hand Knob 79-94-A
#33

Sweeper head assembly diagram

Hand knob

Part #79-94-A

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551031
Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541425
Lock nut

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Washer 78-162-A
#12

Frame and basket assembly diagram

Washer

Part #78-162-A

The manufacturer no longer makes this part, and there's no substitute part

Washer 946-1216-20
#24

Sweeper head assembly diagram

Washer

Part #946-1216-20

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD523117
#20

Frame and basket assembly diagram

Bolt

Part #STD523117

The manufacturer no longer makes this part, and there's no substitute part

Rod 78-38-A
#8

Frame and basket assembly diagram

Rod

Part #78-38-A

The manufacturer no longer makes this part, and there's no substitute part

Retainer 79-104-A
#34

Sweeper head assembly diagram

Retainer

Part #79-104-A

The manufacturer no longer makes this part, and there's no substitute part
