White-Westinghouse
Electric Range

Model # KF650GDD3 Official White-Westinghouse 30" freestanding range with self-cleaning oven - l2811065

Here are the diagrams and repair parts for Official White-Westinghouse KF650GDD3 30" freestanding range with self-cleaning oven - l2811065, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

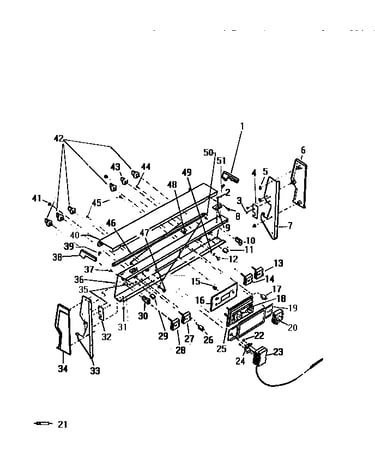

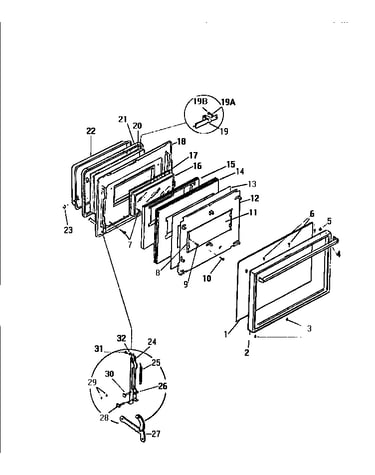

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Surface Element K1323560
#14A

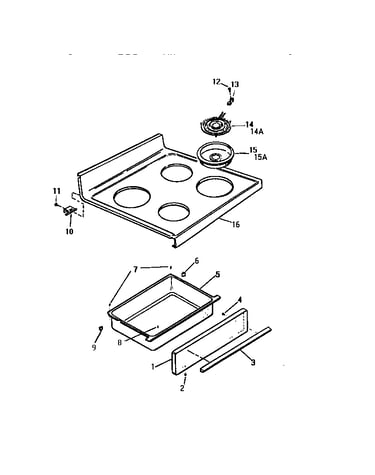

Top, control panel diagram

Surface element

Part #K1323560

Replaced by #316442301

?
Manufacturer substitution
This part replaces K1323560. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Kelv Receptc K1167733
#13

Top, control panel diagram

Kelv receptc

Part #K1167733

Replaced by #5303935058

?
Manufacturer substitution
This part replaces K1167733. Substitute parts can look different from the original.
BEST SELLER
$8.19 |
11% OFF Phone Price : $9.19
In Stock
Surface Pan K5039601
#15A

Top, control panel diagram

Surface pan

Part #K5039601

Replaced by #316048413

?
Manufacturer substitution
This part replaces K5039601. Substitute parts can look different from the original.
BEST SELLER
$7.52 |
12% OFF Phone Price : $8.52
In Stock
Pan K5039501
#15

Top, control panel diagram

Pan

Part #K5039501

Replaced by #316048414

?
Manufacturer substitution
This part replaces K5039501. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Surface Element K1323559
#14

Top, control panel diagram

Surface element

Part #K1323559

Replaced by #318372211

?
Manufacturer substitution
This part replaces K1323559. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Surface Switch K1313767
Surface switch

Part #K1313767

Replaced by #5303935086

?
Manufacturer substitution
This part replaces K1313767. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Switch-6" El K1313766
Switch-6" el

Part #K1313766

Replaced by #5303935086

?
Manufacturer substitution
This part replaces K1313766. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Screw K5126601
Screw

Part #K5126601

Replaced by #5308014215

?
Manufacturer substitution
This part replaces K5126601. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Broiler Element K1311292
#3

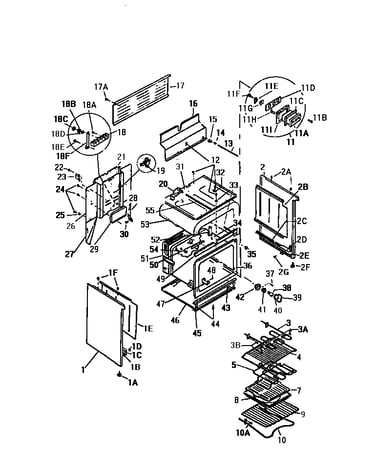

Body, side panels diagram

Broiler element

Part #K1311292

Replaced by #5303051516

?
Manufacturer substitution
This part replaces K1311292. Substitute parts can look different from the original.
$138.69 |
8% OFF Phone Price : $150.69
In Stock
Pan K1317972
#7

Body, side panels diagram

Pan

Part #K1317972

Replaced by #5304442087

?
Manufacturer substitution
This part replaces K1317972. Substitute parts can look different from the original.
$77.99 |
