Model # 79048003604 Official Kenmore Pro warming drawer

Here are the diagrams and repair parts for Official Kenmore Pro 79048003604 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

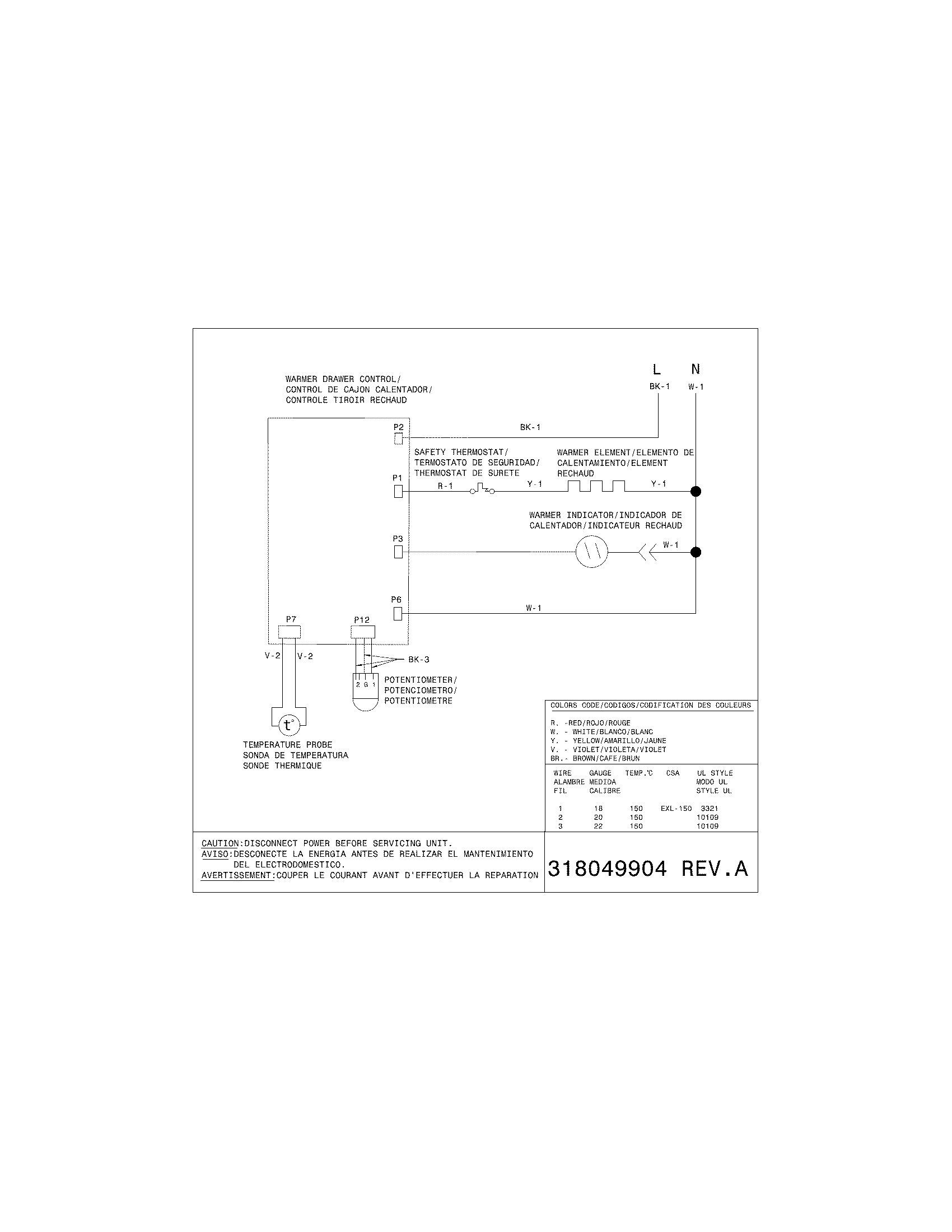

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Range Oven Temperature Sensor 318562500
#11

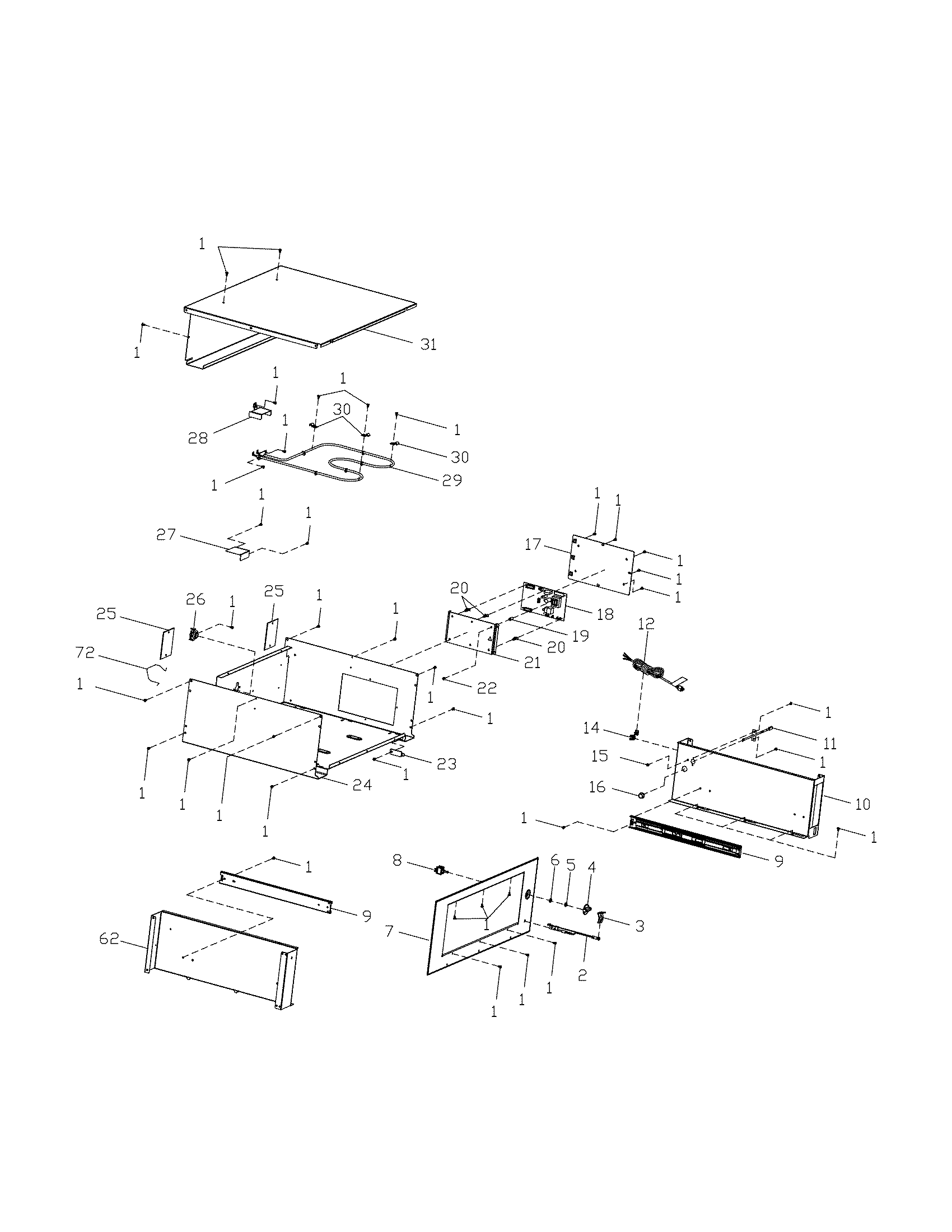

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Lock Washer 316247800
#5

Body diagram

Range lock washer

Part #316247800

This item is not returnable
$16.77
In Stock
Range Nut 316247700
#6

Body diagram

Range nut

Part #316247700

This item is not returnable
$16.77
In Stock
Rack 318345601
#38

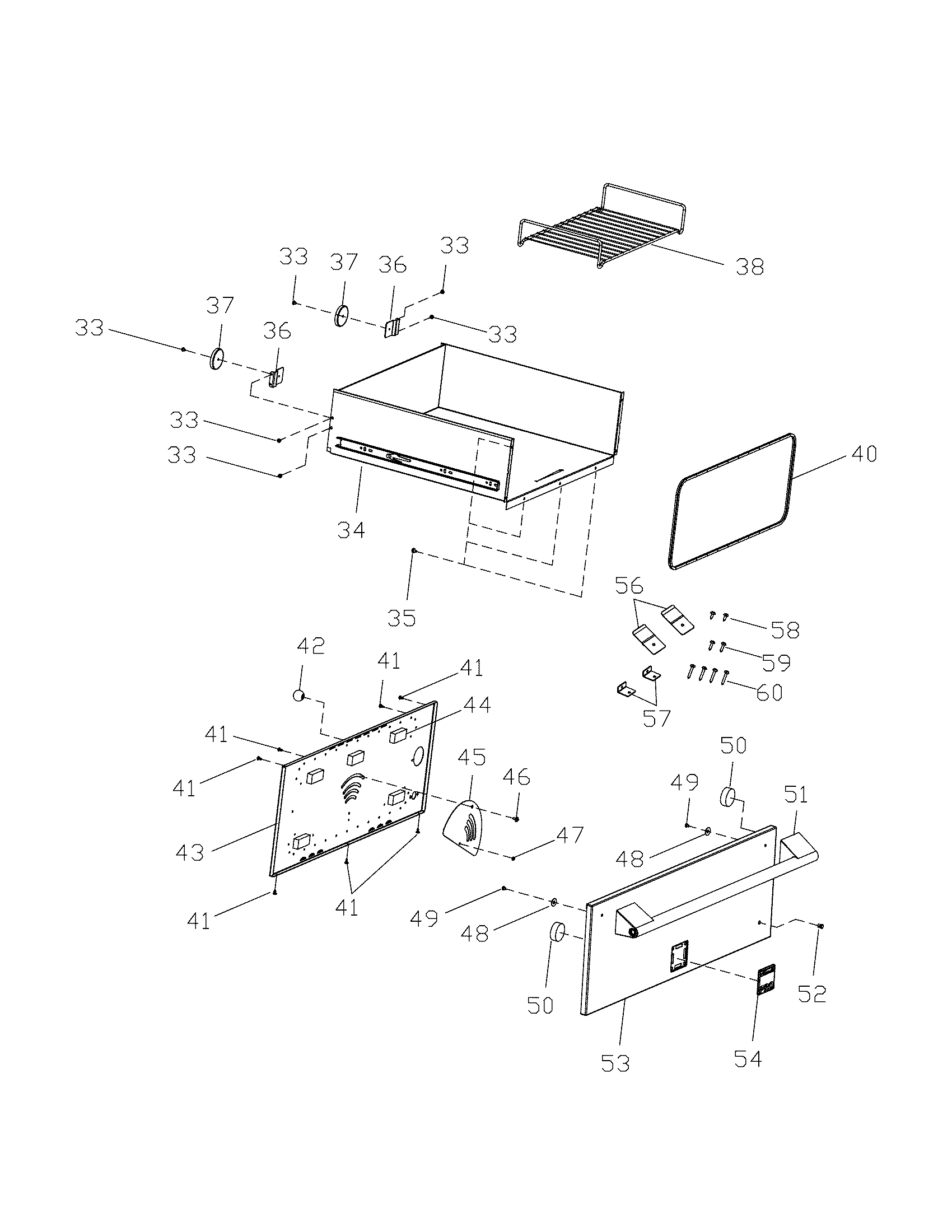

Drawer diagram

Rack

Part #318345601

Replaced by #807328301

?
Manufacturer substitution
This part replaces 318345601. Substitute parts can look different from the original.
$65.52 |
8% OFF Phone Price : $71.52
In Stock
Kenmore Pro Washer 305338306
#48

Drawer diagram

Kenmore pro washer

Part #305338306

$8.29
In Stock
Installation 318201823
#NI

Drawer diagram

Installation

Part #318201823

This item is not returnable
$4.14
In Stock
Range Screw, 8 X 18 X 0.406-in 5304415832
#35

Drawer diagram

Range screw, 8 x 18 x 0.406-in

Part #5304415832

This item is not returnable
$14.41 |
12% OFF Phone Price : $16.41
In Stock
Range Warming Drawer Element Bracket 316095800
#30

Body diagram

Range warming drawer element bracket

Part #316095800

This item is not returnable
$11.66
In Stock
Control Panel 5304492919
#7

Body diagram

Control panel

Part #5304492919

$292.31
In Stock
Oven Handle 318251100
#42

Drawer diagram

Oven handle

Part #318251100

$48.98
In Stock
