Model # GDU3024XLW1 Official Whirlpool dishwasher

Here are the diagrams and repair parts for Official Whirlpool GDU3024XLW1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

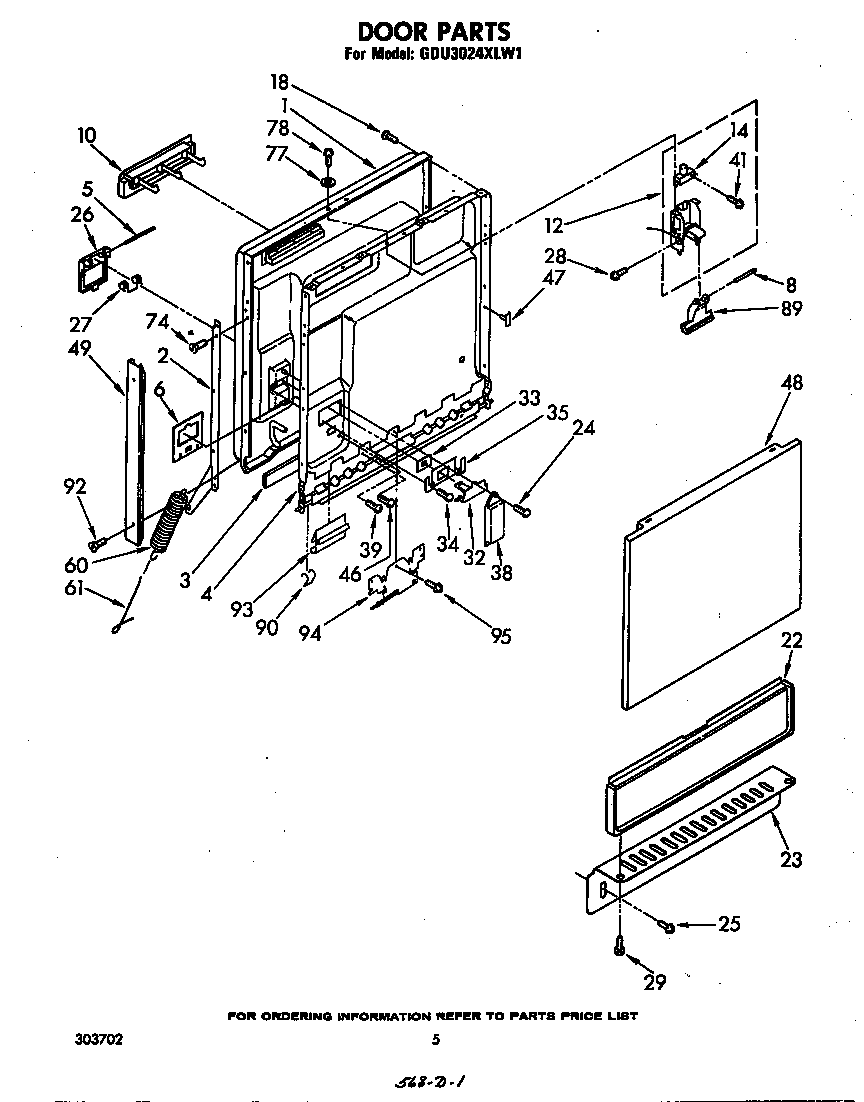

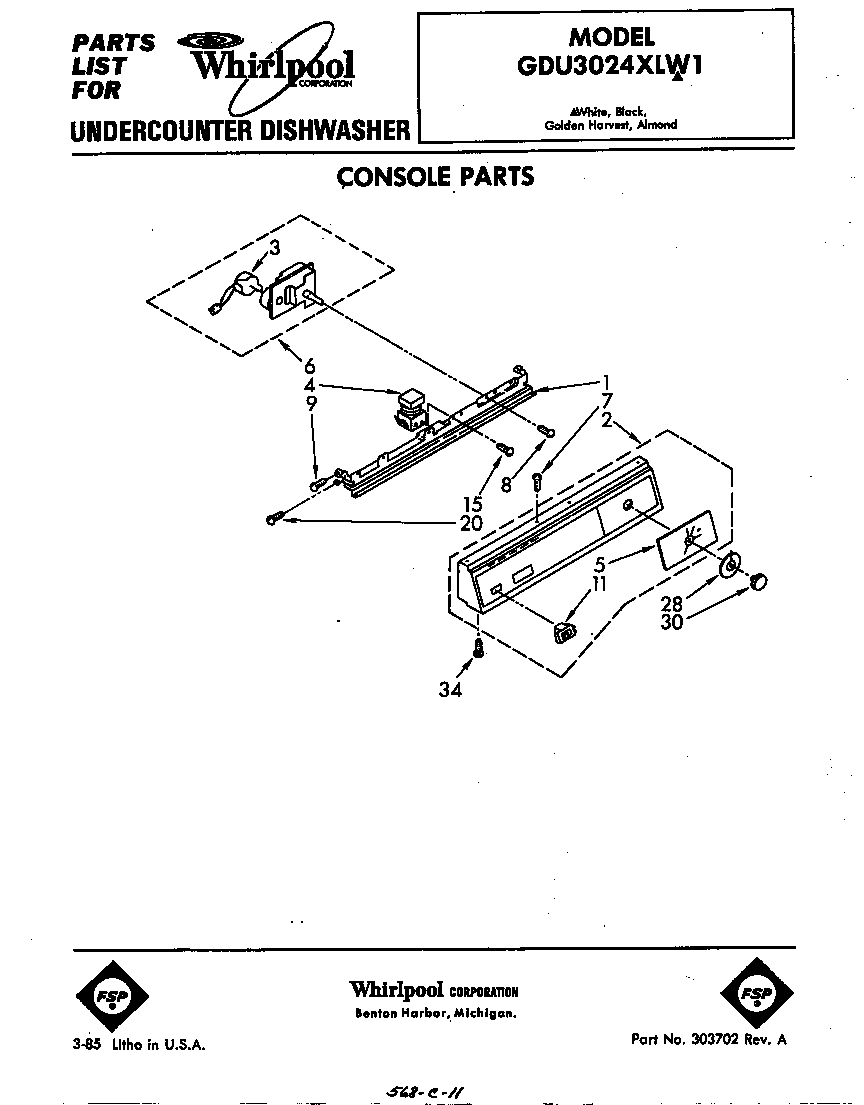

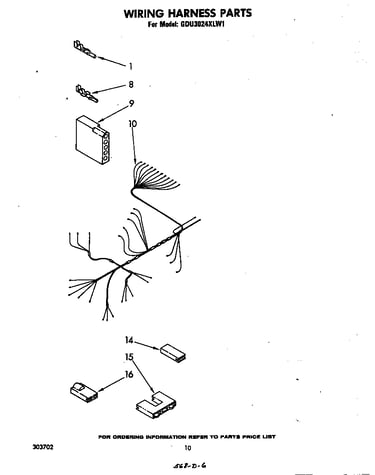

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |
Clamp 301958
#6

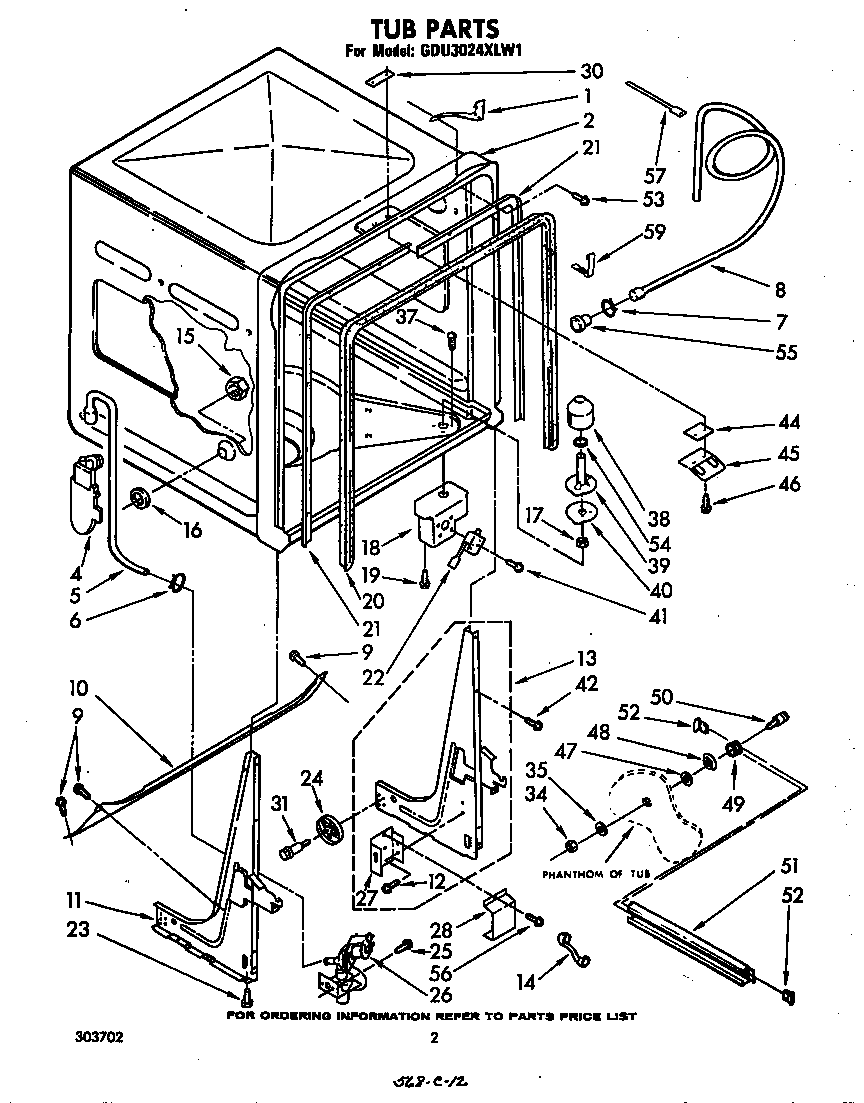

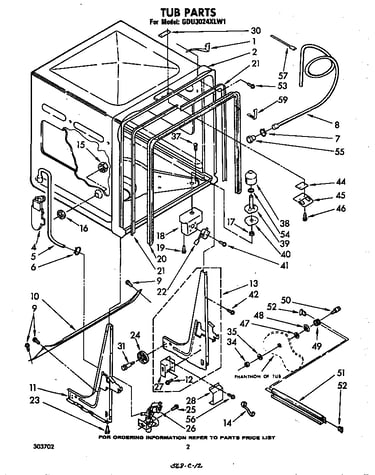

Tub diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishrack 302986
#3

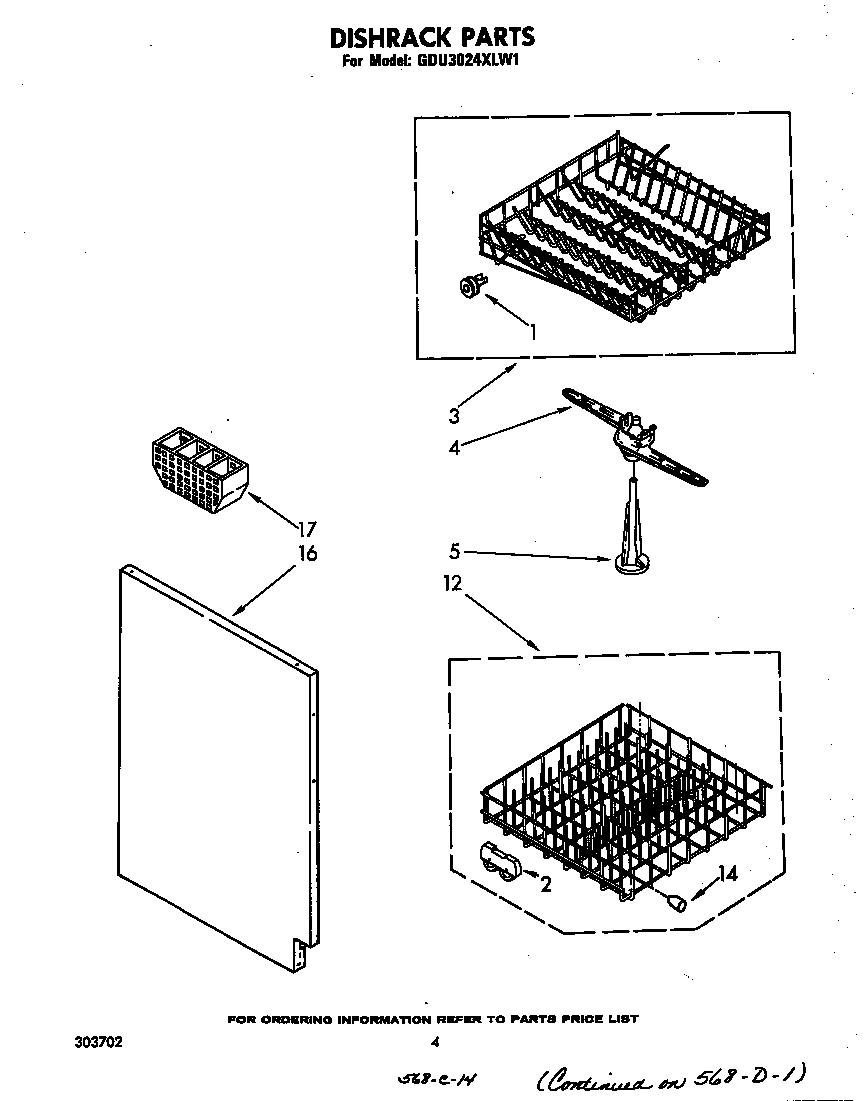

Dishrack diagram

Dishrack

Part #302986

Replaced by #W11169039

?
Manufacturer substitution
This part replaces 302986. Substitute parts can look different from the original.
BEST SELLER
$127.70 |
9% OFF Phone Price : $139.70
In Stock
Dishwasher Heating Element Rubber Washer 717273
#42

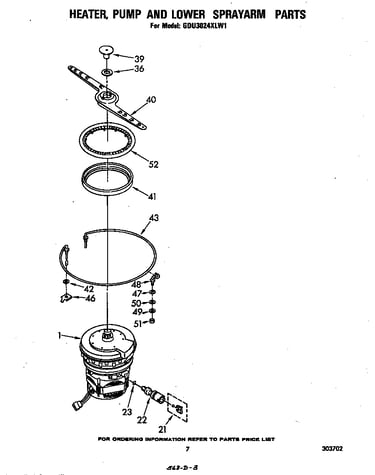

Heater, pump and lower spray arm diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Paint (white) 350930

#NI

All parts diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 9416643
#46

Tub diagram

Screw

Part #9416643

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 9416643. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 718258
#21

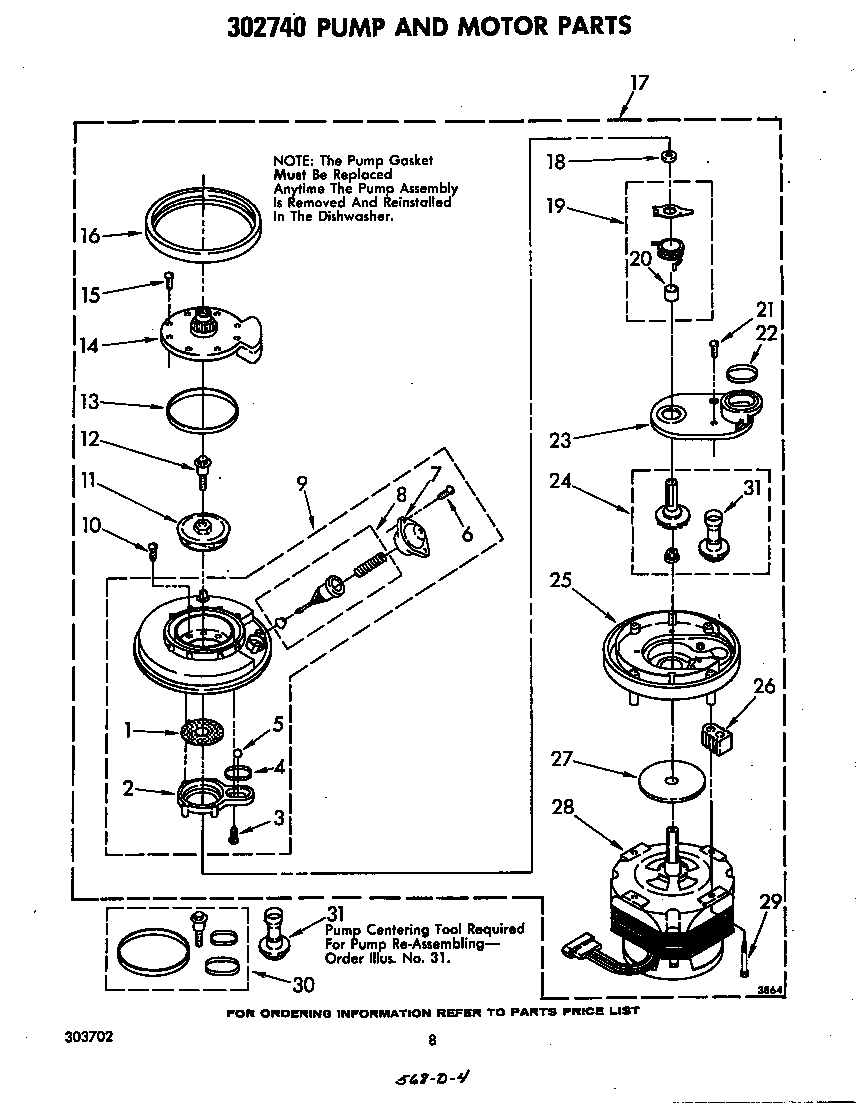

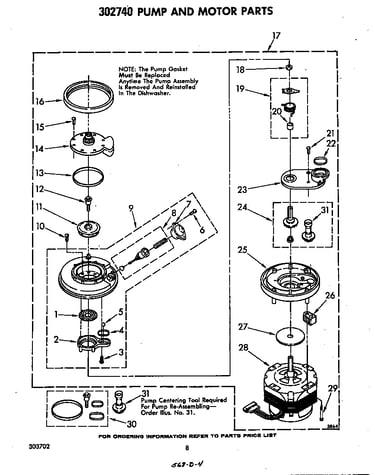

302740 pump and motor diagram

Screw

Part #718258

Replaced by #WP9741232

?
Manufacturer substitution
This part replaces 718258. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 303573
Screw

Part #303573

Replaced by #WP9741232

?
Manufacturer substitution
This part replaces 303573. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Circulation Pump Gasket (replaces 302371, 661633, 8057506) 717000
Dishwasher circulation pump gasket (replaces 302371, 661633, 8057506)

Part #717000

BEST SELLER
This item is not returnable
$30.11 |
17% OFF Phone Price : $36.11
In Stock
Dishwasher Pump Outlet Seal 302711
#13

302740 pump and motor diagram

Dishwasher pump outlet seal

Part #302711

Replaced by #WP302711

?
Manufacturer substitution
This part replaces 302711. Substitute parts can look different from the original.
BEST SELLER
$20.82 |
22% OFF Phone Price : $26.82
In Stock
