Kenmore
Gas Range

Model # 1037267340 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037267340 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

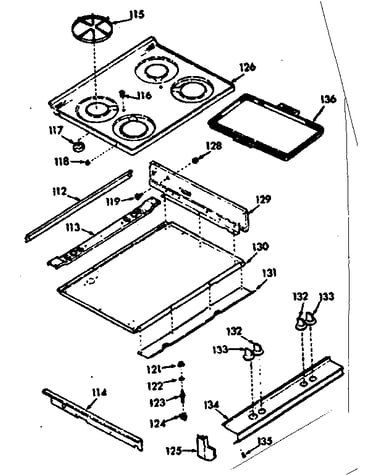

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |
Range Oven Light Bulb 111257
#64

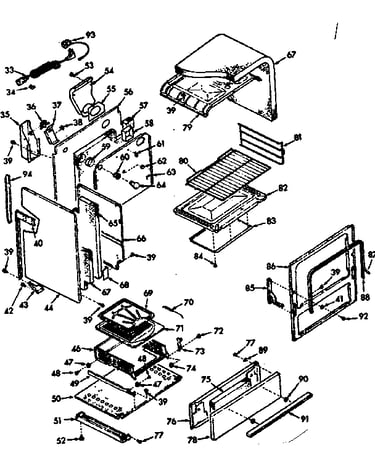

Body section diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Lamp Bulb 65973
#2

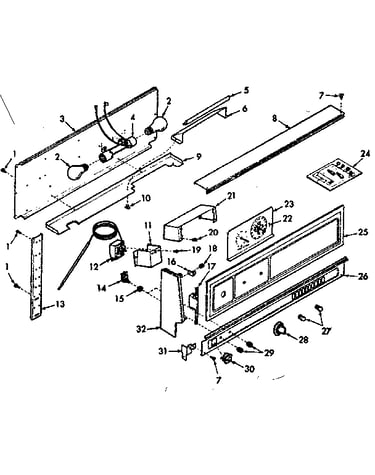

Backguard section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 75871
#258

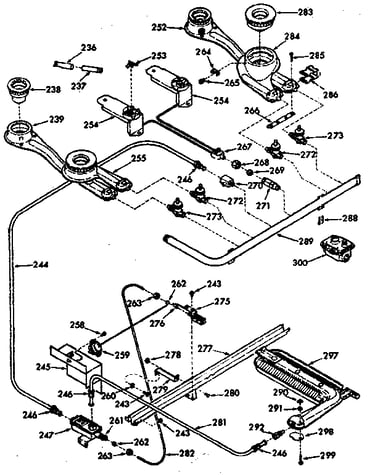

Burner section diagram

Screw

Part #75871

This item is not returnable
$2.16
In Stock
Fastener 282631
#100

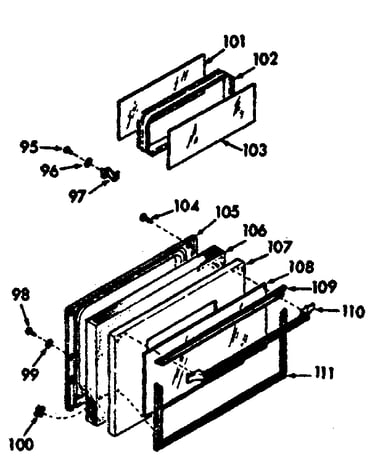

Oven door section diagram

Fastener

Part #282631

This item is not returnable
$2.29
In Stock
Flue Deflctr 293789
#54

Body section diagram

Flue deflctr

Part #293789

$15.49
In Stock
Cook Top Side Trim Kit Spit Support 282922
#339

Optional rotisserie diagram

Cook top side trim kit spit support

Part #282922

$45.99
In Stock
Lead Wire (white) 284278
#342

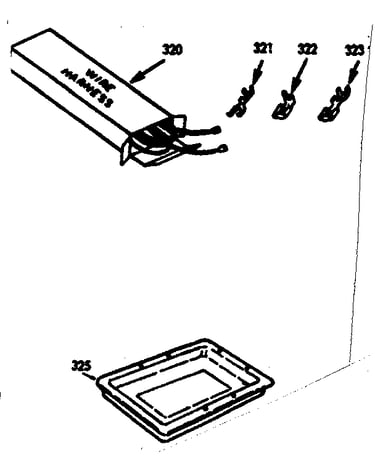

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Gm Washer 131200
#291

Burner section diagram

Gm washer

Part #131200

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 131200. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Trim Clip 70588
Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
