Model # 536884351 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 536884351 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

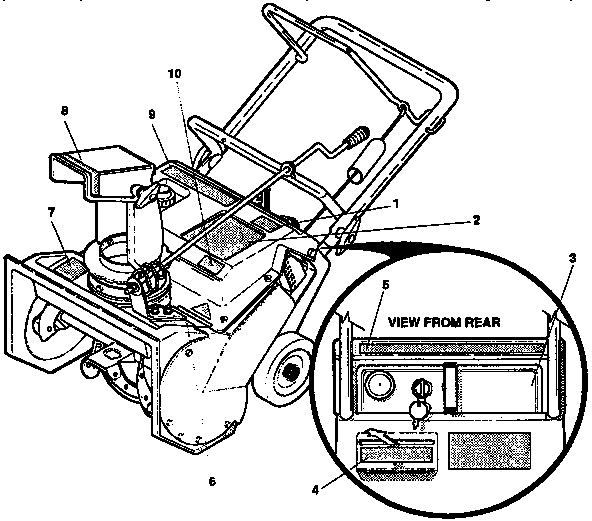

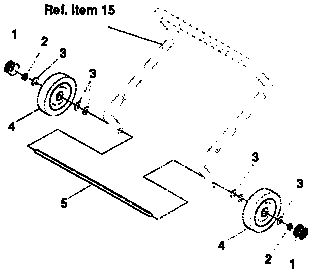

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Gas Line 327290
#5

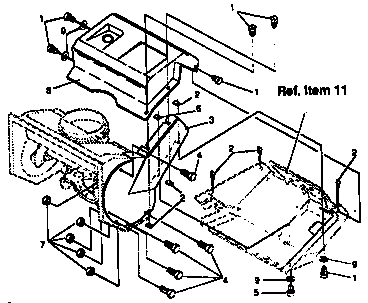

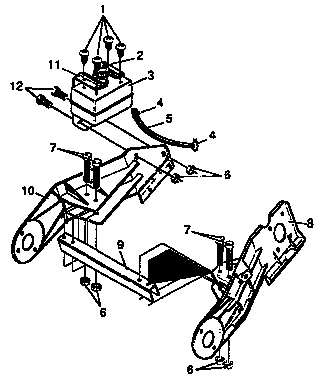

Frame components repair parts diagram

Gas line

Part #327290

Replaced by #791766

?
Manufacturer substitution
This part replaces 327290. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Knob 57171
Knob

Part #57171

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 57171. Substitute parts can look different from the original.
BEST SELLER
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Boot Spring 308146
#4

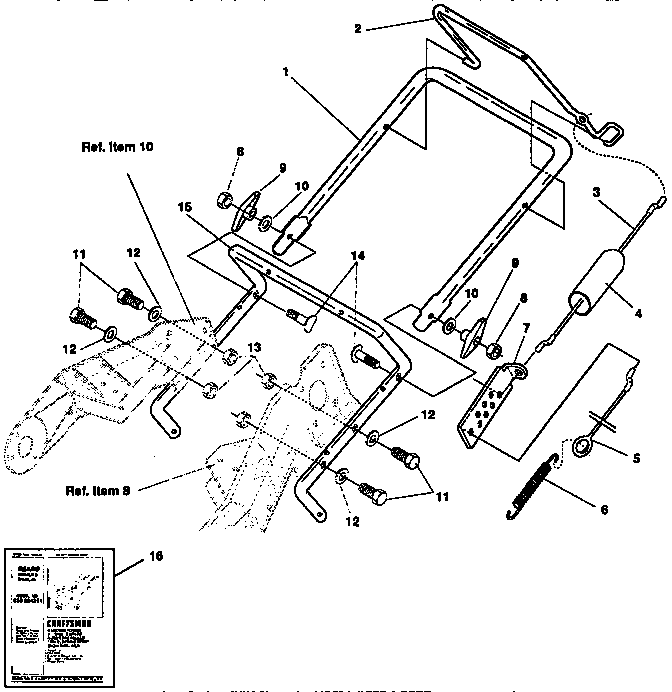

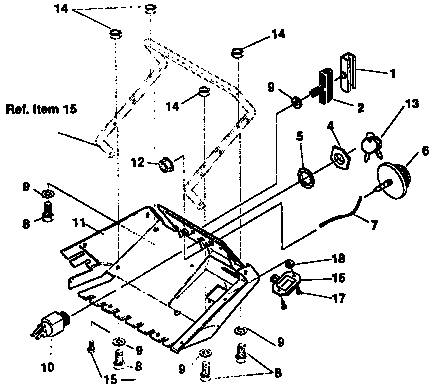

Handle assembly repair parts diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Bearing Assembly 54837
#11

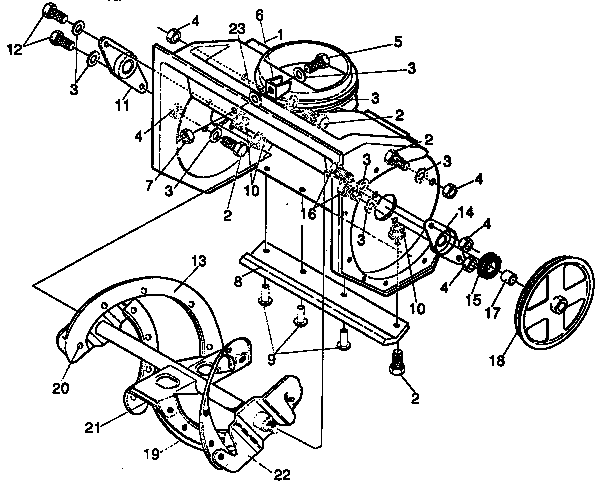

Auger housing repair parts diagram

Bearing assembly

Part #54837

Replaced by #577023MA

?
Manufacturer substitution
This part replaces 54837. Substitute parts can look different from the original.
$9.59 |
9% OFF Phone Price : $10.59
In Stock
V-belt 319596
#7

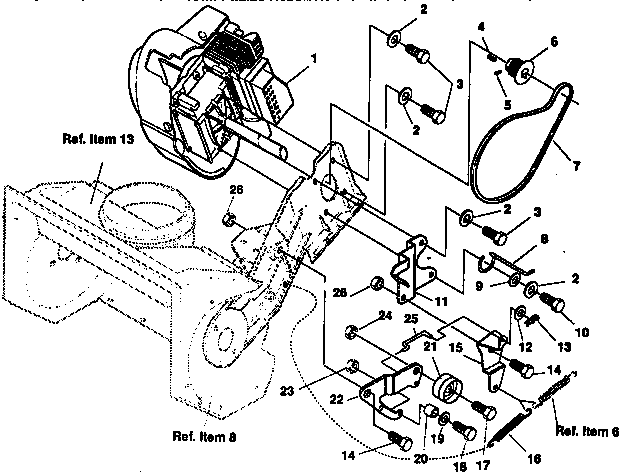

Engine and drive repair parts diagram

V-belt

Part #319596

Replaced by #319596MA

?
Manufacturer substitution
This part replaces 319596. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$31.01 |
16% OFF Phone Price : $37.01
In Stock
Scraper 55323
#8

Auger housing repair parts diagram

Scraper

Part #55323

Replaced by #55323MA

?
Manufacturer substitution
This part replaces 55323. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Clamp 48672
#4

Frame components repair parts diagram

Clamp

Part #48672

The manufacturer no longer makes this part, and there's no substitute part

Bolt 70993
#6

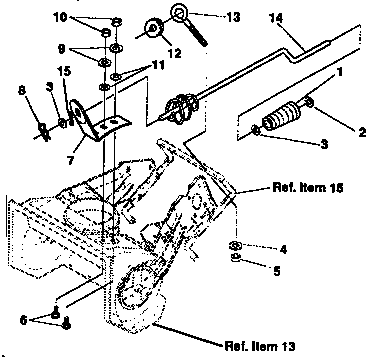

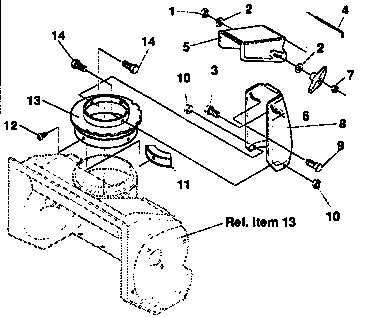

Chute control rod repair parts diagram

Bolt

Part #70993

The manufacturer no longer makes this part, and there's no substitute part

Extension Cord 56023
#1

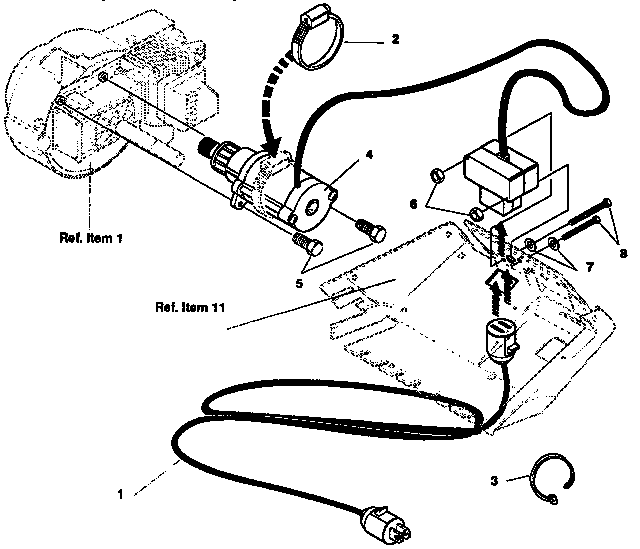

Electric starter repair parts diagram

Extension cord

Part #56023

Replaced by #56023MA

?
Manufacturer substitution
This part replaces 56023. Substitute parts can look different from the original.
$37.83 |
14% OFF Phone Price : $43.83
In Stock
Snowblower Formed Washer 311936
#10

Handle assembly repair parts diagram

Snowblower formed washer

Part #311936

Replaced by #311936MA

?
Manufacturer substitution
This part replaces 311936. Substitute parts can look different from the original.
This item is not returnable
$12.71 |
14% OFF Phone Price : $14.71
In Stock
