Electrolux
Freestanding Ice Maker

Model # UL15IM20RS1 Official Electrolux ice maker

Here are the diagrams and repair parts for Official Electrolux UL15IM20RS1 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

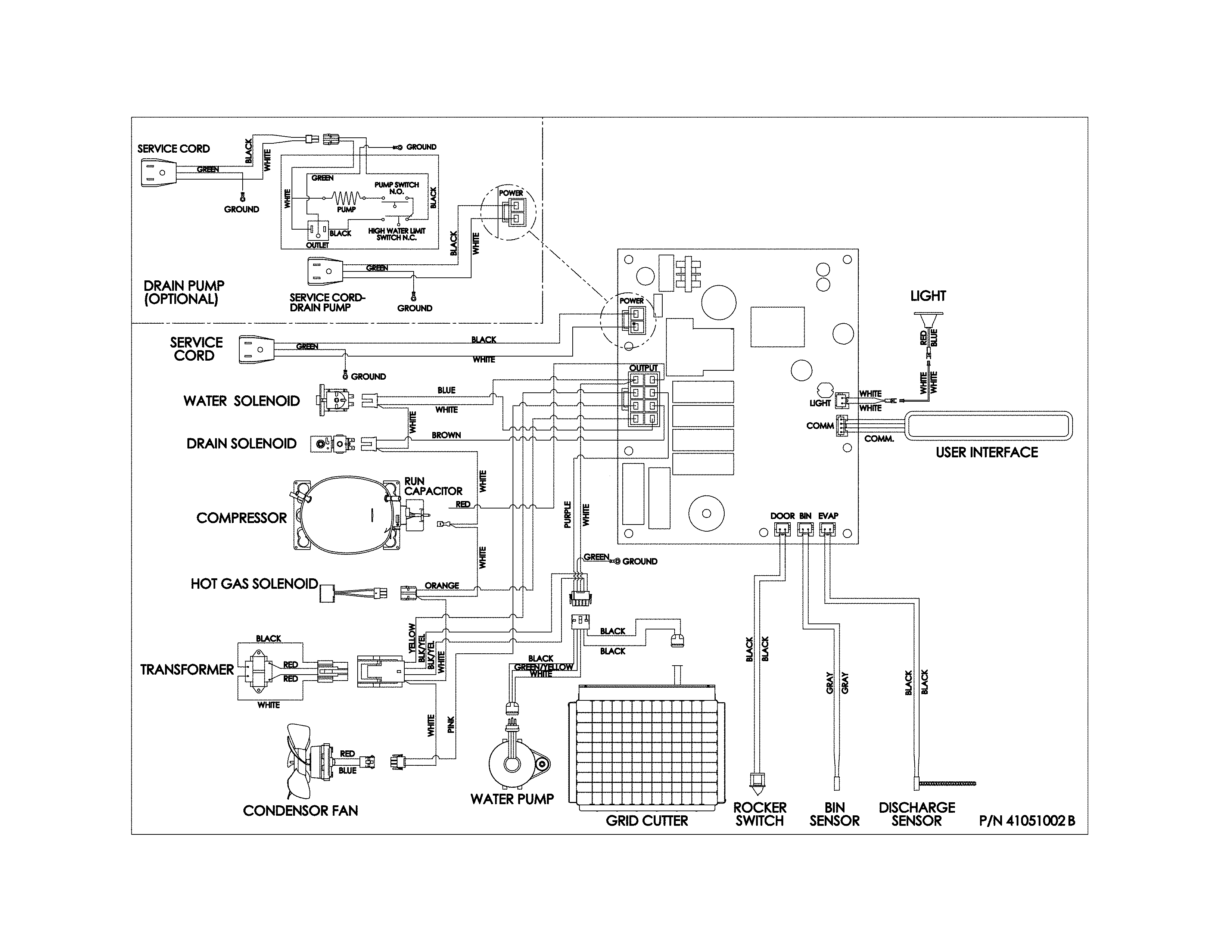

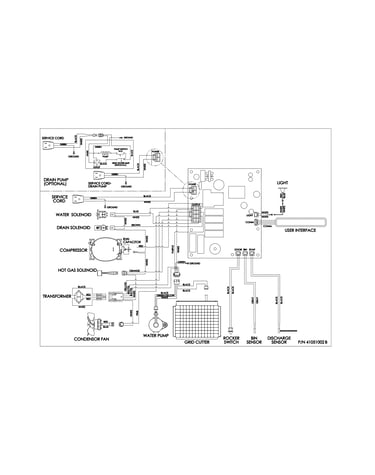

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#4

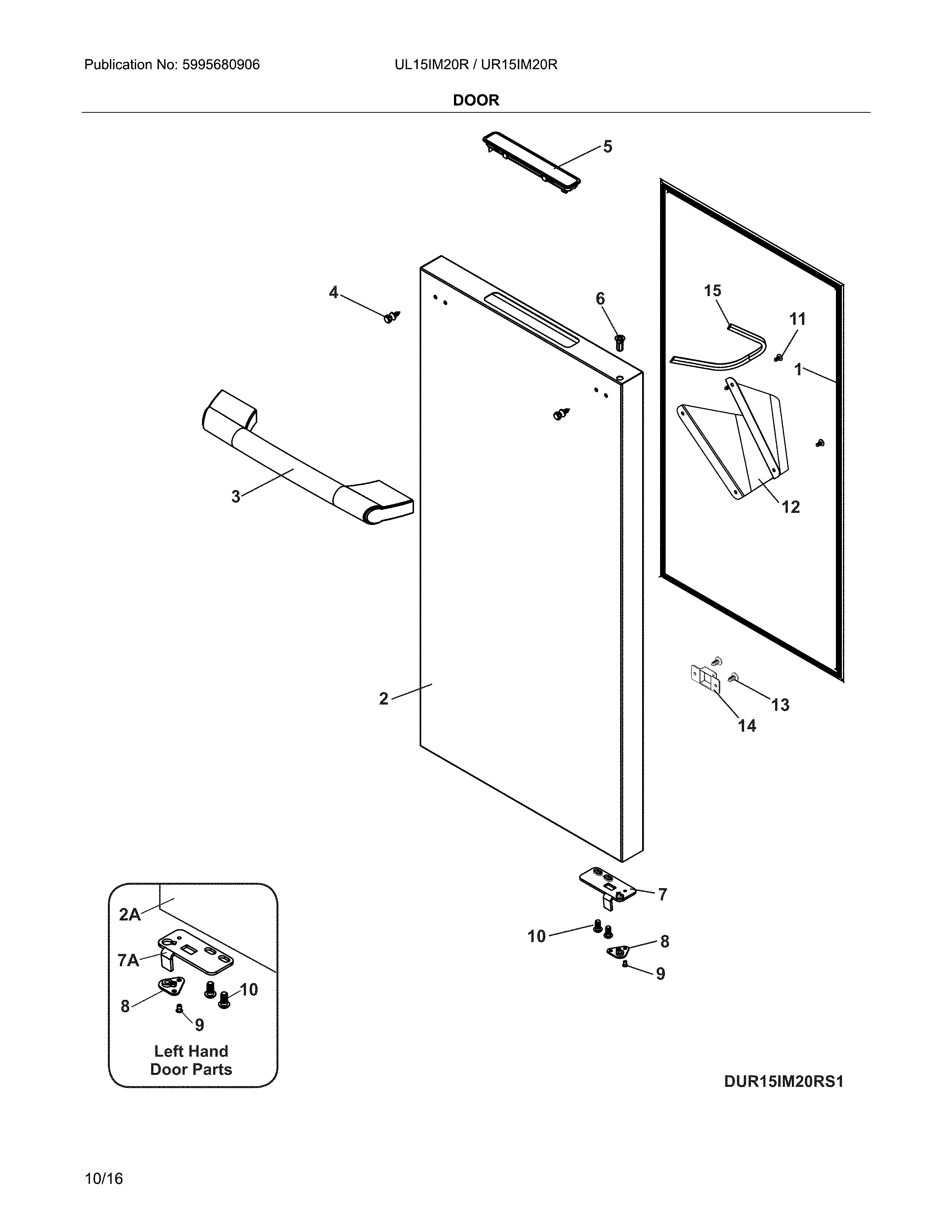

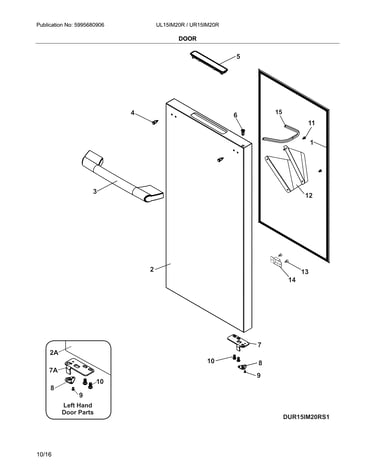

Door diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.46 |
11% OFF Phone Price : $17.46
In Stock
Frigidaire Ice Maker Cutter Grid 5304503814
#39

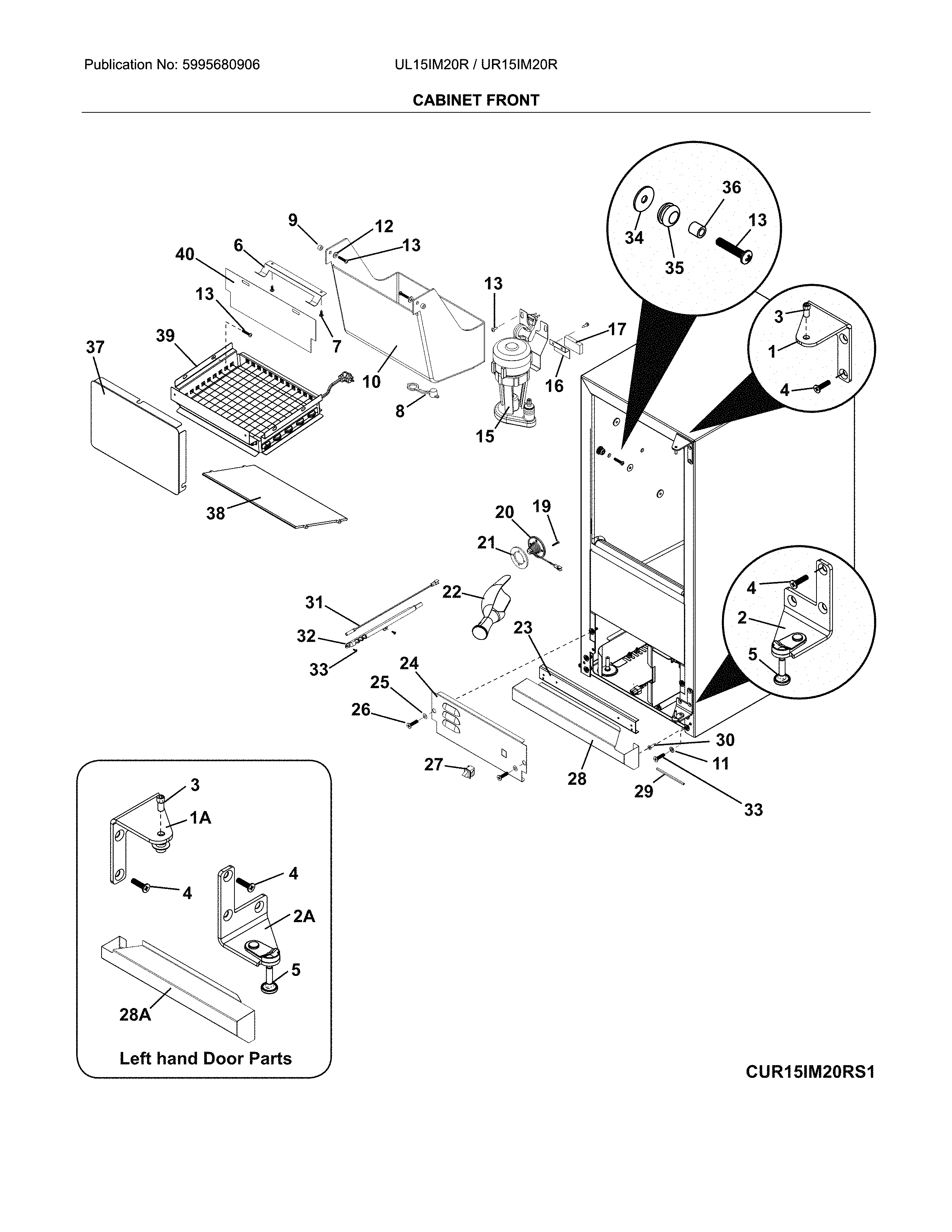

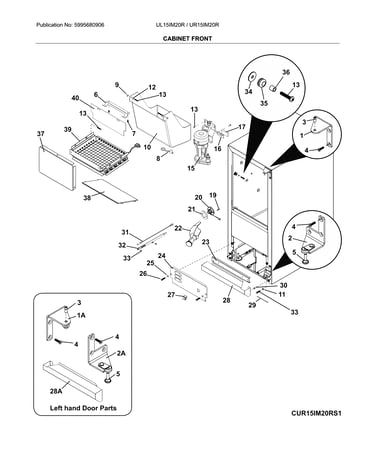

Cabinet front diagram

Frigidaire ice maker cutter grid

Part #5304503814

BEST SELLER
$492.06 |
$12.00 OFF Phone Price : $504.06
In Stock
Pan Head Screw, #8-32 X 3/8-in 5304496778
#15

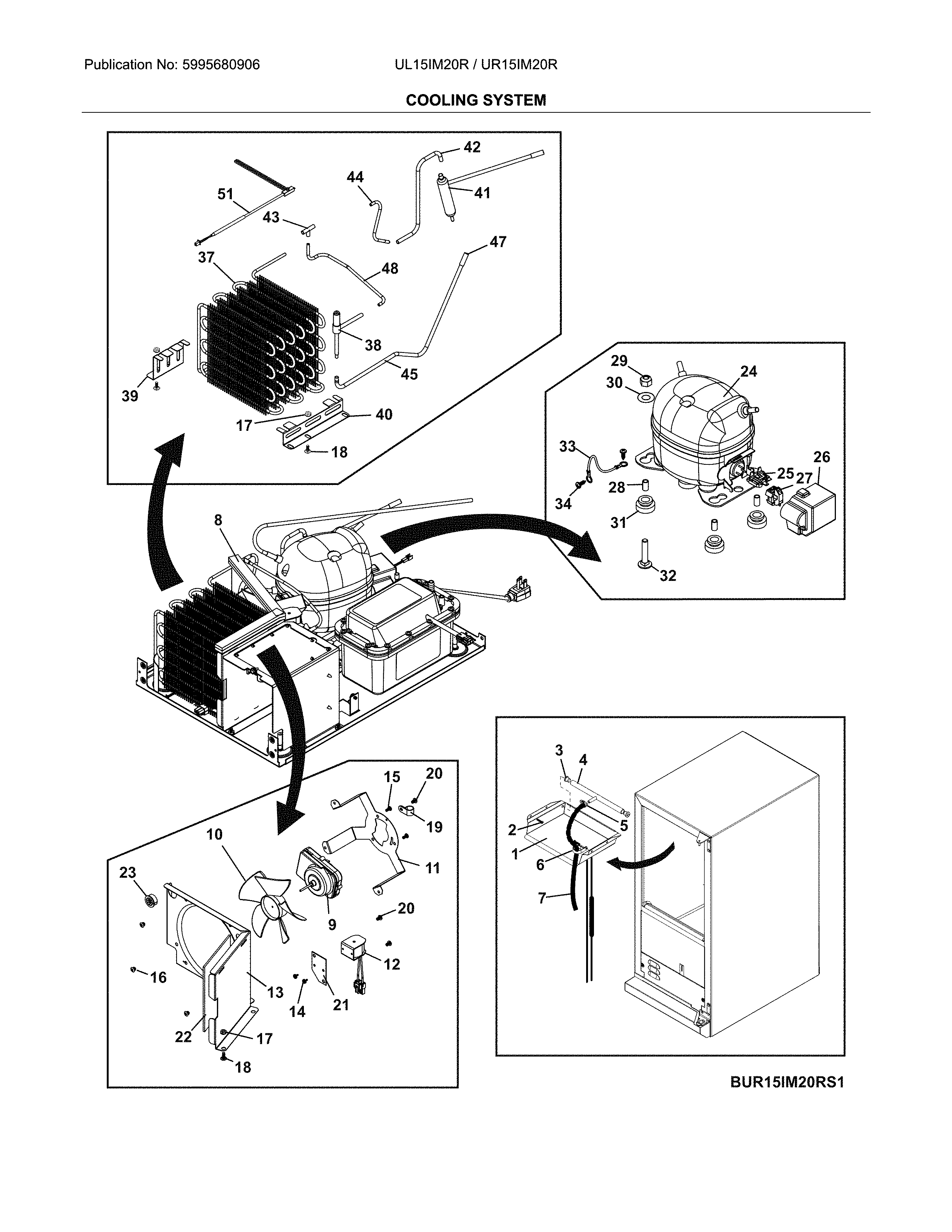

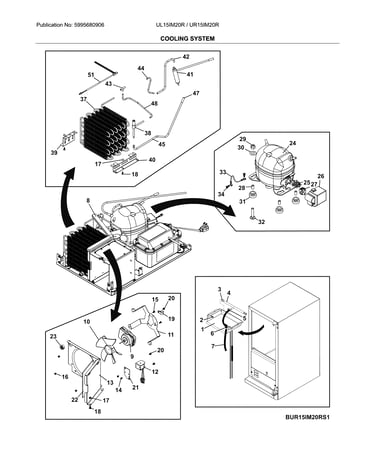

Cooling system diagram

Pan head screw, #8-32 x 3/8-in

Part #5304496778

Replaced by #5304480396

?
Manufacturer substitution
This part replaces 5304496778. Substitute parts can look different from the original.
$11.17
In Stock
Hinge 5304496819
#2

Cabinet front diagram

Hinge

Part #5304496819

$104.51
In Stock
Pin 5304496824
#3

Cabinet front diagram

Pin

Part #5304496824

$150.40
In Stock
Switch,rocker ,light 5304507946
#27

Cabinet front diagram

Switch,rocker ,light

Part #5304507946

$56.04
In Stock
Motor 5304496779
#9

Cooling system diagram

Motor

Part #5304496779

$257.25
In Stock
Blade 5304496782
#10

Cooling system diagram

Blade

Part #5304496782

$61.53
In Stock
Cord 5304503826
#17

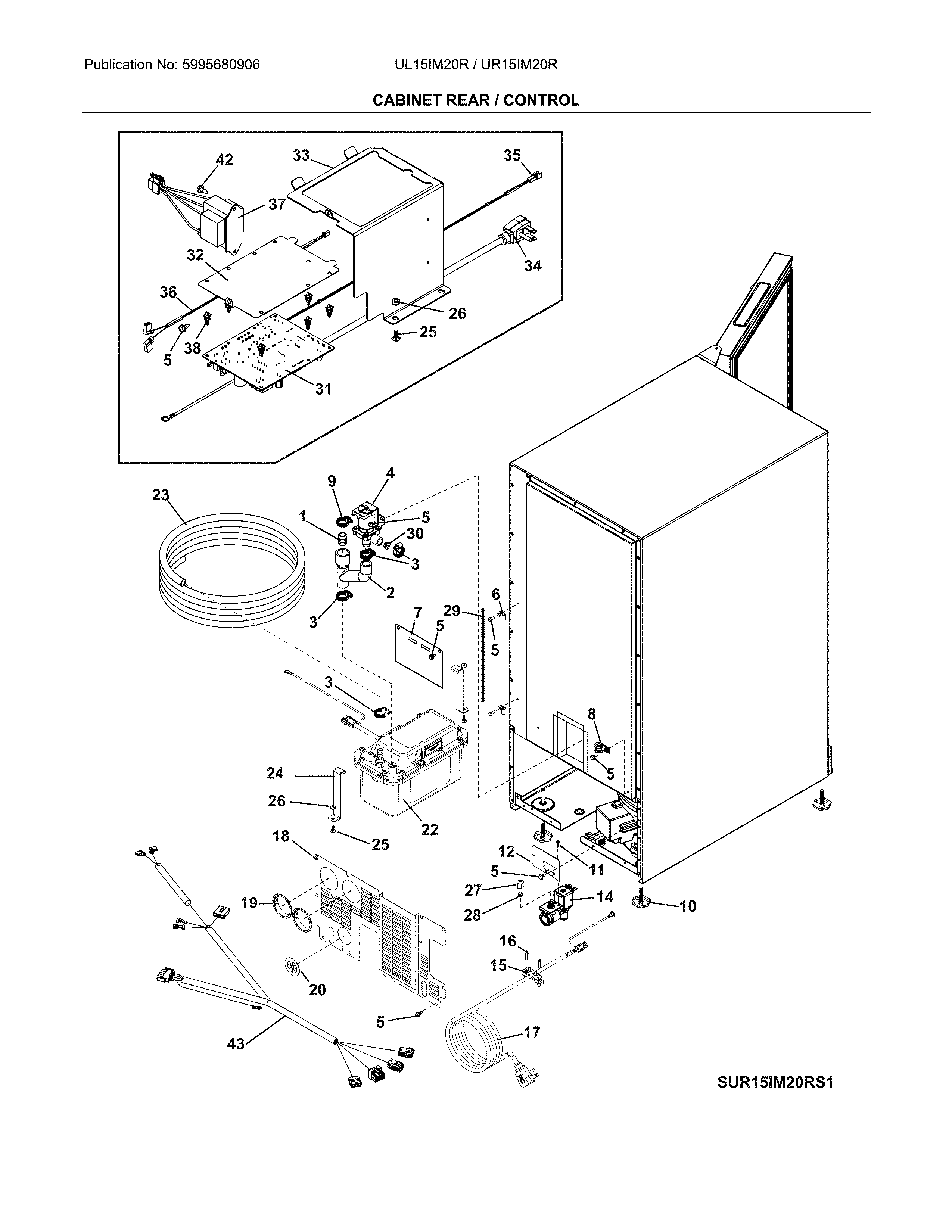

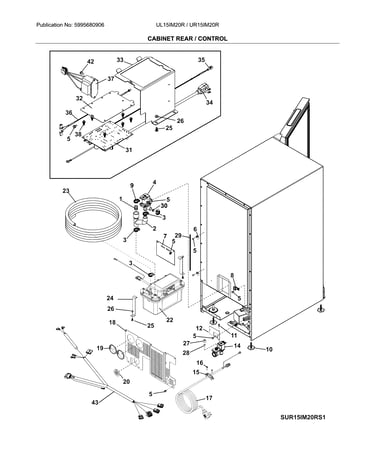

Cabinet rear/control diagram

Cord

Part #5304503826

$107.56
In Stock
Evaporator Assembly 5304507954
#1

Cooling system diagram

Evaporator assembly

Part #5304507954

$793.51
In Stock
