Model # MVAM048ME2AA1 Official GE room a/c

Here are the diagrams and repair parts for Official GE MVAM048ME2AA1 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

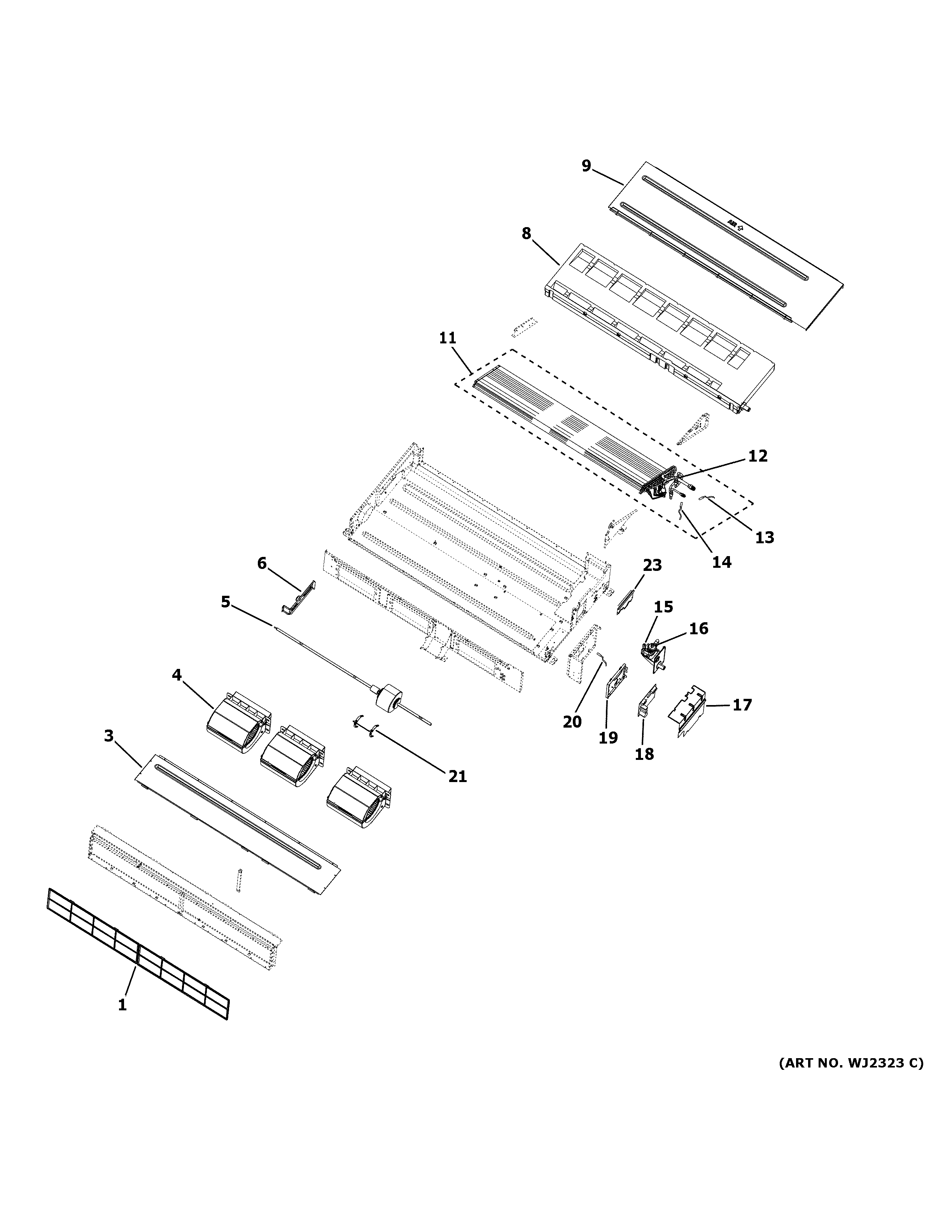

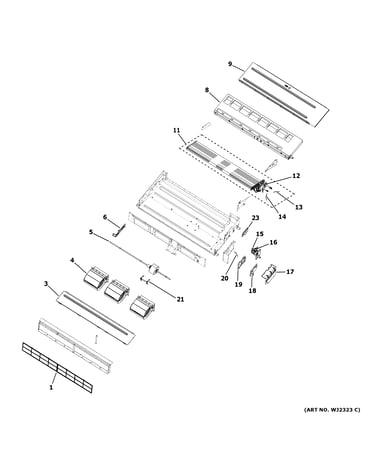

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Liquid Pipe WJ26X22533
#14

Room air conditioner diagram

Liquid pipe

Part #WJ26X22533

$13.20
In Stock
Ambient Temp WJ26X22747
#20

Room air conditioner diagram

Ambient temp

Part #WJ26X22747

This item is not returnable
$5.31
In Stock
Vapor Pipe T WJ26X22537
#13

Room air conditioner diagram

Vapor pipe t

Part #WJ26X22537

$13.20
In Stock
Control Box Cover WP76X26775
#17

Room air conditioner diagram

Control box cover

Part #WP76X26775

$21.46
In Stock
Fan Motor Bearing Bracket WP76X26781
#6

Room air conditioner diagram

Fan motor bearing bracket

Part #WP76X26781

$73.04
In Stock
Filter WP85X26780
#1

Room air conditioner diagram

Filter

Part #WP85X26780

$39.91
In Stock
Front Cover WP76X26794
#9

Room air conditioner diagram

Front cover

Part #WP76X26794

$110.20
In Stock
Float Switch WJ27X22611
#15

Room air conditioner diagram

Float switch

Part #WJ27X22611

$45.96
In Stock
Electronic E X Pansion Valve WP35X26788
#12

Room air conditioner diagram

Electronic e x pansion valve

Part #WP35X26788

$166.96
In Stock
Main Board Base WP76X26777
#19

Room air conditioner diagram

Main board base

Part #WP76X26777

$24.43
In Stock
